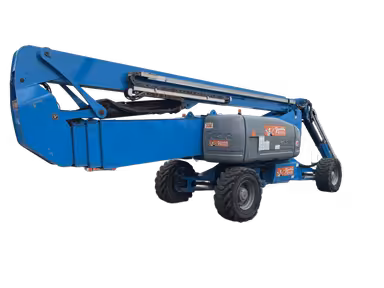

Genie Z-135 Boom lifts tech specs
:quality(50)/76126/conversions/54bb6042-45a4-433f-97f2-4691a04a1cd1-thumb.webp)
Video[1]
:quality(50)/76117/conversions/5eaa971c-9f61-4e25-82e1-0574e5e255f2-thumb.webp)
Interior [3]
:quality(50)/76120/conversions/72623e28-752c-48a5-b14a-4a94316d9073-thumb.webp)
Exterior [4]
:quality(50)/76124/conversions/26f98ade-3848-46ed-a776-85972f0f9198-thumb.webp)
Attachments [2]
Genie Z-135 Technical specifications
General
Engine model
TD 2011 L04i
Fuel type
Diesel
Max horizontal reach
18.04 m
Max speed forward
4.83 kph
Max working height
43.16 m
Operating weight
20,366 kg
Platform rotation
160 º
Tire size
445/65 D22.5
Wheelbase
4.11 m
Service refill capacities
Fuel cap
151.4 liter
Hydraulic fluid cap
246.4 liter
Engine
Gross power
58.17 kw
Dimensions
Ground clearance
0.51 m
Stowed height
3.08 m
Overall Length
1.08 m
Overall Width
2.47 m
Turning radius
7.77 m
Platform
Platform Dimension B
244.09 cm
Platform Dimension A
91.19 cm
Performance
Platform Capacity - Unrestricted
227.02 kg
Operating specifications
Tire Type
Foam filled
Download datasheets
Genie Z-135 similar models
Highlight differences
Engine model
Engine model TD 2011 L04i
Engine model Deutz TCD2.9L4
Engine model TD2011 L04i
Fuel type
Fuel type Diesel
Fuel type Diesel
Fuel type Diesel
Max horizontal reach
Max horizontal reach 18.04 m
Max horizontal reach 22.86 mm
Max horizontal reach 23.32 mm
Max speed forward
Max speed forward 4.83 kph
Max speed forward -
Max speed forward 5.63 kph
Max working height
Max working height 43.16 m
Max working height 38.4 m
Max working height 27.71 m
Operating weight
Operating weight 20,366 kg
Operating weight 18,550 kg
Operating weight 17,236 kg
Platform rotation
Platform rotation 160 º
Platform rotation 180 º
Platform rotation 160 degrees
Tire size
Tire size 445/65 D22.5
Tire size 445/500710
Tire size Foam filled 18-625, 16 ply
Wheelbase
Wheelbase 4.11 m
Wheelbase 3.81 m
Wheelbase 2.87 mm
Gradeability
Gradeability -
Gradeability 24 º
Gradeability -
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12
Tires size
Tires size -
Tires size -
Tires size 18-625, 16 ply
Years
Years 2006-2018
Years 2002-2021
Years 2025
Market Average
Market Average AED 312,000
Market Average AED 514,000
Market Average AED 125,000
Price
Price AED 286,000
Price AED 289,740
Price AED 120,000
Fuel cap
Fuel cap 151.4 liter
Fuel cap 117.35 liter
Fuel cap 132.1 liter
Hydraulic fluid cap
Hydraulic fluid cap 246.4 liter
Hydraulic fluid cap 208.2 liter
Hydraulic fluid cap 150.26 liter
Gross power
Gross power 58.17 kw
Gross power 55.33 kw
Gross power 55.18 kw
Ground clearance
Ground clearance 0.51 m
Ground clearance 30 cm
Ground clearance 0.4 cm
Stowed height
Stowed height 3.08 m
Stowed height 3.05 m
Stowed height 2.8 mm
Overall Length
Overall Length 1.08 m
Overall Length 12.09 m
Overall Length 12.29 m
Overall Width
Overall Width 2.47 m
Overall Width 2.49 m
Overall Width 2.5 m
Turning radius
Turning radius 7.77 m
Turning radius 5.89 m
Turning radius 3.69 m
Axle Oscillation
Axle Oscillation -
Axle Oscillation 0.3 m
Axle Oscillation -
Platform Dimension B
Platform Dimension B 244.09 cm
Platform Dimension B 0.91 m
Platform Dimension B 91.19 m
Platform Dimension A
Platform Dimension A 91.19 cm
Platform Dimension A 2.44 m
Platform Dimension A 244.09 m
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227 kg
Platform Capacity - Unrestricted 227.02 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 5.23 kph
Drive Speed - Platform Lowered -
Tire Type
Tire Type Foam filled
Tire Type Foam-Filled
Tire Type Foam filled
Swing
Swing -
Swing 360 º
Swing -
Swing type
Swing type -
Swing type Continuous
Swing type -
Drive speed - platform elevated
Drive speed - platform elevated -
Drive speed - platform elevated -
Drive speed - platform elevated 1.13 kph
