JLG 2646 Scissor lifts tech specs
:quality(50)/https://www.makana.com/58894/b89734cf-4bc7-4dd8-a88a-c9ba9fc460af.png)
:quality(50)/https://www.makana.com/58903/conversions/63099a06-5b1c-4475-9a0f-24260dec117f-webp.webp)
:quality(50)/https://www.makana.com/58896/conversions/f5a74700-f089-4af2-87ce-1019c36645b9-webp.webp)
:quality(50)/https://www.makana.com/58897/conversions/c8a18302-2df7-47bf-a631-ecb8d8c462a2-webp.webp)
:quality(50)/https://www.makana.com/58901/conversions/9e8c8d20-63f6-41a6-a024-87e1e855352c-webp.webp)

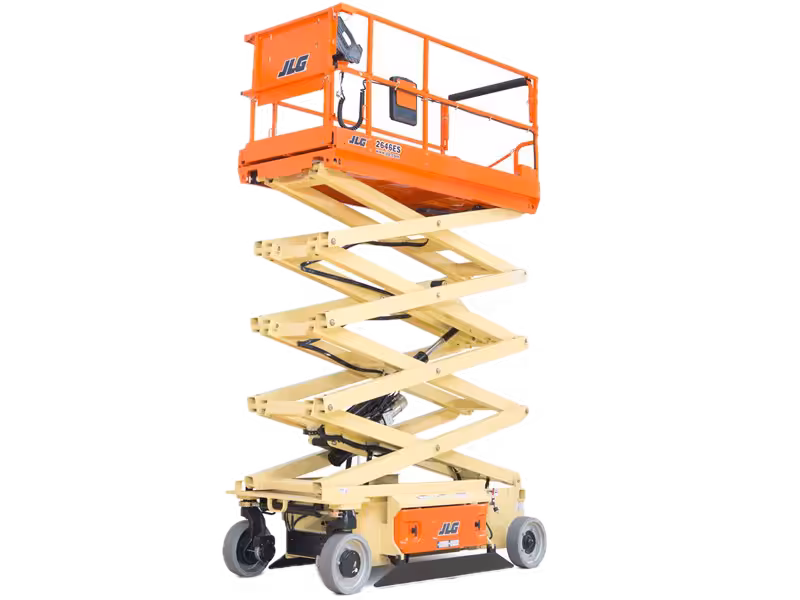

The JLG 2646 ES brings serious reach with smart simplicity. You get a 26 ft (7.92 m) platform height or 32 ft (9.75 m) working height, all packed in a narrow 1.17 m (3′ 10″) width. With a hefty 453 kg (1,000 lb) capacity—including 113 kg (250 lb) on the extension deck—it's a silent, reliable arena pro that fits through doors and finishes the job.
Platform Height: 26 ft / 7.92 m; Working Height: 32 ft / 9.75 m
Width: 3′ 10″ / 1.17 m; Length: ~2.5 m
Platform Dimensions: ~2.5 m × 1.12 m; extension +1.27 m
Capacity: 453 kg net; 113 kg extension deck
Weight: ~2,257 kg (4,975 lb)
Lift/Lower Time: ~41 s / ~50 s
Speeds: Lowered ~4 km/h; Elevated ~0.8 km/h
Gradeability: ~25%
Turning Radius: Inside 0; Outside ~2.42 m
Power & Service: 24 V electric drive, 4×6 V batteries (220 Ah), fixed-displacement pump, only 2 hoses & 4 fittings—service-friendly design
JLG 2646 Technical specifications
Engine
Battery amps
200 Amh
Charger amps
20 Amh
Number of batteries
4
Operating specifications
Brake system
Electric, Friction
Deck extension
90.17 cm
Platform railing height
113 cm
Raise time
41 seconds
Lower time
50 seconds
Tire Type
Solid, Non-marking
Transmission
Drive speed - platform elevated
0.8 kph
Performance
Drive Speed - Platform Lowered
4.02 kph
Platform Capacity - Extension
113.4 kg
Platform Capacity - Unrestricted
453.59 kg
General
Gradeability
25 º
Max working height
9.75 m
Operating weight
2,163 kg
Operating voltage
24 V
Tire size
16x5
Dimensions
Ground clearance
12.7 cm
Height w/ Rails
2.37 m
Height w/o Rails
1.98 m
Overall Length
25.4 m
Overall Width
1.19 m
Turning radius
2.19 m
Wheelbase
1.86 m
Undercarriage
Ground pressure
6 bar
Hydraulic system
Pump type
Fixed Displacement Gear
Service refill capacities
Hydraulic fluid cap
6.43 liter
Platform
Platform Dimension A
2.53 m
Platform Dimension B
1.16 m
JLG 2646 expert review
Overview
Efficient, tall, and tight—designed for long shifts in narrow spaces and built to run clean and quiet.
Heavy-duty capacity and low service needs.
Extension adds weight to consider.
Performance & Efficiency
Fast cycles, smooth drive, and easy servicing keep uptime high and downtime minimal.
Verdict
For tight corridors with real load and reach, the JLG 2646 ES doesn’t make compromises—it just works.
