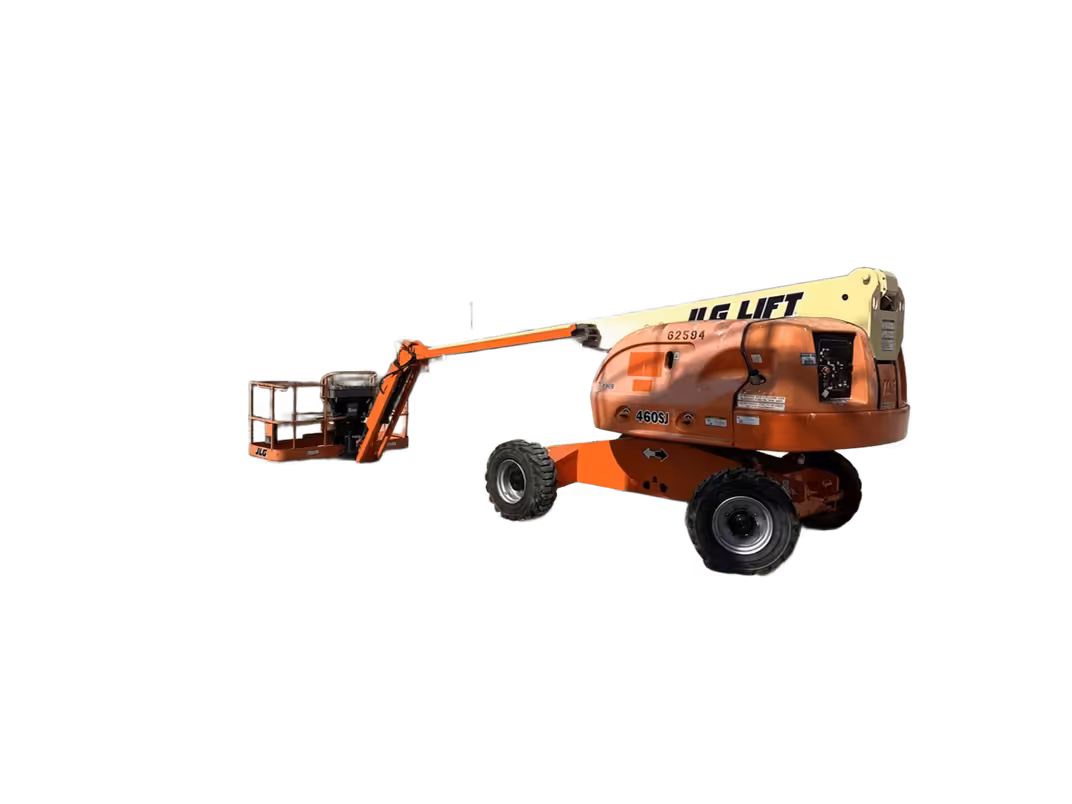

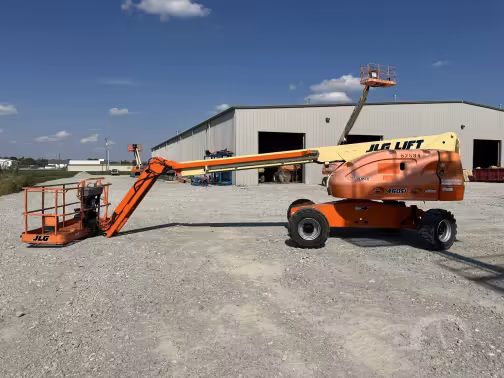

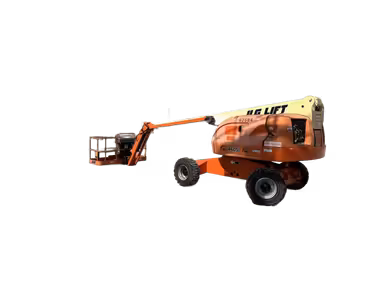

JLG 460 Boom lifts tech specs

Video[1]

Interior [2]

Exterior [4]

Attachments [1]

2016-2020

7,530 kg Operating weight

12 x 16.5 Tire size

1,200 mm Max horizontal reach

15.85 m Max working height

36.4 kw Gross power

272 kg Platform Capacity - Unrestricted

A mid-height straight-boom lift designed for busy construction and maintenance sites, the JLG 460 delivers a 15.85 m maximum working height with full 360° continuous swing and strong platform capacity. Powered by a Deutz D2.9 L4 diesel engine producing 36.4 kilowatt, it balances reach, maneuverability, and durability for daily site work.

Max working height 15.85 m

Max horizontal reach 12.0 m

Platform capacity 272 kg (unrestricted)

Engine power 36.4 kilowatt (Deutz D2.9 L4 diesel)

360° continuous swing

Platform rotation 180°

Operating weight 7,530 kg

Foam-filled tires for rough sites

Makana rating

Owner rating

| 3

Market average

AED 220,000

Starting from

AED 128,500

JLG 460 Technical specifications

General

Engine model

Deutz D2.9L4

Operating weight

7,530 kg

Fuel type

Diesel

Gradeability

24 º

Tire size

12 x 16.5

Operating voltage

Turning radius

4.83 m

Max horizontal reach

1200 mm

Wheelbase

2.39 m

Max working height

15.85 m

Platform rotation

180 degrees

Engine

Gross power

36.4 kw

Dimensions

Ground clearance

31 m

Stowed height

2.49 mm

Axle Oscillation

0.2 m

Overall Length

8.91 m

Overall Width

2.31 m

Service refill capacities

Fuel cap

83.3 liter

Hydraulic fluid cap

121 liter

Operating specifications

Swing

360 degrees

Swing type

Continuous

Tire Type

Foam-Filled

Performance

Platform Capacity - Unrestricted

272 kg

Drive Speed - Platform Lowered

7.2 kph

Platform

Platform Dimension A

2.44 m

Platform Dimension B

0.91 m

Download datasheets

OEM product brochure

JLG 460 expert review

Reviewed by Mohammed E. on February 9, 2026

Overview

The JLG 460 (2016–2020) is a mid-height straight-boom lift designed for construction and maintenance work. It delivers a 15.85 m maximum working height with full 360° continuous swing and a stable platform.

Expert rating: 5 stars

Pros Practical reach, strong platform capacity, good site maneuverability.

Cons Not suitable for high-rise access work.

Performance & Efficiency

The 36.4 kilowatt Deutz engine provides reliable power for lift and swing functions, while a 7.2 km/h drive speed supports efficient repositioning.

In Comparison

JLG 450: Smaller and easier to transport.
Haulotte HA16: Similar height with different operating feel.
JLG 460: Balanced mid-height straight-boom solution.

Final Verdict

Rated 5 stars, the JLG 460 is a solid choice in the AED 128,500–220,000 range.

Show less

JLG 460 owner rating

JLG 460 Boom lifts [2016-2020]

2016-2020

Overall rating

Based on 3 ratings

4.7

performance

4.7

comfort

4.3

fuel efficiency

4.7

safety

4.7

features

4.3

5 stars

67 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros

Easy to position on site with useful extra reach.

Cons

Not intended for high-rise or extreme access work.

Submitted by on Feb 9, 2026 / JLG 460 Boom lifts / Purchased on Mar, 2017

performance

4.0

comfort

5.0

fuel efficiency

5.0

safety

4.0

features

4.0

Valuation

Last 12 month

2016

2017

JLG 460 similar models

Highlight differences

JLG 460SJ

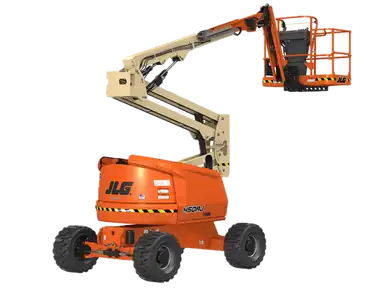

JLG 450AJ

Haulotte HA16SPX

General

Engine model

Engine model Deutz D2.9L4

Engine model Deutz D2.9 L4 Tier 4 Final

Engine model -

Operating weight

Operating weight 7,530 kg

Operating weight 5,737 kg

Operating weight 6,850 kg

Fuel type

Fuel type Diesel

Fuel type -

Fuel type Diesel

Gradeability

Gradeability 24 º

Gradeability 45 º

Gradeability -

Tire size

Tire size 12 x 16.5

Tire size 33/1550 x 16.5 Superwide

Tire size 350-14-17.5

Operating voltage

Operating voltage 12

Operating voltage 12 V

Operating voltage -

Turning radius

Turning radius 4.83 m

Turning radius 4.82 m

Turning radius 4.02 m

Max horizontal reach

Max horizontal reach 1,200 mm

Max horizontal reach 7,320 mm

Max horizontal reach 9,110 mm

Wheelbase

Wheelbase 2.39 m

Wheelbase -

Wheelbase 2.01 m

Max working height

Max working height 15.85 m

Max working height -

Max working height 16 m

Platform rotation

Platform rotation 180 degrees

Platform rotation -

Platform rotation 180 º

Years

Years 2016-2020

Years 2004-2014

Market Average

Market Average AED 220,000

Market Average AED 76,000

Market Average AED 162,000

Price

Price AED 128,500

Price AED 44,000

Price AED 89,000

Engine

Gross power

Gross power 36.4 kw

Gross power 61.15 kw

Gross power 31.02 kw

Dimensions

Ground clearance

Ground clearance 31 m

Ground clearance 30.48 cm

Ground clearance 38.1 cm

Stowed height

Stowed height 2.49 mm

Stowed height 2.29 m

Stowed height 2.23 m

Axle Oscillation

Axle Oscillation 0.2 m

Axle Oscillation 0.12 m

Axle Oscillation -

Overall Length

Overall Length 8.91 m

Overall Length 5.51 m

Overall Length 5.56 m

Overall Width

Overall Width 2.31 m

Overall Width 2.41 m

Overall Width 2.26 m

Service refill capacities

Fuel cap

Fuel cap 83.3 liter

Fuel cap 60.56 liter

Fuel cap 55.26 liter

Hydraulic fluid cap

Hydraulic fluid cap 121 liter

Hydraulic fluid cap 136.26 liter

Hydraulic fluid cap 100.3 liter

Operating specifications

Swing

Swing 360 degrees

Swing 355 º

Swing -

Swing type

Swing type Continuous

Swing type Non-Continuous

Swing type -

Tire Type

Tire Type Foam-Filled

Tire Type -

Tire Type foam filled

Platform railing height

Platform railing height -

Platform railing height 137 cm

Platform railing height -

Raise time

Raise time -

Raise time 45 seconds

Performance

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted 272 kg

Platform Capacity - Unrestricted 249.48 kg

Platform Capacity - Unrestricted 230.02 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered 7.2 kph

Drive Speed - Platform Lowered 6.92 kph

Drive Speed - Platform Lowered 5.63 kph

Platform

Platform Dimension A

Platform Dimension A 2.44 m

Platform Dimension A 0.79 m

Platform Dimension A 0.81 m

Platform Dimension B

Platform Dimension B 0.91 m

Platform Dimension B 1.83 m

Platform Dimension B 1.81 m

Undercarriage

Ground pressure

Ground pressure -

Ground pressure 3.31 bar

Ground pressure -

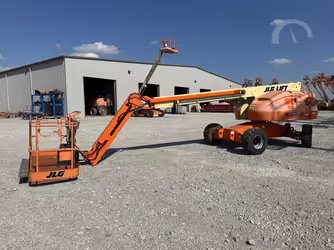

JLG 460 gallery
