JLG 600 Boom lifts tech specs

Video[1]

Exterior [4]

Interior [2]

Attachments [2]

2013-2020

Deutz D2.9L4 Engine model

4WD Drive type

14x17.5 Tire size

2.56 mm Stowed height

2.44 m Overall Width

AT/60.7 Boom Type

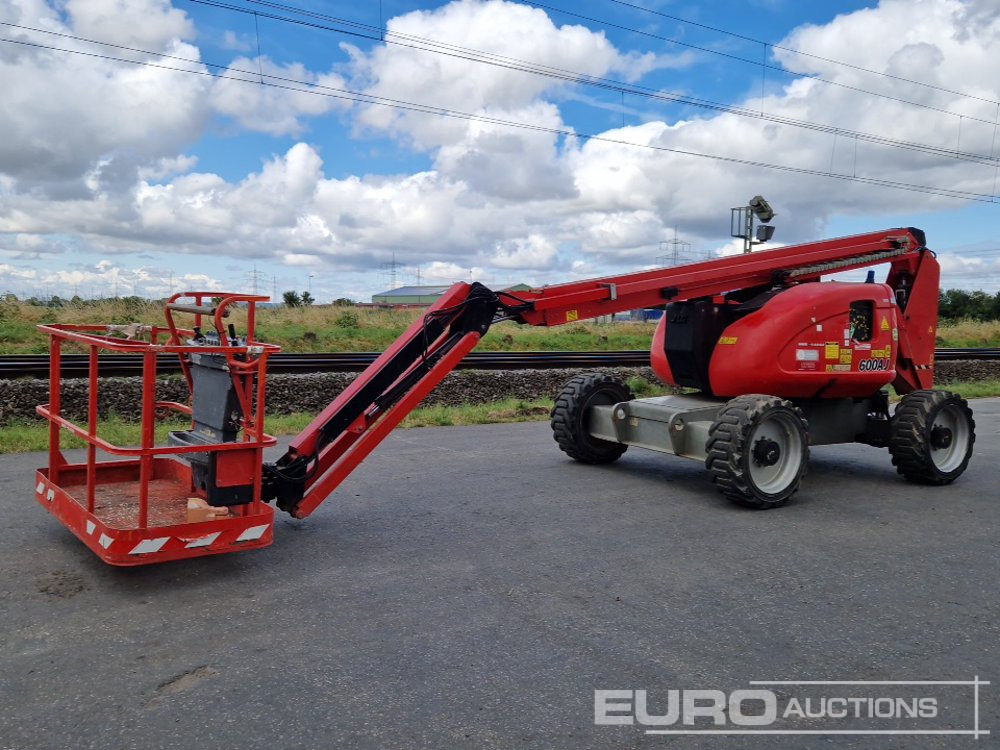

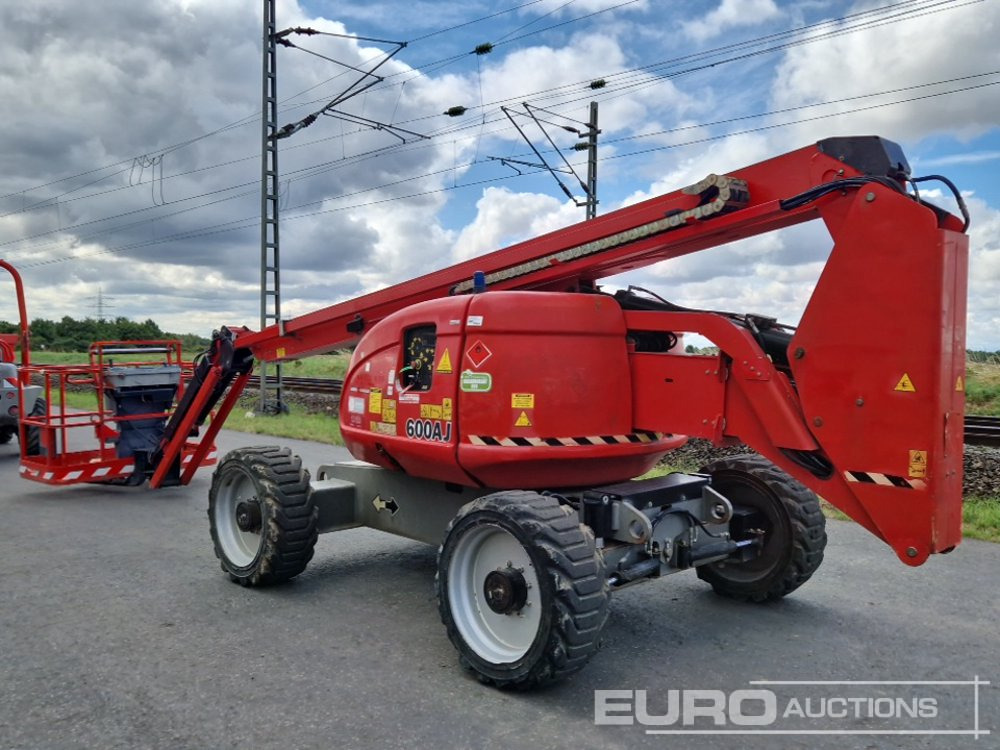

The JLG 600 AJ brings class-leading reach—18.5 m (60 ft 7 in) platform height and 12.1 m (39 ft 9 in) horizontal reach—all while hugging a zero-tail-swing footprint. It handles up to 227 kg (500 lb), cruises in tight construction zones with full-height 4WD drive, and keeps uptime high without fuss.

Working / Platform Height: ~18.5 m (60 ft 7 in) / ~18.5 m (platform height)

Horizontal Reach: ~12.1 m (39 ft 9 in)

Up-and-Over Height: ~8.1 m (26 ft 7 in)

Platform Capacity: 227 kg (500 lb) unrestricted

Platform Size: ~0.91 m × 1.83 m, side-entry with self-closing gate

Weight: approx. 10,300 kg (22,700 lb)

Drive & Gradeability: 4WD, drivable at full height, speed ~6.8 km/h; gradeability ~45 %

Rotation & Jib: Continuous 360° swing, 180° platform rotator, jib ~1.83 m with ±70°/–60° articulation

Power Options: Diesel (Deutz Tier-4, ~49 hp) or Dual-Fuel (Ford ~84 hp), fuel tank ~114 L

Makana rating

Owner rating

| 3

Market average

AED 19,800

Starting from

AED 15,000

JLG 600 technical specifications

Highlight differences

JLG 600AJ

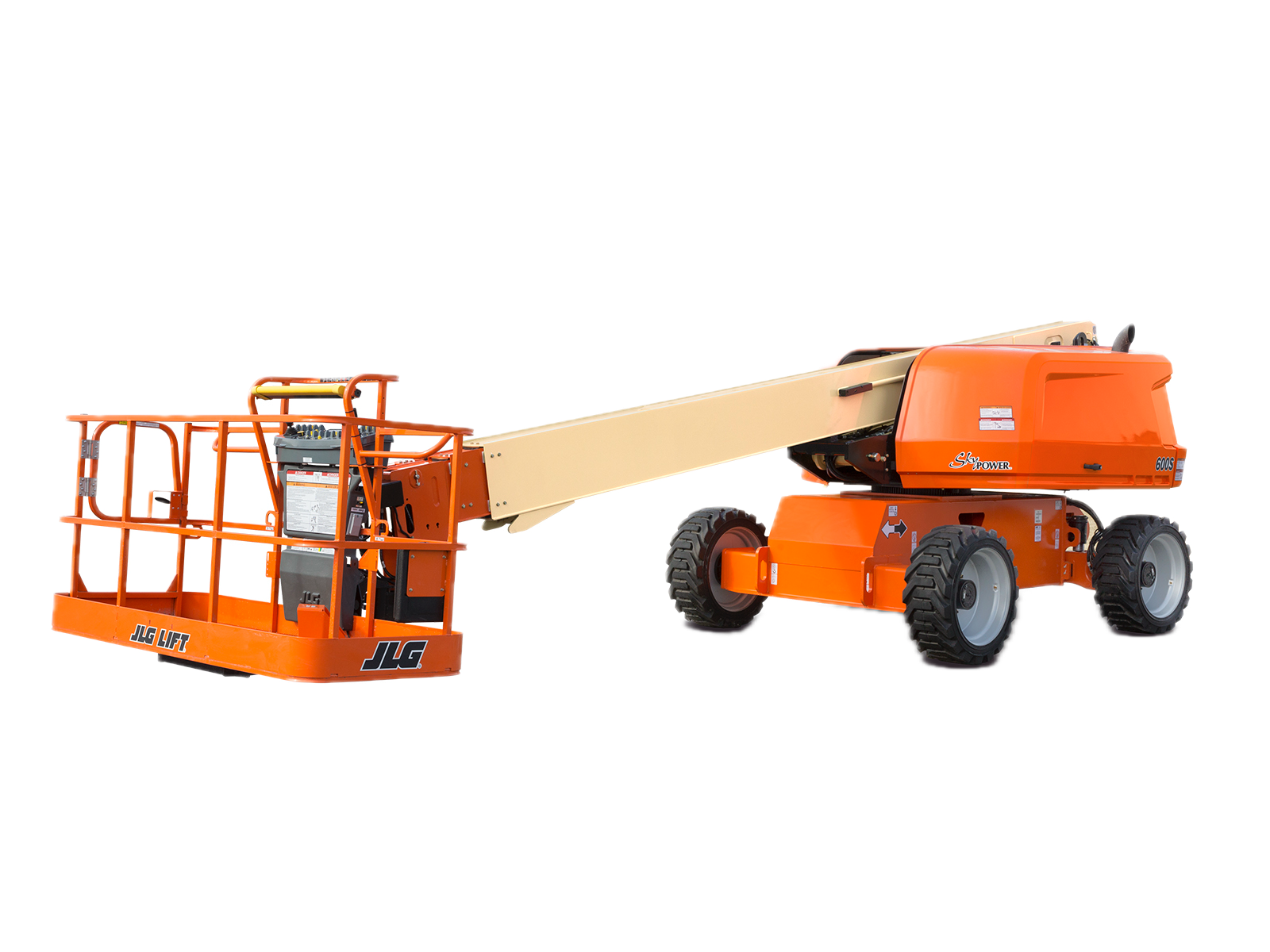

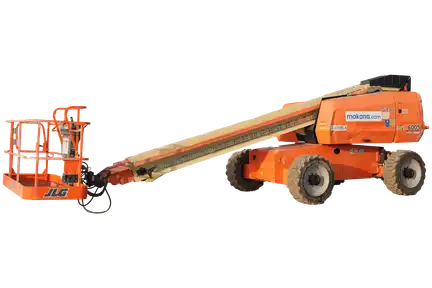

JLG 600S

General

Engine model

Engine model Deutz D2.9L4

Drive type

Drive type 4WD

Drive type -

Tire size

Tire size 14x17.5

Tire size 41/181.1 X 22.5

Boom Type

Boom Type AT/60.7

Boom Type -

Operating weight

Operating weight -

Operating weight 9,734 kg

Fuel type

Fuel type -

Fuel type Diesel

Gradeability

Gradeability -

Gradeability 24 º

Operating voltage

Operating voltage -

Operating voltage 12

Turning radius

Turning radius -

Turning radius 2 m

Max horizontal reach

Max horizontal reach -

Max horizontal reach 15,290 mm

Wheelbase

Wheelbase -

Wheelbase 2.46 m

Max working height

Max working height -

Max working height 20 m

Platform rotation

Platform rotation -

Platform rotation 160 degrees

Years

Years 2013-2020

Market Average

Market Average AED 19,800

Price

Price AED 15,000

Dimensions

Stowed height

Stowed height 2.56 mm

Stowed height 2.5 mm

Overall Width

Overall Width 2.44 m

Overall Width 2.49 m

Ground clearance

Ground clearance -

Ground clearance 28 m

Axle Oscillation

Axle Oscillation -

Axle Oscillation 0.2 m

Overall Length

Overall Length -

Overall Length 8.71 m

Engine

Gross power

Gross power -

Gross power 49.96 kw

Service refill capacities

Fuel cap

Fuel cap -

Fuel cap 117.35 liter

Hydraulic fluid cap

Hydraulic fluid cap -

Hydraulic fluid cap 128.7 liter

Operating specifications

Swing

Swing -

Swing 360 degrees

Swing type

Swing type -

Swing type Continuous

Tire Type

Tire Type -

Tire Type Foam-Filled

Performance

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted -

Platform Capacity - Unrestricted 272 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered -

Drive Speed - Platform Lowered 6.8 kph

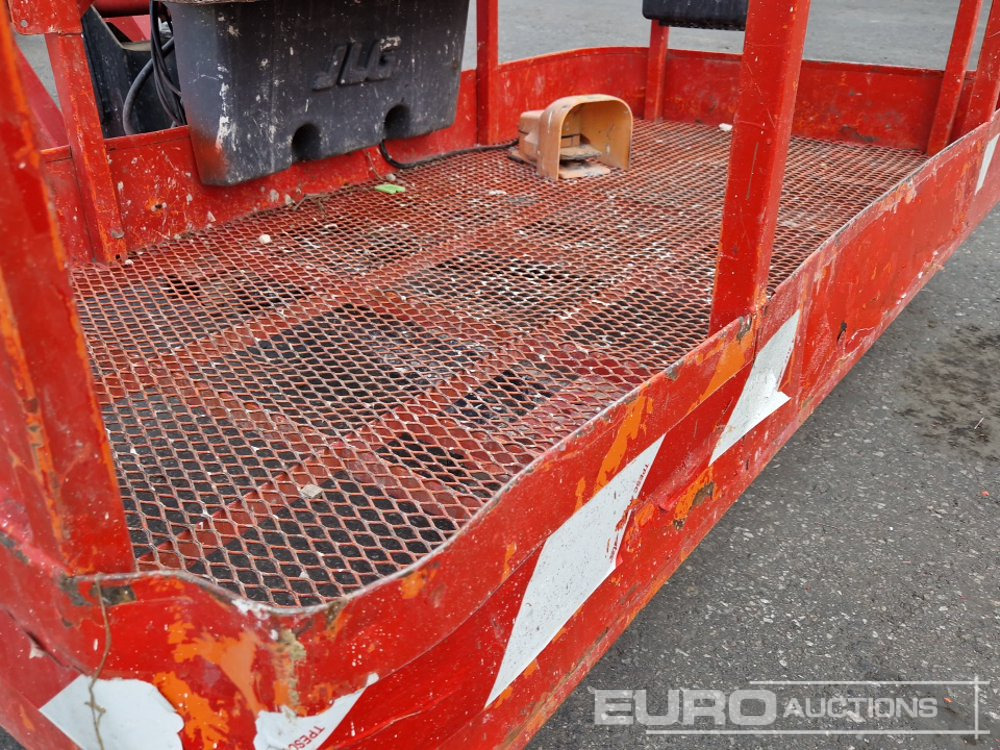

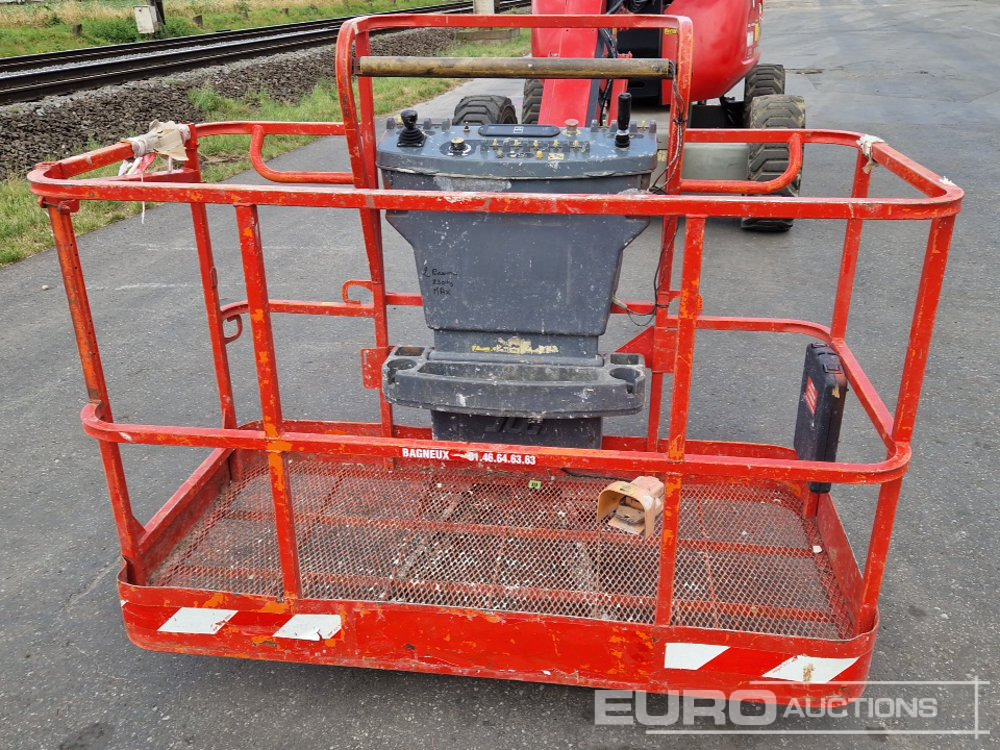

Platform

Platform Dimension A

Platform Dimension A -

Platform Dimension A 0.91 m

Platform Dimension B

Platform Dimension B -

Platform Dimension B 2.44 m

Download datasheets

OEM product brochure

JLG 600 expert review

Reviewed by Mohamad H. on September 10, 2025

Overview

Reach tall, stay narrow—smart design that stays running when others quit.

Pros Top-tier height and reach in tight footprint.
Rugged and maneuverable with smart uptime design.

Cons Heavy platform—logistics matter.
Diesel/dual-fuel—fuel strategy needed.

Performance & Efficiency

Precise handling, steady traction, smart control layout—built to cut downtime, not corners.

Verdict

JLG 600 AJ hits high, stays true—lean, powerful, and built for real jobs.

Show less

JLG 600 owner rating

JLG 600 Boom lifts [2013-2020]

2013-2020

Overall rating

Based on 3 ratings

4.3

performance

4.3

comfort

4.7

fuel efficiency

4.7

safety

4.3

features

4.3

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros

Excellent reach with a narrow, maneuverable design makes it effective for high-access work in constrained job sites.

Cons

Heavy transport weight and diesel or dual-fuel operation require careful logistics and fuel planning.

Submitted by on Feb 22, 2026 / JLG 600 Boom lifts / Purchased on Aug, 2019

performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

JLG 600 similar models

Highlight differences

JLG 600AJ

Haulotte HA16SPX

Skyjack SJ63 AJ

General

Engine model

Engine model Deutz D2.9L4

Engine model -

Drive type

Drive type 4WD

Drive type -

Tire size

Tire size 14x17.5

Tire size 350-14-17.5

Tire size 10.5 x 17.5

Boom Type

Boom Type AT/60.7

Boom Type -

Fuel type

Fuel type -

Fuel type Diesel

Fuel type -

Max horizontal reach

Max horizontal reach -

Max horizontal reach 9,110 mm

Max horizontal reach 7,560 mm

Max working height

Max working height -

Max working height 16 m

Max working height -

Operating weight

Operating weight -

Operating weight 6,850 kg

Operating weight 9,616 kg

Platform rotation

Platform rotation -

Platform rotation 180 º

Platform rotation -

Turning radius

Turning radius -

Turning radius 4.02 m

Turning radius 2.23 m

Wheelbase

Wheelbase -

Wheelbase 2.01 m

Wheelbase 2.47 m

Gradeability

Gradeability -

Gradeability 45 º

Years

Years 2013-2020

Years 2004-2014

Years 2013-2020

Market Average

Market Average AED 19,800

Market Average AED 162,000

Market Average AED 220,000

Price

Price AED 15,000

Price AED 89,000

Price AED 180,000

Dimensions

Stowed height

Stowed height 2.56 mm

Stowed height 2.23 m

Stowed height 2.56 m

Overall Width

Overall Width 2.44 m

Overall Width 2.26 m

Overall Width 2.47 m

Ground clearance

Ground clearance -

Ground clearance 38.1 cm

Ground clearance 39.12 cm

Overall Length

Overall Length -

Overall Length 5.56 m

Overall Length 9.42 m

Axle Oscillation

Axle Oscillation -

Axle Oscillation 10.18 m

Service refill capacities

Fuel cap

Fuel cap -

Fuel cap 55.26 liter

Fuel cap 115.06 liter

Hydraulic fluid cap

Hydraulic fluid cap -

Hydraulic fluid cap 100.3 liter

Hydraulic fluid cap 115.06 liter

Engine

Gross power

Gross power -

Gross power 31.02 kw

Gross power 61.15 kw

Operating specifications

Raise time

Raise time -

Raise time 45 seconds

Raise time -

Tire Type

Tire Type -

Tire Type foam filled

Tire Type Grip lug air-filled

Performance

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted -

Platform Capacity - Unrestricted 230.02 kg

Platform Capacity - Unrestricted 227.02 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered -

Drive Speed - Platform Lowered 5.63 kph

Drive Speed - Platform Lowered 7.72 kph

Platform

Platform Dimension B

Platform Dimension B -

Platform Dimension B 1.81 m

Platform Dimension B -

Platform Dimension A

Platform Dimension A -

Platform Dimension A 0.81 m

Platform Dimension A -

Jib Length

Jib Length -

Jib Length 1.71 m

Undercarriage

Ground pressure

Ground pressure -

Ground pressure 11.51 bar
