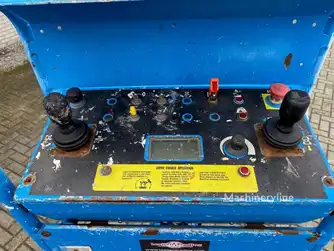

Interior [2]
:quality(50)/76162/conversions/33ed0f55-6d36-4a75-8430-76182975fd5b-thumb.webp)

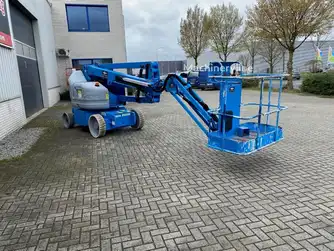

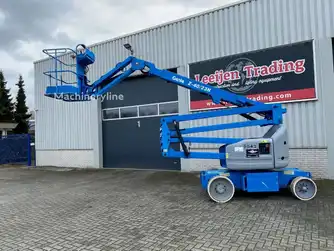

Exterior [4]
:quality(50)/76166/conversions/9f9c165c-33e1-41ff-9229-cd065748e3a9-thumb.webp)

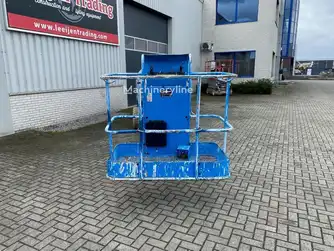

Attachments [1]
Genie Z-40 technical specifications
Highlight differences
Battery amperage
Battery amperage 315 Amh
Battery amperage 315 Amh
Number of batteries
Number of batteries 8
Number of batteries 8
Years
Years 2007-2018
Years 2007-2018
Market Average
Market Average AED 110,000
Market Average AED 110,000
Price
Price AED 70,000
Price AED 70,000
Ground clearance
Ground clearance 0.18 m
Ground clearance 0.18 m
Stowed height
Stowed height 1.98 m
Stowed height 2.01 m
Overall Length
Overall Length 0.55 m
Overall Length 0.55 m
Overall Width
Overall Width 1.52 m
Overall Width 1.52 m
Turning radius
Turning radius 3.2 m
Turning radius 3.2 m
Wheelbase
Wheelbase 1.98 m
Wheelbase 1.98 m
Boom size
Boom size -
Boom size 12.34 m
Hydraulic fluid cap
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 30.28 liter
Platform Dimension B
Platform Dimension B 142.24 cm
Platform Dimension B 117.09 cm
Platform Dimension A
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Max horizontal reach
Max horizontal reach 6.92 m
Max horizontal reach 6.92 m
Max speed forward
Max speed forward 7.24 kph
Max speed forward 7.24 kph
Max working height
Max working height 14.33 m
Max working height 14.33 m
Operating voltage
Operating voltage 48 V
Operating voltage 48 V
Operating weight
Operating weight 6,908 kg
Operating weight 6,940 kg
Platform rotation
Platform rotation 180 º
Platform rotation 180 º
Tire size
Tire size front: 22x7x17.75, rear: 25.6x7
Tire size 22x7x17.75/25.6x7
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 1,179.34 kg
Tire Type
Tire Type Solid non-marking
Tire Type Solid non-marking
Download datasheets
Genie Z-40 similar models
Highlight differences
:quality(50)/72049/72f0a2e0-f84a-4b8c-8b9b-873a70213c73.png)
Battery amperage
Battery amperage 315 Amh
Battery amperage -
Battery amperage 315 Amh
Number of batteries
Number of batteries 8
Number of batteries -
Number of batteries 8
Gross power
Gross power -
Gross power 36.4 kw
Gross power 8.95 kw
Years
Years 2007-2018
Years 2016-2020
Years 2014-2020
Market Average
Market Average AED 110,000
Market Average AED 220,000
Market Average AED 115,000
Price
Price AED 70,000
Price AED 128,500
Price AED 75,000
Ground clearance
Ground clearance 0.18 m
Ground clearance 31 cm
Ground clearance 0.15 m
Stowed height
Stowed height 1.98 m
Stowed height 2.49 m
Stowed height 2.01 m
Overall Length
Overall Length 0.55 m
Overall Length 8.91 m
Overall Length 0.47 m
Overall Width
Overall Width 1.52 m
Overall Width 2.31 m
Overall Width 1.74 m
Turning radius
Turning radius 3.2 m
Turning radius 4.83 m
Turning radius 3.99 m
Wheelbase
Wheelbase 1.98 m
Wheelbase 2.39 m
Wheelbase 1.89 m
Axle Oscillation
Axle Oscillation -
Axle Oscillation 0.2 m
Axle Oscillation -
Hydraulic fluid cap
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 121 liter
Hydraulic fluid cap 15.14 liter
Fuel cap
Fuel cap -
Fuel cap 83.3 liter
Fuel cap 35.2 liter
Platform Dimension B
Platform Dimension B 142.24 cm
Platform Dimension B 0.91 m
Platform Dimension B 142.24 cm
Platform Dimension A
Platform Dimension A 76.2 cm
Platform Dimension A 2.44 m
Platform Dimension A 76.2 cm
Max horizontal reach
Max horizontal reach 6.92 m
Max horizontal reach 1,200 mm
Max horizontal reach 6.8 m
Max speed forward
Max speed forward 7.24 kph
Max speed forward -
Max speed forward 6.44 kph
Max working height
Max working height 14.33 m
Max working height 15.85 m
Max working height 12.53 m
Operating voltage
Operating voltage 48 V
Operating voltage 12 V
Operating voltage 48 V
Operating weight
Operating weight 6,908 kg
Operating weight 7,530 kg
Operating weight 5,443 kg
Platform rotation
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Tire size
Tire size front: 22x7x17.75, rear: 25.6x7
Tire size 12 x 16.5
Tire size 9x14.5
Engine model
Engine model -
Engine model Deutz D2.9L4
Engine model -
Fuel type
Fuel type -
Fuel type Diesel
Fuel type -
Gradeability
Gradeability -
Gradeability 24 º
Gradeability -
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 272 kg
Platform Capacity - Unrestricted 227.02 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 7.2 kph
Drive Speed - Platform Lowered -
Tire Type
Tire Type Solid non-marking
Tire Type Foam-Filled
Tire Type Solid non-marking
Swing
Swing -
Swing 360 º
Swing -
Swing type
Swing type -
Swing type Continuous
Swing type -
