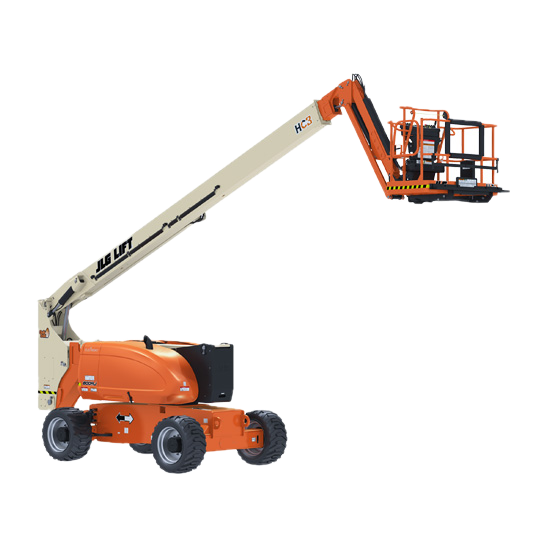

The JLG 800 AJ is a heavyweight articulating boom built for sky-high tasks. With a platform height of 80 ft (≈ 24.38 m) and a horizontal outreach of about 15.8 m (51 ft 10 in), it can reach over obstacles, deal with rugged terrain (45 % gradeability), and still carry 227 kg (500 lb) unrestricted. Great for major construction, facade work, plant maintenance and any job where reach + payload matter.
Platform Height: ~24.38 m (80 ft)
Horizontal Outreach: ~15.8 m (51 ft 10 in)
Up-and-Over Clearance: ~9.78 m (~32 ft 1 in)
Capacity (Unrestricted): 227 kg (500 lb)
Drive / Gradeability: 4WD, 45 % on suitable surfaces; also has 2WD (lower gradeability)
Stowed Width × Length × Height: ~2.49 m × ~11.13 m × ~3.0 m (8 ft 2 in × 36 ft 6 in × 9 ft 10 in)
Weight: ~15,480 kg (≈ 34,130 lb)

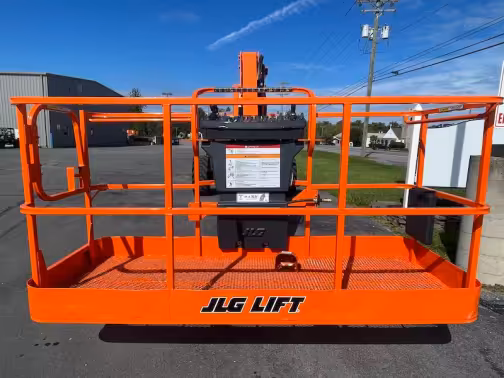

Platform Dimensions: ~2.44 m × 0.91 m (8 ft × 3 ft)
Jib Articulation: ~130°
Fuel / Power Options: Diesel (Deutz TD2.9L, Tier 4 Final) or Dual-Fuel (Ford MSG425)
JLG 800 Technical specifications
Performance
Boom Type
AT/80
Platform Capacity - Unrestricted
227.02 kg
Drive Speed - Platform Lowered
4.83 kph
General
Engine model
F4M2011
Fuel type
Diesel
Max horizontal reach
15820 mm
Max working height
24.38 m
Operating weight
15,559 kg
Platform rotation
180 º
Operating voltage
12 V
Tire size
445/55x19.5
Drive type
4WD
Service refill capacities
Fuel cap
147.62 liter
Hydraulic fluid cap
151.4 liter
Engine
Gross power
48.02 kw
Dimensions
Ground clearance
30.23 cm
Overall Length
9.3 m
Overall Width
2.47 m
Stowed height
3.02 m
Wheelbase
3.08 m
Undercarriage
Ground pressure
5.24 bar
Platform
Platform Dimension A
0.91 m
Platform Dimension B
2.44 m
Operating specifications
Swing
360 º
Swing type
Continuous
Tire Type
Pneumatic
JLG 800 expert review
Overview
This model is built for large construction sites, industrial maintenance, and infrastructure projects that require significant height and reach. Its articulating jib and up-and-over capability make it ideal for working over obstacles like parapets and pipe racks. The chassis and drivetrain handle uneven ground well, and proportional controls make basket positioning precise at full extension.
Durable powertrain and large platform with straightforward service access.
Higher fuel consumption and maintenance costs than mid-class booms.
Performance & Efficiency
Smooth proportional controls improve accuracy at height, and the 130° jib articulation helps work above structures without frequent repositioning. The 45% gradeability keeps it mobile on ramps and compacted backfill. Accessible service points and modular components support efficient fleet maintenance.
In Comparison
Against rivals like the Genie Z-80/60 (~25.77 m platform height, ~18.29 m outreach, ~227 kg capacity), the JLG 800 AJ trades slightly shorter outreach for a tighter up-and-over clearance and stable platform feel.
Verdict
If your work demands dependable height, reach, and load capacity, the JLG 800 AJ is a proven performer. It requires thoughtful logistics, but it excels in productivity and operator confidence on tall, challenging jobs.
