Cat

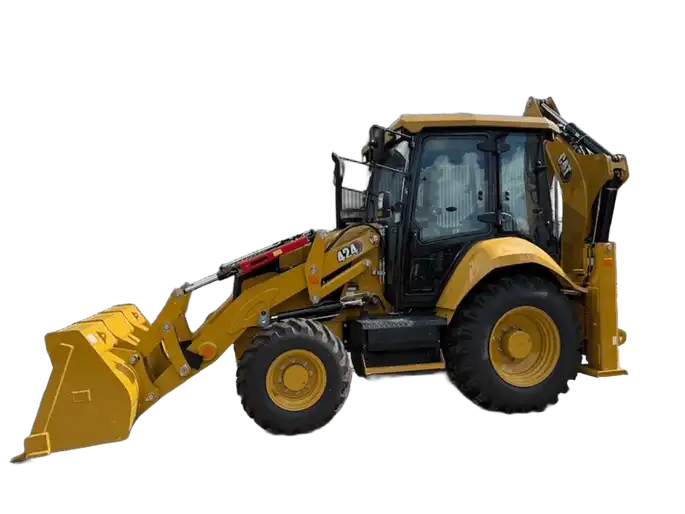

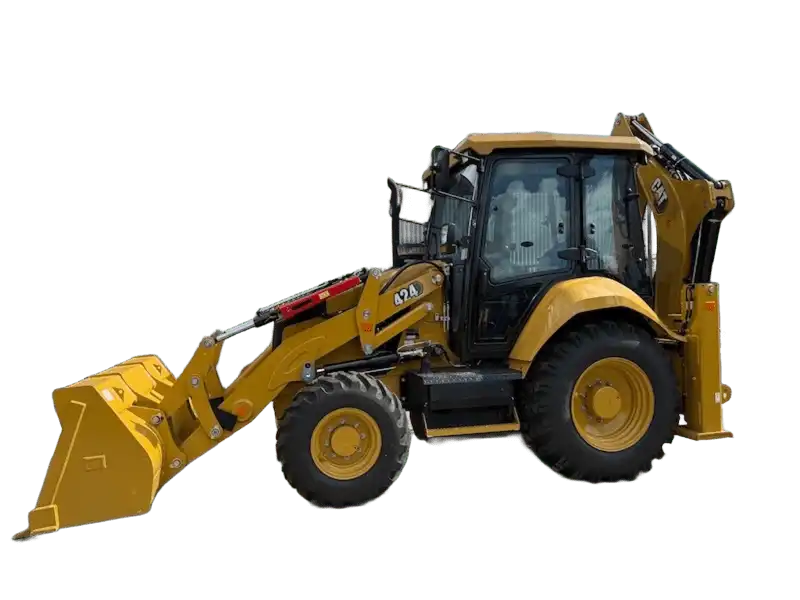

Cat 424 Backhoe loaders

100K+ machines in details.

Cat 424 Backhoe loaders tech specs

Video[1]

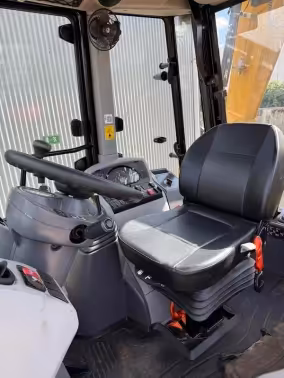

Interior [3]

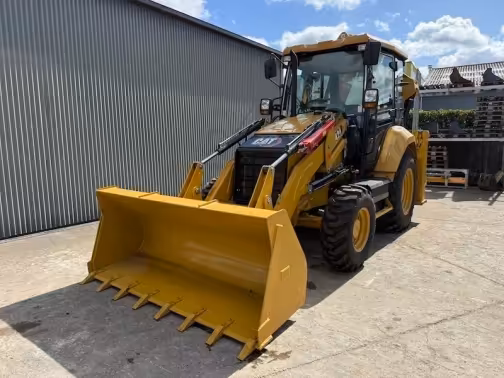

Exterior [4]

Attachments [2]

2000-2025

4.88 m Backhoe digging depth

4,027.91 kg Breakout force

4.3 m Extended backhoe dump height

57.42 kw Gross power

2.65 m Loader dump height

7,502 kg Operating weight

Show features

Makana rating

Market average

AED 228,000

Starting from

AED 115,000

Cat 424 Technical specifications

Backhoe

Backhoe digging depth

4.88 m

Backhoe reach from swivel

5.64 m

Loader

Breakout force

4027.91 kg

Loader digging depth

7.87 cm

Loader dump height

2.65 m

Loader dump reach

0.82 m

General

Bucket capacity

0.99 cu m

Bucket width

226 cm

Engine model

3054B

Max speed forward

31.86 kph

Operating weight

7,502 kg

Transmission type

Powershuttle

Attachments

Bucket digging force

5316.11 kg

Engine

Displacement

4200.01 cu cm

Gross power

57.42 kw

Net power

55.18 kw

Number of cylinders

Power measured @

2,200 rpm

Operating specifications

Extended backhoe digging depth

5.91 m

Extended backhoe dump height

4.3 m

Extended backhoe dump reach

2.77 m

Extended backhoe reach from swivel

6.68 m

Tires

Front tires size (2WD)

12.5/80x18,10PR / 12.5/80x18,10PR

Rear tires size

16.9x28,10PR / 16.9x28,10PR

Service refill capacities

Fuel cap

128.31 liter

Dimensions

Height - top of cab

2.93 m

Overall Length

5.76 m

Overall Width

2.41 m

Turning radius

5.36 m

Wheelbase

2.1 m

Transmission

Max speed reverse

31.86 kph

Number of forward gears

Number of reverse gears

Hydraulic system

Pump flow cap

139.29 lpm

Pump type

Closed center, load sensing

Relief valve pressure

207 bar

Download datasheets

OEM product brochure

Cat 424 expert review

Reviewed by on

Cat 424 similar models

Highlight differences

Cat 424D

424D

Cat 420D

420D

Cat 422E

422E

Backhoe

Backhoe digging depth

Backhoe digging depth 4.88 m

Backhoe digging depth 4.42 m

Backhoe digging depth 4.94 m

Backhoe reach from swivel

Backhoe reach from swivel 5.64 m

Backhoe reach from swivel 5.67 m

Backhoe reach from swivel 5.58 m

Backhoe dump height

Backhoe dump height -

Backhoe dump height 3.63 m

Backhoe dump height -

Bucket rotation

Bucket rotation -

Bucket rotation 205 º

Bucket rotation -

Years

Years 2000-2025

Years 2001-2025

Years 2006-2025

Market Average

Market Average AED 228,000

Market Average AED 692,000

Market Average AED 495,000

Price

Price AED 115,000

Price AED 235,000

Price AED 287,000

Loader

Breakout force

Breakout force 4,027.91 kg

Breakout force 4,598.93 kg

Breakout force 4,078.89 kg

Loader digging depth

Loader digging depth 7.87 cm

Loader digging depth 13.72 cm

Loader digging depth 9.14 cm

Loader dump height

Loader dump height 2.65 m

Loader dump height -

Loader dump height 2.62 m

Loader dump reach

Loader dump reach 0.82 m

Loader dump reach 0.85 m

Loader dump reach -

General

Bucket capacity

Bucket capacity 0.99 cu m

Bucket capacity 1.07 cu m

Bucket width

Bucket width 226 cm

Bucket width -

Bucket width 240 cm

Engine model

Engine model 3054B

Engine model -

Engine model 3054C

Max speed forward

Max speed forward 31.86 kph

Max speed forward 32.83 kph

Max speed forward 40.07 kph

Operating weight

Operating weight 7,502 kg

Operating weight 9,799 kg

Operating weight 10,200 kg

Transmission type

Transmission type Powershuttle

Lifting capacity

Lifting capacity -

Lifting capacity 2,896.19 kg

Lifting capacity -

Operating voltage

Operating voltage -

Operating voltage 12 V

Attachments

Bucket digging force

Bucket digging force 5,316.11 kg

Bucket digging force 6,673.26 kg

Bucket digging force -

Engine

Displacement

Displacement 4,200.01 cu cm

Displacement 3,982.07 cu cm

Displacement 4,401.58 cu cm

Gross power

Gross power 57.42 kw

Gross power 65.62 kw

Gross power 58.17 kw

Net power

Net power 55.18 kw

Net power 63.39 kw

Net power 56.67 kw

Number of cylinders

Number of cylinders 4

Power measured @

Power measured @ 2,200 rpm

Bore

Bore -

Bore 10.16 cm

Bore -

Max torque

Max torque -

Max torque 344.37 Nm

Max torque -

Stroke

Stroke -

Stroke 12.7 cm

Stroke -

Torque rise

Torque rise -

Torque rise 27 %

Torque rise 0.24 %

Torque measured @

Torque measured @ -

Torque measured @ 1,400 rpm

Operating specifications

Extended backhoe digging depth

Extended backhoe digging depth 5.91 m

Extended backhoe digging depth 5.52 m

Extended backhoe digging depth 5.97 m

Extended backhoe dump height

Extended backhoe dump height 4.3 m

Extended backhoe dump height 4.18 m

Extended backhoe dump height 4.33 m

Extended backhoe dump reach

Extended backhoe dump reach 2.77 m

Extended backhoe dump reach -

Extended backhoe dump reach 2.65 m

Extended backhoe reach from swivel

Extended backhoe reach from swivel 6.68 m

Extended backhoe reach from swivel 6.61 m

Brake system

Brake system -

Brake system Inboard, oil-immersed

Brake system -

Cab ROPS

Cab ROPS -

Cab ROPS SAE J397/SAE J1040 May 1994/ISO 3471 1994

Cab ROPS -

Cab sound

Cab sound -

Cab sound ANSI/SAE J1166 Oct 98 is 78.5 dB(A)

Cab sound -

Exterior sound

Exterior sound -

Exterior sound SAE J88 April 95 is 73.0 dB(A)

Exterior sound -

Tires

Front tires size (2WD)

Front tires size (2WD) 12.5/80x18,10PR / 12.5/80x18,10PR

Front tires size (2WD) 11Lx16,12PR/12.5 / 80x18,10PR

Front tires size (2WD) -

Rear tires size

Rear tires size 16.9x28,10PR / 16.9x28,10PR

Rear tires size 19.5x24,10PR / 19.5L24,10PR

Rear tires size -

Service refill capacities

Fuel cap

Fuel cap 128.31 liter

Fuel cap 145.34 liter

Hydraulic fluid cap

Hydraulic fluid cap -

Hydraulic fluid cap 79.49 liter

Hydraulic fluid cap 38.23 liter

Cooling fluid cap

Cooling fluid cap -

Cooling fluid cap 15.14 liter

Front axle fluid capacity

Front axle fluid capacity -

Front axle fluid capacity 11.36 liter

Rear axle fluid capacity

Rear axle fluid capacity -

Rear axle fluid capacity 16.28 liter

Transmission fluid cap

Transmission fluid cap -

Transmission fluid cap 18.55 liter

Dimensions

Height - top of cab

Height - top of cab 2.93 m

Height - top of cab 2.77 m

Height - top of cab 2.87 m

Overall Length

Overall Length 5.76 m

Overall Length 6.98 m

Overall Length 5.79 m

Overall Width

Overall Width 2.41 m

Overall Width 2.38 m

Turning radius

Turning radius 5.36 m

Turning radius -

Wheelbase

Wheelbase 2.1 m

Wheelbase 2.23 m

Ground clearance

Ground clearance -

Ground clearance 0.3 m

Ground clearance -

Transmission

Max speed reverse

Max speed reverse 31.86 kph

Max speed reverse 32.83 kph

Max speed reverse 40.07 kph

Number of forward gears

Number of forward gears 4

Number of reverse gears

Number of reverse gears 4

Hydraulic system

Pump flow cap

Pump flow cap 139.29 lpm

Pump flow cap 163.13 lpm

Pump flow cap 125.28 lpm

Pump type

Pump type Closed center, load sensing

Pump type -

Pump type Variable flow, axial piston

Relief valve pressure

Relief valve pressure 207 bar

Relief valve pressure 227.54 bar

Relief valve pressure 15.65 bar

Circuit type

Circuit type -

Circuit type Closed center, load sensing

Circuit type -

Operational specifications

Arm crowding force

Arm crowding force -

Arm crowding force 3,897.72 kg

Arm crowding force -

Refill capacities

Engine oil cap

Engine oil cap -

Engine oil cap 7.57 liter

Engine oil cap -

Cat 424 gallery

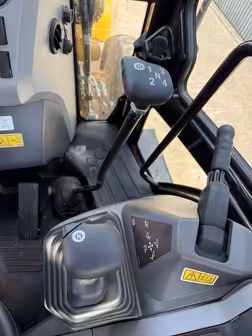

Generation-Cat 424 Backhoe loaders-interior

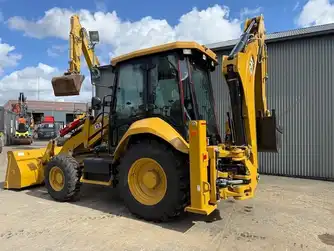

Generation-Cat 424 Backhoe loaders-exterior

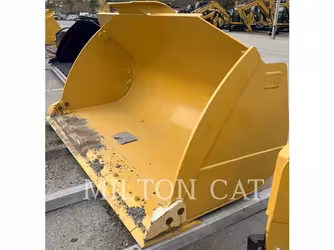

Generation-Cat 424 Backhoe loaders-attachments

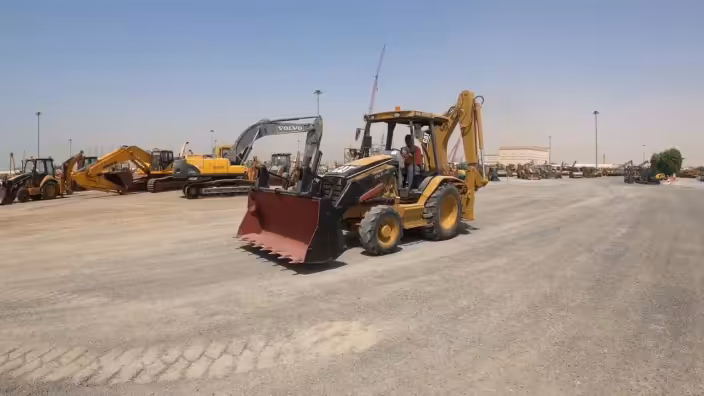

Generation-Cat 424 Backhoe loaders-video
