Cat

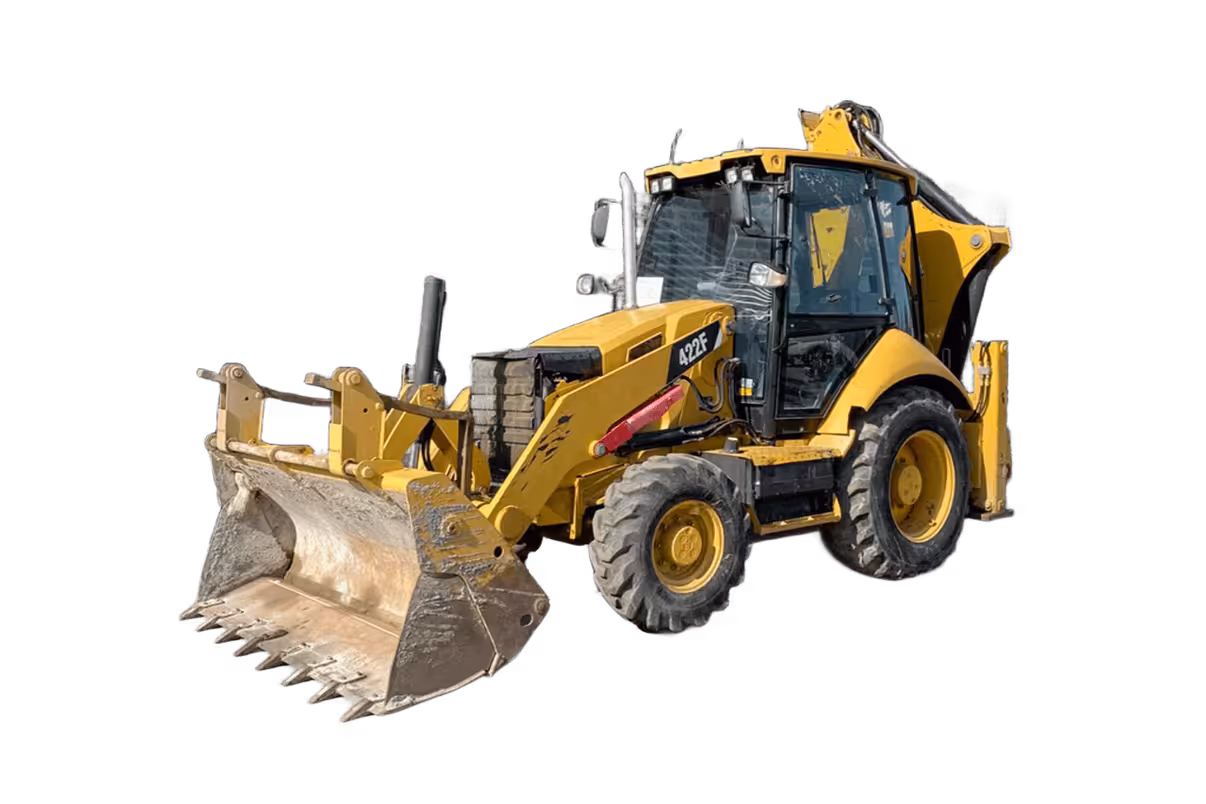

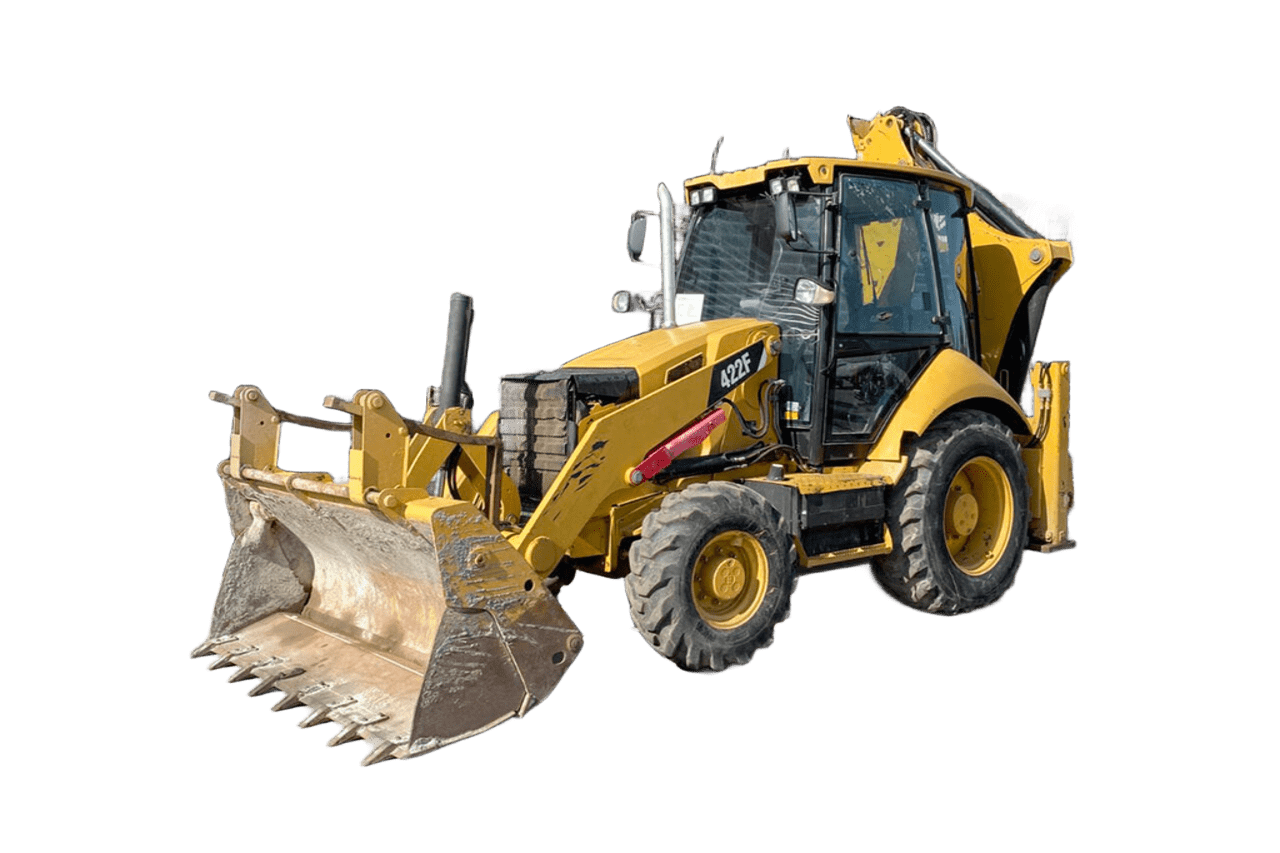

Cat 422 Backhoe loaders
100K+ machines in details.

Cat 422 Backhoe loaders tech specs

makana img
video play button
Video[1]

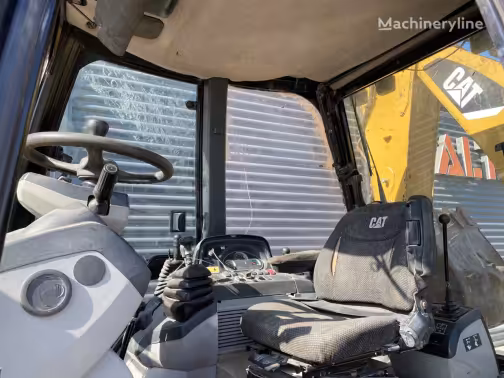

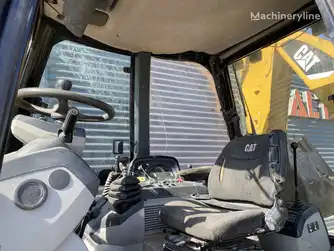

Interior [2]

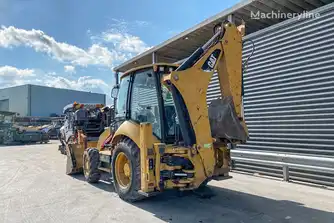

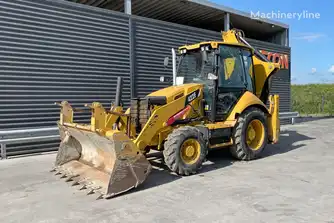

Exterior [4]

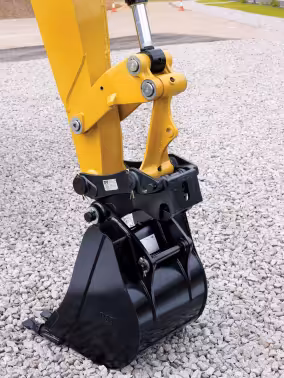

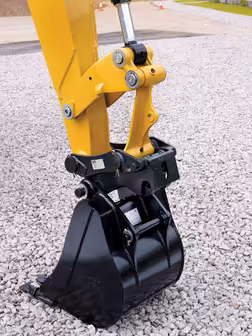

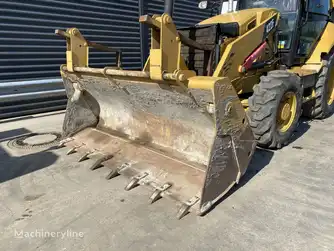

Attachments [2]
2006-2025
4.94 m Backhoe digging depth
4,078.89 kg Breakout force
4.33 m Extended backhoe dump height
58.17 kw Gross power
2.62 m Loader dump height
10,200 kg Operating weight
Show features

Makana rating

Market average

AED 495,000

Starting from

AED 287,000

Cat 422 Technical specifications

Backhoe

Backhoe digging depth

4.94 m

Backhoe reach from swivel

5.58 m

Loader

Breakout force

4078.89 kg

Loader digging depth

9.14 cm

Loader dump height

2.62 m

General

Bucket capacity

1.07 cu m

Bucket width

240 cm

Engine model

3054C

Max speed forward

40.07 kph

Operating voltage

12 V

Operating weight

10,200 kg

Transmission type

Powershuttle

Service refill capacities

Cooling fluid cap

15.14 liter

Front axle fluid capacity

11.36 liter

Fuel cap

145.34 liter

Hydraulic fluid cap

38.23 liter

Rear axle fluid capacity

16.28 liter

Transmission fluid cap

18.55 liter

Engine

Displacement

4401.58 cu cm

Gross power

58.17 kw

Net power

56.67 kw

Number of cylinders

4

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Torque rise

0.24 %

Operating specifications

Extended backhoe digging depth

5.97 m

Extended backhoe dump height

4.33 m

Extended backhoe dump reach

2.65 m

Extended backhoe reach from swivel

6.61 m

Dimensions

Height - top of cab

2.87 m

Overall Length

5.79 m

Overall Width

2.38 m

Wheelbase

2.23 m

Transmission

Max speed reverse

40.07 kph

Number of forward gears

4

Number of reverse gears

4

Hydraulic system

Pump flow cap

125.28 lpm

Pump type

Variable flow, axial piston

Relief valve pressure

15.65 bar

View more
Download datasheets
OEM product brochure

Cat 422 expert review

Cat 422 similar models

Highlight differences

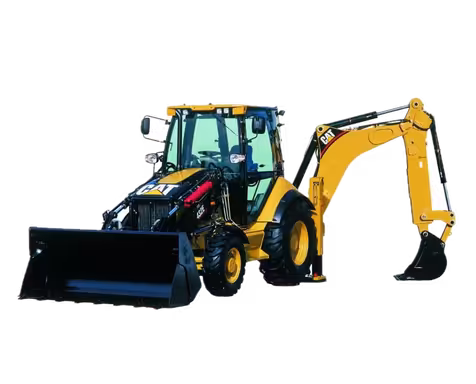

Cat 422E
422E

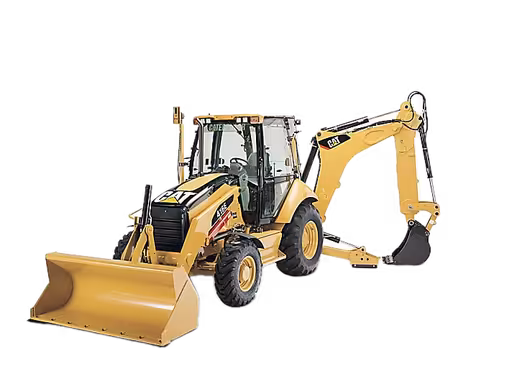

Cat 416 II
416 II

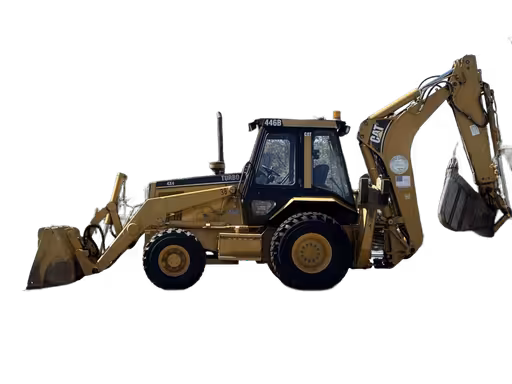

Cat 420D
420D
Backhoe
Backhoe digging depth 4.94 m
Backhoe digging depth 4.36 m
Backhoe digging depth 4.42 m
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.43 m
Backhoe reach from swivel 5.67 m
Backhoe dump height -
Backhoe dump height -
Backhoe dump height 3.63 m
Bucket rotation -
Bucket rotation -
Bucket rotation 205 º
Years 2006-2025
Years 1985-2025
Years 2001-2025
Market Average AED 495,000
Market Average AED 625,000
Market Average AED 692,000
Price AED 287,000
Price AED 227,000
Price AED 235,000
Loader
Breakout force 4,078.89 kg
Breakout force 3,405.89 kg
Breakout force 4,598.93 kg
Loader digging depth 9.14 cm
Loader digging depth 10.92 cm
Loader digging depth 13.72 cm
Loader dump height 2.62 m
Loader dump height 2.65 m
Loader dump height -
Loader dump reach -
Loader dump reach 0.73 m
Loader dump reach 0.85 m
General
Bucket capacity 1.07 cu m
Bucket capacity 0.76 cu m
Bucket capacity 0.99 cu m
Bucket width 240 cm
Bucket width 226 cm
Bucket width -
Engine model 3054C
Engine model 4.236
Engine model -
Max speed forward 40.07 kph
Max speed forward 31.7 kph
Max speed forward 32.83 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight 10,200 kg
Operating weight 6,337 kg
Operating weight 9,799 kg
Transmission type Powershuttle
Transmission type fully synchromesh
Transmission type Powershuttle
Lifting capacity -
Lifting capacity -
Lifting capacity 2,896.19 kg
Service refill capacities
Cooling fluid cap 15.14 liter
Cooling fluid cap 21.2 liter
Cooling fluid cap -
Front axle fluid capacity 11.36 liter
Front axle fluid capacity 7.57 liter
Front axle fluid capacity -
Fuel cap 145.34 liter
Fuel cap 106.36 liter
Fuel cap 128.31 liter
Hydraulic fluid cap 38.23 liter
Hydraulic fluid cap 79.11 liter
Hydraulic fluid cap 79.49 liter
Rear axle fluid capacity 16.28 liter
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity -
Transmission fluid cap 18.55 liter
Transmission fluid cap 10.22 liter
Transmission fluid cap -
Engine
Displacement 4,401.58 cu cm
Displacement 3,860.8 cu cm
Displacement 3,982.07 cu cm
Gross power 58.17 kw
Gross power 50.04 kw
Gross power 65.62 kw
Net power 56.67 kw
Net power 46.01 kw
Net power 63.39 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ 2,400 rpm
Power measured @ 2,200 rpm
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Torque rise 0.24 %
Torque rise -
Torque rise 27 %
Alternator supplied amperage -
Alternator supplied amperage 52 Amh
Alternator supplied amperage -
Bore -
Bore -
Bore 10.16 cm
Max torque -
Max torque -
Max torque 344.37 Nm
Stroke -
Stroke -
Stroke 12.7 cm
Operating specifications
Extended backhoe digging depth 5.97 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth 5.52 m
Extended backhoe dump height 4.33 m
Extended backhoe dump height 4.05 m
Extended backhoe dump height 4.18 m
Extended backhoe dump reach 2.65 m
Extended backhoe dump reach 3.2 m
Extended backhoe dump reach -
Extended backhoe reach from swivel 6.61 m
Extended backhoe reach from swivel 6.68 m
Extended backhoe reach from swivel 6.68 m
Brake system -
Brake system -
Brake system Inboard, oil-immersed
Cab ROPS -
Cab ROPS -
Cab ROPS SAE J397/SAE J1040 May 1994/ISO 3471 1994
Cab sound -
Cab sound -
Cab sound ANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Exterior sound -
Exterior sound -
Exterior sound SAE J88 April 95 is 73.0 dB(A)
Dimensions
Height - top of cab 2.87 m
Height - top of cab 2.74 m
Height - top of cab 2.77 m
Overall Length 5.79 m
Overall Length 6.86 m
Overall Length 6.98 m
Overall Width 2.38 m
Overall Width 2.29 m
Overall Width 2.38 m
Wheelbase 2.23 m
Wheelbase 2.1 m
Wheelbase 2.1 m
Ground clearance -
Ground clearance 0.3 m
Ground clearance 0.3 m
Turning radius -
Turning radius 3.93 m
Turning radius 5.36 m
Transmission
Max speed reverse 40.07 kph
Max speed reverse 31.86 kph
Max speed reverse 32.83 kph
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Hydraulic system
Pump flow cap 125.28 lpm
Pump flow cap 108.25 lpm
Pump flow cap 163.13 lpm
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Pump type -
Relief valve pressure 15.65 bar
Relief valve pressure 186.16 bar
Relief valve pressure 227.54 bar
Circuit type -
Circuit type -
Circuit type Closed center, load sensing
Attachments
Bucket digging force -
Bucket digging force 4,735.51 kg
Bucket digging force 6,673.26 kg
Refill capacities
Engine oil cap -
Engine oil cap 7.19 liter
Engine oil cap 7.57 liter
Tires
Front tires size (2WD) -
Front tires size (2WD) 11L-16 10PR/10.5-20 10PR
Front tires size (2WD) 11Lx16,12PR/12.5 / 80x18,10PR
Rear tires size -
Rear tires size 16.9-24 8PR/ 19.5L-24 8PR
Rear tires size 19.5x24,10PR / 19.5L24,10PR
Operational specifications
Arm crowding force -
Arm crowding force -
Arm crowding force 3,897.72 kg
