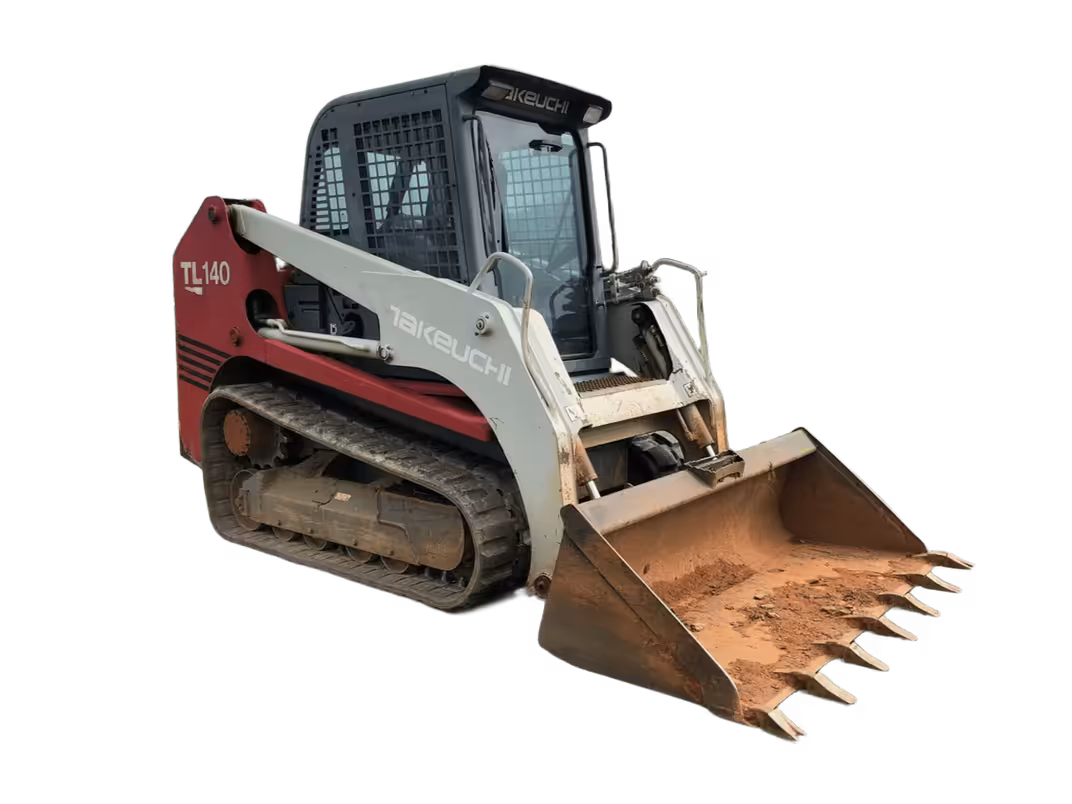

Takeuchi TL140 Compact track loaders tech specs

makana img
video play button
Video[1]

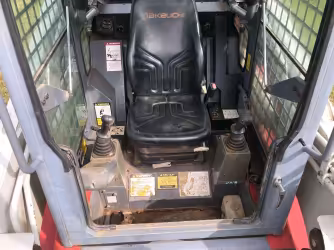

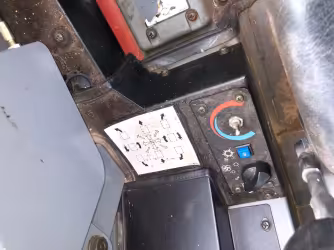

Interior [2]

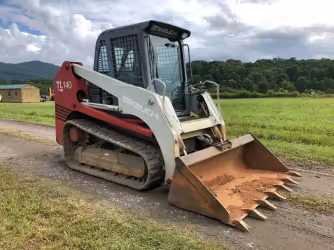

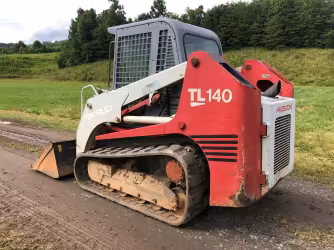

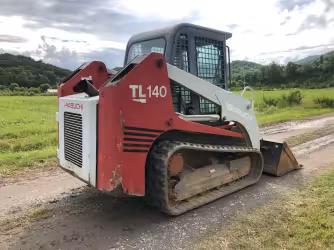

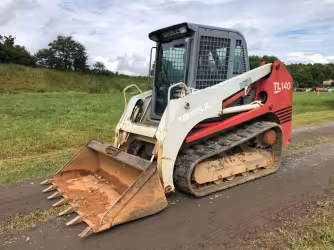

Exterior [4]

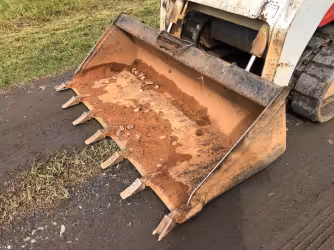

Attachments [1]
2003-2010
3,075.86 cu cm Displacement
60.4 kw Gross power
3.14 m Loader dump height
0.88 m Loader dump reach
944.83 kg Lifting capacity
4,349 kg Operating weight
Show features

Makana rating

Market average

AED 160,000

Starting from

AED 63,000

Takeuchi TL140 Technical specifications

Engine

Alternator supplied amperage

50 Amh

Displacement

3075.86 cu cm

Gross power

60.4 kw

Max torque

261.67 Nm

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,800 rpm

Loader

Breakout force

3357.95 kg

Loader dump height

3.14 m

Loader dump reach

0.88 m

Service refill capacities

Cooling fluid cap

15.14 liter

Fuel cap

90.08 liter

Hydraulic fluid cap

51.85 liter

General

Engine model

4JG1T

Lifting capacity

944.83 kg

Max speed forward

10.62 kph

Operating voltage

12 V

Operating weight

4,349 kg

Refill capacities

Engine oil cap

9.84 liter

Dimensions

Ground clearance

0.33 m

Height - top of cab

2.29 m

Length with bucket

3.72 m

Turning radius

1.67 m

Width over tracks

1.8 m

Undercarriage

Ground pressure

0.28 bar

Number of track rollers per side

5

Track length

1.52 m

Track width

45.72 cm

Hydraulic system

Pump flow cap

74.94 lpm

Relief valve pressure

206.01 bar

Operating specifications

Rack back angle

59 º

View more
Download datasheets
OEM product brochure

Takeuchi TL140 similar models

Highlight differences
Takeuchi TL140
TL140
Cat 277B
277B
Cat 279C
279C
Engine
Alternator supplied amperage 50 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Displacement 3,075.86 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power 60.4 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque 261.67 Nm
Max torque -
Max torque -
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @ 1,800 rpm
Torque measured @ -
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore -
Bore 9.4 cm
Bore 8.64 cm
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2003-2010
Years 2004-2007
Years 2009-2015
Market Average AED 160,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 63,000
Price AED 62,500
Price AED 114,000
Loader
Breakout force 3,357.95 kg
Breakout force -
Breakout force -
Loader dump height 3.14 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.88 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Service refill capacities
Cooling fluid cap 15.14 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 90.08 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 51.85 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
General
Engine model 4JG1T
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 944.83 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 10.62 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 4,349 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Refill capacities
Engine oil cap 9.84 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Ground clearance 0.33 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.29 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.72 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Turning radius 1.67 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks 1.8 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Undercarriage
Ground pressure 0.28 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side 5
Number of track rollers per side -
Number of track rollers per side -
Track length 1.52 m
Track length 2.07 m
Track length 1.77 m
Track width 45.72 cm
Track width -
Track width -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Hydraulic system
Pump flow cap 74.94 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 206.01 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Operating specifications
Rack back angle 59 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
