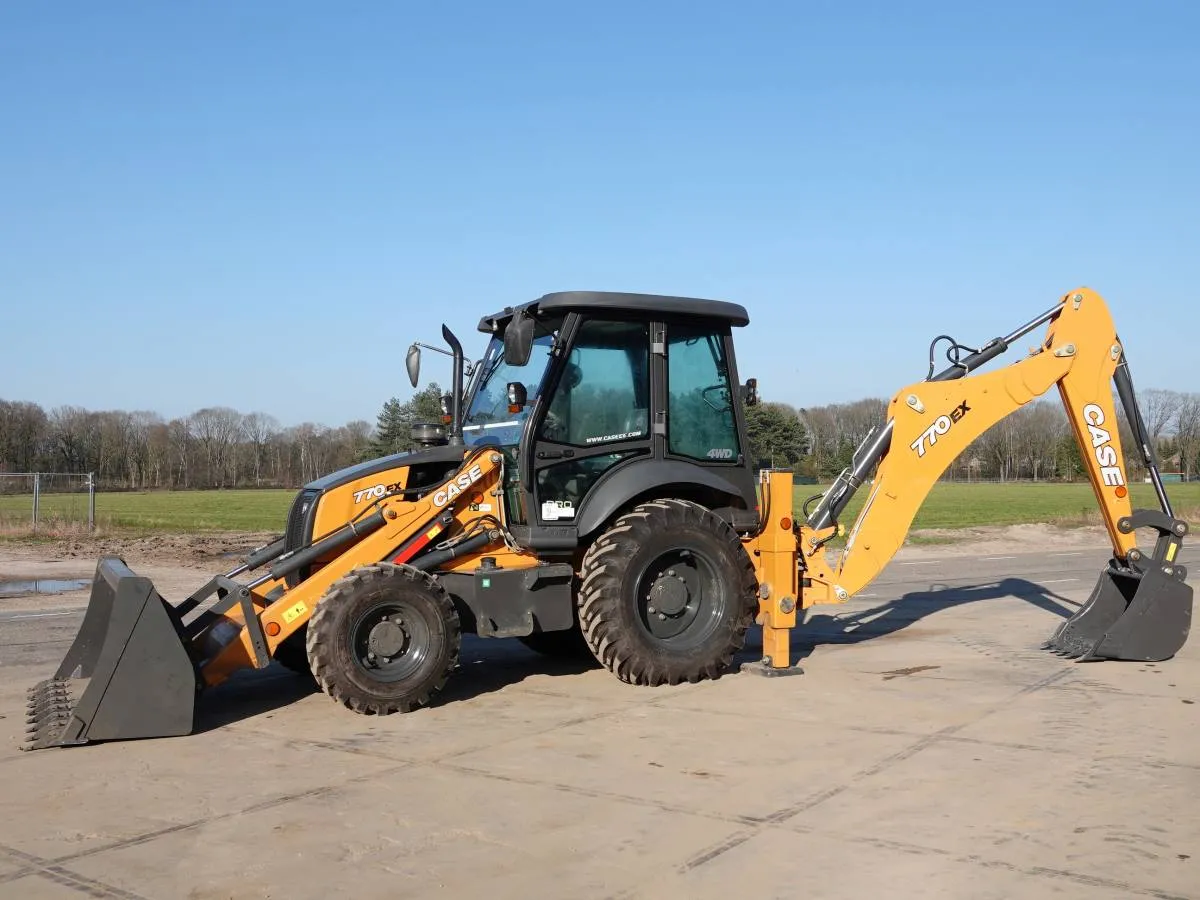

The Case 770EX (2021–2025) is a compact, hard-working backhoe loader with the muscle to handle daily site demands. Powered by an FPT S8000 3.9 L diesel producing about 57 kW (76 hp), it weighs around 7.71 t, carries a 1.1 m³ loader bucket, and digs to roughly 4.5 m with a reach of 5.8 m. Loader breakout is about 49 kN, backhoe breakout around 36.5 kN, and it moves up to 39.2 km/h.
Engine: FPT S8000, 4-cyl, 3.9 L, ~57 kW (76 hp)
Operating Weight: ~7,710 kg (~7.71 t)

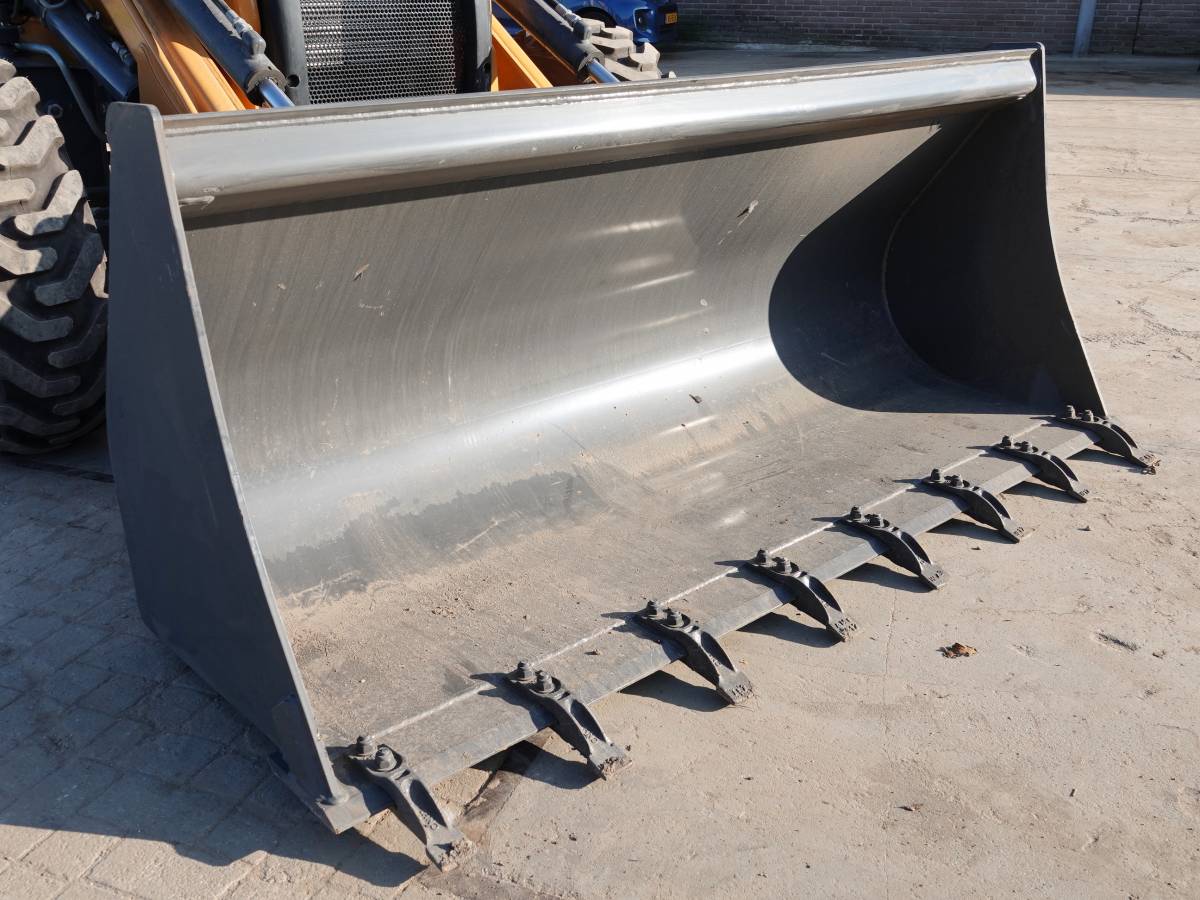

Loader Bucket: ~1.1 m³, width ~2.3 m
Backhoe Bucket: ~0.26 m³
Breakout Force: Loader ~49 kN; Backhoe ~36.5 kN
Dig Depth: ~4.5 m; Reach: ~5.8 m; Dump Height: ~3.3 m
Travel Speed: ~39.2 km/h
Transport Dimensions: Width ~2.3 m; Height ~3.9 m
Makana rating
Owner rating
Market average
AED 170,000Starting from
AED 150,000Case 770 Technical specifications
General
Engine model
Ashok Leyland H4C4E7422*W
Operating weight
7,780 kg
Lifting capacity
3515 kg
Tire size
(F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR
Bucket capacity
0.26 m3
Max speed forward
34.1 kph
Transmission type
Powershuttle synchromesh
Engine
Displacement
3840 l
Aspiration
Turbocharged
Gross power
54.4 kw
Max torque
340 Nm
Emissions
Tier 4F
Refill capacities
Engine oil cap
9.1 liter
Dimensions
Transport length
5 m
Transport width
2 m
Wheelbase
2.18 m
Hydraulic system
Pump flow cap
126 lpm
Relief valve pressure
194.98 bar
Pump type
Open center, load sensing
Loader
Breakout force
56.9 kN
Loader dump height
2730 mm
Loader dump reach
760 mm
Loader digging depth
110 mm
Service refill capacities
Cooling fluid cap
20 liter
Fuel cap
129 liter
Hydraulic fluid cap
107 liter
Transmission fluid cap
18 liter
Rear axle fluid capacity
17.1 liter
Front axle fluid capacity
8.9 liter
Transmission
Number of reverse gears
4
Number of forward gears
4
Operating specifications
Rack back angle
45 º
Brake system
Hydraulic foot operated, 2 disc per side
Backhoe
Backhoe dump height
3800 m
Backhoe reach from swivel
5625 m
Bucket rotation
204 degrees
Backhoe dump reach
2150 m
Backhoe digging depth
4400 mm
Case 770 expert review
Overview
A do-it-all mid-size backhoe loader with easy maintenance, solid fuel efficiency, and the flexibility to suit different site roles. The 770NX adds selectable power curves, economy modes, and telematics; 770EX Plus offers more loader breakout; Magnum versions push digging depth and reach further.
Fuel-efficient with variants tailored for different needs.
Weight requires planned access and transport.
Performance & Efficiency
FPT diesel with smart hydraulics delivers smooth operation and strong breakout forces while keeping fuel use low. Auto-idle further cuts unnecessary burn.
In Comparison
Mid-size category—larger than small loaders, more mobile than heavy-duty rigs. Base is versatile, Plus boosts loader power, NX adds telematics, Magnum maximizes dig depth.
Verdict
A capable, dependable mid-size backhoe. Choose Plus, NX, or Magnum depending on lift, data, or depth needs.
Case 770 owner rating
2021-2025
Overall rating
Based on 0 ratings
0 %
100 %
0 %
0 %
0 %
Case 770 similar models
:quality(50)/59551/432eeaeb-8e2c-403a-a995-e3c3bb9bb21c.png)
:quality(50)/59563/a1c4e1d1-99aa-4df5-a520-99a8129692a2.png)
:quality(50)/59489/425f08d2-bdec-4ed2-be2a-9f4ea9976466.png)

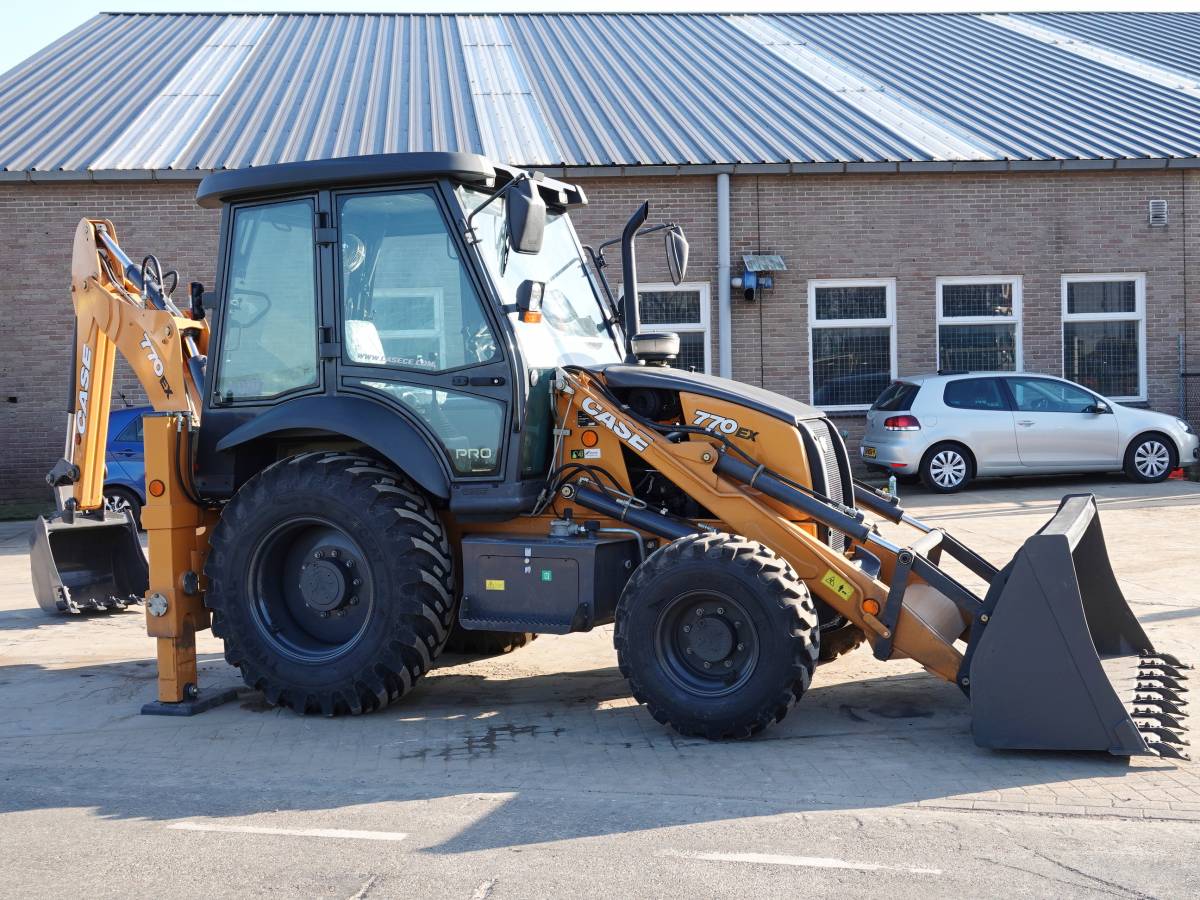

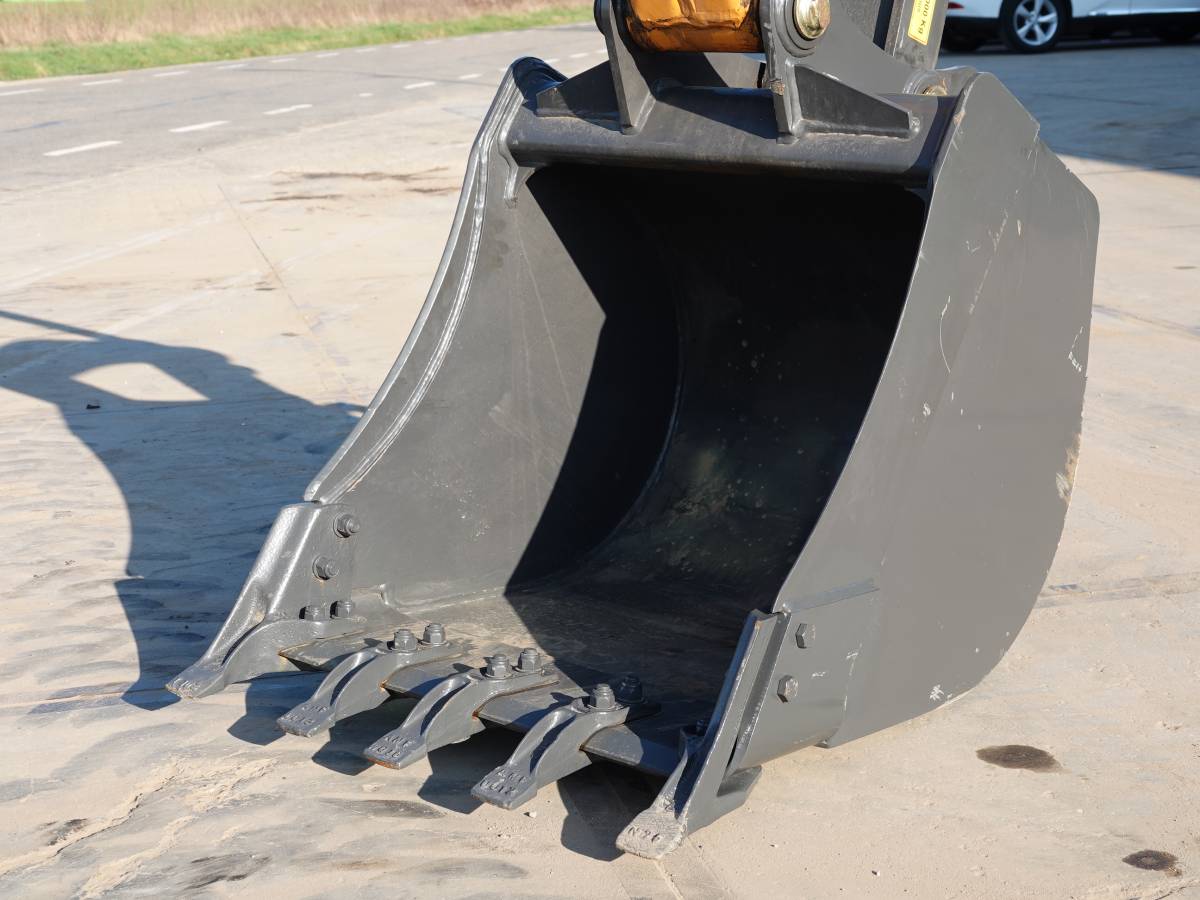

Case 770 gallery
:quality(50)/59552/bc176ccb-c1cf-4a1c-a708-c1be3f6aa294.jpg)
:quality(50)/59553/a2dbb77c-7a91-4e50-95d3-9130963fc6b6.jpg)
:quality(50)/59554/dbef16c1-3182-45f9-9033-1b7dff679ac6.jpg)
:quality(50)/59555/83126542-3d64-4251-9285-7d770ceb3669.jpg)
:quality(50)/59556/1291abe4-eac0-4589-8c58-8a88fb60f0db.jpg)
:quality(50)/59557/00c62586-ab8a-423c-b69b-f9b4a19379cf.jpg)
:quality(50)/59558/0eb510ee-b2ac-4b26-bf2d-bc7fa7b683e6.jpg)
:quality(50)/59559/6dd0322d-0410-4332-8d05-dfb1e7b4d9ce.jpg)
:quality(50)/59560/conversions/e2407997-2440-472b-ba82-adffb51014b3-thumb.webp)
Customs paid
Great deal:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png "Cat 426F2 backhoe loader")
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png "Cat 428 backhoe loader")

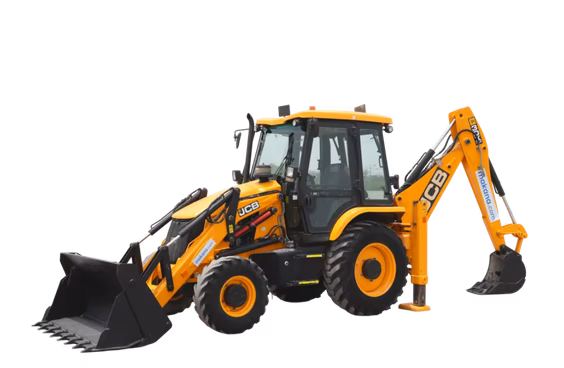

:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png "JCB 3DX Plus backhoe loader")
