Case
Case TR310 Compact track loaders tech specs
:quality(50)/75751/conversions/97117cb8-efb9-41d1-814d-1a0275a334e9-thumb.webp)
Video[1]
:quality(50)/75743/conversions/3bca1876-0789-4a9d-a236-99766e273bcd-thumb.webp)

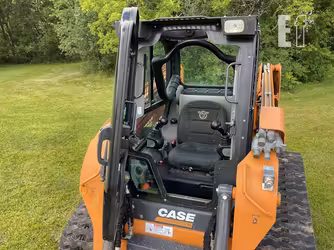

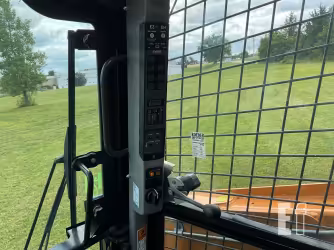

Interior [2]
:quality(50)/75745/conversions/0007bca3-7f76-40c4-ac79-45701d0aec76-thumb.webp)
Exterior [4]
:quality(50)/75749/conversions/ea94719f-4ff0-474b-8522-bbc770daf394-thumb.webp)

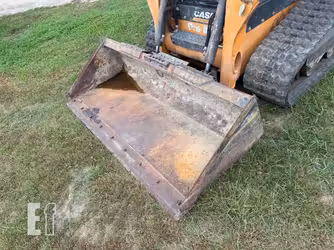

Attachments [2]
2015-2025
3,392.13 cu cm Displacement
55.18 kw Gross power
2.5 m Loader dump height
0.65 m Loader dump reach
1,406.14 kg Lifting capacity
4,027 kg Operating weight
Makana rating
Market average
AED 295,000Starting from
AED 75,000Case TR310 Technical specifications
Engine
Alternator supplied amperage
120 Amh
Aspiration
Turbocharged
Bore
9.91 cm
Displacement
3392.13 cu cm
Emissions
Tier 4 Final Certified (CEGR, DOC, PM Catalyst)
Gross power
55.18 kw
Max torque
314.55 Nm
Net power
50.71 kw
Number of cylinders
4
Power measured @
2,500 rpm
Stroke
11.18 cm
General
Operating voltage
12 V
Engine model
FPT F5H FL463 A F001
Lifting capacity
1406.14 kg
Operating weight
4,027 kg
Tipping load
2,810 kg
Loader
Breakout force
3937.19 kg
Loader dump height
2.5 m
Loader dump reach
0.65 m
Refill capacities
Engine oil cap
8.71 liter
Service refill capacities
Fuel cap
73.81 liter
Dimensions
Ground clearance
0.2 m
Height - top of cab
2 m
Length with bucket
3.29 m
Max height to hinge pin
312.42 cm
Overall Width
1.89 m
Width over tracks
1.92 m
Operating specifications
Lift arm path
Radial
Rack back angle
62 º
Hydraulic system
Pump flow cap
122.63 lpm
Pump type
Gear pump
Relief valve pressure
210.01 bar
Undercarriage
Track width
40000.17 cm
Download datasheets
Case TR310 similar models
Highlight differences
Case TR310
TR310
Cat 249D
249D
Cat 257
257
Alternator supplied amperage
Alternator supplied amperage 120 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Bore
Bore 9.91 cm
Bore 8.38 cm
Bore 9.91 cm
Displacement
Displacement 3,392.13 cu cm
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Emissions
Emissions Tier 4 Final Certified (CEGR, DOC, PM Catalyst)
Emissions -
Emissions -
Gross power
Gross power 55.18 kw
Gross power 50.04 kw
Gross power 46.98 kw
Max torque
Max torque 314.55 Nm
Max torque 46.63 Nm
Max torque -
Net power
Net power 50.71 kw
Net power 49.07 kw
Net power 44 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,600 rpm
Stroke
Stroke 11.18 cm
Stroke 9.91 cm
Stroke 10.16 cm
Years
Years 2015-2025
Years 2016-2019
Years 2014-2019
Market Average
Market Average AED 295,000
Market Average AED 228,000
Market Average AED 186,000
Price
Price AED 75,000
Price AED 191,000
Price AED 147,000
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating voltage -
Engine model
Engine model FPT F5H FL463 A F001
Engine model Cat C2.2 CRDI
Engine model Cat 3034 naturally aspirated
Lifting capacity
Lifting capacity 1,406.14 kg
Lifting capacity 1,043.26 kg
Lifting capacity 1,065.94 kg
Operating weight
Operating weight 4,027 kg
Operating weight -
Operating weight 3,460 kg
Tipping load
Tipping load 2,810 kg
Tipping load 2,086 kg
Tipping load 2,091 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.32 m
Max horizontal reach -
Bucket capacity
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Max speed forward
Max speed forward -
Max speed forward -
Max speed forward 12.07 kph
Breakout force
Breakout force 3,937.19 kg
Breakout force -
Breakout force -
Loader dump height
Loader dump height 2.5 m
Loader dump height 2.25 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.65 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,797.59 kg
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap -
Engine oil cap -
Fuel cap
Fuel cap 73.81 liter
Fuel cap 57.15 liter
Fuel cap 90.08 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 12.11 liter
Cooling fluid cap 9.84 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Ground clearance
Ground clearance 0.2 m
Ground clearance 0.21 m
Ground clearance 0.26 m
Height - top of cab
Height - top of cab 2 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 3.29 m
Length with bucket 3.23 m
Length with bucket 3.54 m
Max height to hinge pin
Max height to hinge pin 312.42 cm
Max height to hinge pin 21.84 cm
Max height to hinge pin -
Overall Width
Overall Width 1.89 m
Overall Width 1.68 m
Overall Width -
Width over tracks
Width over tracks 1.92 m
Width over tracks -
Width over tracks 1.68 m
Length without Bucket
Length without Bucket -
Length without Bucket 2.52 m
Length without Bucket 2.71 m
Turning radius
Turning radius -
Turning radius 1.46 m
Turning radius 2.29 m
Lift arm path
Lift arm path Radial
Lift arm path -
Lift arm path -
Rack back angle
Rack back angle 62 º
Rack back angle 87 º
Rack back angle 44 º
Air conditioning
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Air conditioning -
Angle of departure
Angle of departure -
Angle of departure 34 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS -
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab FOPS level II -
Cab ROPS
Cab ROPS -
Cab ROPS ISO 3471:2008
Cab ROPS -
Dump angle
Dump angle -
Dump angle 48 º
Dump angle -
Pump flow cap
Pump flow cap 122.63 lpm
Pump flow cap 98.41 lpm
Pump flow cap 57.53 lpm
Pump type
Pump type Gear pump
Pump type -
Pump type -
Relief valve pressure
Relief valve pressure 210.01 bar
Relief valve pressure 230.01 bar
Relief valve pressure -
Track width
Track width 40,000.17 cm
Track width -
Track width 38.1 cm
Ground contact area
Ground contact area -
Ground contact area 28,120.26 cu cm
Ground contact area 29,005.17 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Track length
Track length -
Track length 1.81 m
Track length 1.52 m
