Case 440CT Compact track loaders tech specs
:quality(50)/73002/conversions/ee5d82df-5567-431c-9574-1d67e221a435-thumb.webp)
Video[1]
:quality(50)/72994/conversions/439308b2-bc9f-4f0b-97e9-60359ca3615f-thumb.webp)
Interior [2]
:quality(50)/72996/conversions/b8bc09aa-4221-495a-a67e-f3d2f5c9cae4-thumb.webp)
Exterior [4]
:quality(50)/73000/conversions/244b9e6a-9312-444b-ab41-700f23166bff-thumb.webp)

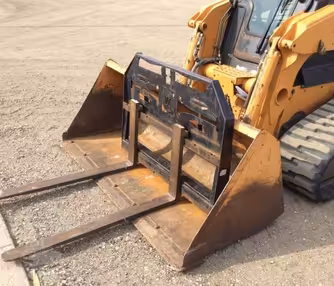

Attachments [2]
2008-2012
4,490.07 cu cm Displacement
66.37 kw Gross power
2.47 m Loader dump height
0.61 m Loader dump reach
1,360.78 kg Lifting capacity
4,043 kg Operating weight
Makana rating
Owner rating
Market average
AED 108,500Starting from
AED 91,000Case 440CT technical specifications
Highlight differences
Case 440CT
Case 440CT Series 3
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Gross power
Gross power 66.37 kw
Gross power 67.11 kw
Net power
Net power 61.15 kw
Net power 61.89 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,300 rpm
Power measured @ 2,300 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Years
Years 2008-2012
Years 2008-2012
Market Average
Market Average AED 108,500
Market Average AED 108,500
Price
Price AED 91,000
Price AED 91,000
Breakout force
Breakout force 2,815.45 kg
Breakout force -
Loader dump height
Loader dump height 2.47 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.61 m
Loader dump reach 0.64 m
Bucket capacity
Bucket capacity 0.54 cu m
Bucket capacity 0.54 cu m
Displacement
Displacement 4,490.07 cu cm
Displacement 4,490.07 cu cm
Engine model
Engine model Family III 445T/M2
Engine model 445T/M3
Lifting capacity
Lifting capacity 1,360.78 kg
Lifting capacity 1,360.78 kg
Max speed forward
Max speed forward 12.23 kph
Max speed forward 12.87 kph
Max torque
Max torque 356.58 Nm
Max torque 390.47 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,043 kg
Operating weight 4,048 kg
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 11.36 liter
Fuel cap
Fuel cap 83.27 liter
Fuel cap 88.19 liter
Hydraulic fluid cap
Hydraulic fluid cap 49.96 liter
Hydraulic fluid cap 26.87 liter
Engine oil cap
Engine oil cap 12.11 liter
Engine oil cap 12.11 liter
Ground clearance
Ground clearance 0.23 m
Ground clearance 0.24 m
Height - top of cab
Height - top of cab 1.95 m
Height - top of cab 2.07 m
Length with bucket
Length with bucket 3.23 m
Length with bucket 3.29 m
Length without Bucket
Length without Bucket 2.65 m
Length without Bucket 2.62 m
Turning radius
Turning radius 2.04 m
Turning radius 2.02 m
Width over tracks
Width over tracks 1.83 m
Width over tracks 1.83 m
Ground contact area
Ground contact area 29,169.04 cu cm
Ground contact area 29,169.04 cu cm
Ground pressure
Ground pressure 0.34 bar
Ground pressure 0.34 bar
Number of track rollers per side
Number of track rollers per side 3
Number of track rollers per side 3
Track gauge
Track gauge 1.4 m
Track gauge -
Track length
Track length 1.46 m
Track length 1.46 m
Track width
Track width 40.13 cm
Track width 40.13 cm
Pump flow cap
Pump flow cap 82.89 lpm
Pump flow cap 83.27 lpm
Pump type
Pump type Gear pump
Pump type Gear pump
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure -
Rack back angle
Rack back angle 60 º
Rack back angle 60 º
Download datasheets
Case 440CT expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Case 440CT is a compact track loader designed for contractors needing more lifting power and stability than smaller machines. With a 66.37 kW engine, 1,361 kg lifting capacity, and a 4,043 kg operating weight, it suits construction, landscaping, and general material handling work.
Pros
Higher lifting capacity than smaller compact loaders, excellent traction on soft terrain.
Cons
Heavier size reduces maneuverability in tight residential areas.
Efficiency
The 66.37 kW engine and rubber track system provide stable traction and improved lifting performance for grading and loading tasks.
In Cabin
The cab layout focuses on simple controls and good visibility toward both the bucket and work area.
In Comparison
Compared with the Cat 259B3 and Cat 267B, the 440CT offers a balanced mix of lifting strength and compact maneuverability.
Final Verdict
Rated 4 stars, the Case 440CT remains a reliable compact track loader for construction and landscaping work in the AED 91,000–108,500 range.
Case 440CT owner rating
Case 440CT Compact track loaders [2008-2012]
2008-2012
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Case 440CT similar models
Highlight differences
Case 440CT
Cat 259B3
Cat 267B
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration -
Gross power
Gross power 66.37 kw
Gross power 55.18 kw
Gross power 54.44 kw
Net power
Net power 61.15 kw
Net power 52.95 kw
Net power 52.2 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,300 rpm
Power measured @ -
Power measured @ -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Bore
Bore -
Bore 9.4 cm
Bore 9.4 cm
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years
Years 2008-2012
Years 2011-2014
Years 2004-2007
Market Average
Market Average AED 108,500
Market Average AED 181,000
Market Average AED 109,000
Price
Price AED 91,000
Price AED 113,000
Price AED 80,800
Breakout force
Breakout force 2,815.45 kg
Breakout force -
Breakout force -
Loader dump height
Loader dump height 2.47 m
Loader dump height 2.26 m
Loader dump height 2.38 m
Loader dump reach
Loader dump reach 0.61 m
Loader dump reach 0.76 m
Loader dump reach 0.7 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,045.02 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,044.8 kg
Breakout force - tilt cylinder 2,487.5 kg
Bucket capacity
Bucket capacity 0.54 cu m
Bucket capacity -
Bucket capacity -
Displacement
Displacement 4,490.07 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine model
Engine model Family III 445T/M2
Engine model Cat C3.4T
Engine model Cat 3044C DIT
Lifting capacity
Lifting capacity 1,360.78 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,315.01 kg
Max speed forward
Max speed forward 12.23 kph
Max speed forward 13.68 kph
Max speed forward 11.27 kph
Max torque
Max torque 356.58 Nm
Max torque -
Max torque -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,043 kg
Operating weight 4,052 kg
Operating weight 4,250 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.35 m
Max horizontal reach 1.46 m
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,630 kg
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 10.22 liter
Fuel cap
Fuel cap 83.27 liter
Fuel cap 84.03 liter
Fuel cap 95 liter
Hydraulic fluid cap
Hydraulic fluid cap 49.96 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 52.23 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.08 liter
Engine crankcase 9.84 liter
Engine oil cap
Engine oil cap 12.11 liter
Engine oil cap 9.08 liter
Engine oil cap -
Ground clearance
Ground clearance 0.23 m
Ground clearance 0.23 m
Ground clearance 0.36 m
Height - top of cab
Height - top of cab 1.95 m
Height - top of cab 3.86 m
Height - top of cab 2.1 m
Length with bucket
Length with bucket 3.23 m
Length with bucket 3.44 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 2.65 m
Length without Bucket -
Length without Bucket -
Turning radius
Turning radius 2.04 m
Turning radius 1.47 m
Turning radius 2.51 m
Width over tracks
Width over tracks 1.83 m
Width over tracks 1.77 m
Width over tracks 1.92 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 20.32 cm
Max height to hinge pin 25.4 cm
Overall Width
Overall Width -
Overall Width 1.68 m
Overall Width 1.91 m
Ground contact area
Ground contact area 29,169.04 cu cm
Ground contact area 24,498.71 cu cm
Ground contact area 47,489.82 cu cm
Ground pressure
Ground pressure 0.34 bar
Ground pressure 0.34 bar
Ground pressure 0.22 bar
Number of track rollers per side
Number of track rollers per side 3
Number of track rollers per side -
Number of track rollers per side -
Track gauge
Track gauge 1.4 m
Track gauge -
Track gauge -
Track length
Track length 1.46 m
Track length 1.52 m
Track length 2.07 m
Track width
Track width 40.13 cm
Track width 40.13 cm
Track width -
Pump flow cap
Pump flow cap 82.89 lpm
Pump flow cap 83.27 lpm
Pump flow cap 83.27 lpm
Pump type
Pump type Gear pump
Pump type High Flow XPS
Pump type Standard
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 229.94 bar
Relief valve pressure 230 bar
Rack back angle
Rack back angle 60 º
Rack back angle 58 º
Rack back angle -
Angle of departure
Angle of departure -
Angle of departure 35 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS SAE J/ISO 3449 APR98, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Dump angle
Dump angle -
Dump angle 49 º
Dump angle 40 º
