Case 450CT Compact track loaders tech specs
:quality(50)/73027/conversions/7e02061e-8d56-4688-a45f-f08a586f244b-thumb.webp)
Video[1]
:quality(50)/73020/conversions/ab6bfc93-48c5-4d3d-8d0a-9cb6bc8f1e78-thumb.webp)

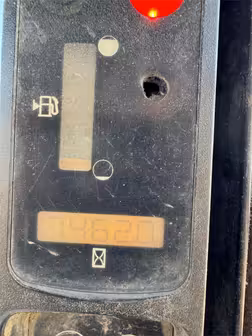

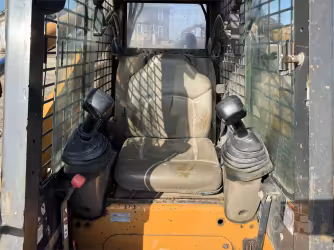

Interior [2]
:quality(50)/73022/conversions/b58f9075-ee5b-4f24-bebf-110cece0c750-thumb.webp)

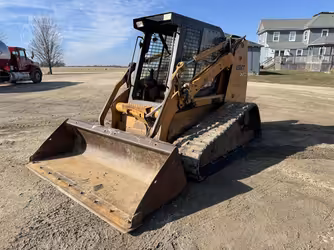

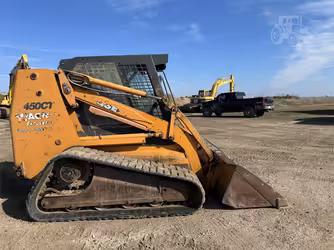

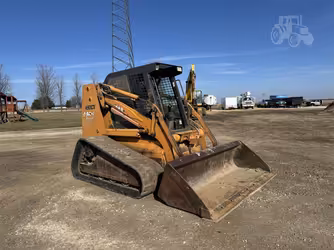

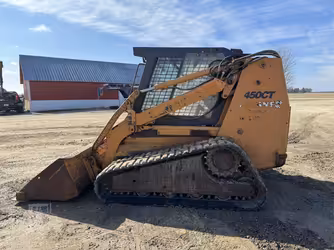

Exterior [4]
:quality(50)/73026/conversions/1338c9a5-0185-4787-9c35-d5a39b56ed6b-thumb.webp)

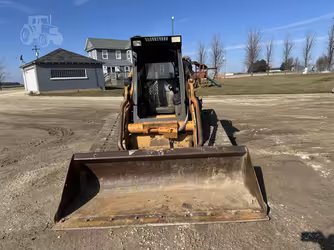

Attachments [1]
2006-2010
4,490.07 cu cm Displacement
65.62 kw Gross power
2.41 m Loader dump height
0.7 m Loader dump reach
1,749.96 kg Lifting capacity
4,950 kg Operating weight
A heavy-duty compact track loader built for demanding material handling and grading work, the Case 450CT delivers 65.62 kilowatt gross power with a high 1,750 kg lifting capacity. With a 4,950 kg operating weight and wide rubber track undercarriage, it provides strong traction and stability on soft ground, making it suitable for construction, earthmoving support, and large landscaping jobs.
Gross power 65.62 kilowatt
Engine displacement 4,490 cu cm
Rated lifting capacity 1,750 kg
Loader dump height 2.41 m
Loader dump reach 0.70 m
Operating weight 4,950 kg
Compact track undercarriage for improved traction and flotation
Makana rating
Owner rating
Market average
AED 125,000Starting from
AED 95,000Case 450CT technical specifications
Highlight differences
Case 450CT
Case 450CT Series 3
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 4,490.07 cu cm
Displacement 4,490.07 cu cm
Gross power
Gross power 65.62 kw
Gross power 67.11 kw
Max torque
Max torque 356.58 Nm
Max torque 390.47 Nm
Net power
Net power 61.15 kw
Net power 61.89 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,300 rpm
Power measured @ 2,300 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Years
Years 2006-2010
Years 2006-2010
Market Average
Market Average AED 125,000
Market Average AED 125,000
Price
Price AED 95,000
Price AED 95,000
Breakout force
Breakout force 2,812.28 kg
Breakout force -
Loader dump height
Loader dump height 2.41 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.7 m
Loader dump reach 0.76 m
Bucket capacity
Bucket capacity 0.61 cu m
Bucket capacity 0.61 cu m
Engine model
Engine model Family III 445T/M2, Tier II certified
Engine model 445T/M3
Lifting capacity
Lifting capacity 1,749.96 kg
Lifting capacity 1,749.51 kg
Max speed forward
Max speed forward 12.07 kph
Max speed forward 12.87 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,950 kg
Operating weight 4,955 kg
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 11.73 liter
Fuel cap
Fuel cap 78.35 liter
Fuel cap 78.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 64.35 liter
Hydraulic fluid cap 64.35 liter
Engine oil cap
Engine oil cap 12.11 liter
Engine oil cap 12.11 liter
Ground clearance
Ground clearance 0.23 m
Ground clearance 0.29 m
Height - top of cab
Height - top of cab 2.04 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.6 m
Length with bucket 3.6 m
Length without Bucket
Length without Bucket 2.77 m
Length without Bucket 2.8 m
Turning radius
Turning radius 2.19 m
Turning radius 2.34 m
Width over tracks
Width over tracks 2.1 m
Width over tracks 2.13 m
Ground contact area
Ground contact area 37,575.62 cu cm
Ground contact area 37,575.62 cu cm
Ground pressure
Ground pressure 0.33 bar
Ground pressure 0.33 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side 4
Track gauge
Track gauge 1.68 m
Track gauge -
Track length
Track length 1.65 m
Track length 1.65 m
Track width
Track width 45.21 cm
Track width 45.21 cm
Pump flow cap
Pump flow cap 83.65 lpm
Pump flow cap 83.27 lpm
Pump type
Pump type Gear pump
Pump type Gear pump
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure -
Rack back angle
Rack back angle 77 º
Rack back angle 77 º
Download datasheets
Case 450CT expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Case 450CT (2006–2010) is a heavy compact track loader designed for demanding material handling and grading tasks. It delivers 65.62 kilowatt engine power and a 1,750 kg rated lifting capacity on a stable 4.95-ton chassis.
Expert rating: 3 stars
Pros
Strong lifting capacity and stable chassis for heavy material handling.
Cons
Heavy weight and older design compared to newer compact loaders.
Performance & Efficiency
The 65.62 kilowatt engine provides steady torque for pushing and lifting tasks. The rubber track undercarriage improves traction and stability on soft ground.
In Comparison
Cat 299: Higher power and newer hydraulic systems.
John Deere 333: Modern design with strong lifting capability.
Case 450CT: Solid lifting performance but older platform.
Final Verdict
Rated 3 stars, the Case 450CT provides strong lifting power and traction within the AED 95,000–125,000 range.
Case 450CT owner rating
Case 450CT Compact track loaders [2006-2010]
2006-2010
Overall rating
Based on 3 ratings
4.0
performance
4.7
comfort
4.3
fuel efficiency
4.0
safety
4.7
features
4.7
5 stars
0 %
4 stars
100 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Strong lifting capacity and pushing power for heavy grading work.
Cons
Larger machine can be harder to transport between sites.
performance
4.0
comfort
5.0
fuel efficiency
4.0
safety
5.0
features
4.0
Pros
Stable when carrying heavy loads on rough terrain.
Cons
Older cab design lacks the comfort of newer compact loaders.
performance
5.0
comfort
4.0
fuel efficiency
4.0
safety
5.0
features
5.0
Case 450CT similar models
Highlight differences
Case 450CT
450CT
Cat 299C
299C
John deere 333D
333D
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 70 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Displacement
Displacement 4,490.07 cu cm
Displacement 3,293.81 cu cm
Displacement 3,000.48 cu cm
Gross power
Gross power 65.62 kw
Gross power 70.1 kw
Gross power 71.14 kw
Max torque
Max torque 356.58 Nm
Max torque -
Max torque 341.12 Nm
Net power
Net power 61.15 kw
Net power 67.11 kw
Net power 66.74 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 5
Power measured @
Power measured @ 2,300 rpm
Power measured @ 2,500 rpm
Power measured @ 2,400 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ 1,950 rpm
Bore
Bore -
Bore 9.4 cm
Bore -
Stroke
Stroke -
Stroke 11.94 cm
Stroke -
Engine make
Engine make -
Engine make -
Engine make John Deere
Years
Years 2006-2010
Years 2009-2015
Years 2009-2013
Market Average
Market Average AED 125,000
Market Average AED 140,000
Market Average AED 164,000
Price
Price AED 95,000
Price AED 110,000
Price AED 115,000
Breakout force
Breakout force 2,812.28 kg
Breakout force -
Breakout force 6,293.6 kg
Loader dump height
Loader dump height 2.41 m
Loader dump height 2.5 m
Loader dump height -
Loader dump reach
Loader dump reach 0.7 m
Loader dump reach 0.79 m
Loader dump reach 0.82 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Bucket capacity
Bucket capacity 0.61 cu m
Bucket capacity 0.46 cu m
Bucket capacity -
Engine model
Engine model Family III 445T/M2, Tier II certified
Engine model Cat C3.4T
Engine model E 5030HT
Lifting capacity
Lifting capacity 1,749.96 kg
Lifting capacity 1,882.41 kg
Lifting capacity 2,145.04 kg
Max speed forward
Max speed forward 12.07 kph
Max speed forward 13.68 kph
Max speed forward 12.71 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,950 kg
Operating weight 4,867 kg
Operating weight 5,039 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.27 m
Max horizontal reach -
Tipping load
Tipping load -
Tipping load 3,782 kg
Tipping load 4,275 kg
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 14 liter
Cooling fluid cap -
Fuel cap
Fuel cap 78.35 liter
Fuel cap 98.03 liter
Fuel cap 111.28 liter
Hydraulic fluid cap
Hydraulic fluid cap 64.35 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap -
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase -
Engine oil cap
Engine oil cap 12.11 liter
Engine oil cap 10.22 liter
Engine oil cap -
Ground clearance
Ground clearance 0.23 m
Ground clearance 0.23 m
Ground clearance 0.27 m
Height - top of cab
Height - top of cab 2.04 m
Height - top of cab 2.13 m
Height - top of cab 3.2 m
Length with bucket
Length with bucket 3.6 m
Length with bucket 3.84 m
Length with bucket 3.63 m
Length without Bucket
Length without Bucket 2.77 m
Length without Bucket -
Length without Bucket 3.02 m
Turning radius
Turning radius 2.19 m
Turning radius 1.78 m
Turning radius 2.19 m
Width over tracks
Width over tracks 2.1 m
Width over tracks 1.98 m
Width over tracks 2.07 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 19.56 cm
Max height to hinge pin -
Overall Width
Overall Width -
Overall Width 1.98 m
Overall Width -
Ground contact area
Ground contact area 37,575.62 cu cm
Ground contact area 41,033.3 cu cm
Ground contact area -
Ground pressure
Ground pressure 0.33 bar
Ground pressure 0.3 bar
Ground pressure 0.32 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side 5
Track gauge
Track gauge 1.68 m
Track gauge -
Track gauge -
Track length
Track length 1.65 m
Track length 1.77 m
Track length -
Track width
Track width 45.21 cm
Track width -
Track width 45.21 cm
Pump flow cap
Pump flow cap 83.65 lpm
Pump flow cap 124.91 lpm
Pump flow cap 95 lpm
Pump type
Pump type Gear pump
Pump type High Flow XPS
Pump type -
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 279.99 bar
Relief valve pressure -
Rack back angle
Rack back angle 77 º
Rack back angle 83 º
Rack back angle 50 º
Angle of departure
Angle of departure -
Angle of departure 38 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS -
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II -
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS -
Dump angle
Dump angle -
Dump angle 51 º
Dump angle 45 º
Case 450CT gallery
:quality(50)/73027/conversions/7e02061e-8d56-4688-a45f-f08a586f244b-thumb.webp)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
:quality(80)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
Case TR270 Compact track loaders specs Case TR310 Compact track loaders specs Case TR320 Compact track loaders specs Case TR340 Compact track loaders specs Case TV370 Compact track loaders specs Case TV380 Compact track loaders specs Case 420CT Compact track loaders specs Case 440CT Compact track loaders specs Case 445CT Compact track loaders specs Case 450CT Compact track loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
