Case 420CT Compact track loaders tech specs
:quality(50)/72989/conversions/b4b0e707-aef5-4f5e-a2d6-666d7d31cf4d-thumb.webp)
Video[1]
:quality(50)/72982/conversions/7ddf636e-6239-421d-8af2-34bea7f5dbe6-thumb.webp)

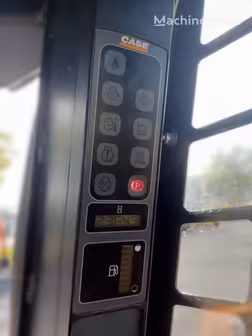

Interior [2]
:quality(50)/72984/conversions/6923923d-152f-4b31-a35e-8a46cd8a072c-thumb.webp)

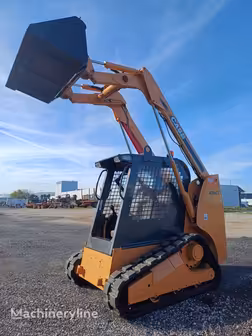

Exterior [4]
:quality(50)/72988/conversions/23fb1e52-762c-4056-a575-e2ee6861f1e9-thumb.webp)
Attachments [1]
2006-2025
2,195.87 cu cm Displacement
44 kw Gross power
2.29 m Loader dump height
0.64 m Loader dump reach
1,133.98 kg Lifting capacity
3,333 kg Operating weight
A compact track loader built for tight job sites and soft-ground work, the Case 420CT delivers 44 kW of power with a lifting capacity of 1,134 kg and an operating weight of 3,333 kg. Its rubber track system improves traction and stability compared to wheeled skid steers, making it useful for landscaping, site prep, grading, and light material handling.
Gross power 44 kW (59 hp)
Operating weight 3,333 kg (7,349 lb)
Rated lifting capacity 1,134 kg (2,500 lb)
Loader dump height 2.29 m (7.5 ft)
Loader dump reach 0.64 m (2.1 ft)
Price range AED 89,990–183,655
Makana rating
Owner rating
Market average
AED 183,655Starting from
AED 89,990Case 420CT technical specifications
Highlight differences
Case 420CT
Case 420CT Series 3
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 2,195.87 cu cm
Displacement 3,195.48 cu cm
Gross power
Gross power 44 kw
Gross power 55.18 kw
Max torque
Max torque 178.97 Nm
Max torque 275.23 Nm
Net power
Net power 41.76 kw
Net power 51.45 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,900 rpm
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,700 rpm
Torque measured @ 1,400 rpm
Years
Years 2006-2025
Years 2006-2025
Market Average
Market Average AED 183,655
Market Average AED 183,655
Price
Price AED 89,990
Price AED 89,990
Breakout force
Breakout force 2,070.2 kg
Breakout force -
Loader dump height
Loader dump height 2.29 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.64 m
Loader dump reach 0.64 m
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Engine model
Engine model 422T/M2
Engine model 432T/M3
Lifting capacity
Lifting capacity 1,133.98 kg
Lifting capacity 1,297.28 kg
Max speed forward
Max speed forward 10.14 kph
Max speed forward 13.52 kph
Operating weight
Operating weight 3,333 kg
Operating weight 3,782 kg
Operating voltage
Operating voltage -
Operating voltage 12 V
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 11.73 liter
Fuel cap
Fuel cap 83.27 liter
Fuel cap 83.27 liter
Hydraulic fluid cap
Hydraulic fluid cap 49.96 liter
Hydraulic fluid cap 49.96 liter
Engine oil cap
Engine oil cap 10.6 liter
Engine oil cap 8.71 liter
Ground clearance
Ground clearance 0.2 m
Ground clearance 0.21 m
Height - top of cab
Height - top of cab 1.92 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 3.14 m
Length with bucket 3.29 m
Length without Bucket
Length without Bucket 2.56 m
Length without Bucket 2.62 m
Turning radius
Turning radius 1.97 m
Turning radius 2.05 m
Width over tracks
Width over tracks 1.68 m
Width over tracks 1.68 m
Ground contact area
Ground contact area 23,335.23 cu cm
Ground contact area 23,335.23 cu cm
Ground pressure
Ground pressure 0.36 bar
Ground pressure 0.4 bar
Number of track rollers per side
Number of track rollers per side 3
Number of track rollers per side 3
Track gauge
Track gauge 1.31 m
Track gauge -
Track length
Track length 1.46 m
Track length 1.46 m
Track width
Track width 32 cm
Track width 32 cm
Pump flow cap
Pump flow cap 73.81 lpm
Pump flow cap 90.08 lpm
Pump type
Pump type Gear pump
Pump type Gear pump
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure -
Rack back angle
Rack back angle 50 º
Rack back angle 57 º
Download datasheets
Case 420CT expert review
:quality(50)/60958/415fade2-9a12-4cde-97ea-28c91dec6948.jpeg)
Overview
The Case 420CT is a compact track loader designed for contractors who need strong traction and maneuverability on smaller job sites. With a 44 kW engine, 1,134 kg rated lifting capacity, and a 3.3-ton operating weight, it suits landscaping, construction, and general material handling work.
Pros Excellent traction on soft terrain, compact size for tight job sites.
Cons Lower lifting capacity than larger compact track loaders.
Efficiency
The 44 kW engine and rubber track undercarriage provide stable traction and reliable performance for grading, loading, and landscaping tasks.
In Cabin
The operator station focuses on simple controls and good visibility, making attachment work easy to manage.
In Comparison
Compared with the Cat 257 and Cat 257, the 420CT offers similar compact performance with competitive pricing.
Final Verdict
Rated 4 stars, the Case 420CT remains a dependable compact track loader for landscaping, grading, and general construction work in the AED 89,990–183,655 range.
Case 420CT owner rating
Case 420CT Compact track loaders [2006-2025]
2006-2025
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.7
safety
4.3
features
4.7
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Excellent traction on mud and loose soil.
Cons
Smaller lifting capacity compared with larger compact loaders.
performance
4.0
comfort
5.0
fuel efficiency
5.0
safety
4.0
features
4.0
Case 420CT similar models
Highlight differences
Case 420CT
420CT
Cat 257
257
Cat 247
247
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Displacement
Displacement 2,195.87 cu cm
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Gross power
Gross power 44 kw
Gross power 46.98 kw
Gross power 43.25 kw
Max torque
Max torque 178.97 Nm
Max torque -
Max torque -
Net power
Net power 41.76 kw
Net power 44 kw
Net power 40.27 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,900 rpm
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Torque measured @
Torque measured @ 1,700 rpm
Torque measured @ -
Torque measured @ -
Bore
Bore -
Bore 9.91 cm
Bore 9.91 cm
Stroke
Stroke -
Stroke 10.16 cm
Stroke 10.16 cm
Years
Years 2006-2025
Years 2014-2019
Years 2004-2008
Market Average
Market Average AED 183,655
Market Average AED 186,000
Market Average AED 145,000
Price
Price AED 89,990
Price AED 147,000
Price AED 130,000
Breakout force
Breakout force 2,070.2 kg
Breakout force -
Breakout force -
Loader dump height
Loader dump height 2.29 m
Loader dump height 2.29 m
Loader dump height 2.1 m
Loader dump reach
Loader dump reach 0.64 m
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,365.77 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 1,603.9 kg
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.38 cu m
Engine model
Engine model 422T/M2
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Lifting capacity
Lifting capacity 1,133.98 kg
Lifting capacity 1,065.94 kg
Lifting capacity 952.55 kg
Max speed forward
Max speed forward 10.14 kph
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Operating weight
Operating weight 3,333 kg
Operating weight 3,460 kg
Operating weight 3,023 kg
Tipping load
Tipping load -
Tipping load 2,091 kg
Tipping load 1,753 kg
Cooling fluid cap
Cooling fluid cap 17.03 liter
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Fuel cap
Fuel cap 83.27 liter
Fuel cap 90.08 liter
Fuel cap 64.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 49.96 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
Engine oil cap
Engine oil cap 10.6 liter
Engine oil cap -
Engine oil cap -
Ground clearance
Ground clearance 0.2 m
Ground clearance 0.26 m
Ground clearance 0.27 m
Height - top of cab
Height - top of cab 1.92 m
Height - top of cab 2.04 m
Height - top of cab 2.01 m
Length with bucket
Length with bucket 3.14 m
Length with bucket 3.54 m
Length with bucket 3.32 m
Length without Bucket
Length without Bucket 2.56 m
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Turning radius
Turning radius 1.97 m
Turning radius 2.29 m
Turning radius 2.16 m
Width over tracks
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Ground contact area
Ground contact area 23,335.23 cu cm
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Ground pressure
Ground pressure 0.36 bar
Ground pressure 0.3 bar
Ground pressure 0.26 bar
Number of track rollers per side
Number of track rollers per side 3
Number of track rollers per side -
Number of track rollers per side -
Track gauge
Track gauge 1.31 m
Track gauge -
Track gauge -
Track length
Track length 1.46 m
Track length 1.52 m
Track length 1.52 m
Track width
Track width 32 cm
Track width 38.1 cm
Track width 38.1 cm
Pump flow cap
Pump flow cap 73.81 lpm
Pump flow cap 57.53 lpm
Pump flow cap 54.5 lpm
Pump type
Pump type Gear pump
Pump type -
Pump type -
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure -
Relief valve pressure -
Rack back angle
Rack back angle 50 º
Rack back angle 44 º
Rack back angle 37 º
