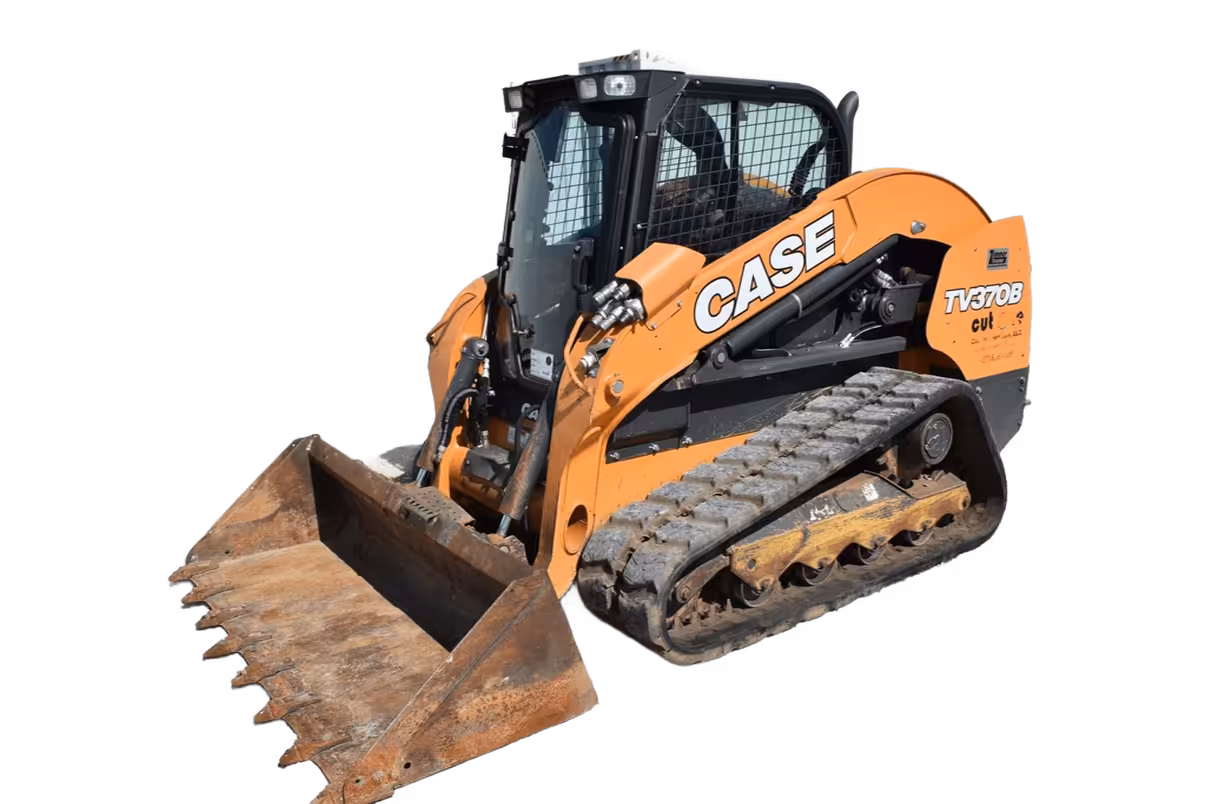

Case TV370 Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]

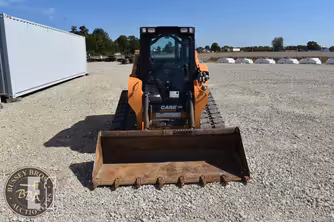

Attachments [2]
2021-2025
3,400.32 cu cm Displacement
55.18 kw Gross power
2.7 m Loader dump height
0.8 m Loader dump reach
1,174.81 kg Lifting capacity
4,027 kg Operating weight
Show features

Makana rating

Market average

AED 350,000

Starting from

AED 104,000

Case TV370 Technical specifications

Engine

Alternator supplied amperage

120 Amh

Aspiration

Turbocharged

Bore

9.91 cm

Displacement

3400.32 cu cm

Emissions

Tier 4 Final Certified (CEGR, DOC, PM Catalyst)

Gross power

55.18 kw

Max torque

314 Nm

Net power

50.71 kw

Number of cylinders

4

Stroke

11.18 cm

General

Operating voltage

12 V

Engine model

FPT F5H FL463 A F001

Lifting capacity

1174.81 kg

Operating weight

4,027 kg

Tipping load

3,356 kg

Loader

Breakout force

3976.92 kg

Loader dump height

2.7 m

Loader dump reach

0.8 m

Refill capacities

Engine oil cap

8.71 liter

Service refill capacities

Fuel cap

96.52 liter

Dimensions

Ground clearance

0.24 m

Height - top of cab

2.04 m

Length with bucket

3.63 m

Max height to hinge pin

334.26 cm

Overall Width

1.93 m

Width over tracks

1.95 m

Operating specifications

Lift arm path

Vertical

Rack back angle

25 º

Hydraulic system

Pump flow cap

122.63 lpm

Pump type

Gear pump

Relief valve pressure

210.01 bar

Undercarriage

Track width

40000.17 cm

View more
Download datasheets
OEM product brochure

Case TV370 similar models

Highlight differences
Case TV370
TV370
Cat 277B
277B
Cat 279C
279C
Engine
Alternator supplied amperage 120 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Bore 9.91 cm
Bore 9.4 cm
Bore 8.64 cm
Displacement 3,400.32 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Emissions Tier 4 Final Certified (CEGR, DOC, PM Catalyst)
Emissions -
Emissions -
Gross power 55.18 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque 314 Nm
Max torque -
Max torque -
Net power 50.71 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Stroke 11.18 cm
Stroke 11.94 cm
Stroke 11.94 cm
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years 2021-2025
Years 2004-2007
Years 2009-2015
Market Average AED 350,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 104,000
Price AED 62,500
Price AED 114,000
General
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Engine model FPT F5H FL463 A F001
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,174.81 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Operating weight 4,027 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Tipping load 3,356 kg
Tipping load 2,676 kg
Tipping load 2,940 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Max speed forward -
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Loader
Breakout force 3,976.92 kg
Breakout force -
Breakout force -
Loader dump height 2.7 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.8 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Refill capacities
Engine oil cap 8.71 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Service refill capacities
Fuel cap 96.52 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap -
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Dimensions
Ground clearance 0.24 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.04 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.63 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Max height to hinge pin 334.26 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width 1.93 m
Overall Width 1.91 m
Overall Width 1.98 m
Width over tracks 1.95 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Operating specifications
Lift arm path Vertical
Lift arm path -
Lift arm path -
Rack back angle 25 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Hydraulic system
Pump flow cap 122.63 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type Gear pump
Pump type Standard
Pump type High Flow XPS
Relief valve pressure 210.01 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Undercarriage
Track width 40,000.17 cm
Track width -
Track width -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length -
Track length 2.07 m
Track length 1.77 m
