Case 590 Backhoe loaders tech specs
:quality(50)/66308/conversions/6961b4e3-462a-4c32-9492-7946104ff6a5-thumb.webp)

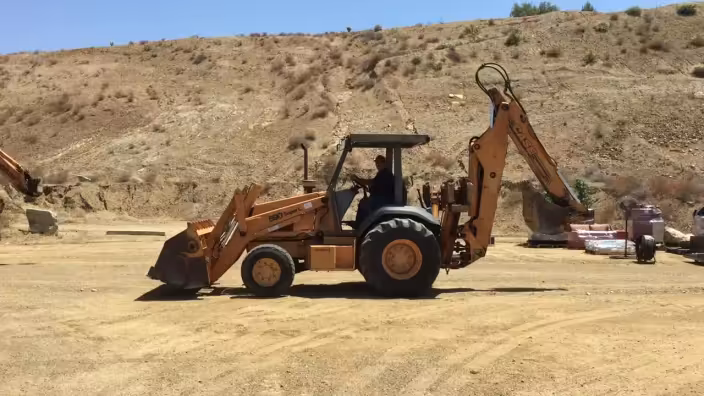

Video[1]
:quality(50)/66300/conversions/d2c6a300-df82-45d7-85f2-97bc5760e69b-thumb.webp)

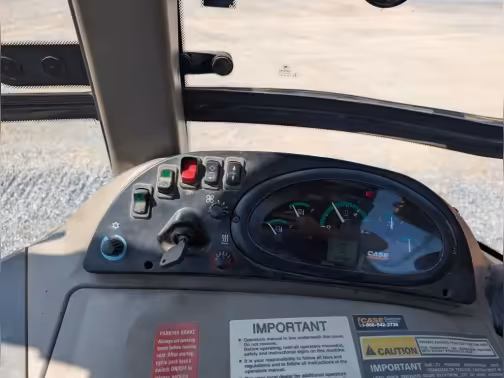

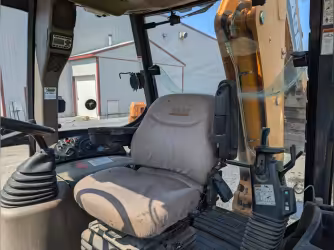

Interior [2]
:quality(50)/66302/conversions/cc26b005-ef3e-4257-b7f3-b7794115d47d-thumb.webp)

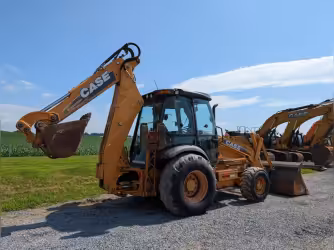

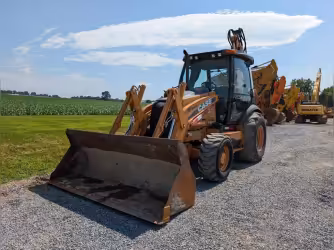

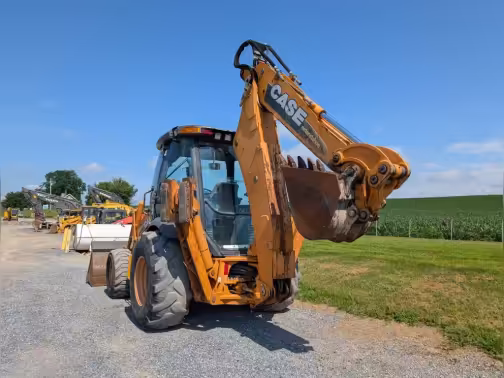

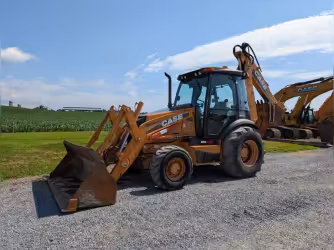

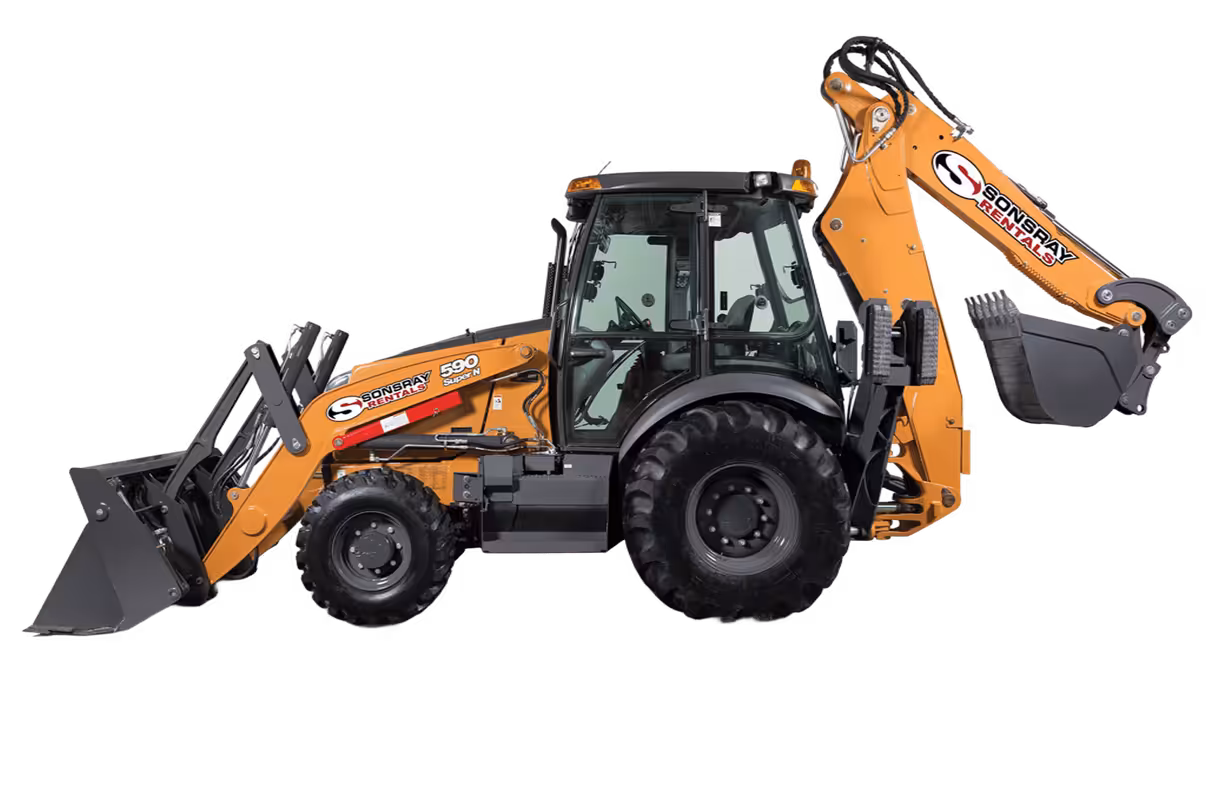

Exterior [4]
:quality(50)/66306/conversions/08eb67eb-7c48-4f76-8a4a-324243ef6686-thumb.webp)

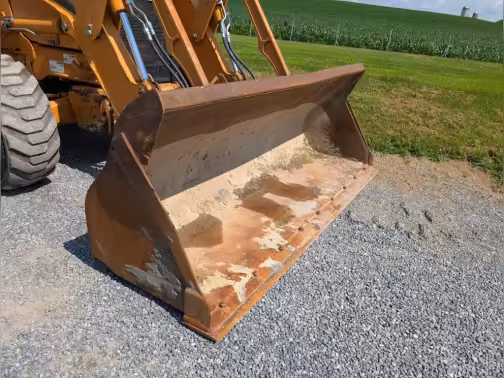

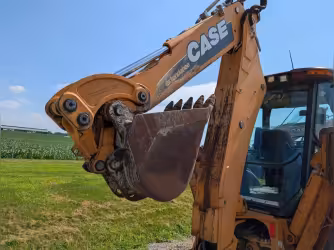

Attachments [2]
2001-2025
4.79 m Backhoe digging depth
3.51 m Backhoe dump height
236 cm Bucket width
70.84 kw Gross power
2.74 m Loader dump height
6,991 kg Operating weight
Makana rating
Owner rating
Market average
AED 410,000Starting from
AED 160,000Case 590 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 65 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 120 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore 10.41 cm
Bore -
Bore -
Bore -
Bore 9.91 cm
Engine make
Engine make Case
Engine make -
Engine make -
Engine make -
Engine make CASE
Gross power
Gross power 70.84 kw
Gross power 73.83 kw
Gross power 82.03 kw
Gross power 82.03 kw
Gross power 82.03 kw
Net power
Net power 65.62 kw
Net power 73.08 kw
Net power 80.54 kw
Net power 81.06 kw
Net power 80.54 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Stroke
Stroke 12.19 cm
Stroke -
Stroke -
Stroke -
Stroke 11.18 cm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque rise
Torque rise -
Torque rise 0.24 %
Torque rise 0.45 %
Torque rise 0.45 %
Torque rise 0.45 %
Emissions
Emissions -
Emissions -
Emissions -
Emissions -
Emissions Tier 4 Final
Years
Years 2001-2025
Years 2001-2025
Years 2001-2025
Years 2001-2025
Years 2001-2025
Market Average
Market Average AED 410,000
Market Average AED 410,000
Market Average AED 410,000
Market Average AED 410,000
Market Average AED 410,000
Price
Price AED 160,000
Price AED 160,000
Price AED 160,000
Price AED 160,000
Price AED 160,000
Backhoe digging depth
Backhoe digging depth 4.79 m
Backhoe digging depth 4.88 m
Backhoe digging depth 4.61 m
Backhoe digging depth 4.88 m
Backhoe digging depth -
Backhoe dump height
Backhoe dump height 3.51 m
Backhoe dump height -
Backhoe dump height 3.51 m
Backhoe dump height -
Backhoe dump height -
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.84 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket digging force
Bucket digging force 5,953.86 kg
Bucket digging force 6,675.98 kg
Bucket digging force 6,675.98 kg
Bucket digging force 6,675.98 kg
Bucket digging force -
Bucket width
Bucket width 236 cm
Bucket width 236 cm
Bucket width 236 cm
Bucket width 236 cm
Bucket width 236 cm
Displacement
Displacement 3,921.43 cu cm
Displacement 4,457.29 cu cm
Displacement 4,457.29 cu cm
Displacement 4,501.54 cu cm
Displacement 3,400.32 cu cm
Engine model
Engine model 4T-390
Engine model Family III 445T/M2, Tier II certified
Engine model Family IV 445TA/E3, Tier III certified
Engine model Family IV 445TA/E3 diesel, Tier III certified
Engine model FPT F5BFL413A
Loader dump height
Loader dump height 2.74 m
Loader dump height 2.74 m
Loader dump height 2.74 m
Loader dump height 2.77 m
Loader dump height 2.74 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.7 m
Loader dump reach 0.7 m
Loader dump reach 0.7 m
Loader dump reach 0.76 m
Lifting capacity
Lifting capacity 1,555.82 kg
Lifting capacity -
Lifting capacity -
Lifting capacity -
Lifting capacity 3,720.37 kg
Max speed forward
Max speed forward 42.33 kph
Max speed forward 41.04 kph
Max speed forward 39.59 kph
Max speed forward 41.2 kph
Max speed forward 38.95 kph
Max torque
Max torque 352.51 Nm
Max torque 391.83 Nm
Max torque 504.36 Nm
Max torque 504.36 Nm
Max torque 459.62 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 6,991 kg
Operating weight 8,880 kg
Operating weight 8,880 kg
Operating weight 8,881 kg
Operating weight 9,279 kg
Transmission type
Transmission type Fully synchronized 4-speed forward reverse shuttle
Transmission type 4-speed synchromesh with hydraulically actuated clutches
Transmission type 4-speed synchromesh with hydraulically actuated clutches
Transmission type synchromesh
Transmission type Powershift
Wheelbase
Wheelbase 2.13 m
Wheelbase 2.16 m
Wheelbase 2.16 m
Wheelbase 2.16 m
Wheelbase 2.13 m
Backhoe reach from swivel
Backhoe reach from swivel 6.04 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6 m
Breakout force
Breakout force 4,036.98 kg
Breakout force 4,866.6 kg
Breakout force 4,980.45 kg
Breakout force 4,866.6 kg
Breakout force 5,199.54 kg
Loader digging depth
Loader digging depth 9.65 cm
Loader digging depth 9.65 cm
Loader digging depth 9.65 cm
Loader digging depth 9.65 cm
Loader digging depth 15.75 cm
Cooling fluid cap
Cooling fluid cap 16.65 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Front axle fluid capacity
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 8.71 liter
Fuel cap
Fuel cap 118.85 liter
Fuel cap 158.97 liter
Fuel cap 158.97 liter
Fuel cap 159.35 liter
Fuel cap 159.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 124.91 liter
Hydraulic fluid cap 129.83 liter
Hydraulic fluid cap 122.26 liter
Hydraulic fluid cap 127.93 liter
Hydraulic fluid cap 132.1 liter
Rear axle fluid capacity
Rear axle fluid capacity 11.36 liter
Rear axle fluid capacity 14.38 liter
Rear axle fluid capacity 18.93 liter
Rear axle fluid capacity 18.93 liter
Rear axle fluid capacity 13.63 liter
Transmission fluid cap
Transmission fluid cap 18.55 liter
Transmission fluid cap 20.82 liter
Transmission fluid cap 19.68 liter
Transmission fluid cap 19.68 liter
Transmission fluid cap 19.68 liter
Engine oil cap
Engine oil cap 10.98 liter
Engine oil cap 13.63 liter
Engine oil cap 13.63 liter
Engine oil cap 13.63 liter
Engine oil cap 13.63 liter
Extended backhoe digging depth
Extended backhoe digging depth 6 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 5.94 m
Extended backhoe dump height
Extended backhoe dump height 4.3 m
Extended backhoe dump height 4.21 m
Extended backhoe dump height 4.21 m
Extended backhoe dump height 4.21 m
Extended backhoe dump height 4.82 m
Extended backhoe dump reach
Extended backhoe dump reach 3.72 m
Extended backhoe dump reach 3.9 m
Extended backhoe dump reach 3.9 m
Extended backhoe dump reach 3.9 m
Extended backhoe dump reach 2.5 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 7.19 m
Extended backhoe reach from swivel 7.19 m
Extended backhoe reach from swivel 7.19 m
Extended backhoe reach from swivel 7.19 m
Brake system
Brake system -
Brake system -
Brake system -
Brake system -
Brake system Wet multidisc
Front tires size (2WD)
Front tires size (2WD) 14.5/.75 x 16.1, 10PR / 14 x 17.5, 10PR
Front tires size (2WD) 14.5x16.1/14x17.5
Front tires size (2WD) 14.5/75x16.1/14x17.5
Front tires size (2WD) 14.5/75x16.1 10ply / 14x17.5 10 ply
Front tires size (2WD) 14x17.5
Rear tires size
Rear tires size 21L x 24, 10PR
Rear tires size 21Lx24/21Lx24
Rear tires size 21Lx24/21Lx24
Rear tires size 21Lx24 10 ply / 21Lx24 10ply
Rear tires size -
Front tires size (4WD)
Front tires size (4WD) -
Front tires size (4WD) -
Front tires size (4WD) -
Front tires size (4WD) -
Front tires size (4WD) 14.0L x 17.5
Front tread range
Front tread range 173.99 cm
Front tread range -
Front tread range -
Front tread range -
Front tread range -
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Ground clearance 0.37 m
Height - top of cab
Height - top of cab 2.5 m
Height - top of cab 2.71 m
Height - top of cab 2.71 m
Height - top of cab 2.71 m
Height - top of cab 2.71 m
Rear tread range
Rear tread range 162.05 cm
Rear tread range -
Rear tread range -
Rear tread range -
Rear tread range -
Overall Length
Overall Length 7.19 m
Overall Length 7.19 m
Overall Length 7.19 m
Overall Length 7.19 m
Overall Length 7.25 m
Overall Width
Overall Width 2.38 m
Overall Width 2.38 m
Overall Width 2.38 m
Overall Width 2.38 m
Overall Width 2.38 m
Turning radius
Turning radius -
Turning radius 3.78 m
Turning radius 3.78 m
Turning radius 3.78 m
Turning radius 3.81 m
Max speed reverse
Max speed reverse 50.86 kph
Max speed reverse 49.57 kph
Max speed reverse 47.48 kph
Max speed reverse 49.41 kph
Max speed reverse 25.59 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 3
Pump flow cap
Pump flow cap 113.55 lpm
Pump flow cap 160.86 lpm
Pump flow cap 160.86 lpm
Pump flow cap 161.24 lpm
Pump flow cap 162.76 lpm
Pump type
Pump type Front mounted positive displacement tandem gear type
Pump type Gear-type tandem, transmission driven
Pump type Tandem gear
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 210.29 bar
Relief valve pressure 210.29 bar
Relief valve pressure 206.84 bar
Relief valve pressure 237.87 bar
Download datasheets
Case 590 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Case 590 delivers 70.84 kW of gross power with 4.79 m digging depth and about 6,991 kg operating weight for utilities and mid-size site prep.
Pros Higher engine output than 580, good digging depth, stable loader platform.
Cons Heavier on soft ground, cab comfort varies by model year.
Efficiency
A 4.79 m digging depth and 2.74 m loader dump height support mixed utility and foundation work.
In Cabin
Controls are straightforward with good sightlines, comfort improving on later Super N variants.
In Comparison
Compared with the Case 580 and New Holland 575, the 590 emphasizes higher power and tougher digging.
Final Verdict
Rated 4 stars, the Case 590 fits utilities and mid-size site prep, priced between AED 160,000 and 410,000.
Case 590 owner rating
Case 590 Backhoe loaders [2001-2025]
2001-2025
Overall rating
Based on 3 ratings
4.0
performance
4.0
comfort
4.3
fuel efficiency
4.3
safety
4.7
features
4.3
5 stars
0 %
4 stars
100 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Case 590 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 65 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage 42 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration -
Bore
Bore 10.41 cm
Bore 11.43 cm
Bore 10.41 cm
Engine make
Engine make Case
Engine make New Holland
Engine make Case
Gross power
Gross power 70.84 kw
Gross power 67.11 kw
Gross power 51.45 kw
Net power
Net power 65.62 kw
Net power 63.39 kw
Net power 46.98 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,200 rpm
Stroke
Stroke 12.19 cm
Stroke 12.7 cm
Stroke 12.19 cm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,200 rpm
Years
Years 2001-2025
Years 1996-2001
Years 2006-2025
Market Average
Market Average AED 410,000
Market Average AED 191,000
Market Average AED 435,000
Price
Price AED 160,000
Price AED 121,000
Price AED 185,000
Backhoe digging depth
Backhoe digging depth 4.79 m
Backhoe digging depth 4.42 m
Backhoe digging depth 4.33 m
Backhoe dump height
Backhoe dump height 3.51 m
Backhoe dump height 4.08 m
Backhoe dump height -
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity -
Bucket capacity 0.76 cu m
Bucket digging force
Bucket digging force 5,953.86 kg
Bucket digging force 5,266.21 kg
Bucket digging force 5,232.19 kg
Bucket width
Bucket width 236 cm
Bucket width 223 cm
Bucket width 208 cm
Displacement
Displacement 3,921.43 cu cm
Displacement -
Displacement 3,900.13 cu cm
Engine model
Engine model 4T-390
Engine model BSD 450T
Engine model 4-390
Loader dump height
Loader dump height 2.74 m
Loader dump height 2.71 m
Loader dump height 3.05 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.79 m
Loader dump reach 0.7 m
Lifting capacity
Lifting capacity 1,555.82 kg
Lifting capacity -
Lifting capacity -
Max speed forward
Max speed forward 42.33 kph
Max speed forward 32.35 kph
Max speed forward 35.24 kph
Max torque
Max torque 352.51 Nm
Max torque 363.35 Nm
Max torque 245.4 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 6,991 kg
Operating weight 7,259 kg
Operating weight 4,835 kg
Transmission type
Transmission type Fully synchronized 4-speed forward reverse shuttle
Transmission type Powershuttle
Transmission type Full powershuttle and torque converter
Wheelbase
Wheelbase 2.13 m
Wheelbase 2.19 m
Wheelbase 3.29 m
Backhoe reach from swivel
Backhoe reach from swivel 6.04 m
Backhoe reach from swivel 5.64 m
Backhoe reach from swivel 5.43 m
Breakout force
Breakout force 4,036.98 kg
Breakout force 6,010.11 kg
Breakout force 3,193.29 kg
Loader digging depth
Loader digging depth 9.65 cm
Loader digging depth -
Loader digging depth 12.7 cm
Cooling fluid cap
Cooling fluid cap 16.65 liter
Cooling fluid cap 23.85 liter
Cooling fluid cap 18.17 liter
Front axle fluid capacity
Front axle fluid capacity 6.81 liter
Front axle fluid capacity -
Front axle fluid capacity -
Fuel cap
Fuel cap 118.85 liter
Fuel cap 105.98 liter
Fuel cap 100.3 liter
Hydraulic fluid cap
Hydraulic fluid cap 124.91 liter
Hydraulic fluid cap 137.02 liter
Hydraulic fluid cap 47.31 liter
Rear axle fluid capacity
Rear axle fluid capacity 11.36 liter
Rear axle fluid capacity -
Rear axle fluid capacity -
Transmission fluid cap
Transmission fluid cap 18.55 liter
Transmission fluid cap -
Transmission fluid cap -
Engine oil cap
Engine oil cap 10.98 liter
Engine oil cap 17.03 liter
Engine oil cap 10.6 liter
Extended backhoe digging depth
Extended backhoe digging depth 6 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth 5.58 m
Extended backhoe dump height
Extended backhoe dump height 4.3 m
Extended backhoe dump height 4.42 m
Extended backhoe dump height 4.36 m
Extended backhoe dump reach
Extended backhoe dump reach 3.72 m
Extended backhoe dump reach -
Extended backhoe dump reach 2.74 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 6.77 m
Extended backhoe reach from swivel 6.61 m
Front tires size (2WD)
Front tires size (2WD) 14.5/.75 x 16.1, 10PR / 14 x 17.5, 10PR
Front tires size (2WD) 11L-16 / 12-16.5
Front tires size (2WD) 11L * 16
Rear tires size
Rear tires size 21L x 24, 10PR
Rear tires size 19.5Lx24
Rear tires size 17.5L*24
Front tread range
Front tread range 173.99 cm
Front tread range -
Front tread range 160.02 cm
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.46 m
Ground clearance 0.24 m
Height - top of cab
Height - top of cab 2.5 m
Height - top of cab 2.87 m
Height - top of cab 2.68 m
Rear tread range
Rear tread range 162.05 cm
Rear tread range -
Rear tread range 157.23 cm
Overall Length
Overall Length 7.19 m
Overall Length 7.13 m
Overall Length 6.64 m
Overall Width
Overall Width 2.38 m
Overall Width 2.29 m
Overall Width 2.07 m
Max speed reverse
Max speed reverse 50.86 kph
Max speed reverse 40.23 kph
Max speed reverse 31.54 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 113.55 lpm
Pump flow cap 143.83 lpm
Pump flow cap 113.55 lpm
Pump type
Pump type Front mounted positive displacement tandem gear type
Pump type Open center
Pump type Front mounted positive displacement tandem gear type
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 196.5 bar
Relief valve pressure 137.89 bar

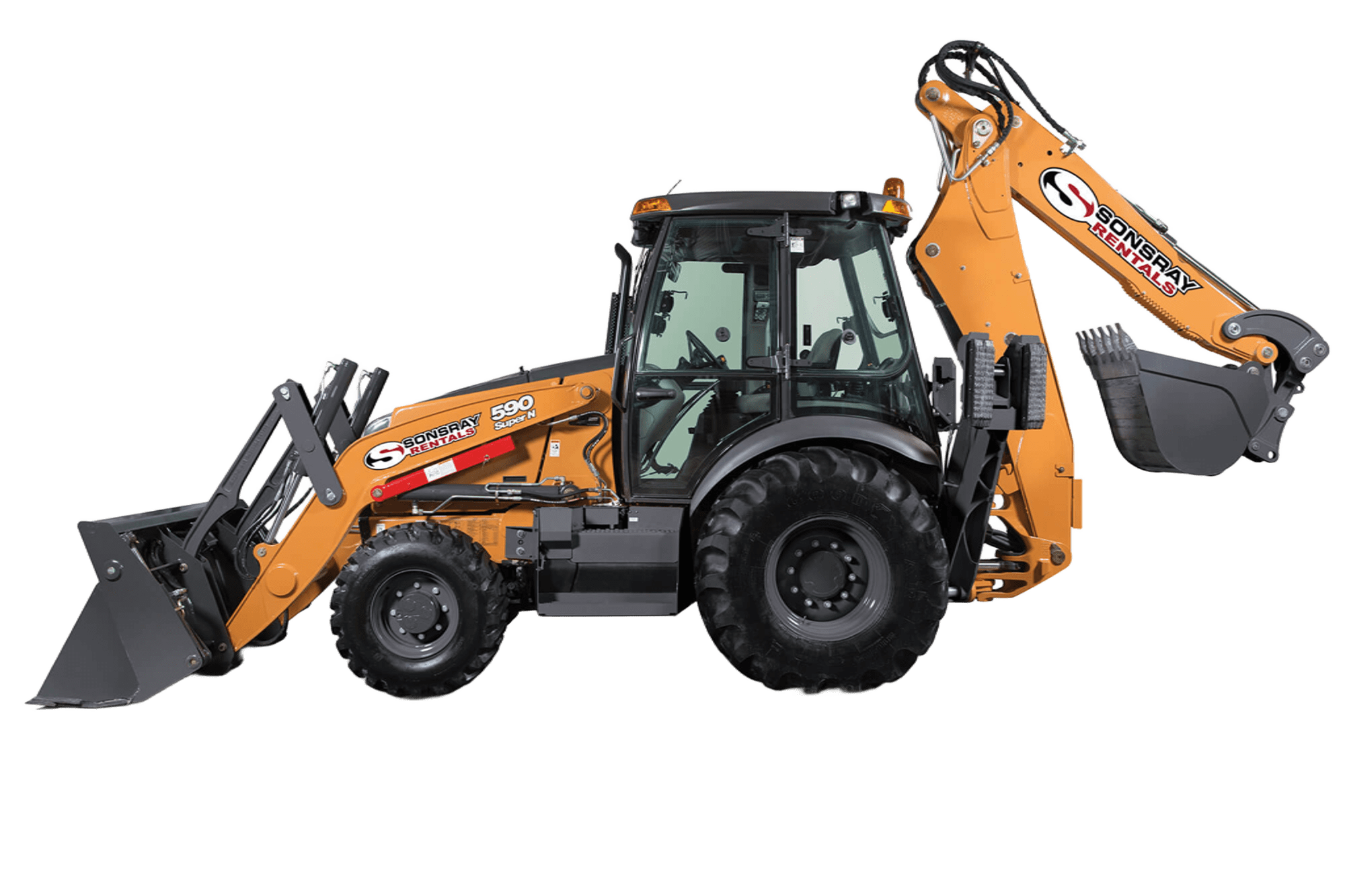

Case 590 gallery
:quality(50)/66308/conversions/6961b4e3-462a-4c32-9492-7946104ff6a5-thumb.webp)
:quality(75)/products/10077/cover/5fba6453-0d30-45ce-ba6c-10e3fe54a08d.png)
:quality(75)/products/10078/cover/bfc7a870-fb30-437c-ae3d-44e8986bdcc8.png)
:quality(75)/products/10123/cover/7165614f-efc7-470a-b384-728ed38734ca.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Case TR270 Compact track loaders specs Case TR310 Compact track loaders specs Case TR320 Compact track loaders specs Case TR340 Compact track loaders specs Case TV370 Compact track loaders specs Case TV380 Compact track loaders specs Case 420CT Compact track loaders specs Case 440CT Compact track loaders specs Case 445CT Compact track loaders specs Case 450CT Compact track loaders specs
Mecalac TLB8 Backhoe loaders specs Mecalac TLB9 Backhoe loaders specs Terex TLBT Backhoe loaders specs Terex TX75 Backhoe loaders specs Terex TX76 Backhoe loaders specs Terex TX86 Backhoe loaders specs Terex TX87 Backhoe loaders specs Terex TX97 Backhoe loaders specs Venieri VF1 Backhoe loaders specs Venieri VF10 Backhoe loaders specs
Komatsu SK1020 Compact track loaders specs ASV SR-70 Compact track loaders specs ASV SR-80 Compact track loaders specs Wacker neuson ST28 Compact track loaders specs Wacker neuson ST31 Compact track loaders specs Wacker neuson ST35 Compact track loaders specs Wacker neuson ST45 Compact track loaders specs Kubota SVL75 Compact track loaders specs Kubota SVL90 Compact track loaders specs Kubota SVL95 Compact track loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
