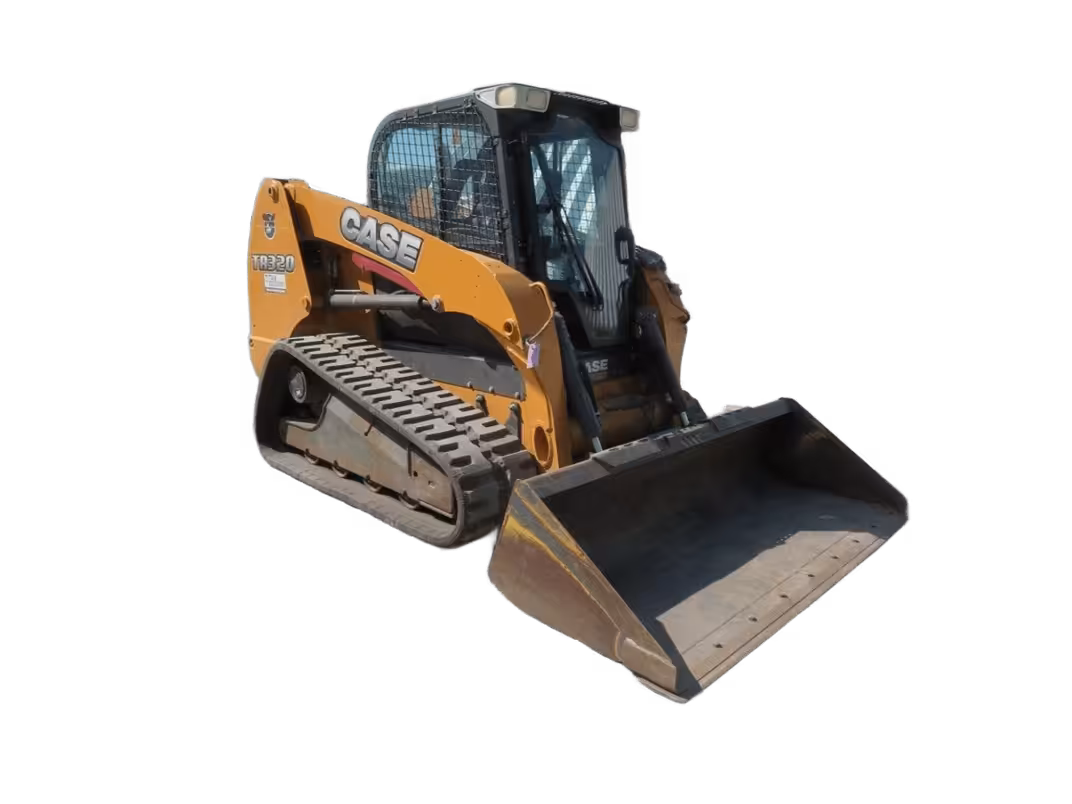

Case TR320 Compact track loaders tech specs

makana img
video play button
Video[1]

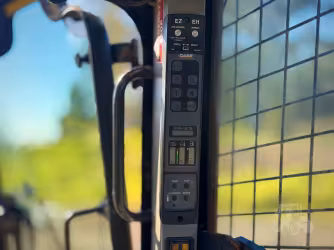

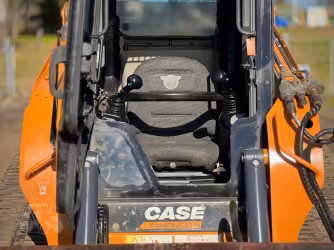

Interior [2]

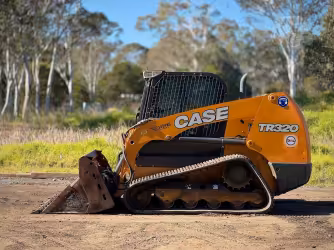

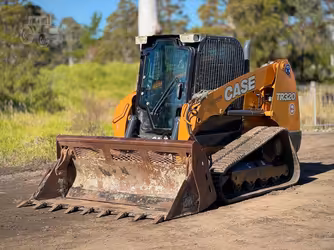

Exterior [4]

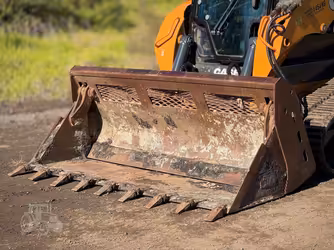

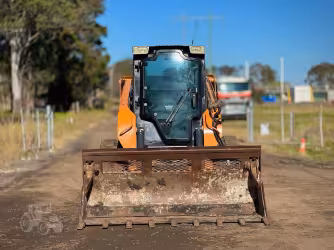

Attachments [2]
2009-2025
3,195.48 cu cm Displacement
67.11 kw Gross power
2.62 m Loader dump height
0.55 m Loader dump reach
1,451.5 kg Lifting capacity
4,354 kg Operating weight
Show features

Makana rating

Market average

AED 404,000

Starting from

AED 87,000

Case TR320 Technical specifications

Engine

Alternator supplied amperage

95 Amh

Aspiration

Turbocharged

Displacement

3195.48 cu cm

Gross power

67.11 kw

Max torque

340.31 Nm

Net power

62.64 kw

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,400 rpm

General

Bucket capacity

0.54 cu m

Bucket width

198 cm

Engine model

432T/M3

Lifting capacity

1451.5 kg

Max speed forward

13.36 kph

Operating voltage

12 V

Operating weight

4,354 kg

Refill capacities

Engine oil cap

9.84 liter

Service refill capacities

Fuel cap

96.52 liter

Hydraulic fluid cap

44.66 liter

Dimensions

Ground clearance

0.24 m

Height - top of cab

2.01 m

Length with bucket

3.63 m

Length without Bucket

3.02 m

Turning radius

2.17 m

Width over tracks

1.92 m

Undercarriage

Ground contact area

33396.91 cu cm

Ground pressure

0.33 bar

Track gauge

1.52 m

Track width

40.13 cm

Loader

Loader dump height

2.62 m

Loader dump reach

0.55 m

Hydraulic system

Pump flow cap

46.18 lpm

Pump type

Gear pump

Relief valve pressure

206.84 bar

Operating specifications

Rack back angle

64 º

View more
Download datasheets
OEM product brochure

Case TR320 similar models

Highlight differences
Case TR320
TR320
Cat 277B
277B
Cat 279C
279C
Engine
Alternator supplied amperage 95 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Displacement 3,195.48 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power 67.11 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque 340.31 Nm
Max torque -
Max torque -
Net power 62.64 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Bore -
Bore 9.4 cm
Bore 8.64 cm
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2009-2025
Years 2004-2007
Years 2009-2015
Market Average AED 404,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 87,000
Price AED 62,500
Price AED 114,000
General
Bucket capacity 0.54 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket width 198 cm
Bucket width -
Bucket width -
Engine model 432T/M3
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,451.5 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 13.36 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 4,354 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Refill capacities
Engine oil cap 9.84 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Service refill capacities
Fuel cap 96.52 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 44.66 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Dimensions
Ground clearance 0.24 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.01 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.63 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 3.02 m
Length without Bucket -
Length without Bucket -
Turning radius 2.17 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Undercarriage
Ground contact area 33,396.91 cu cm
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure 0.33 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track gauge 1.52 m
Track gauge -
Track gauge -
Track width 40.13 cm
Track width -
Track width -
Track length -
Track length 2.07 m
Track length 1.77 m
Loader
Loader dump height 2.62 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.55 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Hydraulic system
Pump flow cap 46.18 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type Gear pump
Pump type Standard
Pump type High Flow XPS
Relief valve pressure 206.84 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Operating specifications
Rack back angle 64 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
