Case 480 Backhoe loaders tech specs
:quality(50)/66216/conversions/e611d6da-9265-4968-bcf7-ef7b7f3d13ed-thumb.webp)

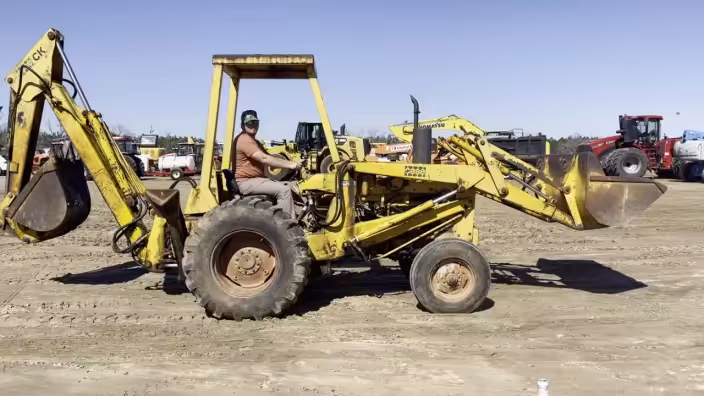

Video[1]
:quality(50)/66208/conversions/9c9519a3-e712-4c70-84a9-ec5a125fe885-thumb.webp)

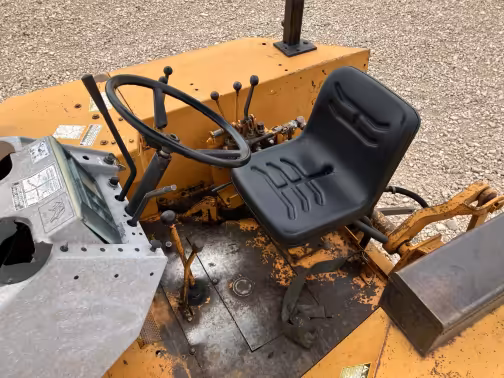

Interior [2]
:quality(50)/66210/conversions/a7f94330-372c-44d6-a523-92c543cf6ff0-thumb.webp)

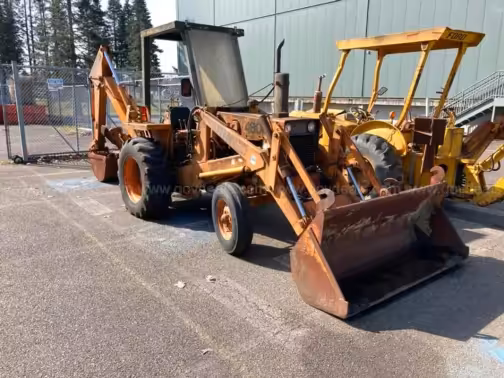

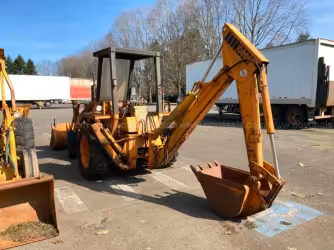

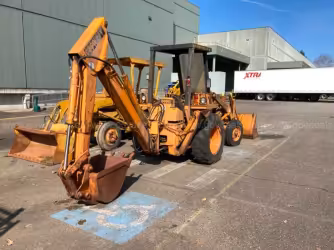

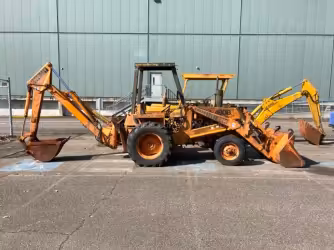

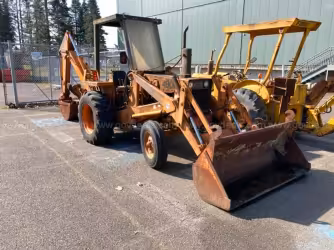

Exterior [4]
:quality(50)/66214/conversions/8676d44d-6ffa-4272-a124-b6044d3fd0de-thumb.webp)

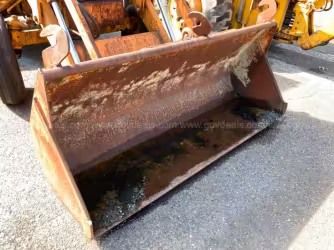

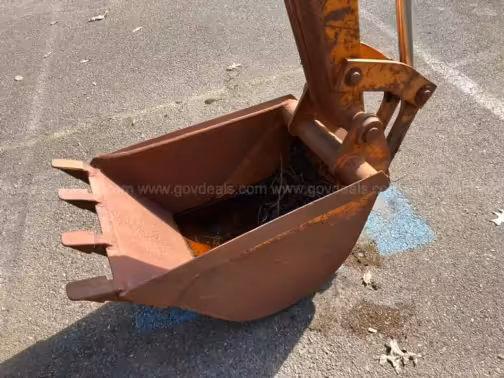

Attachments [2]
1971-1991
3.78 m Backhoe digging depth
2.77 m Backhoe dump height
2,494.76 kg Breakout force
30.95 kw Gross power
2.68 m Loader dump height
0.64 m Loader dump reach
Makana rating
Owner rating
Market average
AED 253,000Starting from
AED 110,000Case 480 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage 65 Amh
Bore
Bore 9.91 cm
Bore 10.41 cm
Engine make
Engine make J.I. Case
Engine make J.I. Case
Gross power
Gross power 30.95 kw
Gross power 51.45 kw
Net power
Net power 27.59 kw
Net power 46.98 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 1,750 rpm
Power measured @ 2,200 rpm
Stroke
Stroke 10.67 cm
Stroke 12.19 cm
Torque measured @
Torque measured @ 1,250 rpm
Torque measured @ 1,200 rpm
Years
Years 1971-1991
Years 1971-1991
Market Average
Market Average AED 253,000
Market Average AED 253,000
Price
Price AED 110,000
Price AED 110,000
Backhoe digging depth
Backhoe digging depth 3.78 m
Backhoe digging depth 3.69 m
Backhoe dump height
Backhoe dump height 2.77 m
Backhoe dump height 2.56 m
Backhoe reach from swivel
Backhoe reach from swivel 4.69 m
Backhoe reach from swivel 4.82 m
Breakout force
Breakout force 2,494.76 kg
Breakout force 2,875.78 kg
Loader dump height
Loader dump height 2.68 m
Loader dump height 2.62 m
Loader dump reach
Loader dump reach 0.64 m
Loader dump reach 0.7 m
Bucket digging force
Bucket digging force 3,116.05 kg
Bucket digging force 3,681.04 kg
Cooling fluid cap
Cooling fluid cap 15.9 liter
Cooling fluid cap -
Fuel cap
Fuel cap 83.27 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 45.42 liter
Hydraulic fluid cap -
Displacement
Displacement 3,100.44 cu cm
Displacement 3,900.13 cu cm
Engine model
Engine model G188D
Engine model 4-390
Max speed forward
Max speed forward 27.36 kph
Max speed forward 33.64 kph
Max torque
Max torque 180.32 Nm
Max torque 252.18 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,059 kg
Operating weight 4,946 kg
Transmission type
Transmission type Mechanical shuttle
Transmission type Powershuttle
Wheelbase
Wheelbase 2.01 m
Wheelbase 2.04 m
Engine oil cap
Engine oil cap 4.16 liter
Engine oil cap -
Extended backhoe digging depth
Extended backhoe digging depth 4.75 m
Extended backhoe digging depth 4.63 m
Extended backhoe dump height
Extended backhoe dump height 3.38 m
Extended backhoe dump height 2.65 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 5.58 m
Extended backhoe reach from swivel 5.7 m
Front tires size (2WD)
Front tires size (2WD) 7.50x16
Front tires size (2WD) 7.50x16
Rear tires size
Rear tires size 14.9x24
Rear tires size 14.9x24
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.34 m
Rear tread range
Rear tread range 162.05 cm
Rear tread range 167.13 cm
Overall Length
Overall Length 3.02 m
Overall Length 6.52 m
Overall Width
Overall Width 1.58 m
Overall Width 2.23 m
Front tread range
Front tread range -
Front tread range 170.18 cm
Height - top of cab
Height - top of cab -
Height - top of cab 2.56 m
Max speed reverse
Max speed reverse 33.96 kph
Max speed reverse 29.45 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 37.85 lpm
Pump flow cap 87.06 lpm
Pump type
Pump type Open center
Pump type Open center
Relief valve pressure
Relief valve pressure -
Relief valve pressure 162.02 bar
Download datasheets
Case 480 expert review
:quality(50)/60956/7a1344a3-c594-4581-8f94-22d923fd0ffc.jpeg)
Overview
The Case 480 focuses on simple hydraulics and dependable light-duty digging. With 30.95 kW of gross power, 3.78 m backhoe depth, and about 2,495 kg of breakout force, it suits utilities and small site prep.
Pros Simple mechanical layout, predictable digging response, compact reach for tight jobsites.
Cons Limited power for heavy excavation, slower cycle times.
Efficiency
Compact loader geometry supports close-quarters work, while moderate breakout suits softer soils.
In Cabin
The cab is basic with direct mechanical controls and straightforward visibility.
In Comparison
Compared with the Cat 446 and Cat 450E, the Case 480 trades raw output for lower ownership cost.
Final Verdict
Rated 4 stars, the Case 480 fits light trenching and small site prep, priced between AED 110,000 and 253,000.
Case 480 owner rating
Case 480 Backhoe loaders [1971-1991]
1971-1991
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Case 480 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage 55 Amh
Alternator supplied amperage -
Bore
Bore 9.91 cm
Bore -
Bore 10.67 cm
Engine make
Engine make J.I. Case
Engine make -
Engine make -
Gross power
Gross power 30.95 kw
Gross power 76.81 kw
Gross power 102.16 kw
Net power
Net power 27.59 kw
Net power 70.84 kw
Net power 93.21 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 1,750 rpm
Power measured @ 2,200 rpm
Power measured @ -
Stroke
Stroke 10.67 cm
Stroke -
Stroke 12.7 cm
Torque measured @
Torque measured @ 1,250 rpm
Torque measured @ -
Torque measured @ -
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration -
Torque rise
Torque rise -
Torque rise -
Torque rise 0.28 %
Years
Years 1971-1991
Years 1989-2004
Years 2007-2025
Market Average
Market Average AED 253,000
Market Average AED 437,000
Market Average AED 661,000
Price
Price AED 110,000
Price AED 158,000
Price AED 177,000
Backhoe digging depth
Backhoe digging depth 3.78 m
Backhoe digging depth 5.24 m
Backhoe digging depth 5.27 m
Backhoe dump height
Backhoe dump height 2.77 m
Backhoe dump height -
Backhoe dump height 4.45 m
Backhoe reach from swivel
Backhoe reach from swivel 4.69 m
Backhoe reach from swivel 6.61 m
Backhoe reach from swivel 6.71 m
Bucket rotation
Bucket rotation -
Bucket rotation -
Bucket rotation 198 º
Breakout force
Breakout force 2,494.76 kg
Breakout force 5,445.29 kg
Breakout force 5,159.62 kg
Loader dump height
Loader dump height 2.68 m
Loader dump height 2.71 m
Loader dump height 2.65 m
Loader dump reach
Loader dump reach 0.64 m
Loader dump reach 0.88 m
Loader dump reach 0.82 m
Loader digging depth
Loader digging depth -
Loader digging depth 16.26 cm
Loader digging depth 15.24 cm
Bucket digging force
Bucket digging force 3,116.05 kg
Bucket digging force 6,133.94 kg
Bucket digging force 8,049.46 kg
Cooling fluid cap
Cooling fluid cap 15.9 liter
Cooling fluid cap 30.28 liter
Cooling fluid cap 25.74 liter
Fuel cap
Fuel cap 83.27 liter
Fuel cap 125.28 liter
Fuel cap 145.34 liter
Hydraulic fluid cap
Hydraulic fluid cap 45.42 liter
Hydraulic fluid cap 154.05 liter
Hydraulic fluid cap 100.3 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 9.46 liter
Front axle fluid capacity 10.98 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 31.04 liter
Rear axle fluid capacity 18.93 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 26.12 liter
Transmission fluid cap 21.2 liter
Displacement
Displacement 3,100.44 cu cm
Displacement 4,401.58 cu cm
Displacement 4,391.74 cu cm
Engine model
Engine model G188D
Engine model 3114
Engine model C4.4
Max speed forward
Max speed forward 27.36 kph
Max speed forward 33.15 kph
Max speed forward 40.23 kph
Max torque
Max torque 180.32 Nm
Max torque -
Max torque 515.2 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,059 kg
Operating weight 9,088 kg
Operating weight 12,299 kg
Transmission type
Transmission type Mechanical shuttle
Transmission type Powershift
Transmission type Ackerman
Wheelbase
Wheelbase 2.01 m
Wheelbase 2.26 m
Wheelbase 2.23 m
Bucket capacity
Bucket capacity -
Bucket capacity 1.15 cu m
Bucket capacity 1.38 cu m
Bucket width
Bucket width -
Bucket width 243 cm
Bucket width 243 cm
Lifting capacity
Lifting capacity -
Lifting capacity -
Lifting capacity 3,570.23 kg
Engine oil cap
Engine oil cap 4.16 liter
Engine oil cap 11.36 liter
Engine oil cap 8.33 liter
Extended backhoe digging depth
Extended backhoe digging depth 4.75 m
Extended backhoe digging depth 6.55 m
Extended backhoe digging depth 6.49 m
Extended backhoe dump height
Extended backhoe dump height 3.38 m
Extended backhoe dump height 4.91 m
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 5.58 m
Extended backhoe reach from swivel 7.89 m
Extended backhoe reach from swivel 7.89 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach 3.26 m
Extended backhoe dump reach 3.11 m
Brake system
Brake system -
Brake system -
Brake system Boosted, outboard, oil-immersed, multidisc
Cab ROPS
Cab ROPS -
Cab ROPS -
Cab ROPS SAE J1040 May 1994/ISO 3741 1994
Cab sound
Cab sound -
Cab sound -
Cab sound ANSI/SAE J1166 Oct 98 is 83 dB (A)
Exterior sound
Exterior sound -
Exterior sound -
Exterior sound SAE J88 APR95 is 79 dB (A)
Front tires size (2WD)
Front tires size (2WD) 7.50x16
Front tires size (2WD) 14.5/75-16.1 10PR / 12.5-20 10PR
Front tires size (2WD) 15-19.5 12PR
Rear tires size
Rear tires size 14.9x24
Rear tires size 21L-24 12PR / 21L-24 12PR
Rear tires size 21L-24 R4 18PR
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance -
Rear tread range
Rear tread range 162.05 cm
Rear tread range -
Rear tread range -
Overall Length
Overall Length 3.02 m
Overall Length 7.96 m
Overall Length 7.92 m
Overall Width
Overall Width 1.58 m
Overall Width 2.44 m
Overall Width 2.44 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.87 m
Height - top of cab 2.9 m
Turning radius
Turning radius -
Turning radius 4.21 m
Turning radius 8.11 m
Max speed reverse
Max speed reverse 33.96 kph
Max speed reverse 36.53 kph
Max speed reverse 27.36 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 5
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 3
Pump flow cap
Pump flow cap 37.85 lpm
Pump flow cap 162 lpm
Pump flow cap 194.17 lpm
Pump type
Pump type Open center
Pump type Variable flow, axial piston
Pump type -
Relief valve pressure
Relief valve pressure -
Relief valve pressure 199.94 bar
Relief valve pressure 262 bar
Circuit type
Circuit type -
Circuit type -
Circuit type Closed center, load sensing

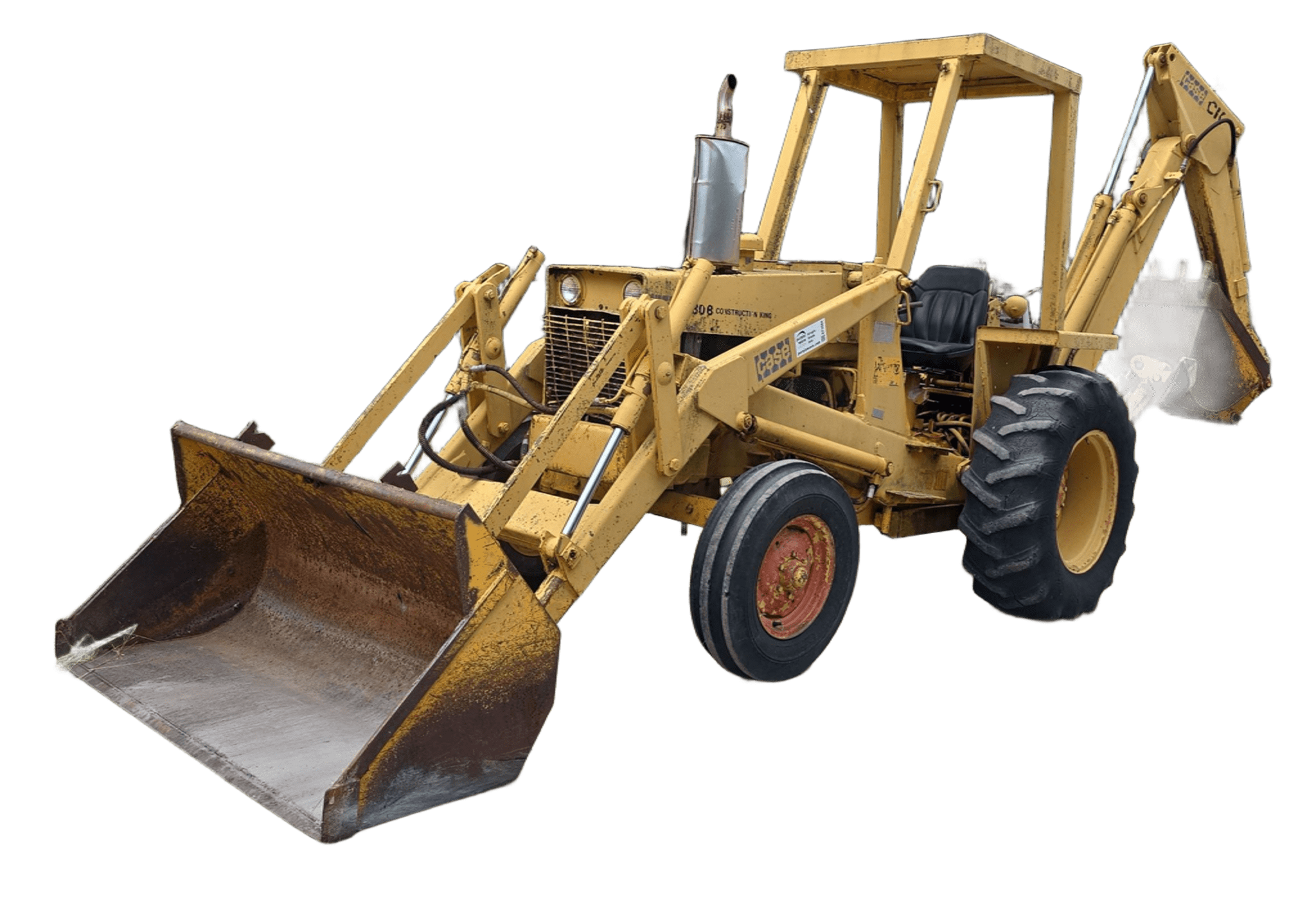

Case 480 gallery
:quality(50)/66216/conversions/e611d6da-9265-4968-bcf7-ef7b7f3d13ed-thumb.webp)
:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png)
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png)
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Case 480 Backhoe loaders specs Case 580 Backhoe loaders specs Case 590 Backhoe loaders specs Case 680 Backhoe loaders specs Case 695 Backhoe loaders specs Case 780 Backhoe loaders specs Case 420CT Compact track loaders specs Case 440CT Compact track loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 426 Backhoe loaders specs Cat 428 Backhoe loaders specs Massey ferguson 50 Backhoe loaders specs Massey ferguson 60 Backhoe loaders specs Cukurova 88 Backhoe loaders specs John deere 110 Backhoe loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs John Deere 524 Wheel loaders specs John Deere 544 Wheel loaders specs John Deere 624 Wheel loaders specs John Deere 644 Wheel loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 906 Wheel loaders specs Cat 938 Wheel loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
