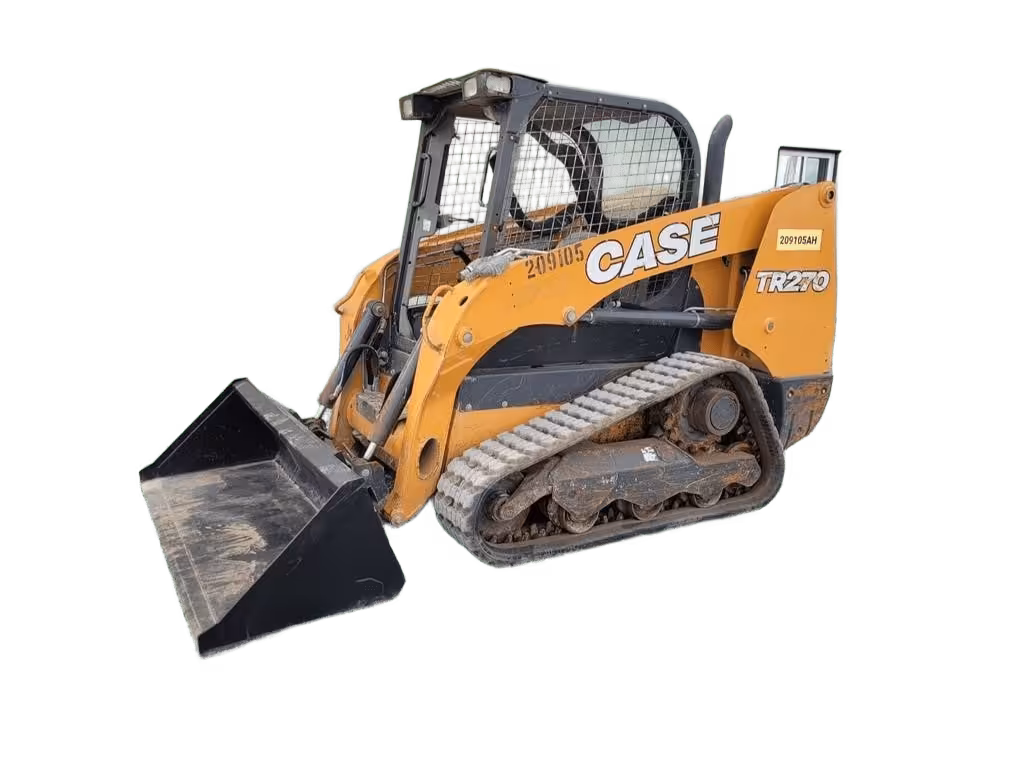

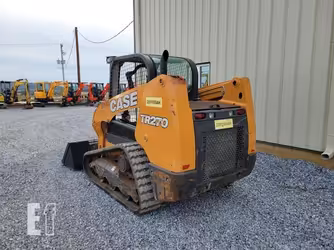

Case TR270 Compact track loaders tech specs

makana img
video play button
Video[1]

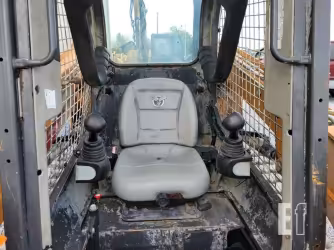

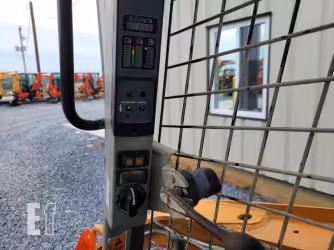

Interior [2]

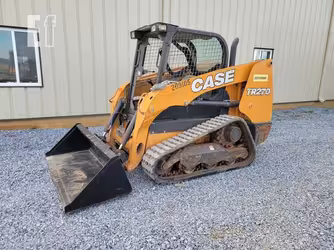

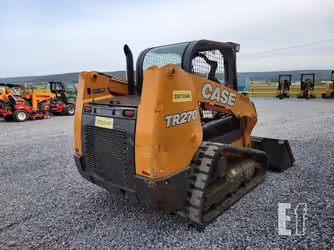

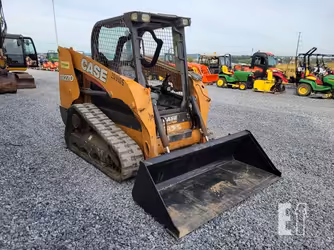

Exterior [4]

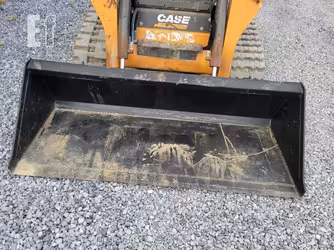

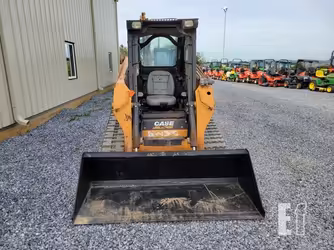

Attachments [2]
2015-2025
3,400.32 cu cm Displacement
55.18 kw Gross power
2.5 m Loader dump height
0.65 m Loader dump reach
1,224.7 kg Lifting capacity
3,750 kg Operating weight
Show features

Makana rating

Market average

AED 160,000

Starting from

AED 69,000

Case TR270 Technical specifications

Engine

Aspiration

Turbocharged

Displacement

3400.32 cu cm

Emissions

Tier 4 Final Certified (CEGR, DOC, PM Catalyst)

Gross power

55.18 kw

Max torque

314 Nm

Net power

50.71 kw

Number of cylinders

4

Loader

Breakout force

3297.62 kg

Loader dump height

2.5 m

Loader dump reach

0.65 m

General

Engine model

FPT F5HFL463 A*F001

Lifting capacity

1224.7 kg

Operating weight

3,750 kg

Tipping load

2,449 kg

Refill capacities

Engine oil cap

9.46 liter

Service refill capacities

Fuel cap

73.81 liter

Dimensions

Ground clearance

0.2 m

Height - top of cab

2.01 m

Length with bucket

3.29 m

Max height to hinge pin

312.42 cm

Overall Width

1.67 m

Width over tracks

1.71 m

Operating specifications

Lift arm path

Radial

Rack back angle

54 º

Hydraulic system

Pump flow cap

122.63 lpm

Pump type

Gear pump

Relief valve pressure

210.29 bar

Undercarriage

Track width

32000.19 cm

View more
Download datasheets
OEM product brochure

Case TR270 similar models

Highlight differences
Case TR270
TR270
Cat 249D
249D
Cat 257
257
Engine
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement 3,400.32 cu cm
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Emissions Tier 4 Final Certified (CEGR, DOC, PM Catalyst)
Emissions -
Emissions -
Gross power 55.18 kw
Gross power 50.04 kw
Gross power 46.98 kw
Max torque 314 Nm
Max torque 46.63 Nm
Max torque -
Net power 50.71 kw
Net power 49.07 kw
Net power 44 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Bore -
Bore 8.38 cm
Bore 9.91 cm
Stroke -
Stroke 9.91 cm
Stroke 10.16 cm
Power measured @ -
Power measured @ -
Power measured @ 2,600 rpm
Years 2015-2025
Years 2016-2019
Years 2014-2019
Market Average AED 160,000
Market Average AED 228,000
Market Average AED 186,000
Price AED 69,000
Price AED 191,000
Price AED 147,000
Loader
Breakout force 3,297.62 kg
Breakout force -
Breakout force -
Loader dump height 2.5 m
Loader dump height 2.25 m
Loader dump height 2.29 m
Loader dump reach 0.65 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,797.59 kg
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - lift cylinder -
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
General
Engine model FPT F5HFL463 A*F001
Engine model Cat C2.2 CRDI
Engine model Cat 3034 naturally aspirated
Lifting capacity 1,224.7 kg
Lifting capacity 1,043.26 kg
Lifting capacity 1,065.94 kg
Operating weight 3,750 kg
Operating weight -
Operating weight 3,460 kg
Tipping load 2,449 kg
Tipping load 2,086 kg
Tipping load 2,091 kg
Max horizontal reach -
Max horizontal reach 1.32 m
Max horizontal reach -
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Max speed forward -
Max speed forward -
Max speed forward 12.07 kph
Refill capacities
Engine oil cap 9.46 liter
Engine oil cap -
Engine oil cap -
Service refill capacities
Fuel cap 73.81 liter
Fuel cap 57.15 liter
Fuel cap 90.08 liter
Cooling fluid cap -
Cooling fluid cap 12.11 liter
Cooling fluid cap 9.84 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Hydraulic fluid cap -
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Dimensions
Ground clearance 0.2 m
Ground clearance 0.21 m
Ground clearance 0.26 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Length with bucket 3.29 m
Length with bucket 3.23 m
Length with bucket 3.54 m
Max height to hinge pin 312.42 cm
Max height to hinge pin 21.84 cm
Max height to hinge pin -
Overall Width 1.67 m
Overall Width 1.68 m
Overall Width -
Width over tracks 1.71 m
Width over tracks -
Width over tracks 1.68 m
Length without Bucket -
Length without Bucket 2.52 m
Length without Bucket 2.71 m
Turning radius -
Turning radius 1.46 m
Turning radius 2.29 m
Operating specifications
Lift arm path Radial
Lift arm path -
Lift arm path -
Rack back angle 54 º
Rack back angle 87 º
Rack back angle 44 º
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Air conditioning -
Angle of departure -
Angle of departure 34 º
Angle of departure -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab FOPS level II -
Cab ROPS -
Cab ROPS ISO 3471:2008
Cab ROPS -
Dump angle -
Dump angle 48 º
Dump angle -
Hydraulic system
Pump flow cap 122.63 lpm
Pump flow cap 98.41 lpm
Pump flow cap 57.53 lpm
Pump type Gear pump
Pump type -
Pump type -
Relief valve pressure 210.29 bar
Relief valve pressure 230.01 bar
Relief valve pressure -
Undercarriage
Track width 32,000.19 cm
Track width -
Track width 38.1 cm
Ground contact area -
Ground contact area 28,120.26 cu cm
Ground contact area 29,005.17 cu cm
Ground pressure -
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Track length -
Track length 1.81 m
Track length 1.52 m
