Case 695 Backhoe loaders tech specs
:quality(50)/66400/conversions/cdb79bd6-dade-461a-ad20-508febb2b05c-thumb.webp)

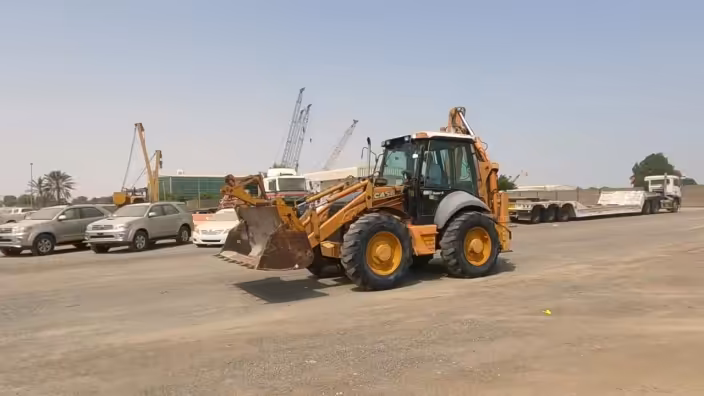

Video[1]
:quality(50)/66392/conversions/afd89b44-be14-4d86-8c13-7cf0d19d4321-thumb.webp)

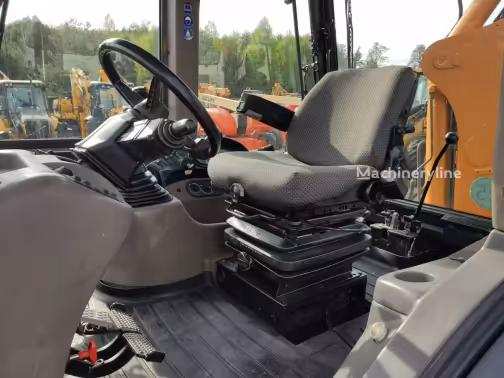

Interior [2]
:quality(50)/66394/conversions/aab8daba-f542-4b3d-a397-b704460d82b9-thumb.webp)

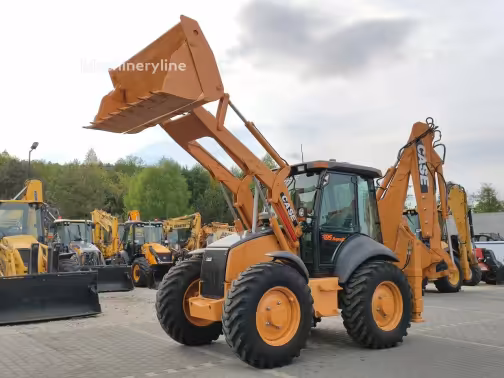

Exterior [4]
:quality(50)/66398/conversions/352862e2-535a-44f0-a015-51d0ba2d5675-thumb.webp)

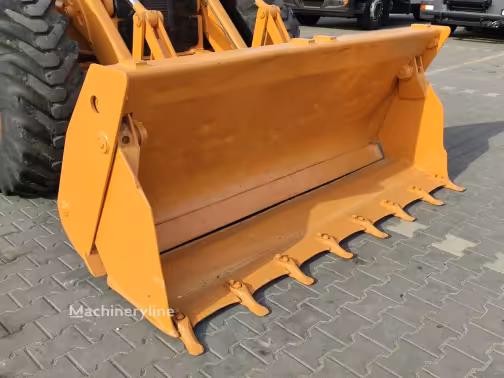

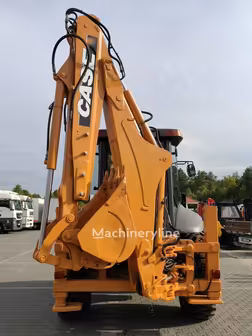

Attachments [2]
2002-2012
5 m Backhoe digging depth
3.99 m Backhoe dump height
240 cm Bucket width
79.27 kw Gross power
3.54 m Loader dump height
powershift Transmission type
Makana rating
Owner rating
Market average
AED 292,000Starting from
AED 125,000Case 695 technical specifications
Highlight differences
Backhoe digging depth
Backhoe digging depth 5 m
Backhoe digging depth 4.63 m
Backhoe dump height
Backhoe dump height 3.99 m
Backhoe dump height -
Backhoe reach from swivel
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 5.91 m
Years
Years 2002-2012
Years 2002-2012
Market Average
Market Average AED 292,000
Market Average AED 292,000
Price
Price AED 125,000
Price AED 125,000
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity -
Bucket width
Bucket width 240 cm
Bucket width 240 cm
Engine model
Engine model CNH
Engine model -
Lifting capacity
Lifting capacity 1,530.01 kg
Lifting capacity -
Max speed forward
Max speed forward 39.27 kph
Max speed forward 41.52 kph
Transmission type
Transmission type powershift
Transmission type Powershift
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating weight
Operating weight -
Operating weight 8,800 kg
Wheelbase
Wheelbase -
Wheelbase 2.23 m
Bucket digging force
Bucket digging force 6,526.02 kg
Bucket digging force 3,775.03 kg
Fuel cap
Fuel cap 128.31 liter
Fuel cap 135.12 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 10.22 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 70.02 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 10.22 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Gross power
Gross power 79.27 kw
Gross power -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Loader dump height
Loader dump height 3.54 m
Loader dump height 2.74 m
Breakout force
Breakout force -
Breakout force 5,628.84 kg
Loader digging depth
Loader digging depth -
Loader digging depth 8.64 cm
Loader dump reach
Loader dump reach -
Loader dump reach 0.76 m
Max speed reverse
Max speed reverse 39.27 kph
Max speed reverse 14 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 2
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 160.11 lpm
Relief valve pressure
Relief valve pressure 210 bar
Relief valve pressure 210 bar
Pump type
Pump type -
Pump type Gear pump
Overall Length
Overall Length 5.76 m
Overall Length 5.76 m
Overall Width
Overall Width 2.41 m
Overall Width 2.41 m
Ground clearance
Ground clearance -
Ground clearance 0.46 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.93 m
Turning radius
Turning radius -
Turning radius 5.33 m
Engine oil cap
Engine oil cap -
Engine oil cap 13.25 liter
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth 5.82 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.63 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach 2.87 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.01 m
Front tires size (2WD)
Front tires size (2WD) -
Front tires size (2WD) 16.9x24 R4 12PR ISG GY
Download datasheets
Case 695 expert review
:quality(50)/60956/7a1344a3-c594-4581-8f94-22d923fd0ffc.jpeg)
Overview
The Case 695 SR delivers 79.27 kW of gross power with 5 m digging depth and Powershift transmission for utility and general construction work.
Pros Strong engine output, fast loader cycles, smooth Powershift travel.
Cons Heavier feel in tight areas, higher maintenance than older models.
Efficiency
A 3.54 m loader dump height and 5 m backhoe depth support fast material handling and trenching.
In Cabin
Improved visibility and ergonomics over older Case machines.
In Comparison
Compared with the New Holland 675 and Case 680, the 695 SR focuses on higher output and quicker cycles.
Final Verdict
Rated 4 stars, the Case 695 SR fits productivity-driven utility work, priced between AED 125,000 and 292,000.
Case 695 owner rating
Case 695 Backhoe loaders [2002-2012]
2002-2012
Overall rating
Based on 3 ratings
4.3
performance
4.7
comfort
4.0
fuel efficiency
4.0
safety
4.7
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Case 695 similar models
Highlight differences
Backhoe digging depth
Backhoe digging depth 5 m
Backhoe digging depth 4.72 m
Backhoe digging depth 4.88 m
Backhoe dump height
Backhoe dump height 3.99 m
Backhoe dump height 3.87 m
Backhoe dump height 3.47 m
Backhoe reach from swivel
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 5.94 m
Backhoe reach from swivel 5.82 m
Years
Years 2002-2012
Years 1996-2003
Years 1983-2015
Market Average
Market Average AED 292,000
Market Average AED 385,000
Market Average AED 82,000
Price
Price AED 125,000
Price AED 136,000
Price AED 48,000
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity -
Bucket capacity -
Bucket width
Bucket width 240 cm
Bucket width 223 cm
Bucket width 215 cm
Engine model
Engine model CNH
Engine model BSD 450 T
Engine model 267D
Lifting capacity
Lifting capacity 1,530.01 kg
Lifting capacity -
Lifting capacity -
Max speed forward
Max speed forward 39.27 kph
Max speed forward 32.35 kph
Max speed forward 29.13 kph
Transmission type
Transmission type powershift
Transmission type Powershuttle
Transmission type Powershuttle
Displacement
Displacement -
Displacement 5,001.34 cu cm
Displacement 4,401.58 cu cm
Max torque
Max torque -
Max torque 412.16 Nm
Max torque 277.94 Nm
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight -
Operating weight 7,399 kg
Operating weight 6,577 kg
Wheelbase
Wheelbase -
Wheelbase 2.19 m
Wheelbase 2.04 m
Bucket digging force
Bucket digging force 6,526.02 kg
Bucket digging force 5,533.83 kg
Bucket digging force -
Fuel cap
Fuel cap 128.31 liter
Fuel cap 105.98 liter
Fuel cap 105.98 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 23.85 liter
Cooling fluid cap -
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 137.02 liter
Hydraulic fluid cap 66.24 liter
Gross power
Gross power 79.27 kw
Gross power 74.57 kw
Gross power 52.95 kw
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Alternator supplied amperage 55 Amh
Bore
Bore -
Bore 11.43 cm
Bore 10.67 cm
Engine make
Engine make -
Engine make New Holland
Engine make J.I. Case
Net power
Net power -
Net power 73.08 kw
Net power 47.73 kw
Number of cylinders
Number of cylinders -
Number of cylinders 4
Number of cylinders 4
Stroke
Stroke -
Stroke 12.7 cm
Stroke 12.7 cm
Torque measured @
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 2,000 rpm
Loader dump height
Loader dump height 3.54 m
Loader dump height 2.71 m
Loader dump height -
Breakout force
Breakout force -
Breakout force 5,851.35 kg
Breakout force 4,647.87 kg
Loader dump reach
Loader dump reach -
Loader dump reach 0.79 m
Loader dump reach 1.71 m
Max speed reverse
Max speed reverse 39.27 kph
Max speed reverse 40.23 kph
Max speed reverse 37.01 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 143.83 lpm
Pump flow cap 94.63 lpm
Relief valve pressure
Relief valve pressure 210 bar
Relief valve pressure 196.5 bar
Relief valve pressure 148.23 bar
Pump type
Pump type -
Pump type Open center
Pump type Open center
Overall Length
Overall Length 5.76 m
Overall Length 7.19 m
Overall Length -
Overall Width
Overall Width 2.41 m
Overall Width 2.29 m
Overall Width -
Ground clearance
Ground clearance -
Ground clearance 0.49 m
Ground clearance 0.34 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.87 m
Height - top of cab -
Front tread range
Front tread range -
Front tread range -
Front tread range 179.07 cm
Rear tread range
Rear tread range -
Rear tread range -
Rear tread range 169.16 cm
Engine oil cap
Engine oil cap -
Engine oil cap 17.03 liter
Engine oil cap -
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth 5.91 m
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.6 m
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel -
Front tires size (2WD)
Front tires size (2WD) -
Front tires size (2WD) 11L-16
Front tires size (2WD) 11Lx16
Rear tires size
Rear tires size -
Rear tires size 19.5Lx24
Rear tires size 16.9x24
