New holland

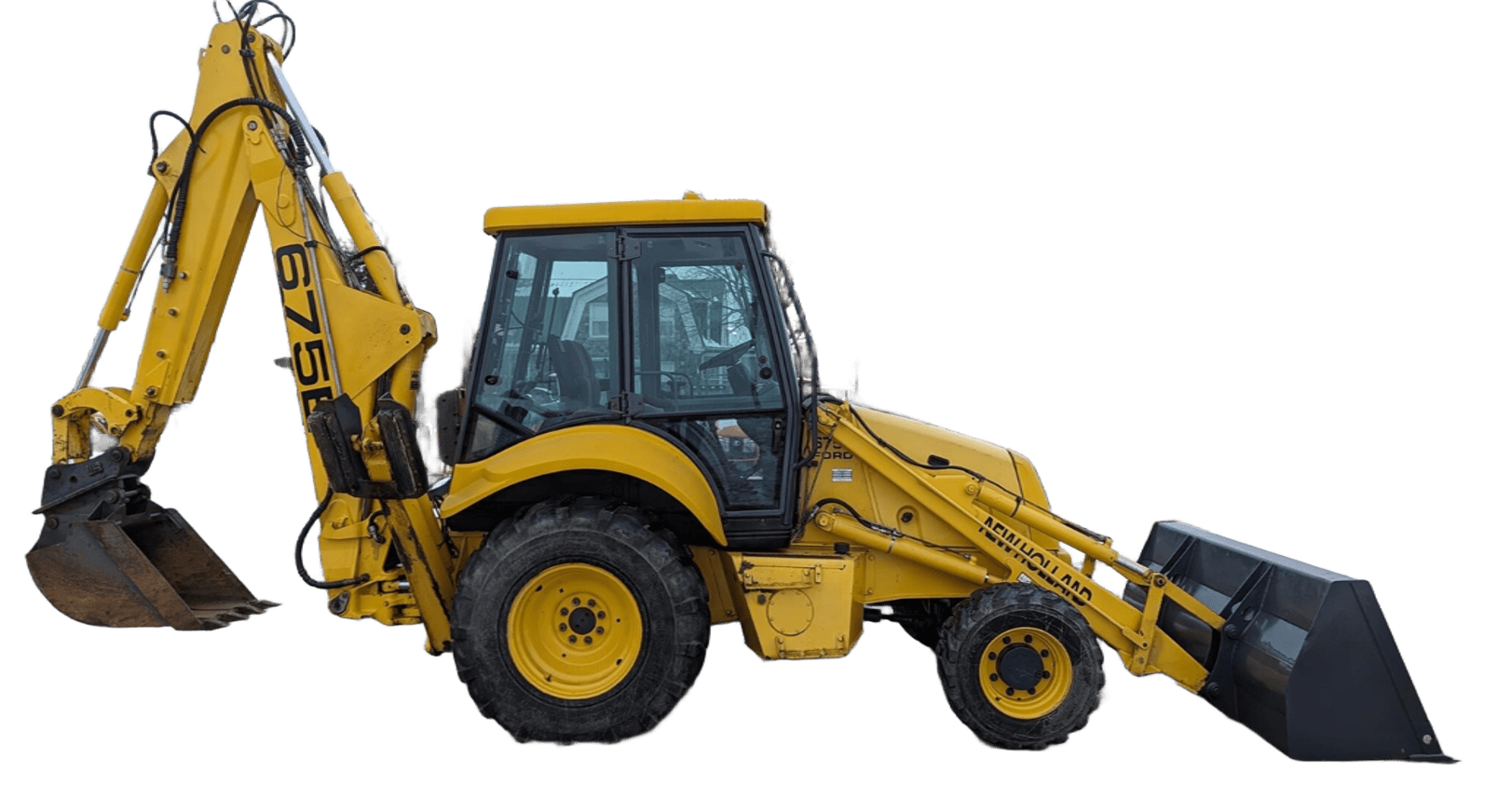

New holland 675 Backhoe loaders
New holland 675 Backhoe loaders tech specs
:quality(50)/https://www.makana.com/66370/conversions/04aa81dc-1361-4fdc-b3aa-22686c9f8028-webp.webp)

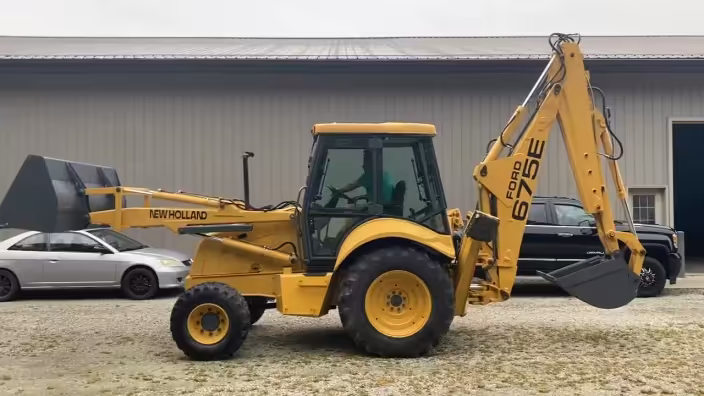

Video[1]
:quality(50)/https://www.makana.com/66362/conversions/295273b3-acdf-4c4f-9e61-d755fcda5c2c-webp.webp)

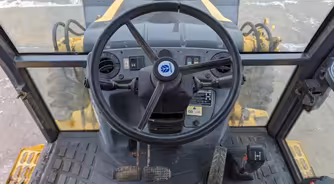

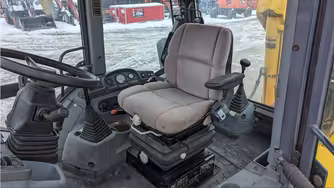

Interior [2]
:quality(50)/https://www.makana.com/66364/conversions/cb671847-431b-40b3-a0b2-e509669ab7de-webp.webp)

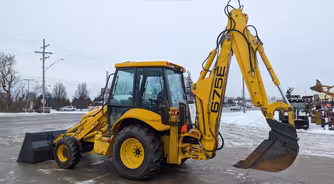

Exterior [4]
:quality(50)/https://www.makana.com/66368/conversions/235b4f05-9abc-4e7c-96dc-f24237fa1c72-webp.webp)
Attachments [2]
New holland 675 Technical specifications
Engine
Alternator supplied amperage
70 Amh
Bore
11.43 cm
Displacement
5001.34 cu cm
Engine make
New Holland
Gross power
74.57 kw
Max torque
412.16 Nm
Net power
73.08 kw
Number of cylinders
4
Stroke
12.7 cm
Torque measured @
1,400 rpm
Backhoe
Backhoe digging depth
4.72 m
Backhoe dump height
3.87 m
Backhoe reach from swivel
5.94 m
Loader
Breakout force
5851.35 kg
Loader dump height
2.71 m
Loader dump reach
0.79 m
Attachments
Bucket digging force
5533.83 kg
General
Bucket width
223 cm
Engine model
BSD 450 T
Max speed forward
32.35 kph
Operating voltage
12 V
Operating weight
7,399 kg
Transmission type
Powershuttle
Service refill capacities
Cooling fluid cap
23.85 liter
Fuel cap
105.98 liter
Hydraulic fluid cap
137.02 liter
Refill capacities
Engine oil cap
17.03 liter
Operating specifications
Extended backhoe digging depth
5.91 m
Extended backhoe dump height
4.6 m
Extended backhoe reach from swivel
7.04 m
Tires
Front tires size (2WD)
11L-16
Rear tires size
19.5Lx24
Dimensions
Ground clearance
0.49 m
Height - top of cab
2.87 m
Overall Length
7.19 m
Overall Width
2.29 m
Wheelbase
2.19 m
Transmission
Max speed reverse
40.23 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
143.83 lpm
Pump type
Open center
Relief valve pressure
196.5 bar
Download datasheets
New holland 675 expert review
New holland 675 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 70 Amh
Alternator supplied amperage 35 Amh
Alternator supplied amperage -
Bore
Bore 11.43 cm
Bore -
Bore -
Displacement
Displacement 5,001.34 cu cm
Displacement 4,522.84 cu cm
Displacement -
Engine make
Engine make New Holland
Engine make -
Engine make -
Gross power
Gross power 74.57 kw
Gross power -
Gross power 59.66 kw
Max torque
Max torque 412.16 Nm
Max torque 336.24 Nm
Max torque -
Net power
Net power 73.08 kw
Net power 59.66 kw
Net power -
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Stroke
Stroke 12.7 cm
Stroke -
Stroke -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Torque measured @ -
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration -
Power measured @
Power measured @ -
Power measured @ 2,200 rpm
Power measured @ -
Years
Years 1996-2003
Years 1986-2021
Years 1974-1981
Market Average
Market Average AED 385,000
Market Average AED 235,000
Market Average AED 79,000
Price
Price AED 136,000
Price AED 78,000
Price AED 51,000
Backhoe digging depth
Backhoe digging depth 4.72 m
Backhoe digging depth -
Backhoe digging depth 4.21 m
Backhoe dump height
Backhoe dump height 3.87 m
Backhoe dump height 3.72 m
Backhoe dump height -
Backhoe reach from swivel
Backhoe reach from swivel 5.94 m
Backhoe reach from swivel -
Backhoe reach from swivel 5.33 m
Breakout force
Breakout force 5,851.35 kg
Breakout force -
Breakout force 3,900.9 kg
Loader dump height
Loader dump height 2.71 m
Loader dump height -
Loader dump height 2.93 m
Loader dump reach
Loader dump reach 0.79 m
Loader dump reach -
Loader dump reach 0.7 m
Bucket digging force
Bucket digging force 5,533.83 kg
Bucket digging force -
Bucket digging force -
Bucket width
Bucket width 223 cm
Bucket width -
Bucket width -
Engine model
Engine model BSD 450 T
Engine model 300 Series
Engine model BM D 42
Max speed forward
Max speed forward 32.35 kph
Max speed forward -
Max speed forward 29.77 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight
Operating weight 7,399 kg
Operating weight 6,645 kg
Operating weight 8,340 kg
Transmission type
Transmission type Powershuttle
Transmission type Powershift
Transmission type hydromechanical gearbox with power shift
Cooling fluid cap
Cooling fluid cap 23.85 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap -
Fuel cap
Fuel cap 105.98 liter
Fuel cap 87.06 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 137.02 liter
Hydraulic fluid cap 75.7 liter
Hydraulic fluid cap -
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 6.81 liter
Front axle fluid capacity -
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 17.03 liter
Rear axle fluid capacity -
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 75.7 liter
Transmission fluid cap -
Engine oil cap
Engine oil cap 17.03 liter
Engine oil cap -
Engine oil cap -
Extended backhoe digging depth
Extended backhoe digging depth 5.91 m
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height 4.6 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Front tires size (2WD)
Front tires size (2WD) 11L-16
Front tires size (2WD) 12-16.5,8PR F3
Front tires size (2WD) 10.00-20/12
Rear tires size
Rear tires size 19.5Lx24
Rear tires size 19.5L-24,12PR R4
Rear tires size 18.4-30/12
Ground clearance
Ground clearance 0.49 m
Ground clearance -
Ground clearance -
Height - top of cab
Height - top of cab 2.87 m
Height - top of cab -
Height - top of cab 2.8 m
Overall Length
Overall Length 7.19 m
Overall Length 3.72 m
Overall Length 8.14 m
Overall Width
Overall Width 2.29 m
Overall Width 2.35 m
Overall Width -
Wheelbase
Wheelbase 2.19 m
Wheelbase -
Wheelbase 2.38 m
Turning radius
Turning radius -
Turning radius -
Turning radius 6.16 m
Max speed reverse
Max speed reverse 40.23 kph
Max speed reverse -
Max speed reverse 29.77 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 8
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 143.83 lpm
Pump flow cap 113.55 lpm
Pump flow cap -
Pump type
Pump type Open center
Pump type Closed center
Pump type -
Relief valve pressure
Relief valve pressure 196.5 bar
Relief valve pressure 137.89 bar
Relief valve pressure -
