New holland C185 Compact track loaders tech specs
:quality(50)/76363/a66d0c21-6450-4adc-bdb4-52b7dd00b817.png)
:quality(50)/76369/conversions/f5a93c8c-900a-4729-82cf-e2f4d2f0e771-thumb.webp)
:quality(50)/76365/conversions/0c3c4118-f79f-400b-940c-83acf4fb4fd5-thumb.webp)
:quality(50)/76367/conversions/5b2b8187-ccb1-4d38-b874-f7e0f4e398e5-thumb.webp)
:quality(50)/76370/conversions/bf4373f4-4ef0-4daa-895f-576798e9d090-thumb.webp)
A mid-size compact track loader designed for demanding site preparation and material handling work, the New Holland C185 combines 53.69 kilowatt net engine power with a strong 1,133.98 kg rated lifting capacity. With a wider rubber track system, low ground pressure of 0.31 bar, and a larger 0.84 cu m bucket, the machine provides stable performance for grading, landscaping, and construction applications.
Net power 53.69 kilowatt
Maximum torque 309.12 Nm
Rated lifting capacity 1,133.98 kg
Bucket capacity 0.84 cu m
Operating weight 4,152 kg
Track width 44.2 cm
Ground pressure 0.31 bar
Fuel tank capacity 68.13 liters
Makana rating
Owner rating
Market average
AED 136,000Starting from
AED 80,800New holland C185 Technical specifications
Engine
Alternator supplied amperage
95 Amh
Aspiration
Turbocharged
Displacement
3293.81 cu cm
Gross power
58.17 kw
Max torque
309.12 Nm
Net power
53.69 kw
Number of cylinders
3
Power measured @
2,300 rpm
Torque measured @
1,400 rpm
Loader
Breakout force
3479.01 kg
Loader dump height
3.84 m
Loader dump reach
0.85 m
General
Bucket capacity
0.84 cu m
Engine model
334TM2
Lifting capacity
1133.98 kg
Max speed forward
12.87 kph
Operating voltage
12 V
Operating weight
4,152 kg
Service refill capacities
Cooling fluid cap
17.03 liter
Fuel cap
68.13 liter
Hydraulic fluid cap
56.78 liter
Refill capacities
Engine oil cap
7.95 liter
Dimensions
Ground clearance
0.26 m
Height - top of cab
1.98 m
Length with bucket
3.57 m
Turning radius
2.03 m
Width over tracks
2.1 m
Undercarriage
Ground pressure
0.31 bar
Number of track rollers per side
4
Track gauge
1.68 m
Track length
1.65 m
Track width
44.2 cm
Hydraulic system
Pump flow cap
73.05 lpm
Pump type
Gear pump
Relief valve pressure
210.29 bar
Operating specifications
Rack back angle
72 º
New holland C185 expert review
:quality(50)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
Overview
The New Holland C185 (2007–2012) is a mid-size compact track loader designed for grading, landscaping, and construction work. It delivers 53.69 kilowatt engine power and more than 1.1 ton lifting capacity, offering strong performance for material handling and site preparation.
Expert rating: 4 stars
Performance & Efficiency
The turbocharged 334TM2 engine produces 53.69 kilowatt and roughly 309 Nm of torque, providing strong loader performance and efficient grading capability.
In Comparison
Cat 259: Durable compact track loader with strong dealer support.
Cat 267: Larger machine with higher lifting capacity.
New Holland C185: Balanced mid-size option with strong traction.
Final Verdict
Rated 4 stars, the New Holland C185 provides strong compact track loader performance within the AED 80,800–136,000 range.
New holland C185 owner rating
2007-2012
Overall rating
Based on 3 ratings
4.3
4.7
5.0
5.0
4.7
100 %
0 %
0 %
0 %
0 %
4.0
5.0
5.0
5.0
4.0
New holland C185 similar models
:quality(50)/76364/38ae812a-2feb-4114-8641-0e96ca100790.png)

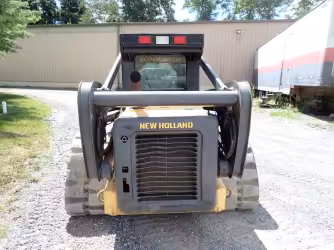

New holland C185 gallery
