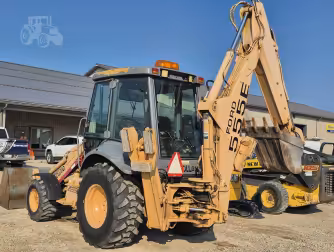

New holland 555 Backhoe loaders tech specs
:quality(50)/66256/conversions/02155054-1d01-41fe-852a-bcaea0005fc8-thumb.webp)

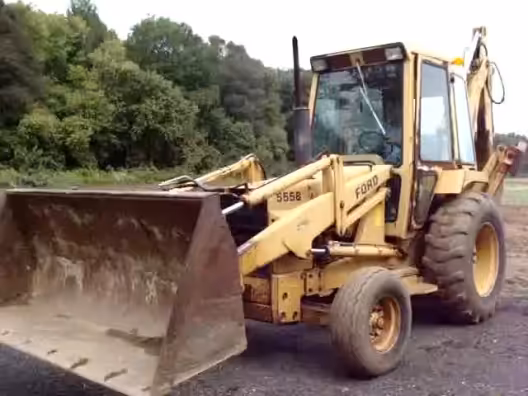

Video[1]
:quality(50)/66248/conversions/d344b99c-55c1-4529-9e98-f7f07d51749c-thumb.webp)

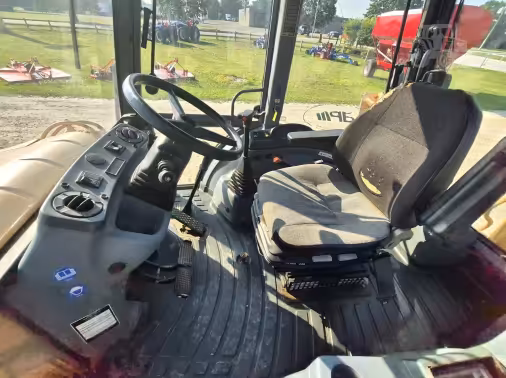

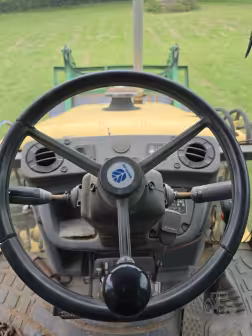

Interior [2]
:quality(50)/66250/conversions/5ffb2d76-4287-4e1a-beb5-36baebd909b3-thumb.webp)

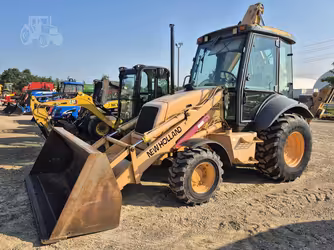

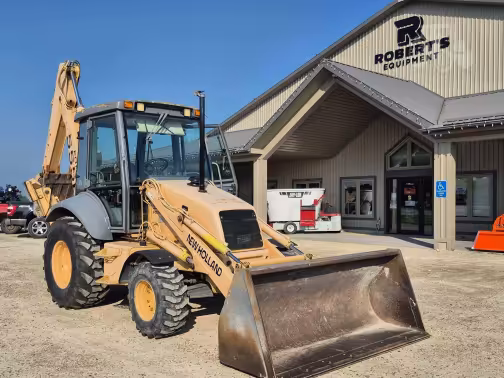

Exterior [4]
:quality(50)/66254/conversions/25151311-c5fd-46f1-ab7e-92a88236a71c-thumb.webp)

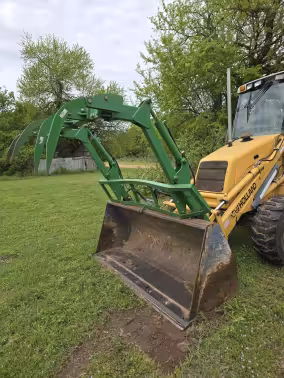

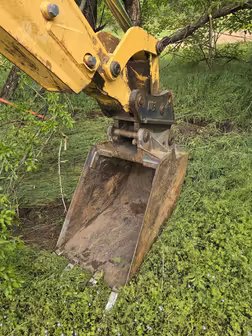

Attachments [2]
1996-1999
4.42 m Backhoe digging depth
3.66 m Backhoe dump height
223 cm Bucket width
61.89 kw Gross power
2.19 m Loader dump height
7,259 kg Operating weight
Makana rating
Owner rating
Market average
AED 128,500Starting from
AED 80,700New holland 555 technical specifications
Highlight differences
Backhoe digging depth
Backhoe digging depth 4.51 m
Backhoe digging depth 4.42 m
Backhoe dump height
Backhoe dump height 3.51 m
Backhoe dump height 3.66 m
Backhoe reach from swivel
Backhoe reach from swivel -
Backhoe reach from swivel 5.64 m
Years
Years 1996-1999
Years 1996-1999
Market Average
Market Average AED 128,500
Market Average AED 128,500
Price
Price AED 80,700
Price AED 80,700
Bore
Bore 10.67 cm
Bore 11.43 cm
Engine make
Engine make Ford
Engine make New Holland
Gross power
Gross power 61.89 kw
Gross power 61.89 kw
Net power
Net power 48.47 kw
Net power 58.91 kw
Number of cylinders
Number of cylinders 6
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Stroke
Stroke 13.72 cm
Stroke 12.7 cm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Torque measured @
Torque measured @ -
Torque measured @ 1,400 rpm
Breakout force
Breakout force 5,443.12 kg
Breakout force 6,010.11 kg
Loader dump height
Loader dump height -
Loader dump height 2.19 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.79 m
Bucket digging force
Bucket digging force 4,681.03 kg
Bucket digging force 3,660.49 kg
Cooling fluid cap
Cooling fluid cap 57.15 liter
Cooling fluid cap 23.85 liter
Fuel cap
Fuel cap 377.74 liter
Fuel cap 105.98 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 137.02 liter
Displacement
Displacement 7,013.68 cu cm
Displacement 5,001.34 cu cm
Engine model
Engine model Cat C7.1 ACERT
Engine model BSD 450NA
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Transmission type
Transmission type Powershuttle
Transmission type Powershuttle
Bucket width
Bucket width -
Bucket width 223 cm
Max speed forward
Max speed forward -
Max speed forward 32.35 kph
Max torque
Max torque -
Max torque 288.79 Nm
Operating weight
Operating weight -
Operating weight 7,259 kg
Wheelbase
Wheelbase -
Wheelbase 2.19 m
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Max speed reverse
Max speed reverse -
Max speed reverse 40.23 kph
Engine oil cap
Engine oil cap -
Engine oil cap 17.03 liter
Front tires size (2WD)
Front tires size (2WD) -
Front tires size (2WD) 11L-16 / 12-16.5
Rear tires size
Rear tires size -
Rear tires size 19.5Lx24
Front tread range
Front tread range -
Front tread range 187.2 cm
Ground clearance
Ground clearance -
Ground clearance 0.46 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.87 m
Rear tread range
Rear tread range -
Rear tread range 172.21 cm
Overall Length
Overall Length -
Overall Length 7.13 m
Overall Width
Overall Width -
Overall Width 2.29 m
Pump flow cap
Pump flow cap -
Pump flow cap 143.83 lpm
Pump type
Pump type -
Pump type Open center
Relief valve pressure
Relief valve pressure -
Relief valve pressure 196.5 bar
Download datasheets
New holland 555 expert review
:quality(50)/60953/d01e174e-11e1-47e0-987c-da947df67259.jpeg)
Overview
The New Holland 555 delivers 61.89 kW of gross power with 4.42 m digging depth and a 7,259 kg operating weight, supporting utility trenches, drainage, and compact site prep.
Pros Good power for its class, practical digging depth, affordable ownership entry.
Cons Limited loader dump height, basic cab comfort.
Efficiency
A 3.66 m backhoe dump height supports spoil placement, while moderate operating weight suits mixed utility sites.
In Cabin
The cab is functional with mechanical controls and workable visibility.
In Comparison
Compared with the John Deere 500 and John Deere 510, the 555 balances reach and affordability.
Final Verdict
Rated 3 stars, the New Holland 555 fits utility and small site prep work, priced between AED 80,700 and 128,500.
New holland 555 owner rating
New holland 555 Backhoe loaders [1996-1999]
1996-1999
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.7
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
New holland 555 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 70 Amh
Alternator supplied amperage 35 Amh
Alternator supplied amperage 35 Amh
Bore
Bore 11.43 cm
Bore -
Bore -
Engine make
Engine make New Holland
Engine make -
Engine make -
Gross power
Gross power 61.89 kw
Gross power -
Gross power 56.67 kw
Net power
Net power 58.91 kw
Net power 59.66 kw
Net power 52.2 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Stroke
Stroke 12.7 cm
Stroke -
Stroke -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Torque measured @ 1,300 rpm
Aspiration
Aspiration -
Aspiration Naturally aspirated
Aspiration Naturally aspirated
Power measured @
Power measured @ -
Power measured @ 2,500 rpm
Power measured @ 2,200 rpm
Torque rise
Torque rise -
Torque rise -
Torque rise 0.22 %
Years
Years 1996-1999
Years 1971-1983
Years 1991-2021
Market Average
Market Average AED 128,500
Market Average AED 95,200
Market Average AED 199,000
Price
Price AED 80,700
Price AED 27,000
Price AED 140,000
Backhoe digging depth
Backhoe digging depth 4.42 m
Backhoe digging depth -
Backhoe digging depth 4.79 m
Backhoe dump height
Backhoe dump height 3.66 m
Backhoe dump height -
Backhoe dump height -
Backhoe reach from swivel
Backhoe reach from swivel 5.64 m
Backhoe reach from swivel -
Backhoe reach from swivel 5.85 m
Breakout force
Breakout force 6,010.11 kg
Breakout force -
Breakout force 4,173.05 kg
Loader dump height
Loader dump height 2.19 m
Loader dump height -
Loader dump height 2.68 m
Loader dump reach
Loader dump reach 0.79 m
Loader dump reach -
Loader dump reach 0.76 m
Loader digging depth
Loader digging depth -
Loader digging depth -
Loader digging depth 10.16 cm
Bucket digging force
Bucket digging force 3,660.49 kg
Bucket digging force -
Bucket digging force 4,445.21 kg
Bucket width
Bucket width 223 cm
Bucket width -
Bucket width 233 cm
Displacement
Displacement 5,001.34 cu cm
Displacement 4,424.52 cu cm
Displacement 4,522.84 cu cm
Engine model
Engine model BSD 450NA
Engine model 300 Series
Engine model 4-276D
Max speed forward
Max speed forward 32.35 kph
Max speed forward -
Max speed forward 35.57 kph
Max torque
Max torque 288.79 Nm
Max torque 273.87 Nm
Max torque 276.58 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,259 kg
Operating weight 6,431 kg
Operating weight 6,985 kg
Transmission type
Transmission type Powershuttle
Transmission type Powershift
Transmission type Manual shift
Wheelbase
Wheelbase 2.19 m
Wheelbase -
Wheelbase 2.1 m
Bucket capacity
Bucket capacity -
Bucket capacity -
Bucket capacity 0.99 cu m
Cooling fluid cap
Cooling fluid cap 23.85 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 16.28 liter
Fuel cap
Fuel cap 105.98 liter
Fuel cap 128.69 liter
Fuel cap 87.06 liter
Hydraulic fluid cap
Hydraulic fluid cap 137.02 liter
Hydraulic fluid cap 81.38 liter
Hydraulic fluid cap 79.49 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 81.38 liter
Transmission fluid cap 79.49 liter
Engine oil cap
Engine oil cap 17.03 liter
Engine oil cap -
Engine oil cap 8.71 liter
Front tires size (2WD)
Front tires size (2WD) 11L-16 / 12-16.5
Front tires size (2WD) 14.5/75-16.1 10PR F3
Front tires size (2WD) 11L-16, 12PR F3
Rear tires size
Rear tires size 19.5Lx24
Rear tires size 18.4-28,8/12PR R4
Rear tires size 19.5L-24,10PR R4
Front tread range
Front tread range 187.2 cm
Front tread range -
Front tread range -
Ground clearance
Ground clearance 0.46 m
Ground clearance -
Ground clearance 0.34 m
Height - top of cab
Height - top of cab 2.87 m
Height - top of cab -
Height - top of cab 2.68 m
Rear tread range
Rear tread range 172.21 cm
Rear tread range -
Rear tread range -
Overall Length
Overall Length 7.13 m
Overall Length 7.5 m
Overall Length 6.74 m
Overall Width
Overall Width 2.29 m
Overall Width 2.13 m
Overall Width 2.35 m
Turning radius
Turning radius -
Turning radius -
Turning radius 3.14 m
Max speed reverse
Max speed reverse 40.23 kph
Max speed reverse -
Max speed reverse 41.36 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 8
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 143.83 lpm
Pump flow cap 107.87 lpm
Pump flow cap 132.48 lpm
Pump type
Pump type Open center
Pump type Closed center
Pump type 8 radial piston, closed center, variable flow, constant pressure
Relief valve pressure
Relief valve pressure 196.5 bar
Relief valve pressure 165.47 bar
Relief valve pressure 172.37 bar
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe digging depth 6.31 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.24 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump reach 8.53 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 4.24 m

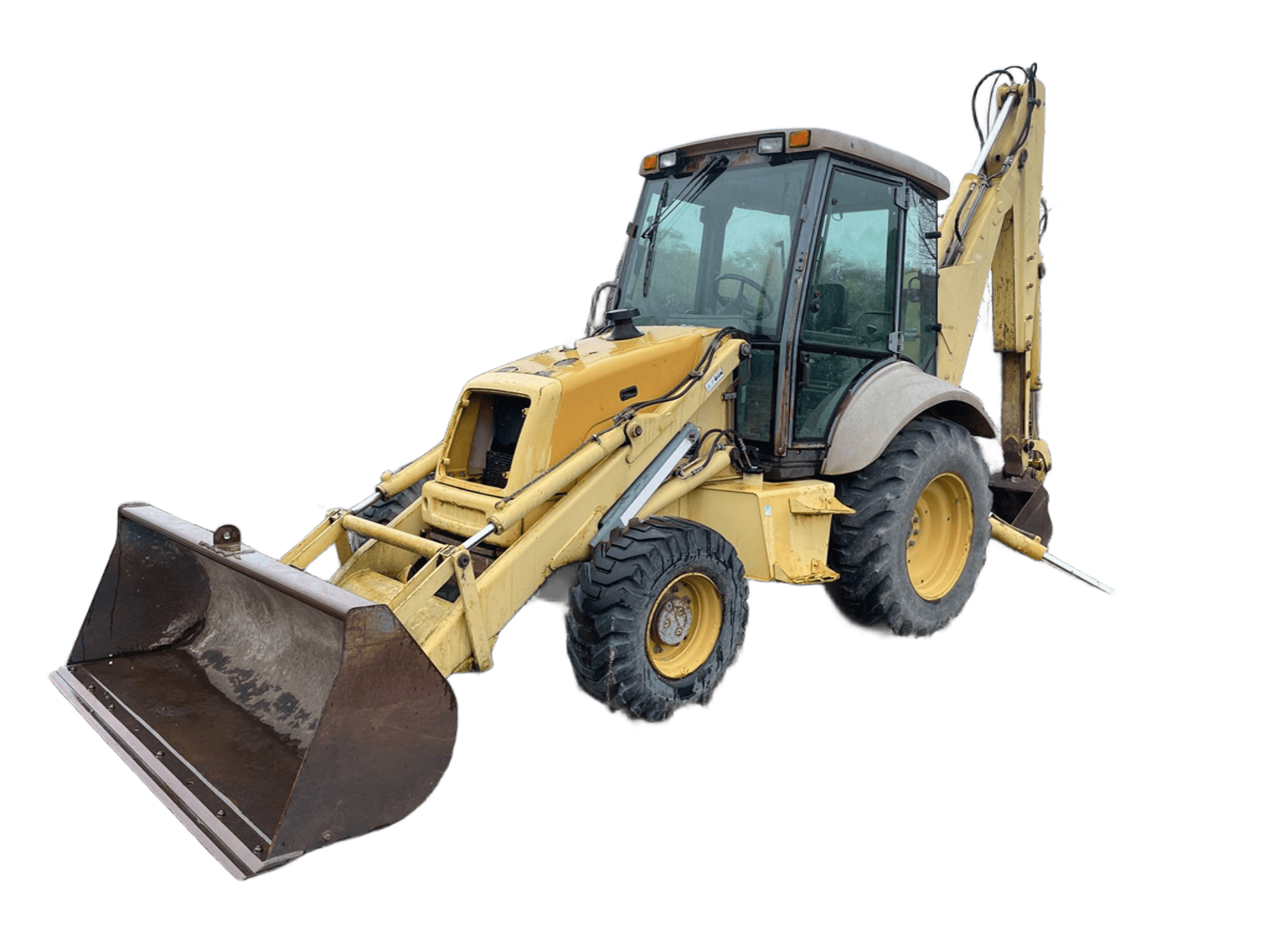

New holland 555 gallery
