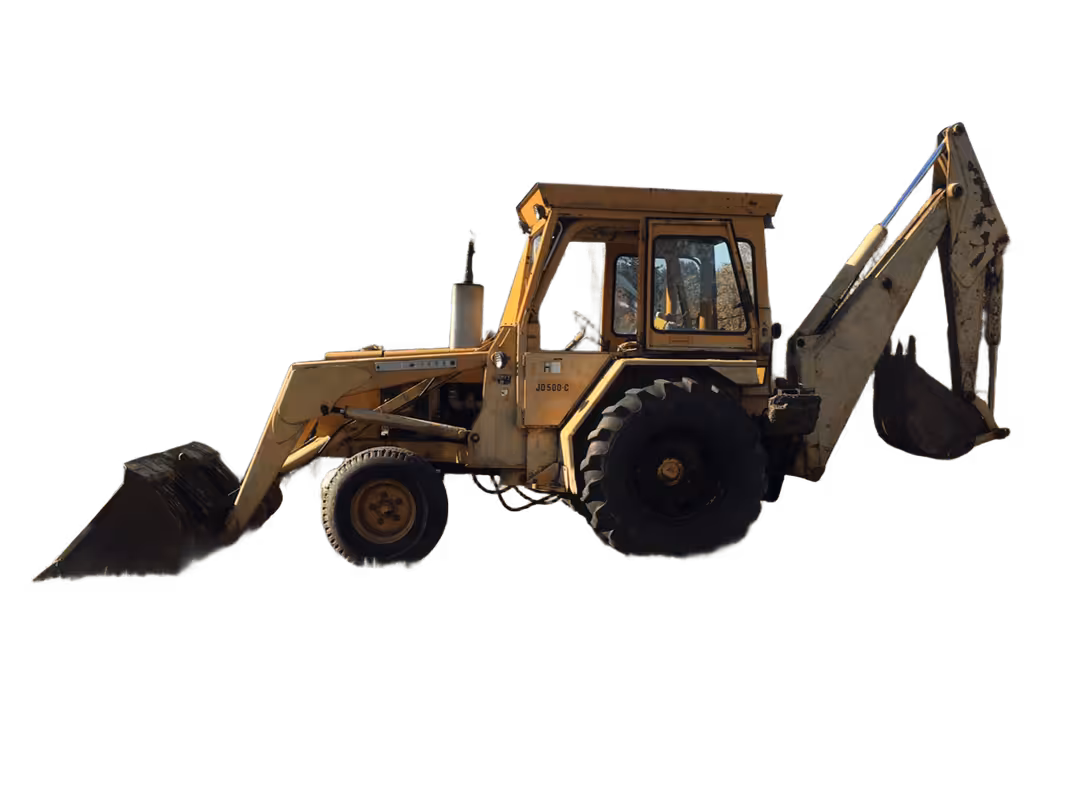

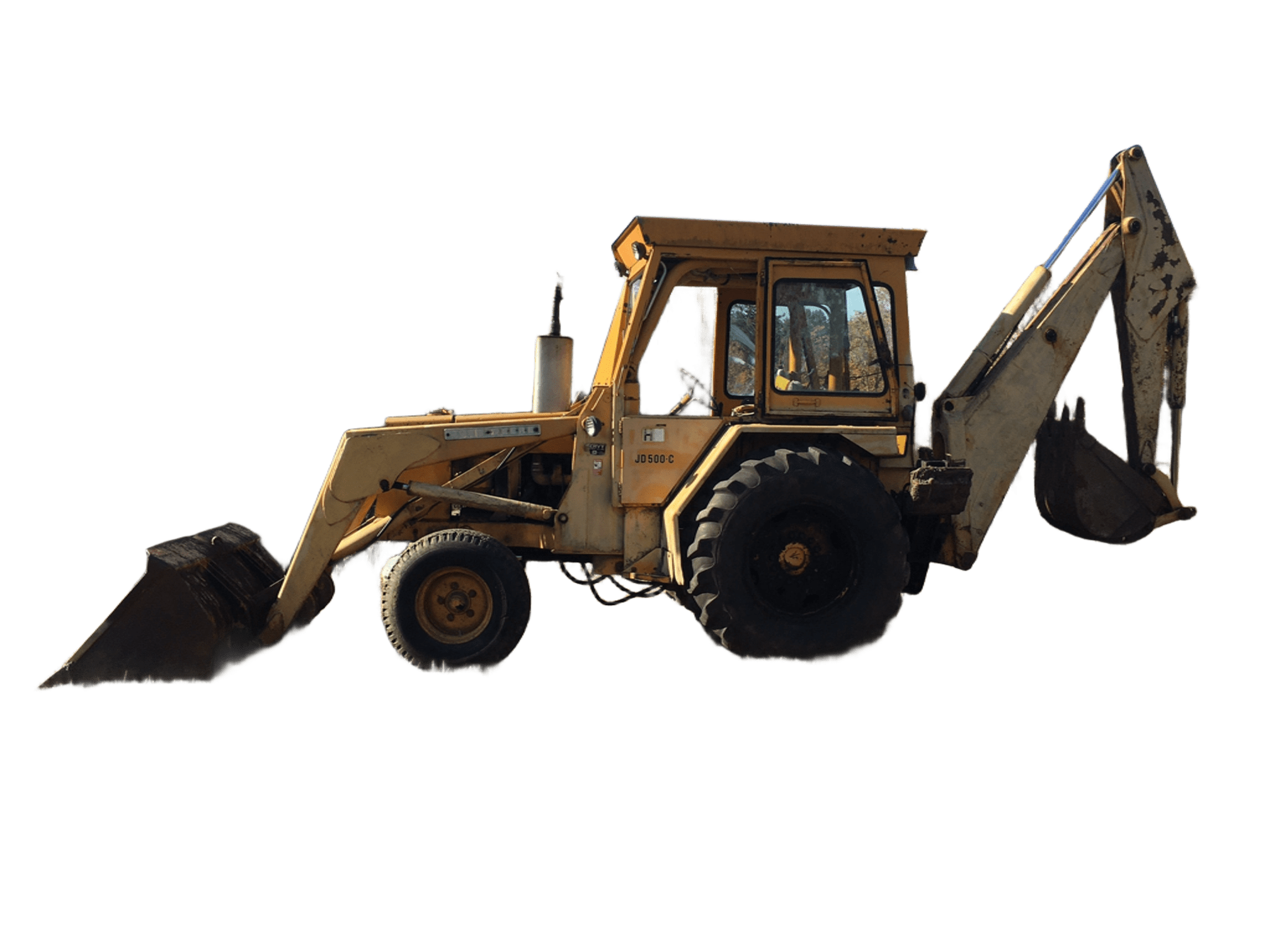

John deere 500 Backhoe loaders
100K+ machines in details.

John deere 500 Backhoe loaders tech specs

makana img
video play button
Video[1]

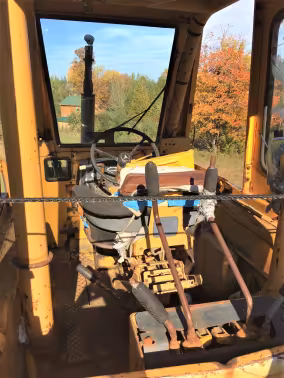

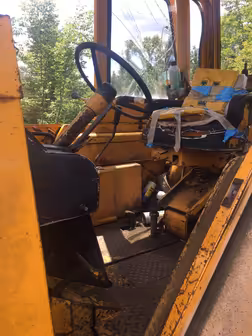

Interior [2]

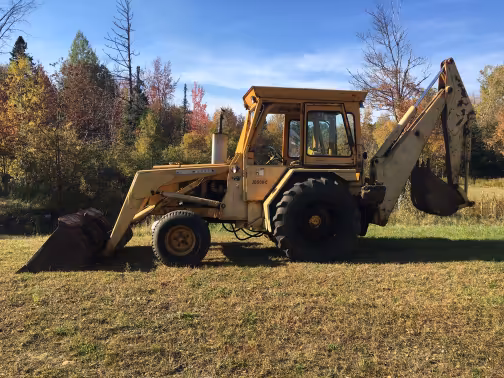

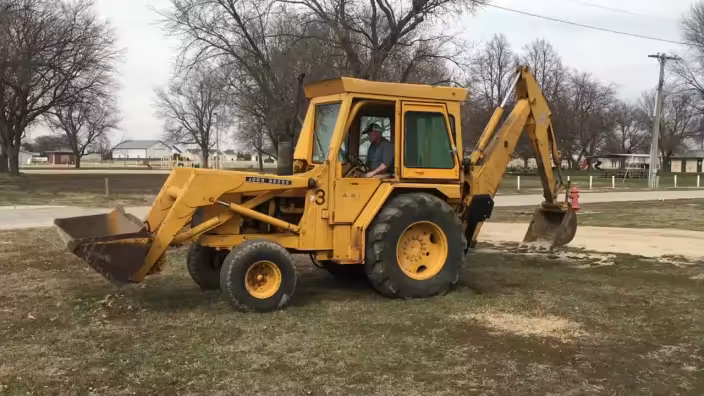

Exterior [4]

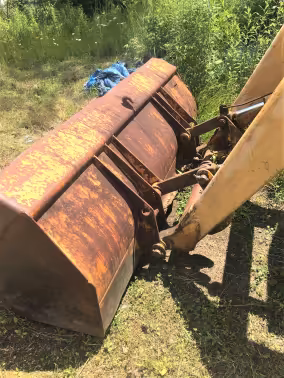

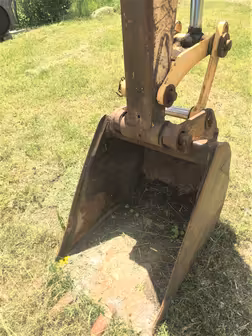

Attachments [2]
1971-1983
300 Series Engine model
273.87 Nm Max torque
59.66 kw Net power
6,431 kg Operating weight
165.47 bar Relief valve pressure
Powershift Transmission type
Show features

Makana rating

Market average

AED 95,200

Starting from

AED 27,000

John deere 500 Technical specifications

Engine

Alternator supplied amperage

35 Amh

Aspiration

Naturally aspirated

Displacement

4424.52 cu cm

Max torque

273.87 Nm

Net power

59.66 kw

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,300 rpm

Service refill capacities

Cooling fluid cap

18.17 liter

Fuel cap

128.69 liter

Hydraulic fluid cap

81.38 liter

Transmission fluid cap

81.38 liter

General

Engine model

300 Series

Operating voltage

12 V

Operating weight

6,431 kg

Transmission type

Powershift

Tires

Front tires size (2WD)

14.5/75-16.1 10PR F3

Rear tires size

18.4-28,8/12PR R4

Transmission

Number of forward gears

8

Number of reverse gears

4

Hydraulic system

Pump flow cap

107.87 lpm

Pump type

Closed center

Relief valve pressure

165.47 bar

Dimensions

Overall Length

7.5 m

Overall Width

2.13 m

View more
Download datasheets
OEM product brochure

John deere 500 expert review

John deere 500 similar models

Highlight differences
John deere 500C
500C
Cat 450E
450E
Case 480B
480B
Engine
Alternator supplied amperage 35 Amh
Alternator supplied amperage -
Alternator supplied amperage 55 Amh
Aspiration Naturally aspirated
Aspiration -
Aspiration -
Displacement 4,424.52 cu cm
Displacement 4,391.74 cu cm
Displacement 3,100.44 cu cm
Max torque 273.87 Nm
Max torque 515.2 Nm
Max torque 180.32 Nm
Net power 59.66 kw
Net power 93.21 kw
Net power 27.59 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 1,750 rpm
Torque measured @ 1,300 rpm
Torque measured @ -
Torque measured @ 1,250 rpm
Bore -
Bore 10.67 cm
Bore 9.91 cm
Gross power -
Gross power 102.16 kw
Gross power 30.95 kw
Stroke -
Stroke 12.7 cm
Stroke 10.67 cm
Torque rise -
Torque rise 0.28 %
Torque rise -
Engine make -
Engine make -
Engine make J.I. Case
Years 1971-1983
Years 2007-2025
Years 1971-1991
Market Average AED 95,200
Market Average AED 661,000
Market Average AED 253,000
Price AED 27,000
Price AED 177,000
Price AED 110,000
Service refill capacities
Cooling fluid cap 18.17 liter
Cooling fluid cap 25.74 liter
Cooling fluid cap 15.9 liter
Fuel cap 128.69 liter
Fuel cap 145.34 liter
Fuel cap 83.27 liter
Hydraulic fluid cap 81.38 liter
Hydraulic fluid cap 100.3 liter
Hydraulic fluid cap 45.42 liter
Transmission fluid cap 81.38 liter
Transmission fluid cap 21.2 liter
Transmission fluid cap -
Front axle fluid capacity -
Front axle fluid capacity 10.98 liter
Front axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 18.93 liter
Rear axle fluid capacity -
General
Engine model 300 Series
Engine model C4.4
Engine model G188D
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 6,431 kg
Operating weight 12,299 kg
Operating weight 4,059 kg
Transmission type Powershift
Transmission type Ackerman
Transmission type Mechanical shuttle
Bucket capacity -
Bucket capacity 1.38 cu m
Bucket capacity -
Bucket width -
Bucket width 243 cm
Bucket width -
Lifting capacity -
Lifting capacity 3,570.23 kg
Lifting capacity -
Max speed forward -
Max speed forward 40.23 kph
Max speed forward 27.36 kph
Tires
Front tires size (2WD) 14.5/75-16.1 10PR F3
Front tires size (2WD) 15-19.5 12PR
Front tires size (2WD) 7.50x16
Rear tires size 18.4-28,8/12PR R4
Rear tires size 21L-24 R4 18PR
Rear tires size 14.9x24
Transmission
Number of forward gears 8
Number of forward gears 5
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 3
Number of reverse gears 4
Max speed reverse -
Max speed reverse 27.36 kph
Max speed reverse 33.96 kph
Hydraulic system
Pump flow cap 107.87 lpm
Pump flow cap 194.17 lpm
Pump flow cap 37.85 lpm
Pump type Closed center
Pump type -
Pump type Open center
Relief valve pressure 165.47 bar
Relief valve pressure 262 bar
Relief valve pressure -
Circuit type -
Circuit type Closed center, load sensing
Circuit type -
Dimensions
Overall Length 7.5 m
Overall Length 7.92 m
Overall Length 3.02 m
Overall Width 2.13 m
Overall Width 2.44 m
Overall Width 1.58 m
Height - top of cab -
Height - top of cab 2.9 m
Height - top of cab -
Turning radius -
Turning radius 8.11 m
Turning radius -
Wheelbase -
Wheelbase 2.23 m
Wheelbase 2.01 m
Ground clearance -
Ground clearance -
Ground clearance 0.34 m
Rear tread range -
Rear tread range -
Rear tread range 162.05 cm
Backhoe
Backhoe digging depth -
Backhoe digging depth 5.27 m
Backhoe digging depth 3.78 m
Backhoe dump height -
Backhoe dump height 4.45 m
Backhoe dump height 2.77 m
Backhoe reach from swivel -
Backhoe reach from swivel 6.71 m
Backhoe reach from swivel 4.69 m
Bucket rotation -
Bucket rotation 198 º
Bucket rotation -
Operating specifications
Brake system -
Brake system Boosted, outboard, oil-immersed, multidisc
Brake system -
Cab ROPS -
Cab ROPS SAE J1040 May 1994/ISO 3741 1994
Cab ROPS -
Cab sound -
Cab sound ANSI/SAE J1166 Oct 98 is 83 dB (A)
Cab sound -
Extended backhoe digging depth -
Extended backhoe digging depth 6.49 m
Extended backhoe digging depth 4.75 m
Extended backhoe dump reach -
Extended backhoe dump reach 3.11 m
Extended backhoe dump reach -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.89 m
Extended backhoe reach from swivel 5.58 m
Exterior sound -
Exterior sound SAE J88 APR95 is 79 dB (A)
Exterior sound -
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 3.38 m
Loader
Breakout force -
Breakout force 5,159.62 kg
Breakout force 2,494.76 kg
Loader digging depth -
Loader digging depth 15.24 cm
Loader digging depth -
Loader dump height -
Loader dump height 2.65 m
Loader dump height 2.68 m
Loader dump reach -
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Attachments
Bucket digging force -
Bucket digging force 8,049.46 kg
Bucket digging force 3,116.05 kg
Refill capacities
Engine oil cap -
Engine oil cap 8.33 liter
Engine oil cap 4.16 liter
