New holland B115 Backhoe loaders tech specs
:quality(50)/73146/conversions/c854baa3-4061-4c72-93b5-08336e8bbfb0-thumb.webp)
Video[1]
:quality(50)/73138/conversions/9f8da77c-a83c-44b0-90c0-ef8909e9acfc-thumb.webp)

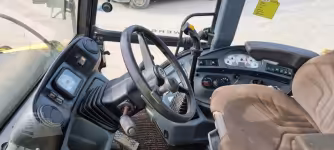

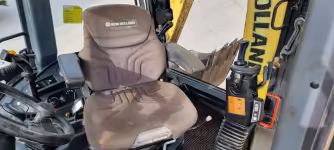

Interior [2]
:quality(50)/73140/conversions/de7b26c5-625d-4331-9fed-28f04c9164e5-thumb.webp)

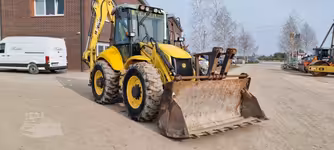

Exterior [4]
:quality(50)/73144/conversions/dc0d2434-6f15-4663-89e4-601442980d09-thumb.webp)

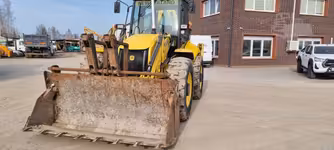

Attachments [2]
2006-2008
135.12 liter Fuel cap
398.06 Nm Max torque
80.01 kw Net power
8,870 kg Operating weight
7.13 m Overall Length
2.41 m Overall Width
Makana rating
Owner rating
Market average
AED 280,000Starting from
AED 185,000New holland B115 Technical specifications
Engine
Alternator supplied amperage
900 Amh
Aspiration
Turbocharged
Gross power
82.03 kw
Net power
80.01 kw
Number of cylinders
4
Power measured @
2,200 rpm
Torque measured @
1,400 rpm
Backhoe
Backhoe reach from swivel
5.85 m
Loader
Breakout force
7545.93 kg
Loader digging depth
15.49 cm
General
Bucket capacity
1.22 cu m
Bucket digging force
5810.03 kg
Bucket width
240 cm
Displacement
4501.54 cu cm
Engine model
445T/M2
Loader dump height
2.68 m
Loader dump reach
0.82 m
Lifting capacity
3385.62 kg
Max speed forward
39.27 kph
Max torque
398.06 Nm
Operating voltage
12 V
Operating weight
8,870 kg
Transmission type
Powershift
Turning radius
4.33 m
Wheelbase
2.23 m
Service refill capacities
Cooling fluid cap
24.22 liter
Fuel cap
135.12 liter
Hydraulic fluid cap
118.09 liter
Refill capacities
Engine oil cap
13.63 liter
Operating specifications
Extended backhoe reach from swivel
6.95 m
Tires
Front tires size (2WD)
24 inches
Rear tires size
28 inches
Dimensions
Ground clearance
0.46 m
Height - top of cab
2.93 m
Overall Length
7.13 m
Overall Width
2.41 m
Transmission
Max speed reverse
13.36 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
159.35 lpm
Pump type
Tandem gear
Relief valve pressure
209.94 bar
Download datasheets
New holland B115 expert review
:quality(50)/60955/11289297-4fd3-4db8-aa77-83a15321cf02.jpeg)
Overview
The New Holland B115 (2006–2008) is a heavy-duty backhoe loader designed for excavation and material handling tasks. Powered by a 445T/M2 turbocharged diesel engine, it delivers 80.01 kilowatt net power on a stable 8,870 kg chassis.
Expert rating: 4 stars
Pros
Strong breakout force and large bucket capacity for heavy loading work.
Cons
Larger size can reduce maneuverability in tighter construction areas.
Performance & Efficiency
The 80.01 kilowatt diesel engine delivers strong digging performance, while the hydraulic system with 159 L/min pump flow supports smooth loader and backhoe operations.
In Comparison
Case 770: Comparable digging and loading capability.
New Holland B110: Slightly lighter machine with similar engine output.
New Holland B115: Larger loader capacity and higher breakout force.
Final Verdict
Rated 4 stars, the New Holland B115 provides strong excavation and loading performance within the AED 185,000–280,000 range.
New holland B115 owner rating
New holland B115 Backhoe loaders [2006-2008]
2006-2008
Overall rating
Based on 3 ratings
4.7
performance
4.7
comfort
4.7
fuel efficiency
4.7
safety
4.3
features
4.3
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
New holland B115 similar models
Highlight differences
:quality(50)/59551/432eeaeb-8e2c-403a-a995-e3c3bb9bb21c.png)
Alternator supplied amperage
Alternator supplied amperage 900 Amh
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged, aftercooled
Gross power
Gross power 82.03 kw
Gross power 54.4 kw
Gross power 82.03 kw
Net power
Net power 80.01 kw
Net power -
Net power 80.01 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 1,400 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ 1,400 rpm
Emissions
Emissions -
Emissions Tier 4F
Emissions -
Years
Years 2006-2008
Years 2021-2025
Years 2006-2012
Market Average
Market Average AED 280,000
Market Average AED 170,000
Market Average AED 260,000
Price
Price AED 185,000
Price AED 150,000
Price AED 170,000
Backhoe reach from swivel
Backhoe reach from swivel 5.85 m
Backhoe reach from swivel 5,625 m
Backhoe reach from swivel 5.85 m
Bucket rotation
Bucket rotation -
Bucket rotation 204 degrees
Bucket rotation -
Backhoe dump reach
Backhoe dump reach -
Backhoe dump reach 2,150 m
Backhoe dump reach -
Breakout force
Breakout force 7,545.93 kg
Breakout force 56.9 kN
Breakout force 6,323.99 kg
Loader digging depth
Loader digging depth 15.49 cm
Loader digging depth 110 mm
Loader digging depth 13.21 cm
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity 0.26 m3
Bucket capacity 1.07 cu m
Bucket digging force
Bucket digging force 5,810.03 kg
Bucket digging force -
Bucket digging force 5,810.03 kg
Bucket width
Bucket width 240 cm
Bucket width -
Bucket width 221 cm
Displacement
Displacement 4,501.54 cu cm
Displacement 3,840 l
Displacement 4,501.54 cu cm
Engine model
Engine model 445T/M2
Engine model Ashok Leyland H4C4E7422*W
Engine model 445T/M2
Loader dump height
Loader dump height 2.68 m
Loader dump height 2,730 mm
Loader dump height 2.71 m
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 760 mm
Loader dump reach 0.76 m
Lifting capacity
Lifting capacity 3,385.62 kg
Lifting capacity 3,515 kg
Lifting capacity -
Max speed forward
Max speed forward 39.27 kph
Max speed forward 34.1 kph
Max speed forward 41.52 kph
Max torque
Max torque 398.06 Nm
Max torque 340 Nm
Max torque 480.09 Nm
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating voltage 12 V
Operating weight
Operating weight 8,870 kg
Operating weight 7,780 kg
Operating weight 7,880 kg
Transmission type
Transmission type Powershift
Transmission type Powershuttle synchromesh
Transmission type power-reversing/torque converter
Turning radius
Turning radius 4.33 m
Turning radius -
Turning radius 3.51 m
Wheelbase
Wheelbase 2.23 m
Wheelbase 2.18 m
Wheelbase 2.19 m
Tire size
Tire size -
Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR
Tire size -
Backhoe dump height
Backhoe dump height -
Backhoe dump height 3,800 m
Backhoe dump height -
Backhoe digging depth
Backhoe digging depth -
Backhoe digging depth 4,400 mm
Backhoe digging depth 4.6 m
Cooling fluid cap
Cooling fluid cap 24.22 liter
Cooling fluid cap 20 liter
Cooling fluid cap 24.22 liter
Fuel cap
Fuel cap 135.12 liter
Fuel cap 129 liter
Fuel cap 135.12 liter
Hydraulic fluid cap
Hydraulic fluid cap 118.09 liter
Hydraulic fluid cap 107 liter
Hydraulic fluid cap 118.09 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 18 liter
Transmission fluid cap -
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 17.1 liter
Rear axle fluid capacity -
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 8.9 liter
Front axle fluid capacity -
Engine oil cap
Engine oil cap 13.63 liter
Engine oil cap 9.1 liter
Engine oil cap 13.63 liter
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.95 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.95 m
Rack back angle
Rack back angle -
Rack back angle 45 º
Rack back angle -
Brake system
Brake system -
Brake system Hydraulic foot operated, 2 disc per side
Brake system -
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe digging depth 5.76 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.63 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump reach 2.93 m
Front tires size (2WD)
Front tires size (2WD) 24 inches
Front tires size (2WD) -
Front tires size (2WD) 12-16.5
Rear tires size
Rear tires size 28 inches
Rear tires size -
Rear tires size 19.5L-24
Ground clearance
Ground clearance 0.46 m
Ground clearance -
Ground clearance 0.4 m
Height - top of cab
Height - top of cab 2.93 m
Height - top of cab -
Height - top of cab 2.9 m
Overall Length
Overall Length 7.13 m
Overall Length -
Overall Length 7.13 m
Overall Width
Overall Width 2.41 m
Overall Width -
Overall Width 2.29 m
Transport length
Transport length -
Transport length 5 m
Transport length -
Transport width
Transport width -
Transport width 2 m
Transport width -
Max speed reverse
Max speed reverse 13.36 kph
Max speed reverse -
Max speed reverse -
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 159.35 lpm
Pump flow cap 126 lpm
Pump flow cap 159.35 lpm
Pump type
Pump type Tandem gear
Pump type Open center, load sensing
Pump type Tandem gear
Relief valve pressure
Relief valve pressure 209.94 bar
Relief valve pressure 194.98 bar
Relief valve pressure 209.94 bar
