New holland B110 Backhoe loaders tech specs
:quality(50)/73134/conversions/7e67d391-da92-4943-8c91-ebf968c590a0-thumb.webp)
Video[1]
:quality(50)/73126/conversions/94c6c7d4-79e0-43ff-a71b-e79842faa31c-thumb.webp)

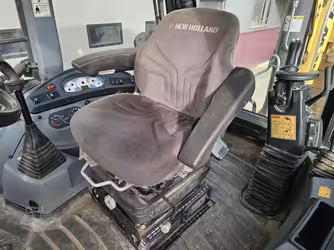

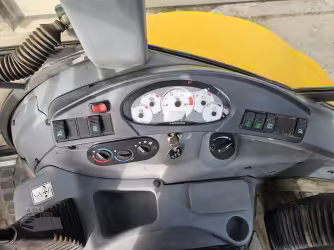

Interior [2]
:quality(50)/73128/conversions/0d57a887-bd43-49ef-b7a9-d3aabc2cb477-thumb.webp)

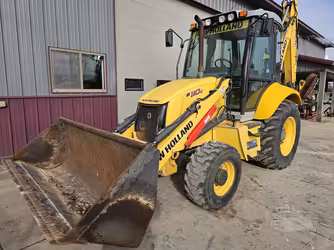

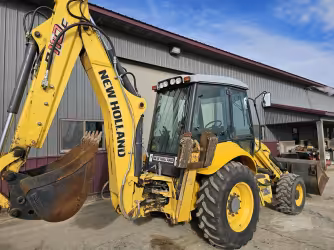

Exterior [4]
:quality(50)/73132/conversions/7369918a-0497-47b2-96f4-5c969fdb2df6-thumb.webp)

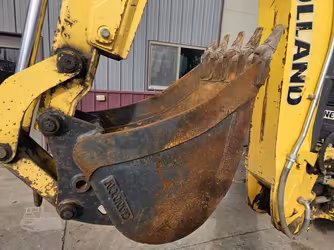

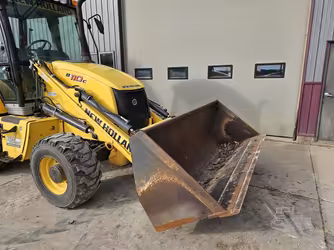

Attachments [2]
2006-2012
135.12 liter Fuel cap
480.09 Nm Max torque
80.01 kw Net power
7,880 kg Operating weight
7.13 m Overall Length
2.29 m Overall Width
Makana rating
Owner rating
Market average
AED 260,000Starting from
AED 170,000New holland B110 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 90 Amh
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged, aftercooled
Aspiration -
Gross power
Gross power 82.03 kw
Gross power 82.03 kw
Net power
Net power 80.01 kw
Net power 80.54 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 1,400 rpm
Power measured @ -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Years
Years 2006-2012
Years 2006-2012
Market Average
Market Average AED 260,000
Market Average AED 260,000
Price
Price AED 170,000
Price AED 170,000
Backhoe digging depth
Backhoe digging depth 4.6 m
Backhoe digging depth 4.75 m
Backhoe reach from swivel
Backhoe reach from swivel 5.85 m
Backhoe reach from swivel 5.46 m
Backhoe dump height
Backhoe dump height -
Backhoe dump height 1.62 m
Breakout force
Breakout force 6,323.99 kg
Breakout force 7,908.85 kg
Loader digging depth
Loader digging depth 13.21 cm
Loader digging depth -
Loader dump height
Loader dump height 2.71 m
Loader dump height -
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.73 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity -
Bucket digging force
Bucket digging force 5,810.03 kg
Bucket digging force 5,883.01 kg
Bucket width
Bucket width 221 cm
Bucket width -
Displacement
Displacement 4,501.54 cu cm
Displacement 3,392.13 cu cm
Engine model
Engine model 445T/M2
Engine model FPT F5HFL413B*A
Max speed forward
Max speed forward 41.52 kph
Max speed forward 37.01 kph
Max torque
Max torque 480.09 Nm
Max torque 466.4 Nm
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating weight
Operating weight 7,880 kg
Operating weight 8,402 kg
Transmission type
Transmission type power-reversing/torque converter
Transmission type -
Wheelbase
Wheelbase 2.19 m
Wheelbase -
Cooling fluid cap
Cooling fluid cap 24.22 liter
Cooling fluid cap 24.22 liter
Fuel cap
Fuel cap 135.12 liter
Fuel cap 131.34 liter
Hydraulic fluid cap
Hydraulic fluid cap 118.09 liter
Hydraulic fluid cap 137.02 liter
Engine oil cap
Engine oil cap 13.63 liter
Engine oil cap 8.33 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.76 m
Extended backhoe digging depth 5.79 m
Extended backhoe dump height
Extended backhoe dump height 4.63 m
Extended backhoe dump height 4.45 m
Extended backhoe dump reach
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 2.41 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.95 m
Extended backhoe reach from swivel 6.43 m
Front tires size (2WD)
Front tires size (2WD) 12-16.5
Front tires size (2WD) -
Rear tires size
Rear tires size 19.5L-24
Rear tires size -
Ground clearance
Ground clearance 0.4 m
Ground clearance -
Height - top of cab
Height - top of cab 2.9 m
Height - top of cab 2.9 m
Overall Length
Overall Length 7.13 m
Overall Length 7.04 m
Overall Width
Overall Width 2.29 m
Overall Width 2.32 m
Turning radius
Turning radius 3.51 m
Turning radius -
Number of forward gears
Number of forward gears 4
Number of forward gears -
Number of reverse gears
Number of reverse gears 4
Number of reverse gears -
Pump flow cap
Pump flow cap 159.35 lpm
Pump flow cap 151.4 lpm
Pump type
Pump type Tandem gear
Pump type -
Relief valve pressure
Relief valve pressure 209.94 bar
Relief valve pressure 209.94 bar
Arm crowding force
Arm crowding force -
Arm crowding force 3,868.01 kg
Download datasheets
New holland B110 expert review
:quality(50)/60953/d01e174e-11e1-47e0-987c-da947df67259.jpeg)
Overview
The New Holland B110 (2006–2012) is a mid-size backhoe loader designed for demanding construction and utility work. It delivers 80.01 kilowatt engine power and 480 Nm torque on a stable 7,880 kg platform.
Expert rating: 5 stars
Pros
High engine torque and stable operating weight for excavation tasks.
Cons
Larger machine size reduces maneuverability in tighter work areas.
Performance & Efficiency
The 80.01 kilowatt diesel engine produces 480 Nm of torque, providing reliable digging power and efficient loader performance for construction and utility projects.
In Comparison
Cat 416: Balanced backhoe loader with proven reliability.
Case 770: Comparable machine with strong loader capability.
New Holland B110: Powerful mid-size machine with excellent torque.
Final Verdict
Rated 5 stars, the New Holland B110 offers dependable excavation performance within the AED 170,000–260,000 range.
New holland B110 owner rating
New holland B110 Backhoe loaders [2006-2012]
2006-2012
Overall rating
Based on 3 ratings
4.7
performance
4.3
comfort
4.7
fuel efficiency
4.3
safety
4.7
features
4.3
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
New holland B110 similar models
Highlight differences
:quality(50)/59551/432eeaeb-8e2c-403a-a995-e3c3bb9bb21c.png)
Alternator supplied amperage
Alternator supplied amperage 90 Amh
Alternator supplied amperage 52 Amh
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged, aftercooled
Aspiration -
Aspiration Turbocharged
Gross power
Gross power 82.03 kw
Gross power 50.04 kw
Gross power 54.4 kw
Net power
Net power 80.01 kw
Net power 46.01 kw
Net power -
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 1,400 rpm
Power measured @ 2,400 rpm
Power measured @ -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Emissions
Emissions -
Emissions -
Emissions Tier 4F
Years
Years 2006-2012
Years 1985-2025
Years 2021-2025
Market Average
Market Average AED 260,000
Market Average AED 625,000
Market Average AED 170,000
Price
Price AED 170,000
Price AED 227,000
Price AED 150,000
Backhoe digging depth
Backhoe digging depth 4.6 m
Backhoe digging depth 4.36 m
Backhoe digging depth 4,400 mm
Backhoe reach from swivel
Backhoe reach from swivel 5.85 m
Backhoe reach from swivel 5.43 m
Backhoe reach from swivel 5,625 m
Backhoe dump height
Backhoe dump height -
Backhoe dump height -
Backhoe dump height 3,800 m
Bucket rotation
Bucket rotation -
Bucket rotation -
Bucket rotation 204 degrees
Backhoe dump reach
Backhoe dump reach -
Backhoe dump reach -
Backhoe dump reach 2,150 m
Breakout force
Breakout force 6,323.99 kg
Breakout force 3,405.89 kg
Breakout force 56.9 kN
Loader digging depth
Loader digging depth 13.21 cm
Loader digging depth 10.92 cm
Loader digging depth 110 mm
Loader dump height
Loader dump height 2.71 m
Loader dump height 2.65 m
Loader dump height 2,730 mm
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.73 m
Loader dump reach 760 mm
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 0.76 cu m
Bucket capacity 0.26 m3
Bucket digging force
Bucket digging force 5,810.03 kg
Bucket digging force 4,735.51 kg
Bucket digging force -
Bucket width
Bucket width 221 cm
Bucket width 226 cm
Bucket width -
Displacement
Displacement 4,501.54 cu cm
Displacement 3,860.8 cu cm
Displacement 3,840 l
Engine model
Engine model 445T/M2
Engine model 4.236
Engine model Ashok Leyland H4C4E7422*W
Max speed forward
Max speed forward 41.52 kph
Max speed forward 31.7 kph
Max speed forward 34.1 kph
Max torque
Max torque 480.09 Nm
Max torque -
Max torque 340 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight
Operating weight 7,880 kg
Operating weight 6,337 kg
Operating weight 7,780 kg
Transmission type
Transmission type power-reversing/torque converter
Transmission type fully synchromesh
Transmission type Powershuttle synchromesh
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.1 m
Wheelbase 2.18 m
Lifting capacity
Lifting capacity -
Lifting capacity -
Lifting capacity 3,515 kg
Tire size
Tire size -
Tire size -
Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR
Cooling fluid cap
Cooling fluid cap 24.22 liter
Cooling fluid cap 21.2 liter
Cooling fluid cap 20 liter
Fuel cap
Fuel cap 135.12 liter
Fuel cap 106.36 liter
Fuel cap 129 liter
Hydraulic fluid cap
Hydraulic fluid cap 118.09 liter
Hydraulic fluid cap 79.11 liter
Hydraulic fluid cap 107 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 7.57 liter
Front axle fluid capacity 8.9 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity 17.1 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 10.22 liter
Transmission fluid cap 18 liter
Engine oil cap
Engine oil cap 13.63 liter
Engine oil cap 7.19 liter
Engine oil cap 9.1 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.76 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height 4.63 m
Extended backhoe dump height 4.05 m
Extended backhoe dump height -
Extended backhoe dump reach
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 3.2 m
Extended backhoe dump reach -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.95 m
Extended backhoe reach from swivel 6.68 m
Extended backhoe reach from swivel -
Rack back angle
Rack back angle -
Rack back angle -
Rack back angle 45 º
Brake system
Brake system -
Brake system -
Brake system Hydraulic foot operated, 2 disc per side
Front tires size (2WD)
Front tires size (2WD) 12-16.5
Front tires size (2WD) 11L-16 10PR/10.5-20 10PR
Front tires size (2WD) -
Rear tires size
Rear tires size 19.5L-24
Rear tires size 16.9-24 8PR/ 19.5L-24 8PR
Rear tires size -
Ground clearance
Ground clearance 0.4 m
Ground clearance 0.3 m
Ground clearance -
Height - top of cab
Height - top of cab 2.9 m
Height - top of cab 2.74 m
Height - top of cab -
Overall Length
Overall Length 7.13 m
Overall Length 6.86 m
Overall Length -
Overall Width
Overall Width 2.29 m
Overall Width 2.29 m
Overall Width -
Turning radius
Turning radius 3.51 m
Turning radius 3.93 m
Turning radius -
Transport length
Transport length -
Transport length -
Transport length 5 m
Transport width
Transport width -
Transport width -
Transport width 2 m
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Max speed reverse
Max speed reverse -
Max speed reverse 31.86 kph
Max speed reverse -
Pump flow cap
Pump flow cap 159.35 lpm
Pump flow cap 108.25 lpm
Pump flow cap 126 lpm
Pump type
Pump type Tandem gear
Pump type Variable flow, axial piston
Pump type Open center, load sensing
Relief valve pressure
Relief valve pressure 209.94 bar
Relief valve pressure 186.16 bar
Relief valve pressure 194.98 bar

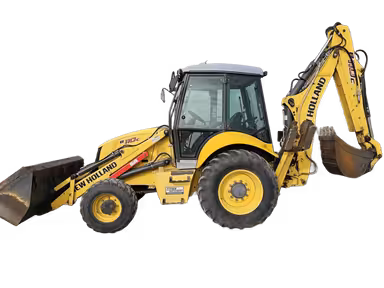

New holland B110 gallery
:quality(50)/73134/conversions/7e67d391-da92-4943-8c91-ebf968c590a0-thumb.webp)
:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png)
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png)
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
New holland 655E Backhoe loaders specs New holland B110 Backhoe loaders specs New holland B115 Backhoe loaders specs New holland B90 Backhoe loaders specs New holland B95 Backhoe loaders specs New holland C175 Compact track loaders specs New holland C185 Compact track loaders specs New holland C190 Compact track loaders specs New holland 555 Backhoe loaders specs New holland 575 Backhoe loaders specs
Mecalac TLB8 Backhoe loaders specs Mecalac TLB9 Backhoe loaders specs Terex TLBT Backhoe loaders specs Terex TX75 Backhoe loaders specs Terex TX76 Backhoe loaders specs Terex TX86 Backhoe loaders specs Terex TX87 Backhoe loaders specs Terex TX97 Backhoe loaders specs Venieri VF1 Backhoe loaders specs Venieri VF10 Backhoe loaders specs
Komatsu SK1020 Compact track loaders specs ASV SR-70 Compact track loaders specs ASV SR-80 Compact track loaders specs Wacker neuson ST28 Compact track loaders specs Wacker neuson ST31 Compact track loaders specs Wacker neuson ST35 Compact track loaders specs Wacker neuson ST45 Compact track loaders specs Kubota SVL75 Compact track loaders specs Kubota SVL90 Compact track loaders specs Kubota SVL95 Compact track loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
