JCB 3DX Plus vs. Case 770EX Backhoe loaders Comparison

Compare available technical data for Loaders. Find the right details to make your decision easier.

Comparison

Highlight differences

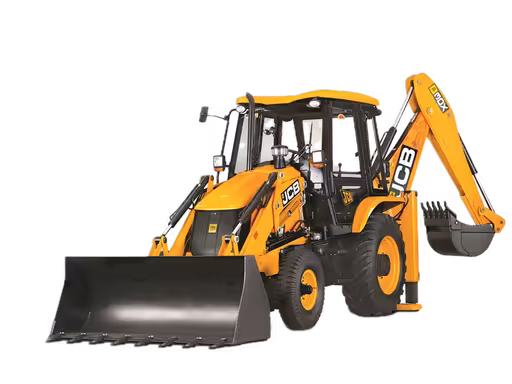

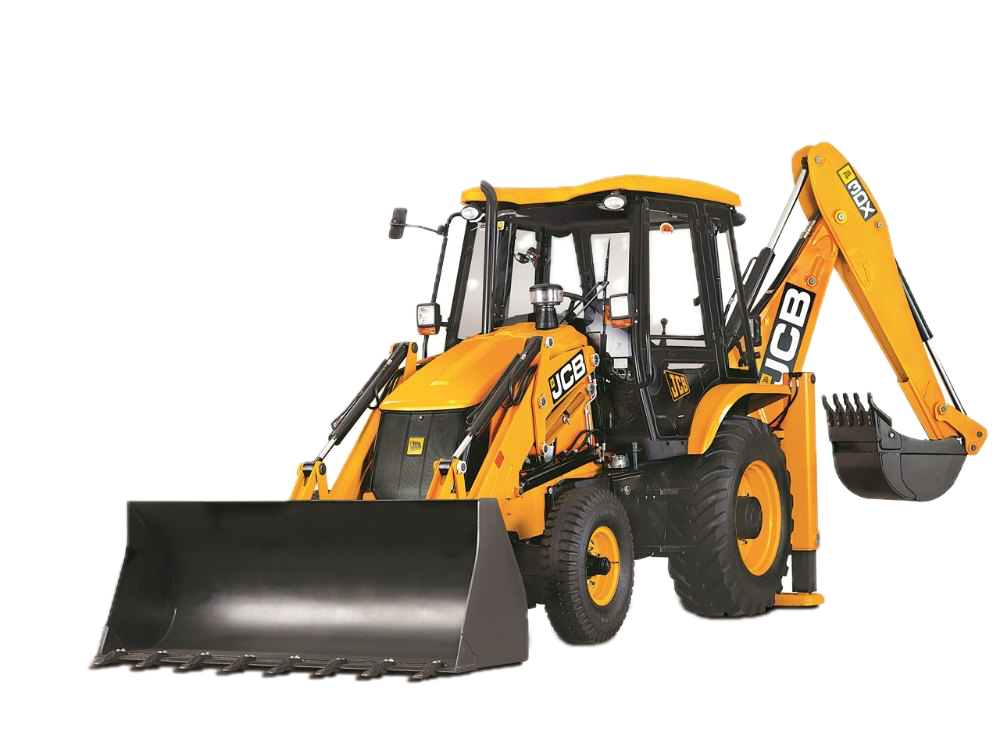

JCB 3DX Backhoe loaders

3DX

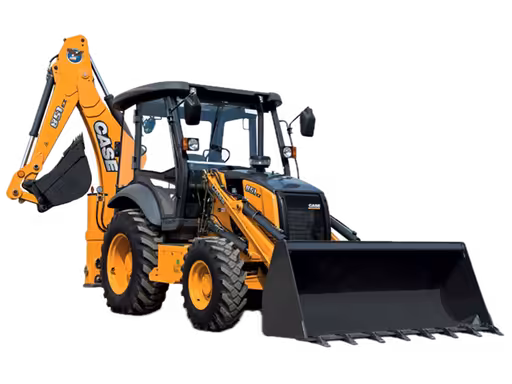

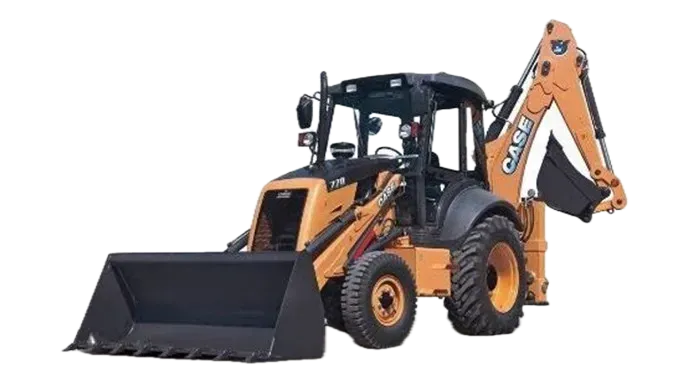

Case 770 Backhoe loaders

770EX

General

Engine model

Engine model JCB 430 CRDi

Engine model Ashok Leyland H4C4E7422*W

Operating weight

Operating weight 7,200 kg

Operating weight 7,780 kg

Bucket width

Bucket width 790 mm

Bucket width -

Bucket capacity

Bucket capacity 0.26 cu m

Bucket capacity 0.26 m3

Max speed forward

Max speed forward 32.3 kph

Max speed forward 34.1 kph

Transmission type

Transmission type Syncroshuttle

Transmission type Powershuttle synchromesh

Lifting capacity

Lifting capacity 1,650 kg

Lifting capacity 3,515 kg

Tire size

Tire size (F) 9/16.16 PR, (R) 16.9/28.12 PR

Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR

Years

Years 2019-2025

Years 2021-2025

Market Average

Market Average AED 220,000

Market Average AED 170,000

Price

Price AED 190,000

Price AED 150,000

Engine

Displacement

Displacement 3,000 cu cm

Displacement 3,840 l

Aspiration

Aspiration Turbocharged

Gross power

Gross power 37 kw

Gross power 54.4 kw

Max torque

Max torque 270 Nm

Max torque 340 Nm

Emissions

Emissions Tier 4F

Dimensions

Transport length

Transport length 6 m

Transport length 5 m

Wheelbase

Wheelbase 2.17 m

Wheelbase 2.18 m

Transport width

Transport width 2 m

Hydraulic system

Pump flow cap

Pump flow cap 114 lpm

Pump flow cap 126 lpm

Relief valve pressure

Relief valve pressure 265.44 bar

Relief valve pressure 194.98 bar

Pump type

Pump type Variable displacement

Pump type Open center, load sensing

Loader

Breakout force

Breakout force 51.7 kN

Breakout force 56.9 kN

Loader dump height

Loader dump height 2,740 mm

Loader dump height 2,730 mm

Loader dump reach

Loader dump reach 880 mm

Loader dump reach 760 mm

Loader digging depth

Loader digging depth 79 mm

Loader digging depth 110 mm

Service refill capacities

Cooling fluid cap

Cooling fluid cap 16.5 liter

Cooling fluid cap 20 liter

Fuel cap

Fuel cap 128 liter

Fuel cap 129 liter

Hydraulic fluid cap

Hydraulic fluid cap 92 liter

Hydraulic fluid cap 107 liter

Rear axle fluid capacity

Rear axle fluid capacity 20 liter

Rear axle fluid capacity 17.1 liter

Transmission fluid cap

Transmission fluid cap 17.5 liter

Transmission fluid cap 18 liter

Front axle fluid capacity

Front axle fluid capacity -

Front axle fluid capacity 8.9 liter

Refill capacities

Engine oil cap

Engine oil cap 15 liter

Engine oil cap 9.1 liter

Operating specifications

Rack back angle

Rack back angle 38 º

Rack back angle 45 º

Brake system

Brake system JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc

Brake system Hydraulic foot operated, 2 disc per side

Backhoe

Backhoe digging depth

Backhoe digging depth 4,770 mm

Backhoe digging depth 4,400 mm

Backhoe dump height

Backhoe dump height 4,180 mm

Backhoe dump height 3,800 m

Backhoe reach from swivel

Backhoe reach from swivel 5,400 mm

Backhoe reach from swivel 5,625 m

Bucket rotation

Bucket rotation 185 º

Bucket rotation 204 degrees

Backhoe dump reach

Backhoe dump reach 2,900 mm

Backhoe dump reach 2,150 m

Transmission

Number of reverse gears

Number of reverse gears 2

Number of reverse gears 4

Number of forward gears

Number of forward gears 4

Performance

Looking at performance technical specs and key features the JCB 3DX Plus Backhoe loaders excels in terms of engine power at and operating weight 7200 compared to other models like the Case 770EX Backhoe loaders.

User rating

Owners operators and fleet managers recommend the JCB 3DX Plus Backhoe loaders for its high reliability and endurance in diverse applications. The same can be said about the Case 770EX Backhoe loaders.
