Sunward SWTL42 Compact track loaders tech specs
:quality(50)/75331/conversions/2dade5f3-966c-4024-a881-e8c1d9dde623-thumb.webp)
Video[1]
:quality(50)/75324/conversions/7ddfd2aa-89cc-4090-8ff1-c8c96c5c8d0b-thumb.webp)

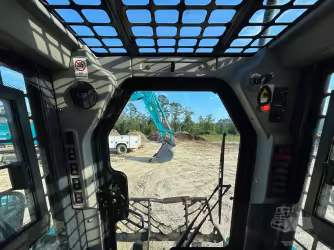

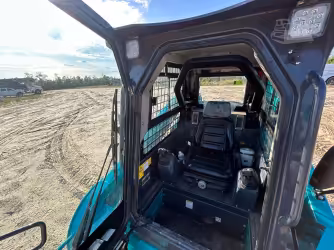

Interior [2]
:quality(50)/75326/conversions/1602433c-f452-4bdf-bd1e-e61844e6acdf-thumb.webp)

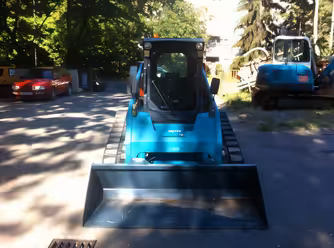

Exterior [4]
:quality(50)/75330/conversions/a5a05ef1-08a1-40e9-88cd-9f86e8fea7ea-thumb.webp)

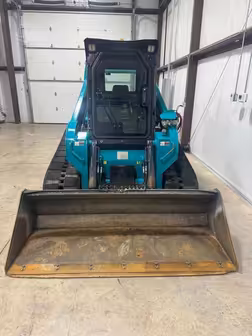

Attachments [1]
2006-2023
0.24 m Ground clearance
2.41 m Loader dump height
0.7 m Loader dump reach
1,200.03 kg Lifting capacity
54.96 kw Net power
4,360 kg Operating weight
Makana rating
Market average
AED 220,000Starting from
AED 90,000Sunward SWTL42 Technical specifications
Loader
Breakout force
3000.02 kg
Loader dump height
2.41 m
Loader dump reach
0.7 m
General
Bucket capacity
0.69 cu m
Engine model
V3300DI
Lifting capacity
1200.03 kg
Max speed forward
11.1 kph
Operating weight
4,360 kg
Service refill capacities
Cooling fluid cap
8.71 liter
Fuel cap
85.16 liter
Hydraulic fluid cap
65.1 liter
Refill capacities
Engine oil cap
13.25 liter
Dimensions
Ground clearance
0.24 m
Height - top of cab
2.13 m
Length with bucket
3.66 m
Length without Bucket
2.8 m
Turning radius
1.68 m
Width over tracks
2.01 m
Engine
Max torque
244.04 Nm
Net power
54.96 kw
Number of cylinders
4
Power measured @
2,600 rpm
Torque measured @
1,400 rpm
Hydraulic system
Pump flow cap
124.91 lpm
Pump type
Gear pump
Relief valve pressure
250 bar
Operating specifications
Rack back angle
75 º
Undercarriage
Track gauge
1.55 m
Track length
1.62 m
Track width
45.21 cm
Download datasheets
Sunward SWTL42 similar models
Highlight differences
Sunward SWTL4210
SWTL4210
Cat 277B
277B
Cat 279C
279C
Breakout force
Breakout force 3,000.02 kg
Breakout force -
Breakout force -
Loader dump height
Loader dump height 2.41 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.7 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Years
Years 2006-2023
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 220,000
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 90,000
Price AED 62,500
Price AED 114,000
Bucket capacity
Bucket capacity 0.69 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Engine model
Engine model V3300DI
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity
Lifting capacity 1,200.03 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward
Max speed forward 11.1 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight
Operating weight 4,360 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Cooling fluid cap
Cooling fluid cap 8.71 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap
Fuel cap 85.16 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap
Hydraulic fluid cap 65.1 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine oil cap
Engine oil cap 13.25 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Ground clearance
Ground clearance 0.24 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2.13 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.66 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 2.8 m
Length without Bucket -
Length without Bucket -
Turning radius
Turning radius 1.68 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks
Width over tracks 2.01 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Max torque
Max torque 244.04 Nm
Max torque -
Max torque -
Net power
Net power 54.96 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,600 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Pump flow cap
Pump flow cap 124.91 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type
Pump type Gear pump
Pump type Standard
Pump type High Flow XPS
Relief valve pressure
Relief valve pressure 250 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Rack back angle
Rack back angle 75 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle -
Dump angle -
Dump angle 40 º
Track gauge
Track gauge 1.55 m
Track gauge -
Track gauge -
Track length
Track length 1.62 m
Track length 2.07 m
Track length 1.77 m
Track width
Track width 45.21 cm
Track width -
Track width -
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
