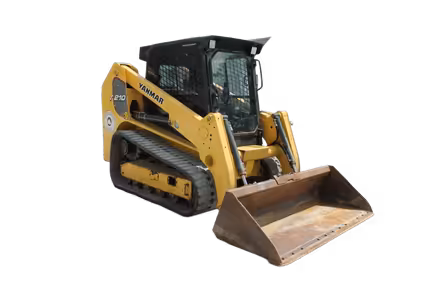

Yanmar T210 Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]
Attachments [2]
2014-2019
3,326.58 cu cm Displacement
0.33 m Ground clearance
2.44 m Loader dump height
0.37 m Loader dump reach
52.72 kw Net power
4,486 kg Operating weight
Show features

Makana rating

Market average

AED 220,000

Starting from

AED 90,000

Yanmar T210 Technical specifications

Engine

Alternator supplied amperage

95 Amh

Displacement

3326.58 cu cm

Engine make

Yanmar

Max torque

279.43 Nm

Net power

52.72 kw

Number of cylinders

4

Loader

Breakout force

2491.04 kg

Loader dump height

2.44 m

Loader dump reach

0.37 m

General

Bucket width

187 cm

Engine model

4TNV98CTNMSL

Max speed forward

12.71 kph

Operating weight

4,486 kg

Service refill capacities

Cooling fluid cap

14.76 liter

Fuel cap

92.35 liter

Hydraulic fluid cap

52.23 liter

Operating specifications

Dump angle

39 º

Rack back angle

60 º

Dimensions

Ground clearance

0.33 m

Length with bucket

3.87 m

Length without Bucket

2.93 m

Max height to hinge pin

325.12 cm

Undercarriage

Ground pressure

0.32 bar

Track gauge

1.34 m

Hydraulic system

Pump flow cap

82.51 lpm

View more
Download datasheets
OEM product brochure

Yanmar T210 similar models

Highlight differences
Yanmar T210-1
T210-1
Cat 277B
277B
Cat 279C
279C
Engine
Alternator supplied amperage 95 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Displacement 3,326.58 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine make Yanmar
Engine make -
Engine make -
Max torque 279.43 Nm
Max torque -
Max torque -
Net power 52.72 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore -
Bore 9.4 cm
Bore 8.64 cm
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years 2014-2019
Years 2004-2007
Years 2009-2015
Market Average AED 220,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 90,000
Price AED 62,500
Price AED 114,000
Loader
Breakout force 2,491.04 kg
Breakout force -
Breakout force -
Loader dump height 2.44 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.37 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
General
Bucket width 187 cm
Bucket width -
Bucket width -
Engine model 4TNV98CTNMSL
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Max speed forward 12.71 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,486 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Lifting capacity -
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Service refill capacities
Cooling fluid cap 14.76 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 92.35 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Operating specifications
Dump angle 39 º
Dump angle -
Dump angle 40 º
Rack back angle 60 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dimensions
Ground clearance 0.33 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Length with bucket 3.87 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 2.93 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin 325.12 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Height - top of cab -
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks -
Width over tracks 1.92 m
Width over tracks 1.98 m
Undercarriage
Ground pressure 0.32 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track gauge 1.34 m
Track gauge -
Track gauge -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Track length -
Track length 2.07 m
Track length 1.77 m
Hydraulic system
Pump flow cap 82.51 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type -
Pump type Standard
Pump type High Flow XPS
Relief valve pressure -
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
