Komatsu WB98 Backhoe loaders tech specs
:quality(50)/76074/conversions/5c689539-be15-41a5-b5fa-b8092a992131-thumb.webp)
Video[1]
:quality(50)/76066/conversions/b489b255-d9d6-469c-8717-38eeb1450065-thumb.webp)

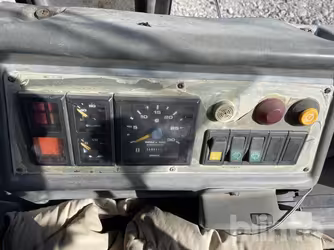

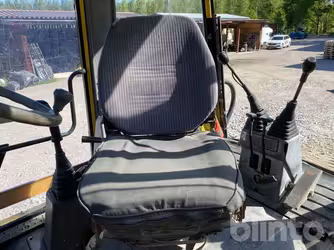

Interior [2]
:quality(50)/76068/conversions/c65f6e5e-b0d9-487f-9ee3-7caff401ee14-thumb.webp)

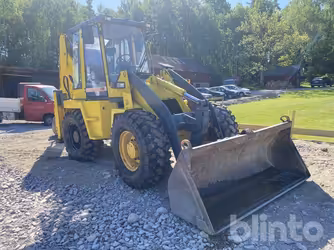

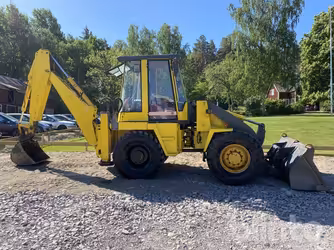

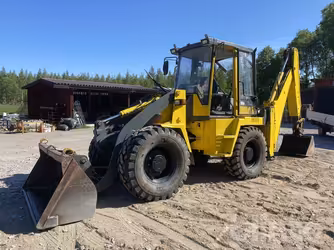

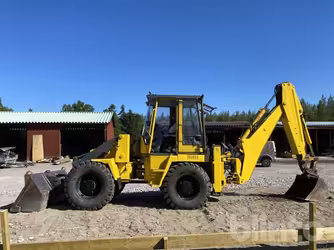

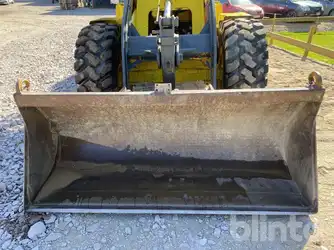

Exterior [4]
:quality(50)/76072/conversions/7804e7ce-88cb-4544-8287-89b8cb9365c8-thumb.webp)

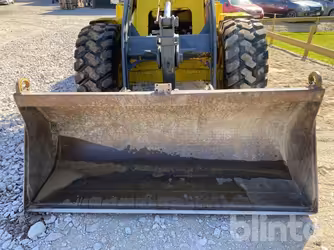

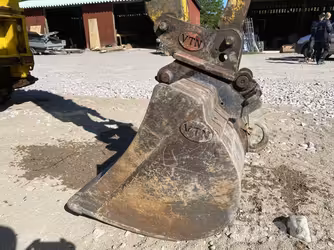

Attachments [2]
1999-2005
4.51 m Backhoe digging depth
110.14 liter Fuel cap
84.27 kw Gross power
72.04 kw Net power
8,750 kg Operating weight
2.26 m Overall Width
Makana rating
Market average
AED 280,000Starting from
AED 175,000Komatsu WB98 Technical specifications
Engine
Alternator supplied amperage
60 Amh
Displacement
4413.05 cu cm
Gross power
84.27 kw
Net power
72.04 kw
Number of cylinders
4
Power measured @
2,200 rpm
Backhoe
Backhoe digging depth
4.51 m
Backhoe reach from swivel
5.58 m
Loader
Breakout force
6475.22 kg
Loader digging depth
7.62 cm
Loader dump height
2.8 m
Loader dump reach
0.91 m
General
Bucket capacity
1.07 cu m
Bucket width
225 cm
Engine model
S4D106-1FC
Max speed forward
36.05 kph
Operating voltage
12 V
Operating weight
8,750 kg
Transmission type
Hydrostatic
Attachments
Bucket digging force
5926.01 kg
Service refill capacities
Cooling fluid cap
18.17 liter
Front axle fluid capacity
12.11 liter
Fuel cap
110.14 liter
Hydraulic fluid cap
90.08 liter
Rear axle fluid capacity
10.22 liter
Refill capacities
Engine oil cap
9.08 liter
Operating specifications
Extended backhoe digging depth
5.67 m
Extended backhoe dump height
5.09 m
Extended backhoe dump reach
3.6 m
Extended backhoe reach from swivel
6.55 m
Tires
Front tires size (2WD)
16/70 x 24
Rear tires size
16/70 x 24
Dimensions
Ground clearance
0.46 m
Height - top of cab
2.93 m
Overall Width
2.26 m
Wheelbase
2.38 m
Transmission
Max speed reverse
36.05 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
165.03 lpm
Pump type
Gear pump
Relief valve pressure
200 bar
Download datasheets
Komatsu WB98 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 60 Amh
Alternator supplied amperage 80 Amh
Alternator supplied amperage 60 Amh
Displacement
Displacement 4,413.05 cu cm
Displacement 4,413.05 cu cm
Displacement 4,413.05 cu cm
Gross power
Gross power 84.27 kw
Gross power 74.57 kw
Gross power 84.27 kw
Net power
Net power 72.04 kw
Net power 72.93 kw
Net power 73.01 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Aspiration
Aspiration -
Aspiration Naturally aspirated
Aspiration Turbocharged
Max torque
Max torque -
Max torque 378 Nm
Max torque 375.01 Nm
Torque measured @
Torque measured @ -
Torque measured @ 1,600 rpm
Torque measured @ 1,500 rpm
Years
Years 1999-2005
Years 1999-2005
Years 1999-2005
Market Average
Market Average AED 280,000
Market Average AED 240,000
Market Average AED 260,000
Price
Price AED 175,000
Price AED 150,000
Price AED 165,000
Backhoe digging depth
Backhoe digging depth 4.51 m
Backhoe digging depth 4.97 m
Backhoe digging depth 4.51 m
Backhoe reach from swivel
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.58 m
Breakout force
Breakout force 6,475.22 kg
Breakout force 6,508.88 kg
Breakout force 6,508.88 kg
Loader digging depth
Loader digging depth 7.62 cm
Loader digging depth 11.18 cm
Loader digging depth 11.18 cm
Loader dump height
Loader dump height 2.8 m
Loader dump height 2.77 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach 0.91 m
Loader dump reach 0.76 m
Loader dump reach 0.76 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 225 cm
Bucket width 232 cm
Bucket width 232 cm
Engine model
Engine model S4D106-1FC
Engine model S4D106-2SFA
Engine model SD106-1FA
Max speed forward
Max speed forward 36.05 kph
Max speed forward 40.07 kph
Max speed forward 40.07 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 8,750 kg
Operating weight 8,580 kg
Operating weight 8,580 kg
Transmission type
Transmission type Hydrostatic
Transmission type full powershift 4WD
Transmission type full powershift, 4WD
Bucket digging force
Bucket digging force 5,926.01 kg
Bucket digging force 3,850.01 kg
Bucket digging force 3,850.01 kg
Cooling fluid cap
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Front axle fluid capacity
Front axle fluid capacity 12.11 liter
Front axle fluid capacity 8.33 liter
Front axle fluid capacity 8.33 liter
Fuel cap
Fuel cap 110.14 liter
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 90.08 liter
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Rear axle fluid capacity
Rear axle fluid capacity 10.22 liter
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity 18.55 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 16.28 liter
Transmission fluid cap 16.28 liter
Engine oil cap
Engine oil cap 9.08 liter
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.67 m
Extended backhoe digging depth 6.13 m
Extended backhoe digging depth 5.67 m
Extended backhoe dump height
Extended backhoe dump height 5.09 m
Extended backhoe dump height 4.85 m
Extended backhoe dump height 4.85 m
Extended backhoe dump reach
Extended backhoe dump reach 3.6 m
Extended backhoe dump reach 3.51 m
Extended backhoe dump reach 3.51 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Front tires size (2WD)
Front tires size (2WD) 16/70 x 24
Front tires size (2WD) 12.5/80 R18 - 10 PR
Front tires size (2WD) 12.5 / 80 R18 - 10 PR
Rear tires size
Rear tires size 16/70 x 24
Rear tires size 16.9 x 28 - 10 PR
Rear tires size 16.9 x 28 - 10 PR
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.93 m
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Overall Width
Overall Width 2.26 m
Overall Width 2.35 m
Overall Width 2.35 m
Wheelbase
Wheelbase 2.38 m
Wheelbase 2.19 m
Wheelbase 2.19 m
Overall Length
Overall Length -
Overall Length 5.91 m
Overall Length 5.91 m
Turning radius
Turning radius -
Turning radius 5.46 m
Turning radius 5.46 m
Max speed reverse
Max speed reverse 36.05 kph
Max speed reverse 40.07 kph
Max speed reverse 23.01 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Gear pump
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 200 bar
Relief valve pressure 200 bar
Relief valve pressure 200 bar

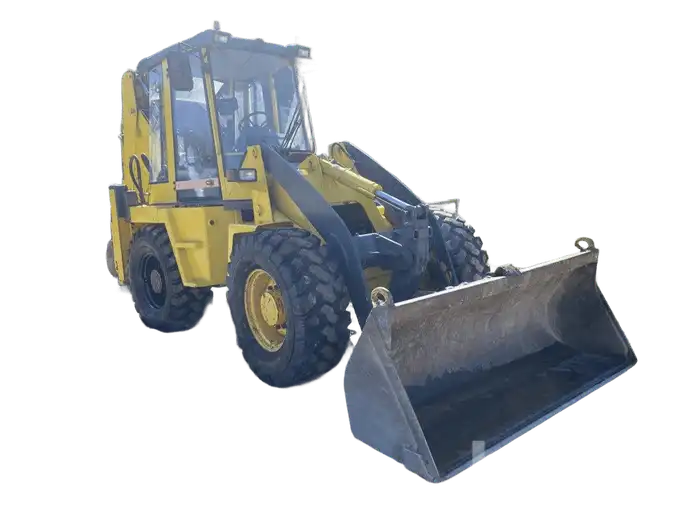

Komatsu WB98 gallery
