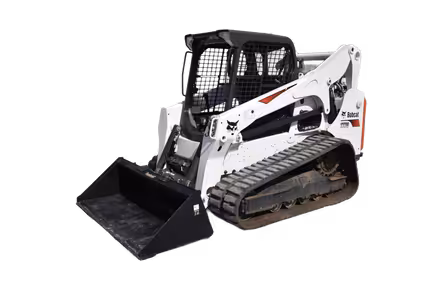

Bobcat T770 Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]
Attachments [2]
2011-2025
Tier 4 Emissions
68.61 kw Gross power
0.88 m Loader dump reach
1,576.24 kg Lifting capacity
4,684 kg Operating weight
2.24 m Turning radius
Show features

Makana rating

Market average

AED 315,000

Starting from

AED 91,000

Bobcat T770 Technical specifications

Engine

Aspiration

Turbocharged

Emissions

Tier 4

Gross power

68.61 kw

Net power

68.61 kw

General

Bucket width

203 cm

Lifting capacity

1576.24 kg

Max speed forward

17.22 kph

Operating weight

4,684 kg

Service refill capacities

Fuel cap

102.95 liter

Undercarriage

Ground pressure

0.29 bar

Track length

1.65 m

Track width

44.96 cm

Dimensions

Height - top of cab

2.07 m

Length with bucket

3.6 m

Length without Bucket

2.9 m

Overall Width

2.03 m

Turning radius

2.24 m

Width over tracks

2.01 m

Loader

Loader dump reach

0.88 m

Hydraulic system

Pump flow cap

87.06 lpm

Relief valve pressure

241.31 bar

Operating specifications

Rack back angle

9 º

View more
Download datasheets
OEM product brochure

Bobcat T770 similar models

Highlight differences
Bobcat T770
T770
Cat 277B
277B
Cat 279C
279C
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Emissions Tier 4
Emissions -
Emissions -
Gross power 68.61 kw
Gross power 61.15 kw
Gross power 62.64 kw
Net power 68.61 kw
Net power 58.17 kw
Net power 61.15 kw
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years 2011-2025
Years 2004-2007
Years 2009-2015
Market Average AED 315,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 91,000
Price AED 62,500
Price AED 114,000
General
Bucket width 203 cm
Bucket width -
Bucket width -
Lifting capacity 1,576.24 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 17.22 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,684 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Engine model -
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Service refill capacities
Fuel cap 102.95 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap -
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Undercarriage
Ground pressure 0.29 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length 1.65 m
Track length 2.07 m
Track length 1.77 m
Track width 44.96 cm
Track width -
Track width -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Dimensions
Height - top of cab 2.07 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.6 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 2.9 m
Length without Bucket -
Length without Bucket -
Overall Width 2.03 m
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius 2.24 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks 2.01 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Loader
Loader dump reach 0.88 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height -
Loader dump height 2.38 m
Loader dump height 2.44 m
Hydraulic system
Pump flow cap 87.06 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 241.31 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Operating specifications
Rack back angle 9 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
