Takeuchi TL230 Compact track loaders tech specs

makana img
video play button
Video[1]

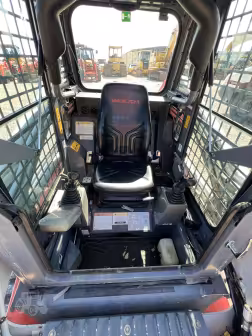

Interior [2]
Exterior [4]
Attachments [2]
2012-2015
3,326.58 cu cm Displacement
52.95 kw Gross power
2.38 m Loader dump height
0.73 m Loader dump reach
855.02 kg Lifting capacity
3,905 kg Operating weight
Show features

Makana rating

Market average

AED 263,000

Starting from

AED 92,000

Takeuchi TL230 Technical specifications

Engine

Alternator supplied amperage

60 Amh

Aspiration

Turbocharged

Displacement

3326.58 cu cm

Gross power

52.95 kw

Max torque

246.76 Nm

Net power

51.01 kw

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,600 rpm

General

Bucket capacity

0.46 cu m

Engine model

V3307D1

Lifting capacity

855.02 kg

Max speed forward

11.1 kph

Operating voltage

12 V

Operating weight

3,905 kg

Service refill capacities

Cooling fluid cap

13.25 liter

Fuel cap

75.32 liter

Hydraulic fluid cap

58.29 liter

Refill capacities

Engine oil cap

12.11 liter

Dimensions

Ground clearance

0.31 m

Height - top of cab

2.26 m

Length with bucket

3.51 m

Turning radius

1.59 m

Width over tracks

1.58 m

Undercarriage

Ground pressure

0.39 bar

Number of track rollers per side

5

Track length

1.4 m

Track width

32 cm

Loader

Loader dump height

2.38 m

Loader dump reach

0.73 m

Hydraulic system

Relief valve pressure

206.84 bar

Operating specifications

Rack back angle

54 º

View more
Download datasheets
OEM product brochure

Takeuchi TL230 similar models

Highlight differences
Takeuchi TL230 Series 2
TL230 Series 2
Cat 249D
249D
Cat 257
257
Engine
Alternator supplied amperage 60 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement 3,326.58 cu cm
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Gross power 52.95 kw
Gross power 50.04 kw
Gross power 46.98 kw
Max torque 246.76 Nm
Max torque 46.63 Nm
Max torque -
Net power 51.01 kw
Net power 49.07 kw
Net power 44 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,600 rpm
Torque measured @ 1,600 rpm
Torque measured @ -
Torque measured @ -
Bore -
Bore 8.38 cm
Bore 9.91 cm
Stroke -
Stroke 9.91 cm
Stroke 10.16 cm
Years 2012-2015
Years 2016-2019
Years 2014-2019
Market Average AED 263,000
Market Average AED 228,000
Market Average AED 186,000
Price AED 92,000
Price AED 191,000
Price AED 147,000
General
Bucket capacity 0.46 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Engine model V3307D1
Engine model Cat C2.2 CRDI
Engine model Cat 3034 naturally aspirated
Lifting capacity 855.02 kg
Lifting capacity 1,043.26 kg
Lifting capacity 1,065.94 kg
Max speed forward 11.1 kph
Max speed forward -
Max speed forward 12.07 kph
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight 3,905 kg
Operating weight -
Operating weight 3,460 kg
Max horizontal reach -
Max horizontal reach 1.32 m
Max horizontal reach -
Tipping load -
Tipping load 2,086 kg
Tipping load 2,091 kg
Service refill capacities
Cooling fluid cap 13.25 liter
Cooling fluid cap 12.11 liter
Cooling fluid cap 9.84 liter
Fuel cap 75.32 liter
Fuel cap 57.15 liter
Fuel cap 90.08 liter
Hydraulic fluid cap 58.29 liter
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Refill capacities
Engine oil cap 12.11 liter
Engine oil cap -
Engine oil cap -
Dimensions
Ground clearance 0.31 m
Ground clearance 0.21 m
Ground clearance 0.26 m
Height - top of cab 2.26 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Length with bucket 3.51 m
Length with bucket 3.23 m
Length with bucket 3.54 m
Turning radius 1.59 m
Turning radius 1.46 m
Turning radius 2.29 m
Width over tracks 1.58 m
Width over tracks -
Width over tracks 1.68 m
Length without Bucket -
Length without Bucket 2.52 m
Length without Bucket 2.71 m
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Max height to hinge pin -
Overall Width -
Overall Width 1.68 m
Overall Width -
Undercarriage
Ground pressure 0.39 bar
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Number of track rollers per side 5
Number of track rollers per side -
Number of track rollers per side -
Track length 1.4 m
Track length 1.81 m
Track length 1.52 m
Track width 32 cm
Track width -
Track width 38.1 cm
Ground contact area -
Ground contact area 28,120.26 cu cm
Ground contact area 29,005.17 cu cm
Loader
Loader dump height 2.38 m
Loader dump height 2.25 m
Loader dump height 2.29 m
Loader dump reach 0.73 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,797.59 kg
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - lift cylinder -
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Hydraulic system
Relief valve pressure 206.84 bar
Relief valve pressure 230.01 bar
Relief valve pressure -
Pump flow cap -
Pump flow cap 98.41 lpm
Pump flow cap 57.53 lpm
Operating specifications
Rack back angle 54 º
Rack back angle 87 º
Rack back angle 44 º
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Air conditioning -
Angle of departure -
Angle of departure 34 º
Angle of departure -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab FOPS level II -
Cab ROPS -
Cab ROPS ISO 3471:2008
Cab ROPS -
Dump angle -
Dump angle 48 º
Dump angle -
