Takeuchi TL10 Compact track loaders tech specs

makana img
video play button
Video[1]

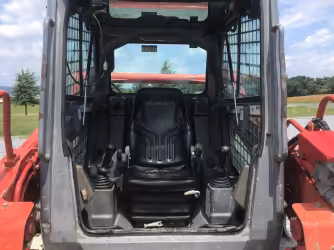

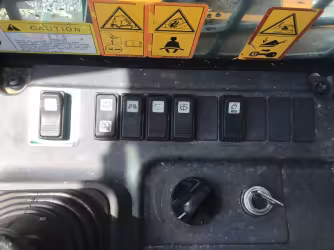

Interior [2]

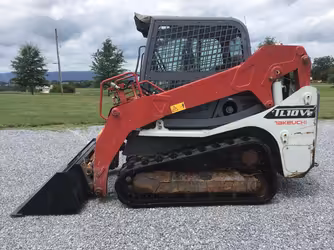

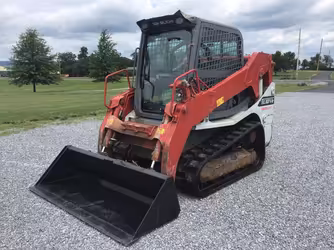

Exterior [4]

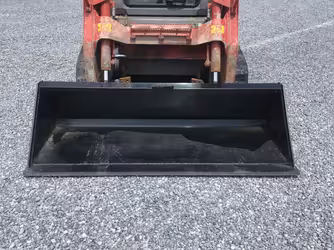

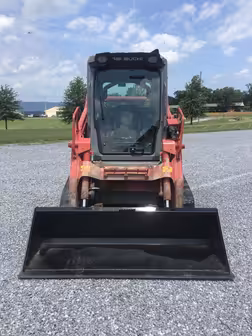

Attachments [2]
2018-2025
3,368.02 kg Breakout force
3,769.03 cu cm Displacement
68.61 kw Gross power
1,090.03 kg Lifting capacity
4,770 kg Operating weight
1,558 kg Tipping load

A 4.77-ton compact track loader built for loading, grading, backfilling, and heavy site handling work, the Takeuchi TL10 combines 68.61 kilowatt gross power with 3,368.02 kg breakout force and low 0.31 bar ground pressure. With its Kubota V3800CR engine, 335.02 Nm torque, 75.7 lpm hydraulic pump flow, and 1,090.03 kg lifting capacity, it suits contractors who need a strong tracked loader with reliable engine performance, solid digging force, and stable traction on soft or uneven ground.

Operating weight 4,770 kg

Gross power 68.61 kilowatt

Engine model V3800CR

Lifting capacity 1,090.03 kg

Breakout force 3,368.02 kg

Hydraulic pump flow 75.7 lpm

Ground pressure 0.31 bar

Makana rating

Owner rating

 | 3

Market average

AED 320,000

Starting from

AED 76,000

Takeuchi TL10 Technical specifications

Engine

Alternator supplied amperage

80 Amh

Engine make

Kubota

Gross power

68.61 kw

Power measured @

2,400 rpm

Torque measured @

1,500 rpm

Loader

Breakout force

3368.02 kg

Service refill capacities

Cooling fluid cap

15.52 liter

Fuel cap

90.08 liter

Hydraulic fluid cap

48.07 liter

General

Displacement

3769.03 cu cm

Engine model

V3800CR

Lifting capacity

1090.03 kg

Max speed forward

11.59 kph

Max torque

335.02 Nm

Operating voltage

12 V

Operating weight

4,770 kg

Tipping load

1,558 kg

Refill capacities

Engine oil cap

13.25 liter

Undercarriage

Ground pressure

0.31 bar

Hydraulic system

Pump flow cap

75.7 lpm

Relief valve pressure

210 bar

Dimensions

Overall Width

1.77 m

View more
Download datasheets
OEM product brochure

Takeuchi TL10 expert review

Reviewed by Zafer R. on April 30, 2026

Overview

The Takeuchi TL10 (2018–2025) is a compact track loader designed for loading, grading, backfilling, and demanding site handling work. It delivers 68.61 kilowatt gross power, 3,368.02 kg breakout force, and low 0.31 bar ground pressure, making it a strong option for buyers who need serious tracked-loader performance.

Expert rating: 5 stars

Pros Strong breakout force, reliable Kubota engine, and low ground pressure.
Cons Fuel capacity is moderate, and Cat alternatives may resell more easily.

Performance & Efficiency

The Kubota V3800CR engine produces 68.61 kilowatt of gross power and 335.02 Nm of torque, giving the TL10 strong output for loading, grading, backfilling, and site cleanup. Its 3,368.02 kg breakout force, 1,090.03 kg lifting capacity, 75.7 lpm hydraulic pump flow, and 0.31 bar ground pressure make it useful for tough daily loader work on soft or uneven ground.

In Comparison

Cat 277: Strong market presence with good dealer support and parts availability.
Cat 279: More established resale confidence and broader used-market demand.
Takeuchi TL10: Stronger on breakout force, with reliable Kubota power and solid tracked stability.

Final Verdict

Rated 5 stars, the Takeuchi TL10 is a strong compact track loader within the AED 76,000–320,000 range for buyers who need high breakout force, reliable engine performance, and stable tracked operation for demanding site work.

Show less

Takeuchi TL10 owner rating

Takeuchi TL10 Compact track loaders [2018-2025]

2018-2025

Overall rating

Based on 3 ratings

4.3
performance

4.3

comfort

4.3

fuel efficiency

4.3

safety

4.3

features

4.5

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Breakout force is excellent for digging into packed soil and handling dense material.
Cons
Fuel tank capacity is not as large as some heavier compact track loaders.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

Valuation

Last 12 month
2018

Takeuchi TL10 similar models

Highlight differences
Takeuchi TL10
Cat 277B
Cat 279C
Engine
Alternator supplied amperage 80 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Engine make Kubota
Engine make -
Engine make -
Gross power 68.61 kw
Gross power 61.15 kw
Gross power 62.64 kw
Power measured @ 2,400 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @ 1,500 rpm
Torque measured @ -
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore -
Bore 9.4 cm
Bore 8.64 cm
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Years 2018-2025
Years 2004-2007
Years 2009-2015
Market Average AED 320,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 76,000
Price AED 62,500
Price AED 114,000
Loader
Breakout force 3,368.02 kg
Breakout force -
Breakout force -
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Service refill capacities
Cooling fluid cap 15.52 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 90.08 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 48.07 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
General
Displacement 3,769.03 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine model V3800CR
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,090.03 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 11.59 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Max torque 335.02 Nm
Max torque -
Max torque -
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 4,770 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Tipping load 1,558 kg
Tipping load 2,676 kg
Tipping load 2,940 kg
Loader dump height -
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach -
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Refill capacities
Engine oil cap 13.25 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Undercarriage
Ground pressure 0.31 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Track length -
Track length 2.07 m
Track length 1.77 m
Hydraulic system
Pump flow cap 75.7 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 210 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Dimensions
Overall Width 1.77 m
Overall Width 1.91 m
Overall Width 1.98 m
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab -
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket -
Length with bucket 3.69 m
Length with bucket 3.69 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks -
Width over tracks 1.92 m
Width over tracks 1.98 m
Operating specifications
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Rack back angle -
Rack back angle 58 º
Rack back angle 64 º
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
