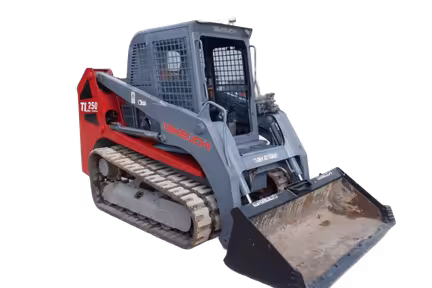

Takeuchi TL250 Compact track loaders tech specs

makana img
video play button
Video[1]

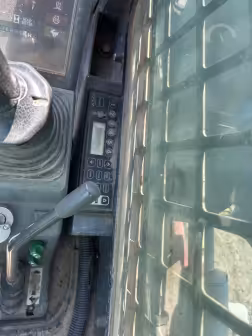

Interior [2]
Exterior [4]

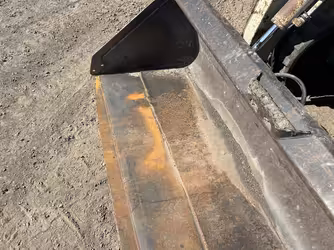

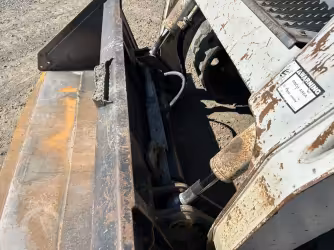

Attachments [2]
2008-2012
3,769.03 cu cm Displacement
73.08 kw Gross power
2.44 m Loader dump height
1.01 m Loader dump reach
1,092.02 kg Lifting capacity
5,400 kg Operating weight
Show features

Makana rating

Market average

AED 129,000

Starting from

AED 71,000

Takeuchi TL250 Technical specifications

Engine

Alternator supplied amperage

80 Amh

Aspiration

Turbocharged

Displacement

3769.03 cu cm

Gross power

73.08 kw

Max torque

325.39 Nm

Net power

68.61 kw

Number of cylinders

4

Power measured @

2,600 rpm

Torque measured @

1,600 rpm

General

Bucket capacity

0.76 cu m

Engine model

V3800DI

Lifting capacity

1092.02 kg

Max speed forward

12.07 kph

Operating voltage

12 V

Operating weight

5,400 kg

Service refill capacities

Cooling fluid cap

16.65 liter

Fuel cap

108.25 liter

Hydraulic fluid cap

65.1 liter

Refill capacities

Engine oil cap

13.25 liter

Dimensions

Ground clearance

0.35 m

Height - top of cab

2.35 m

Length with bucket

4.05 m

Turning radius

1.76 m

Width over tracks

1.89 m

Undercarriage

Ground pressure

0.33 bar

Number of track rollers per side

6

Track length

1.62 m

Track width

45.21 cm

Loader

Loader dump height

2.44 m

Loader dump reach

1.01 m

Hydraulic system

Pump flow cap

88.95 lpm

Relief valve pressure

206.84 bar

Operating specifications

Rack back angle

70 º

View more
Download datasheets
OEM product brochure

Takeuchi TL250 similar models

Highlight differences
Takeuchi TL250
TL250
JCB 300T
300T
JCB 320T
320T
Engine
Alternator supplied amperage 80 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Displacement 3,769.03 cu cm
Displacement 4,399.94 cu cm
Displacement 4,399.94 cu cm
Gross power 73.08 kw
Gross power 55.03 kw
Gross power 55.18 kw
Max torque 325.39 Nm
Max torque 400.1 Nm
Max torque 400.1 Nm
Net power 68.61 kw
Net power -
Net power -
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,600 rpm
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Torque measured @ 1,600 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Emissions -
Emissions EPA-T4F (EU St3B)
Emissions EPA-T4F (EU St3B)
Engine cooling system -
Engine cooling system Liquid
Engine cooling system Liquid
Years 2008-2012
Years 2012-2025
Years 2011-2017
Market Average AED 129,000
Market Average AED 298,000
Market Average AED 232,000
Price AED 71,000
Price AED 245,000
Price AED 197,000
General
Bucket capacity 0.76 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Engine model V3800DI
Engine model EcoMAX TCAE-55
Engine model EcoMAX TCAE-55
Lifting capacity 1,092.02 kg
Lifting capacity 5,089.04 kg
Lifting capacity 5,248.02 kg
Max speed forward 12.07 kph
Max speed forward 9.17 kph
Max speed forward 9.17 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 5,400 kg
Operating weight 5,089 kg
Operating weight 5,248 kg
Bucket width -
Bucket width 190 cm
Bucket width 190 cm
Service refill capacities
Cooling fluid cap 16.65 liter
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Fuel cap 108.25 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap 65.1 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Refill capacities
Engine oil cap 13.25 liter
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Dimensions
Ground clearance 0.35 m
Ground clearance 0.23 m
Ground clearance 0.23 m
Height - top of cab 2.35 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 4.05 m
Length with bucket 3.81 m
Length with bucket 3.81 m
Turning radius 1.76 m
Turning radius -
Turning radius -
Width over tracks 1.89 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Undercarriage
Ground pressure 0.33 bar
Ground pressure 0.33 bar
Ground pressure 0.34 bar
Number of track rollers per side 6
Number of track rollers per side -
Number of track rollers per side -
Track length 1.62 m
Track length -
Track length -
Track width 45.21 cm
Track width 44.96 cm
Track width 44.96 cm
Loader
Loader dump height 2.44 m
Loader dump height 2.41 m
Loader dump height 2.41 m
Loader dump reach 1.01 m
Loader dump reach 1.31 m
Loader dump reach 1.31 m
Loader digging depth -
Loader digging depth 1,000 cm
Loader digging depth 1,000 cm
Breakout force -
Breakout force -
Breakout force 2,968.04 kg
Hydraulic system
Pump flow cap 88.95 lpm
Pump flow cap 87.06 lpm
Pump flow cap 87.06 lpm
Relief valve pressure 206.84 bar
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Operating specifications
Rack back angle 70 º
Rack back angle 86 º
Rack back angle 91 º
Angle of departure -
Angle of departure 29 º
Angle of departure 29 º
Dump angle -
Dump angle 42 º
Dump angle 42 º
