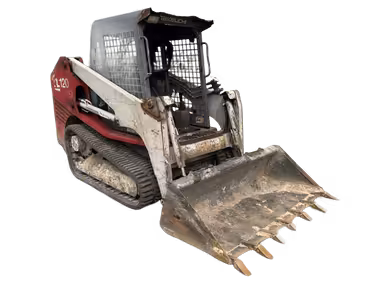

Takeuchi TL120 Compact track loaders tech specs
:quality(50)/75581/conversions/7e69d850-3616-4710-aee9-5e71206a22a6-thumb.webp)
Video[1]
:quality(50)/75573/conversions/1ef743aa-647c-4a7a-a43b-68963b9dc56d-thumb.webp)
Interior [2]
:quality(50)/75575/conversions/8a9a4948-556e-48ce-9dc6-84af3cfa46b5-thumb.webp)
Exterior [4]
:quality(50)/75579/conversions/08cb668d-8f9f-4f40-a5dd-fb4d70ba1ab9-thumb.webp)
Attachments [2]
2007-2011
1,954.98 cu cm Displacement
38.78 kw Gross power
2.93 m Loader dump height
0.61 m Loader dump reach
565.18 kg Lifting capacity
2,699 kg Operating weight
Makana rating
Market average
AED 120,000Starting from
AED 64,000Takeuchi TL120 Technical specifications
Engine
Alternator supplied amperage
40 Amh
Displacement
1954.98 cu cm
Gross power
38.78 kw
Max torque
166.76 Nm
Number of cylinders
4
Power measured @
2,800 rpm
Torque measured @
1,680 rpm
Service refill capacities
Cooling fluid cap
10.98 liter
Fuel cap
57.91 liter
Hydraulic fluid cap
29.52 liter
General
Engine model
4TNV84T
Lifting capacity
565.18 kg
Max speed forward
9.33 kph
Operating voltage
12 V
Operating weight
2,699 kg
Refill capacities
Engine oil cap
7.57 liter
Dimensions
Ground clearance
0.02 m
Height - top of cab
1.98 m
Length with bucket
3.23 m
Turning radius
1.5 m
Width over tracks
1.49 m
Undercarriage
Ground pressure
0.32 bar
Number of track rollers per side
4
Track length
1.25 m
Track width
29.72 cm
Loader
Loader dump height
2.93 m
Loader dump reach
0.61 m
Hydraulic system
Pump flow cap
57.15 lpm
Relief valve pressure
206.84 bar
Operating specifications
Rack back angle
35 º
Download datasheets
Takeuchi TL120 similar models
Highlight differences
Takeuchi TL120
TL120
Cat 299C
299C
John deere 319D
319D
Alternator supplied amperage
Alternator supplied amperage 40 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 70 Amh
Displacement
Displacement 1,954.98 cu cm
Displacement 3,293.81 cu cm
Displacement 2,400.71 cu cm
Gross power
Gross power 38.78 kw
Gross power 70.1 kw
Gross power 50.86 kw
Max torque
Max torque 166.76 Nm
Max torque -
Max torque 230.08 Nm
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,800 rpm
Power measured @ 2,500 rpm
Power measured @ 2,300 rpm
Torque measured @
Torque measured @ 1,680 rpm
Torque measured @ -
Torque measured @ 2,000 rpm
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore -
Bore 9.4 cm
Bore -
Net power
Net power -
Net power 67.11 kw
Net power 47.13 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke -
Engine make
Engine make -
Engine make -
Engine make John Deere
Years
Years 2007-2011
Years 2009-2015
Years 2005-2013
Market Average
Market Average AED 120,000
Market Average AED 140,000
Market Average AED 106,000
Price
Price AED 64,000
Price AED 110,000
Price AED 77,000
Cooling fluid cap
Cooling fluid cap 10.98 liter
Cooling fluid cap 14 liter
Cooling fluid cap -
Fuel cap
Fuel cap 57.91 liter
Fuel cap 98.03 liter
Fuel cap 70.02 liter
Hydraulic fluid cap
Hydraulic fluid cap 29.52 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap -
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase -
Engine model
Engine model 4TNV84T
Engine model Cat C3.4T
Engine model E 4024HT
Lifting capacity
Lifting capacity 565.18 kg
Lifting capacity 1,882.41 kg
Lifting capacity 863.01 kg
Max speed forward
Max speed forward 9.33 kph
Max speed forward 13.68 kph
Max speed forward -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 2,699 kg
Operating weight 4,867 kg
Operating weight 3,882 kg
Bucket capacity
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity -
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.27 m
Max horizontal reach -
Tipping load
Tipping load -
Tipping load 3,782 kg
Tipping load 2,542 kg
Engine oil cap
Engine oil cap 7.57 liter
Engine oil cap 10.22 liter
Engine oil cap -
Ground clearance
Ground clearance 0.02 m
Ground clearance 0.23 m
Ground clearance 0.25 m
Height - top of cab
Height - top of cab 1.98 m
Height - top of cab 2.13 m
Height - top of cab 2 m
Length with bucket
Length with bucket 3.23 m
Length with bucket 3.84 m
Length with bucket -
Turning radius
Turning radius 1.5 m
Turning radius 1.78 m
Turning radius 2.01 m
Width over tracks
Width over tracks 1.49 m
Width over tracks 1.98 m
Width over tracks -
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 19.56 cm
Max height to hinge pin 300.23 cm
Overall Width
Overall Width -
Overall Width 1.98 m
Overall Width -
Length without Bucket
Length without Bucket -
Length without Bucket -
Length without Bucket 2.74 m
Ground pressure
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Ground pressure 0.37 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side 4
Track length
Track length 1.25 m
Track length 1.77 m
Track length -
Track width
Track width 29.72 cm
Track width -
Track width -
Ground contact area
Ground contact area -
Ground contact area 41,033.3 cu cm
Ground contact area -
Loader dump height
Loader dump height 2.93 m
Loader dump height 2.5 m
Loader dump height 2.4 m
Loader dump reach
Loader dump reach 0.61 m
Loader dump reach 0.79 m
Loader dump reach 0.72 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force
Breakout force -
Breakout force -
Breakout force 2,324.66 kg
Pump flow cap
Pump flow cap 57.15 lpm
Pump flow cap 124.91 lpm
Pump flow cap 59.05 lpm
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 279.99 bar
Relief valve pressure 213.74 bar
Pump type
Pump type -
Pump type High Flow XPS
Pump type -
Rack back angle
Rack back angle 35 º
Rack back angle 83 º
Rack back angle -
Angle of departure
Angle of departure -
Angle of departure 38 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS -
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II -
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS -
Dump angle
Dump angle -
Dump angle 51 º
Dump angle 42 º
