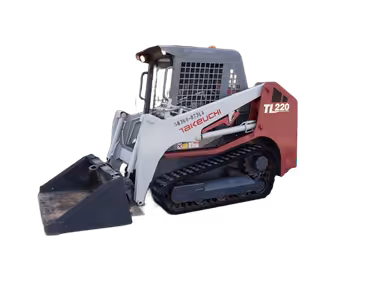

Takeuchi TL220 Compact track loaders tech specs
:quality(50)/75639/conversions/a87de365-6f8b-4ffa-bca3-bca14e41fff1-thumb.webp)
Video[1]
:quality(50)/75631/conversions/a34d6b7d-dfc1-4902-9a93-a9ae179b0607-thumb.webp)
Interior [2]
:quality(50)/75633/conversions/3805b6b2-9bf8-4d32-836c-03ef1edabf5c-thumb.webp)
Exterior [4]
:quality(50)/75637/conversions/d8ac52c8-63d5-4857-a89e-118657ff3c8c-thumb.webp)

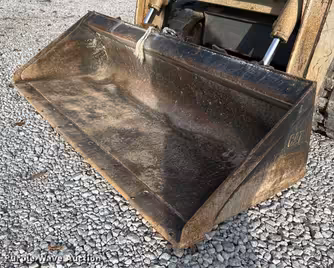

Attachments [2]
2008-2012
1,994.31 cu cm Displacement
39.9 kw Gross power
2.29 m Loader dump height
0.61 m Loader dump reach
565.04 kg Lifting capacity
6,500 kg Operating weight
Makana rating
Market average
AED 120,000Starting from
AED 42,000Takeuchi TL220 Technical specifications
Engine
Alternator supplied amperage
40 Amh
Aspiration
Turbocharged
Displacement
1994.31 cu cm
Gross power
39.9 kw
Max torque
162.7 Nm
Net power
38.18 kw
Number of cylinders
4
Power measured @
2,800 rpm
Torque measured @
2,000 rpm
General
Bucket capacity
0.38 cu m
Engine model
4TNV84
Lifting capacity
565.04 kg
Max speed forward
9.33 kph
Operating voltage
12 V
Operating weight
6,500 kg
Service refill capacities
Cooling fluid cap
11.36 liter
Fuel cap
57.15 liter
Hydraulic fluid cap
45.04 liter
Refill capacities
Engine oil cap
7.57 liter
Dimensions
Ground clearance
0.25 m
Height - top of cab
1.98 m
Length with bucket
3.26 m
Turning radius
1.47 m
Width over tracks
1.49 m
Undercarriage
Ground pressure
0.34 bar
Number of track rollers per side
4
Track length
1.25 m
Track width
30.23 cm
Loader
Loader dump height
2.29 m
Loader dump reach
0.61 m
Hydraulic system
Pump flow cap
57.15 lpm
Relief valve pressure
206.84 bar
Operating specifications
Rack back angle
35 º
Download datasheets
Takeuchi TL220 similar models
Highlight differences
Takeuchi TL220
TL220
JCB 250T
250T
JCB 300T
300T
Alternator supplied amperage
Alternator supplied amperage 40 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Liquid
Aspiration Turbocharged
Displacement
Displacement 1,994.31 cu cm
Displacement 4,399.94 cu cm
Displacement 4,399.94 cu cm
Gross power
Gross power 39.9 kw
Gross power 55.03 kw
Gross power 55.03 kw
Max torque
Max torque 162.7 Nm
Max torque 400.1 Nm
Max torque 400.1 Nm
Net power
Net power 38.18 kw
Net power -
Net power -
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,800 rpm
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Torque measured @
Torque measured @ 2,000 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Emissions
Emissions -
Emissions EPA-T4F (EU St3B)
Emissions EPA-T4F (EU St3B)
Engine cooling system
Engine cooling system -
Engine cooling system Liquid
Engine cooling system Liquid
Years
Years 2008-2012
Years 2017-2020
Years 2012-2025
Market Average
Market Average AED 120,000
Market Average AED 253,000
Market Average AED 298,000
Price
Price AED 42,000
Price AED 210,000
Price AED 245,000
Bucket capacity
Bucket capacity 0.38 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Engine model
Engine model 4TNV84
Engine model EcoMAX TCAE-55
Engine model EcoMAX TCAE-55
Lifting capacity
Lifting capacity 565.04 kg
Lifting capacity 4,818.02 kg
Lifting capacity 5,089.04 kg
Max speed forward
Max speed forward 9.33 kph
Max speed forward -
Max speed forward 9.17 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 6,500 kg
Operating weight 4,818 kg
Operating weight 5,089 kg
Bucket width
Bucket width -
Bucket width 190 cm
Bucket width 190 cm
Cooling fluid cap
Cooling fluid cap 11.36 liter
Cooling fluid cap 22.33 liter
Cooling fluid cap 15.52 liter
Fuel cap
Fuel cap 57.15 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Engine oil cap
Engine oil cap 7.57 liter
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Ground clearance
Ground clearance 0.25 m
Ground clearance 0.23 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 1.98 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket
Length with bucket 3.26 m
Length with bucket 3.81 m
Length with bucket 3.81 m
Turning radius
Turning radius 1.47 m
Turning radius -
Turning radius -
Width over tracks
Width over tracks 1.49 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Ground pressure
Ground pressure 0.34 bar
Ground pressure -
Ground pressure 0.33 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length
Track length 1.25 m
Track length -
Track length -
Track width
Track width 30.23 cm
Track width -
Track width 44.96 cm
Loader dump height
Loader dump height 2.29 m
Loader dump height 2.9 m
Loader dump height 2.41 m
Loader dump reach
Loader dump reach 0.61 m
Loader dump reach 1.01 m
Loader dump reach 1.31 m
Breakout force
Breakout force -
Breakout force 2,968.04 kg
Breakout force -
Loader digging depth
Loader digging depth -
Loader digging depth 1,000 cm
Loader digging depth 1,000 cm
Pump flow cap
Pump flow cap 57.15 lpm
Pump flow cap -
Pump flow cap 87.06 lpm
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure -
Relief valve pressure 229.94 bar
Rack back angle
Rack back angle 35 º
Rack back angle 77 º
Rack back angle 86 º
Angle of departure
Angle of departure -
Angle of departure 29 º
Angle of departure 29 º
Dump angle
Dump angle -
Dump angle 42 º
Dump angle 42 º
