Bobcat T630 Compact track loaders tech specs

makana img
video play button
Video[1]

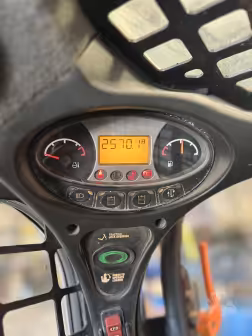

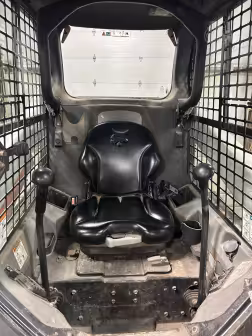

Interior [2]

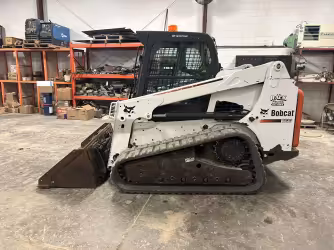

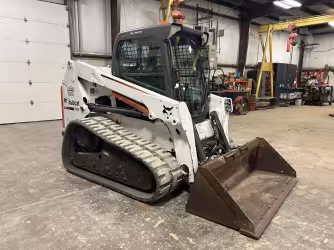

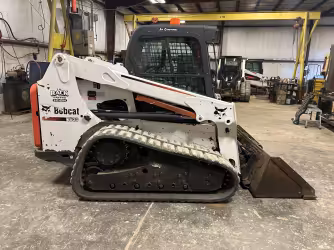

Exterior [4]

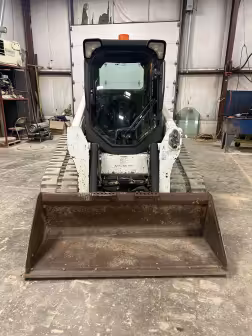

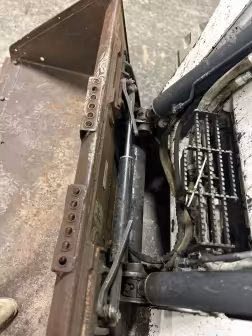

Attachments [2]
2019-2024
Tier 4 Emissions
55.41 kw Gross power
0.64 m Loader dump reach
952.55 kg Lifting capacity
3,880 kg Operating weight
2.24 m Turning radius
Show features

Makana rating

Market average

AED 160,000

Starting from

AED 70,000

Bobcat T630 Technical specifications

Engine

Aspiration

Turbocharged

Emissions

Tier 4

Gross power

55.41 kw

Service refill capacities

Cooling fluid cap

11.36 liter

Fuel cap

103.33 liter

Undercarriage

Ground pressure

0.37 bar

Track length

17.83 m

Track width

32 cm

Dimensions

Height - top of cab

2.07 m

Length with bucket

3.47 m

Length without Bucket

2.77 m

Overall Width

1.88 m

Turning radius

2.24 m

Width over tracks

1.86 m

Loader

Loader dump reach

0.64 m

General

Lifting capacity

952.55 kg

Max speed forward

10.62 kph

Operating weight

3,880 kg

Hydraulic system

Pump flow cap

87.06 lpm

Relief valve pressure

241.31 bar

Operating specifications

Rack back angle

60 º

View more
Download datasheets
OEM product brochure

Bobcat T630 similar models

Highlight differences
Bobcat T630
T630
Cat 249D
249D
Cat 257
257
Engine
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Emissions Tier 4
Emissions -
Emissions -
Gross power 55.41 kw
Gross power 50.04 kw
Gross power 46.98 kw
Bore -
Bore 8.38 cm
Bore 9.91 cm
Displacement -
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Max torque -
Max torque 46.63 Nm
Max torque -
Net power -
Net power 49.07 kw
Net power 44 kw
Stroke -
Stroke 9.91 cm
Stroke 10.16 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Power measured @ -
Power measured @ -
Power measured @ 2,600 rpm
Years 2019-2024
Years 2016-2019
Years 2014-2019
Market Average AED 160,000
Market Average AED 228,000
Market Average AED 186,000
Price AED 70,000
Price AED 191,000
Price AED 147,000
Service refill capacities
Cooling fluid cap 11.36 liter
Cooling fluid cap 12.11 liter
Cooling fluid cap 9.84 liter
Fuel cap 103.33 liter
Fuel cap 57.15 liter
Fuel cap 90.08 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Hydraulic fluid cap -
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Undercarriage
Ground pressure 0.37 bar
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Track length 17.83 m
Track length 1.81 m
Track length 1.52 m
Track width 32 cm
Track width -
Track width 38.1 cm
Ground contact area -
Ground contact area 28,120.26 cu cm
Ground contact area 29,005.17 cu cm
Dimensions
Height - top of cab 2.07 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Length with bucket 3.47 m
Length with bucket 3.23 m
Length with bucket 3.54 m
Length without Bucket 2.77 m
Length without Bucket 2.52 m
Length without Bucket 2.71 m
Overall Width 1.88 m
Overall Width 1.68 m
Overall Width -
Turning radius 2.24 m
Turning radius 1.46 m
Turning radius 2.29 m
Width over tracks 1.86 m
Width over tracks -
Width over tracks 1.68 m
Ground clearance -
Ground clearance 0.21 m
Ground clearance 0.26 m
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Max height to hinge pin -
Loader
Loader dump reach 0.64 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,797.59 kg
Breakout force - tilt cylinder 1,602.09 kg
Loader dump height -
Loader dump height 2.25 m
Loader dump height 2.29 m
Breakout force - lift cylinder -
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
General
Lifting capacity 952.55 kg
Lifting capacity 1,043.26 kg
Lifting capacity 1,065.94 kg
Max speed forward 10.62 kph
Max speed forward -
Max speed forward 12.07 kph
Operating weight 3,880 kg
Operating weight -
Operating weight 3,460 kg
Engine model -
Engine model Cat C2.2 CRDI
Engine model Cat 3034 naturally aspirated
Max horizontal reach -
Max horizontal reach 1.32 m
Max horizontal reach -
Tipping load -
Tipping load 2,086 kg
Tipping load 2,091 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Hydraulic system
Pump flow cap 87.06 lpm
Pump flow cap 98.41 lpm
Pump flow cap 57.53 lpm
Relief valve pressure 241.31 bar
Relief valve pressure 230.01 bar
Relief valve pressure -
Operating specifications
Rack back angle 60 º
Rack back angle 87 º
Rack back angle 44 º
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Air conditioning -
Angle of departure -
Angle of departure 34 º
Angle of departure -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab FOPS level II -
Cab ROPS -
Cab ROPS ISO 3471:2008
Cab ROPS -
Dump angle -
Dump angle 48 º
Dump angle -
