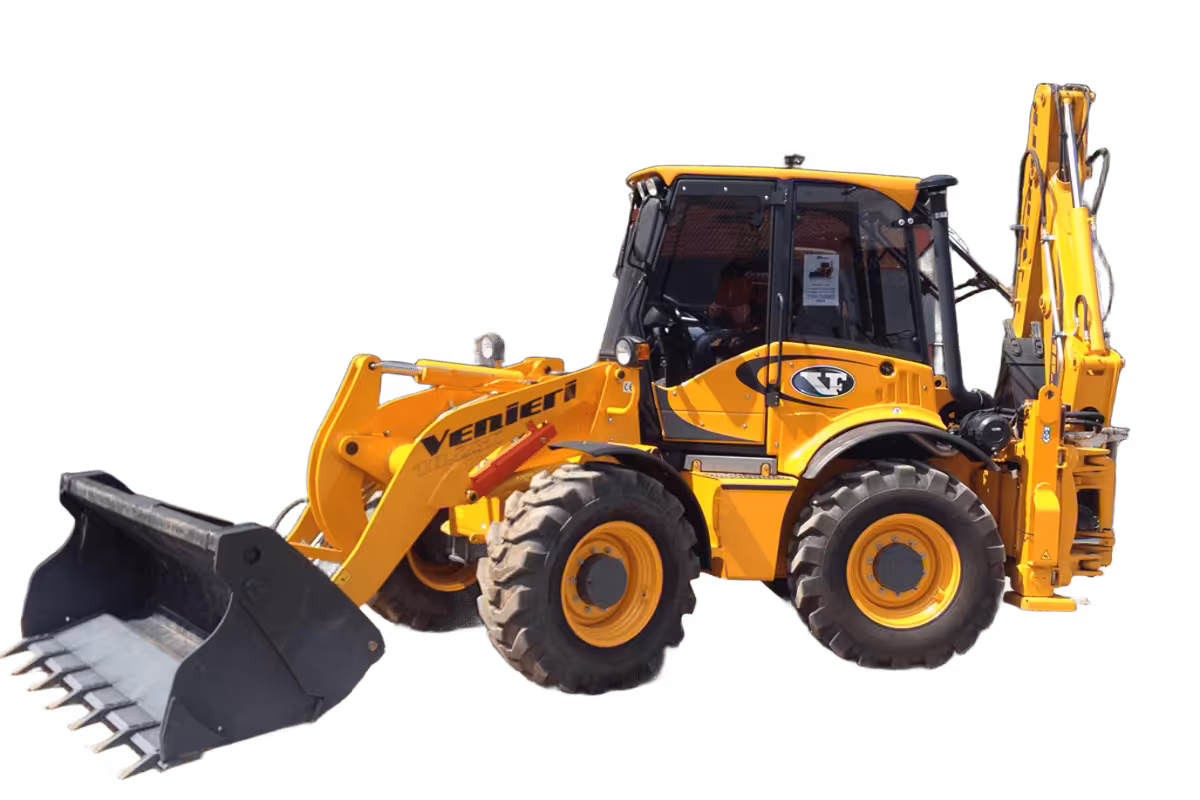

Venieri VF10 Backhoe loaders tech specs

makana img
video play button
Video[1]

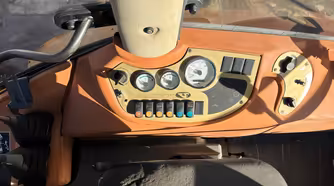

Interior [2]

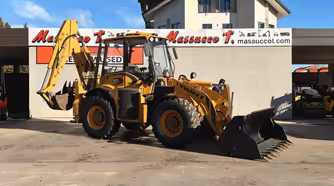

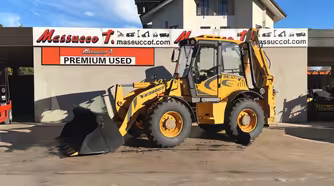

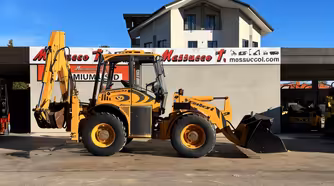

Exterior [4]

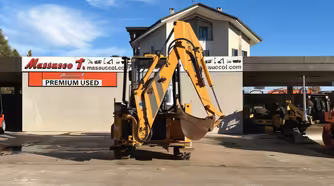

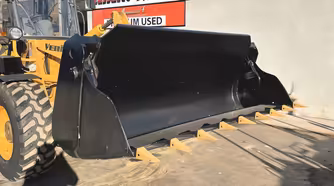

Attachments [2]
1998-2022
1991-1995
86.06 kw Gross power
8,600 kg Operating weight
6 m Overall Length
2.38 m Overall Width
Show features

Makana rating

Market average

AED 260,000

Starting from

AED 170,000

Venieri VF10 Technical specifications

Engine

Displacement

4401.58 cu cm

Gross power

86.06 kw

Number of cylinders

4

Power measured @

2,200 rpm

General

Engine model

1104-44T

Max speed forward

38.14 kph

Operating weight

8,600 kg

Transmission type

Hydrostatic

Loader

Loader dump height

3.51 m

Transmission

Number of forward gears

3

Number of reverse gears

2

Hydraulic system

Pump flow cap

145.34 lpm

Pump type

Piston

Relief valve pressure

230 bar

Dimensions

Overall Length

6 m

Overall Width

2.38 m

Turning radius

4.91 m

View more
Download datasheets
OEM product brochure

Venieri VF10 similar models

Highlight differences
Venieri VF10.23
VF10.23
Terex TX860B
TX860B
Terex TX970B
TX970B
Engine
Displacement 4,401.58 cu cm
Displacement 4,408.13 cu cm
Displacement 4,408.13 cu cm
Gross power 86.06 kw
Gross power 74.57 kw
Gross power 74.57 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Alternator supplied amperage -
Alternator supplied amperage 75 Amh
Alternator supplied amperage 100 Amh
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Max torque -
Max torque 393.18 Nm
Max torque 393.18 Nm
Net power -
Net power 70.1 kw
Net power 70.1 kw
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Years 1991-1995
Years 1998-2003
Years 2005-2023
Market Average AED 260,000
Market Average AED 230,000
Market Average AED 270,000
Price AED 170,000
Price AED 150,000
Price AED 180,000
General
Engine model 1104-44T
Engine model 1104C-44TH
Engine model 1104C-44TH
Max speed forward 38.14 kph
Max speed forward 37.5 kph
Max speed forward 41.52 kph
Operating weight 8,600 kg
Operating weight 7,241 kg
Operating weight 8,011 kg
Transmission type Hydrostatic
Transmission type Carraro transmission, fully synchronized power shuttle
Transmission type Dana transmission full powershift
Bucket capacity -
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket width -
Bucket width 231 cm
Bucket width 231 cm
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Loader
Loader dump height 3.51 m
Loader dump height 2.62 m
Loader dump height 2.68 m
Breakout force -
Breakout force 5,575.11 kg
Breakout force 5,575.11 kg
Loader digging depth -
Loader digging depth 18.8 cm
Loader digging depth 12.45 cm
Loader dump reach -
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Transmission
Number of forward gears 3
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 2
Number of reverse gears 4
Number of reverse gears 2
Max speed reverse -
Max speed reverse 37.5 kph
Max speed reverse 12.71 kph
Hydraulic system
Pump flow cap 145.34 lpm
Pump flow cap 160.11 lpm
Pump flow cap -
Pump type Piston
Pump type Load sensing twin gear
Pump type Tandem gear
Relief valve pressure 230 bar
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Dimensions
Overall Length 6 m
Overall Length 7.22 m
Overall Length 7.32 m
Overall Width 2.38 m
Overall Width 2.32 m
Overall Width 2.32 m
Turning radius 4.91 m
Turning radius 3.87 m
Turning radius 5.73 m
Ground clearance -
Ground clearance 0.4 m
Ground clearance 0.46 m
Height - top of cab -
Height - top of cab 2.71 m
Height - top of cab 2.8 m
Wheelbase -
Wheelbase 2.1 m
Wheelbase 2.1 m
Backhoe
Backhoe digging depth -
Backhoe digging depth 4.48 m
Backhoe digging depth -
Backhoe reach from swivel -
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 6.04 m
Service refill capacities
Cooling fluid cap -
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity -
Front axle fluid capacity 12.87 liter
Front axle fluid capacity 12.87 liter
Fuel cap -
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap -
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity -
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 17.79 liter
Transmission fluid cap -
Transmission fluid cap 15.14 liter
Transmission fluid cap 23.09 liter
Refill capacities
Engine oil cap -
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Operating specifications
Extended backhoe digging depth -
Extended backhoe digging depth 5.88 m
Extended backhoe digging depth 6.22 m
Extended backhoe dump reach -
Extended backhoe dump reach 2.8 m
Extended backhoe dump reach 3.05 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.16 m
Extended backhoe reach from swivel 7.35 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.45 m
Tires
Front tires size (2WD) -
Front tires size (2WD) 12.5/80x18
Front tires size (2WD) 16.9x24
Rear tires size -
Rear tires size 19.5x24
Rear tires size 16.9x24
