Venieri VF5 Backhoe loaders tech specs

makana img
video play button
Video[1]

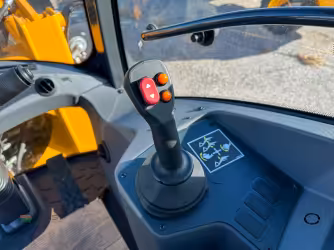

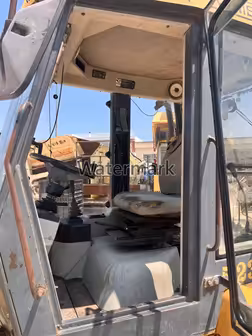

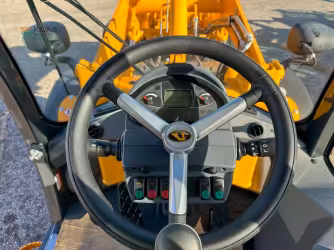

Interior [3]

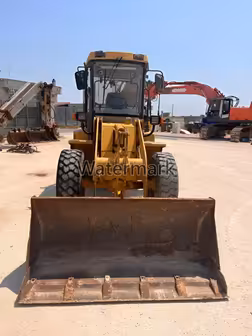

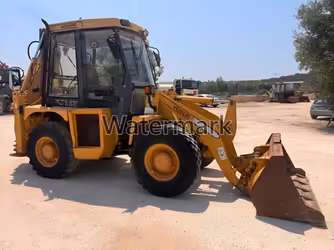

Exterior [4]

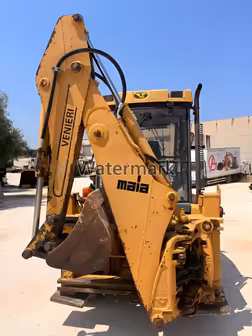

Attachments [2]
1986-2024
4.11 m Backhoe digging depth
0.76 cu m Bucket capacity
49.07 kw Gross power
Piston Pump type
5.33 m Overall Length
1.92 m Overall Width
Show features

Makana rating

Market average

AED 170,000

Starting from

AED 110,000

Venieri VF5 Technical specifications

Backhoe

Backhoe digging depth

4.11 m

Backhoe dump height

4.6 m

Backhoe reach from swivel

4.69 m

General

Bucket capacity

0.76 cu m

Bucket width

185 cm

Engine model

704-30

Max speed forward

32.03 kph

Transmission type

Hydrostatic

Engine

Displacement

3900.13 cu cm

Gross power

49.07 kw

Number of cylinders

4

Power measured @

2,400 rpm

Loader

Loader dump height

3.66 m

Transmission

Max speed reverse

32.03 kph

Number of forward gears

2

Number of reverse gears

2

Hydraulic system

Pump flow cap

82.13 lpm

Pump type

Piston

Relief valve pressure

230 bar

Dimensions

Overall Length

5.33 m

Overall Width

1.92 m

View more
Download datasheets
OEM product brochure

Venieri VF5 similar models

Highlight differences
Venieri VF5.23D
VF5.23D
Terex TX970B
TX970B
Venieri VF10.23
VF10.23
Backhoe
Backhoe digging depth 4.11 m
Backhoe digging depth -
Backhoe digging depth 6 m
Backhoe dump height 4.6 m
Backhoe dump height -
Backhoe dump height 5.3 m
Backhoe reach from swivel 4.69 m
Backhoe reach from swivel 6.04 m
Backhoe reach from swivel 5.61 m
Years 1986-20212022
Years 2005-2023
Years 1998-2022
Market Average AED 170,000
Market Average AED 270,000
Market Average AED 140,000
Price AED 110,000
Price AED 180,000
Price AED 85,000
General
Bucket capacity 0.76 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.38 cu m
Bucket width 185 cm
Bucket width 231 cm
Bucket width 235 cm
Engine model 704-30
Engine model 1104C-44TH
Engine model -
Max speed forward 32.03 kph
Max speed forward 41.52 kph
Max speed forward -
Transmission type Hydrostatic
Transmission type Dana transmission full powershift
Transmission type -
Operating voltage -
Operating voltage 12 V
Operating voltage -
Operating weight -
Operating weight 8,011 kg
Operating weight -
Engine
Displacement 3,900.13 cu cm
Displacement 4,408.13 cu cm
Displacement -
Gross power 49.07 kw
Gross power 74.57 kw
Gross power -
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,400 rpm
Power measured @ 2,200 rpm
Power measured @ -
Alternator supplied amperage -
Alternator supplied amperage 100 Amh
Alternator supplied amperage -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Max torque -
Max torque 393.18 Nm
Max torque -
Net power -
Net power 70.1 kw
Net power -
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ -
Loader
Loader dump height 3.66 m
Loader dump height 2.68 m
Loader dump height -
Breakout force -
Breakout force 5,575.11 kg
Breakout force -
Loader digging depth -
Loader digging depth 12.45 cm
Loader digging depth -
Loader dump reach -
Loader dump reach 0.67 m
Loader dump reach -
Transmission
Max speed reverse 32.03 kph
Max speed reverse 12.71 kph
Max speed reverse -
Number of forward gears 2
Number of forward gears 4
Number of forward gears -
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears -
Hydraulic system
Pump flow cap 82.13 lpm
Pump flow cap -
Pump flow cap -
Pump type Piston
Pump type Tandem gear
Pump type -
Relief valve pressure 230 bar
Relief valve pressure 224.08 bar
Relief valve pressure -
Dimensions
Overall Length 5.33 m
Overall Length 7.32 m
Overall Length -
Overall Width 1.92 m
Overall Width 2.32 m
Overall Width -
Ground clearance -
Ground clearance 0.46 m
Ground clearance -
Height - top of cab -
Height - top of cab 2.8 m
Height - top of cab -
Turning radius -
Turning radius 5.73 m
Turning radius -
Wheelbase -
Wheelbase 2.1 m
Wheelbase -
Service refill capacities
Cooling fluid cap -
Cooling fluid cap 16.28 liter
Cooling fluid cap -
Front axle fluid capacity -
Front axle fluid capacity 12.87 liter
Front axle fluid capacity -
Fuel cap -
Fuel cap 130.2 liter
Fuel cap -
Hydraulic fluid cap -
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap -
Rear axle fluid capacity -
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity -
Transmission fluid cap -
Transmission fluid cap 23.09 liter
Transmission fluid cap -
Refill capacities
Engine oil cap -
Engine oil cap 8.71 liter
Engine oil cap -
Operating specifications
Extended backhoe digging depth -
Extended backhoe digging depth 6.22 m
Extended backhoe digging depth -
Extended backhoe dump height -
Extended backhoe dump height 4.45 m
Extended backhoe dump height -
Extended backhoe dump reach -
Extended backhoe dump reach 3.05 m
Extended backhoe dump reach -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.35 m
Extended backhoe reach from swivel -
Tires
Front tires size (2WD) -
Front tires size (2WD) 16.9x24
Front tires size (2WD) -
Rear tires size -
Rear tires size 16.9x24
Rear tires size -
