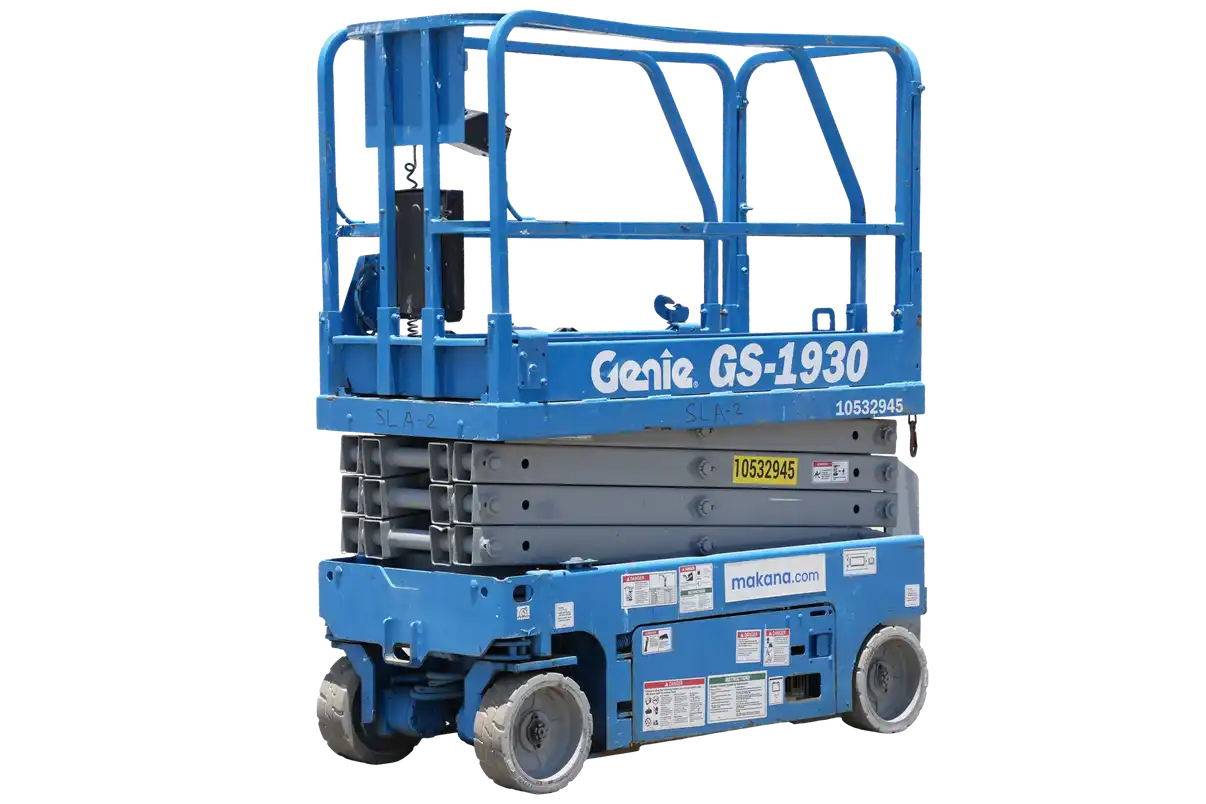

Genie GS-19 Scissor lifts tech specs
:quality(50)/74403/conversions/a0d0409b-179d-426d-be59-1d30996550c6-thumb.webp)
Video[1]
:quality(50)/74395/conversions/f74ab5a3-a7ef-459e-a493-b82834acdb05-thumb.webp)

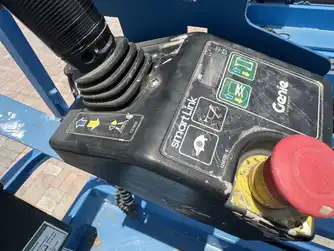

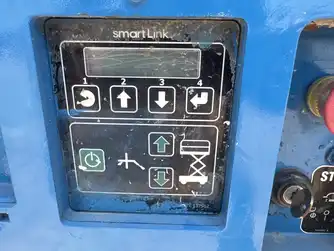

Interior [3]
:quality(50)/74398/conversions/3518cfc4-1a31-48d1-ad97-d6aedcba5f71-thumb.webp)

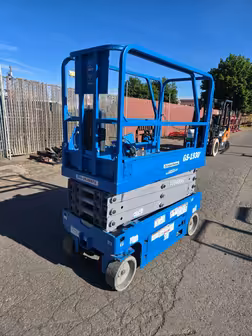

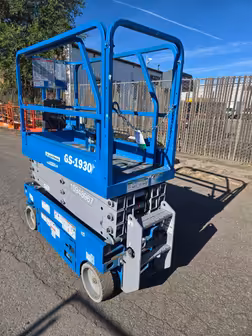

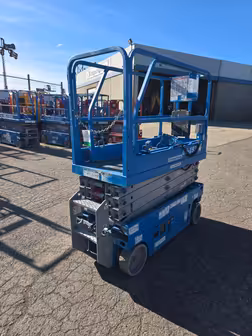

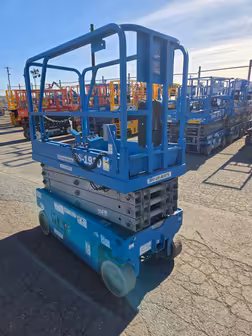

Exterior [4]
:quality(50)/74402/conversions/cf0bfa02-9570-499a-a966-def42fd19964-thumb.webp)

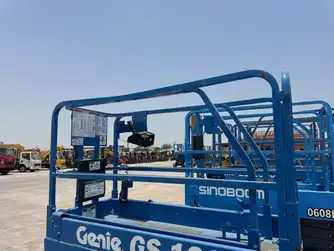

Attachments [1]
Genie GS-19 technical specifications
Highlight differences
Deck extension
Deck extension 91.19 cm
Deck extension -
Lower time
Lower time 25 s
Lower time 23 s
Raise time
Raise time 16 s
Raise time 16 s
Tire Type
Tire Type Solid non-marking
Tire Type Solid non-marking
Years
Years 2001-2025
Years 2001-2025
Market Average
Market Average AED 70,000
Market Average AED 70,000
Price
Price AED 22,000
Price AED 22,000
Ground clearance
Ground clearance 0.06 m
Ground clearance 0.06 m
Stowed height
Stowed height 1.77 m
Stowed height 1.74 m
Overall Length
Overall Length 0.15 m
Overall Length 0.15 m
Overall Width
Overall Width 0.76 m
Overall Width 0.82 m
Turning radius
Turning radius 1.55 m
Turning radius 1.65 m
Hydraulic fluid cap
Hydraulic fluid cap 14.38 liter
Hydraulic fluid cap -
Platform Dimension B
Platform Dimension B 163.07 cm
Platform Dimension B -
Platform Dimension A
Platform Dimension A 74.17 cm
Platform Dimension A -
Max working height
Max working height 7.8 m
Max working height 7.8 m
Max speed forward
Max speed forward 4.02 kph
Max speed forward 4.02 kph
Operating voltage
Operating voltage 24 V
Operating voltage -
Operating weight
Operating weight 1,226 kg
Operating weight 1,503 kg
Tire size
Tire size 12x4.5x8
Tire size 12x4.5x8
Wheelbase
Wheelbase 1.34 m
Wheelbase 1.34 m
Number of batteries
Number of batteries 4
Number of batteries 4
Battery amperage
Battery amperage -
Battery amperage 245 Amh
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 272.02 kg
Platform Capacity - Unrestricted 227.02 kg
Download datasheets
Genie GS-19 similar models
Highlight differences
:quality(50)/72941/fdb113cc-f59a-4b7f-b0e8-7e6e10fe41d4.png)
:quality(50)/59031/44d19ab4-2103-44be-a32e-28e0c87c5348.png)
Deck extension
Deck extension 91.19 cm
Deck extension 90.17 cm
Deck extension 92.2 cm
Lower time
Lower time 25 s
Lower time 30 seconds
Lower time 32 seconds
Raise time
Raise time 16 s
Raise time 20 seconds
Raise time 23 seconds
Tire Type
Tire Type Solid non-marking
Tire Type Solid, Non-marking
Tire Type Solid/non marking
Brake system
Brake system -
Brake system Electric, Friction
Brake system -
Platform railing height
Platform railing height -
Platform railing height 113 cm
Platform railing height -
Years
Years 2001-2025
Years 2005-2021
Years 2002-2025
Market Average
Market Average AED 70,000
Market Average AED 65,000
Market Average AED 53,000
Price
Price AED 22,000
Price AED 38,000
Price AED 36,000
Ground clearance
Ground clearance 0.06 m
Ground clearance 10.16 cm
Ground clearance 8.13 cm
Stowed height
Stowed height 1.77 m
Stowed height 0.88 m
Stowed height -
Overall Length
Overall Length 0.15 m
Overall Length 18.8 m
Overall Length 14.8 m
Overall Width
Overall Width 0.76 m
Overall Width 0.79 m
Overall Width 0.76 m
Turning radius
Turning radius 1.55 m
Turning radius 1.74 m
Turning radius 1.71 m
Height w/ Rails
Height w/ Rails -
Height w/ Rails 2.01 m
Height w/ Rails 2.01 m
Height w/o Rails
Height w/o Rails -
Height w/o Rails 1.58 m
Height w/o Rails 0.91 m
Hydraulic fluid cap
Hydraulic fluid cap 14.38 liter
Hydraulic fluid cap 4.54 liter
Hydraulic fluid cap 18.17 liter
Platform Dimension B
Platform Dimension B 163.07 cm
Platform Dimension B 1.89 m
Platform Dimension B 1.65 m
Platform Dimension A
Platform Dimension A 74.17 cm
Platform Dimension A 0.79 m
Platform Dimension A 0.7 m
Max working height
Max working height 7.8 m
Max working height 7.59 m
Max working height 7.77 m
Max speed forward
Max speed forward 4.02 kph
Max speed forward -
Max speed forward -
Operating voltage
Operating voltage 24 V
Operating voltage 24 V
Operating voltage 24 V
Operating weight
Operating weight 1,226 kg
Operating weight 1,229 kg
Operating weight 1,420 kg
Tire size
Tire size 12x4.5x8
Tire size 12.5x4
Tire size Dia 317
Wheelbase
Wheelbase 1.34 m
Wheelbase 1.62 m
Wheelbase 1.4 m
Drive type
Drive type -
Drive type 24V Electric
Drive type -
Gradeability
Gradeability -
Gradeability 25 º
Gradeability -
Max horizontal reach
Max horizontal reach -
Max horizontal reach 5,730 mm
Max horizontal reach -
Number of batteries
Number of batteries 4
Number of batteries 4
Number of batteries 4
Battery amps
Battery amps -
Battery amps 220 Amh
Battery amps 180 Amh
Charger amps
Charger amps -
Charger amps 20 Amh
Charger amps 30 Amh
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 272.02 kg
Platform Capacity - Unrestricted 230 kg
Platform Capacity - Unrestricted 230.02 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 4.83 kph
Drive Speed - Platform Lowered 4.67 kph
Platform Capacity - Extension
Platform Capacity - Extension -
Platform Capacity - Extension 120 kg
Platform Capacity - Extension -
Drive speed - platform elevated
Drive speed - platform elevated -
Drive speed - platform elevated 0.8 kph
Drive speed - platform elevated -
Ground pressure
Ground pressure -
Ground pressure 7.52 bar
Ground pressure -
Pump type
Pump type -
Pump type Fixed Displacement Gear
Pump type -
