John deere

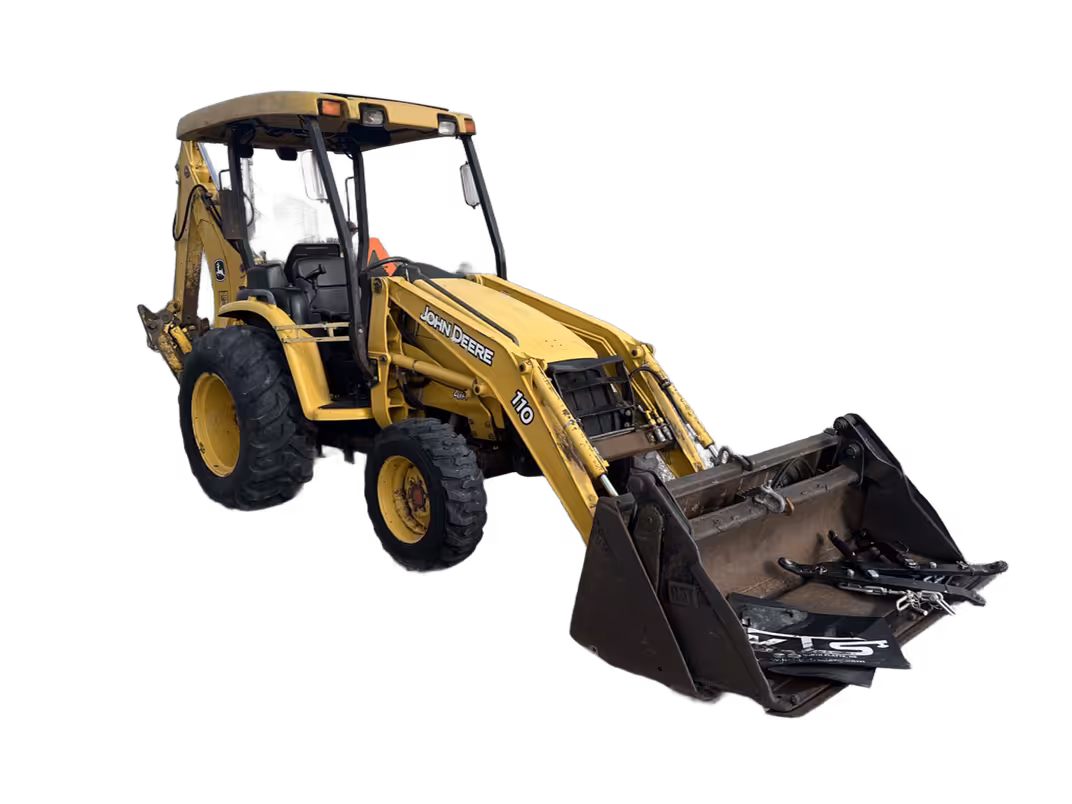

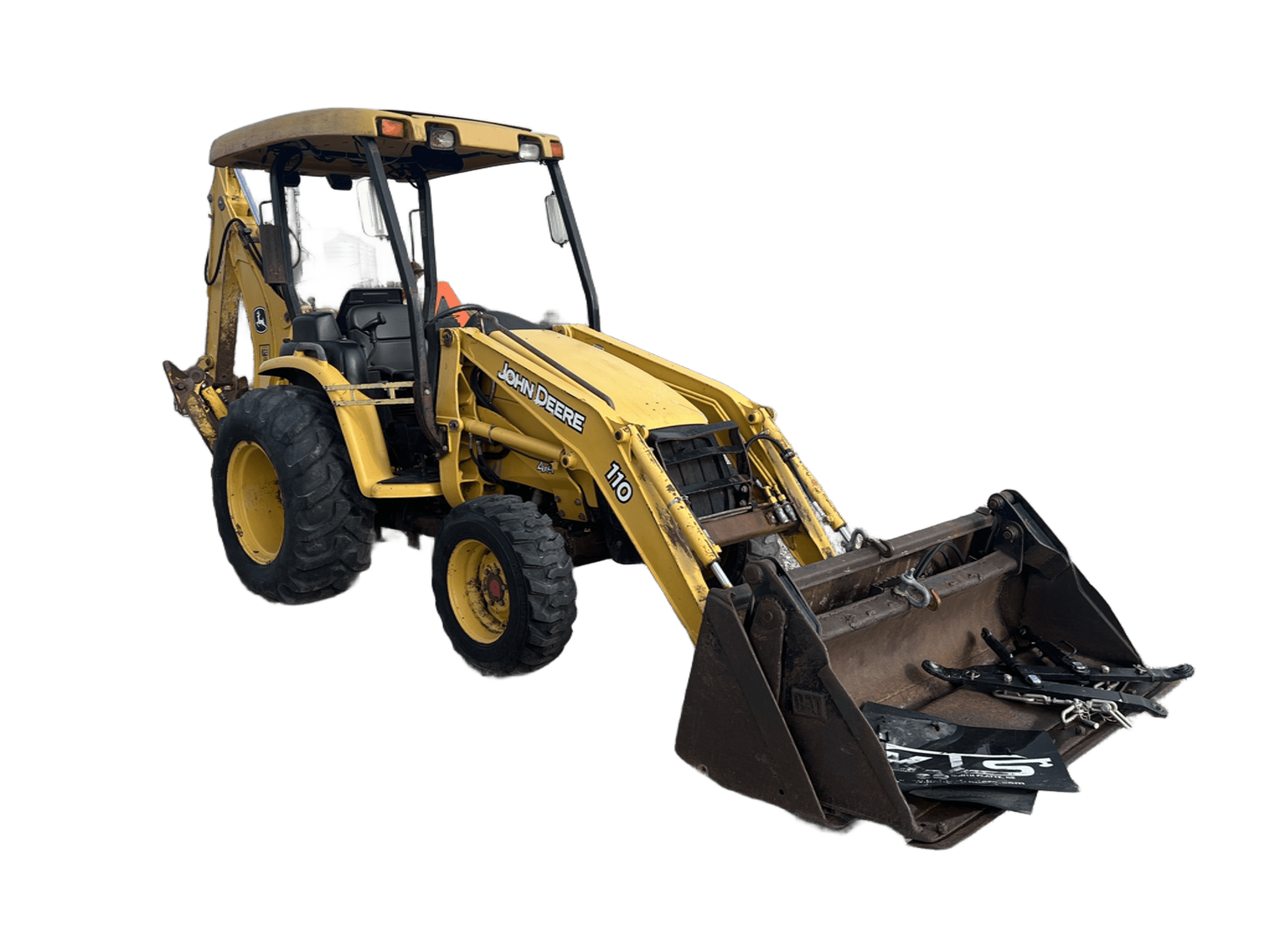

John deere 110 Backhoe loaders

100K+ machines in details.

John deere 110 Backhoe loaders tech specs

Video[1]

Interior [3]

Exterior [4]

Attachments [3]

2008-2021

3.08 m Backhoe digging depth

2.59 m Backhoe dump height

183 cm Bucket width

TNV88 Engine model

32.07 kw Gross power

3,302 kg Operating weight

Show features

Makana rating

Market average

AED 144,000

Starting from

AED 102,000

John deere 110 Technical specifications

Engine

Alternator supplied amperage

55 Amh

Displacement

2189.32 cu cm

Gross power

32.07 kw

Net power

30.57 kw

Number of cylinders

Power measured @

2,600 rpm

Backhoe

Backhoe digging depth

3.08 m

Backhoe dump height

2.59 m

General

Bucket width

183 cm

Engine model

TNV88

Operating voltage

12 V

Operating weight

3,302 kg

Service refill capacities

Cooling fluid cap

9.08 liter

Front axle fluid capacity

4.92 liter

Fuel cap

58.29 liter

Hydraulic fluid cap

57.15 liter

Transmission fluid cap

57.15 liter

Refill capacities

Engine oil cap

4.92 liter

Tires

Front tires size (2WD)

10 x 16.5, 8 PR

Hydraulic system

Pump flow cap

89.33 lpm

Pump type

Open center

Relief valve pressure

206.84 bar

Dimensions

Wheelbase

1.83 m

Download datasheets

OEM product brochure

John deere 110 expert review

Reviewed by on

John deere 110 similar models

Highlight differences

John deere 110

110

Massey ferguson 60H

60H

Cukurova 880

880

Engine

Alternator supplied amperage

Alternator supplied amperage 55 Amh

Alternator supplied amperage -

Displacement

Displacement 2,189.32 cu cm

Displacement 4,100.05 cu cm

Displacement 4,160.68 cu cm

Gross power

Gross power 32.07 kw

Gross power 57.42 kw

Gross power 56.67 kw

Net power

Net power 30.57 kw

Net power -

Number of cylinders

Number of cylinders 4

Power measured @

Power measured @ 2,600 rpm

Power measured @ 2,000 rpm

Power measured @ 2,200 rpm

Bore

Bore -

Bore 10.16 cm

Bore -

Engine make

Engine make -

Engine make Perkins

Engine make -

Max torque

Max torque -

Max torque 286.07 Nm

Max torque 290.01 Nm

Stroke

Stroke -

Stroke 12.7 cm

Stroke -

Torque measured @

Torque measured @ -

Torque measured @ 1,400 rpm

Torque measured @ -

Aspiration

Aspiration -

Aspiration Naturally aspirated

Years

Years 2008-2021

Years 1995

Years 2013

Market Average

Market Average AED 144,000

Market Average AED 71,600

Market Average AED 107,000

Price

Price AED 102,000

Price AED 44,100

Price AED 99,200

Backhoe

Backhoe digging depth

Backhoe digging depth 3.08 m

Backhoe digging depth -

Backhoe digging depth 4.02 m

Backhoe dump height

Backhoe dump height 2.59 m

Backhoe dump height 4.18 m

Backhoe dump height -

Backhoe reach from swivel

Backhoe reach from swivel -

Backhoe reach from swivel 6 m

Backhoe reach from swivel 4.27 m

General

Bucket width

Bucket width 183 cm

Bucket width 223 cm

Engine model

Engine model TNV88

Engine model A4.248

Engine model 4R 1040

Operating voltage

Operating voltage 12 V

Operating weight

Operating weight 3,302 kg

Operating weight 6,397 kg

Operating weight 7,100 kg

Max speed forward

Max speed forward -

Max speed forward 28.32 kph

Max speed forward 40.07 kph

Transmission type

Transmission type -

Transmission type Powershuttle

Transmission type Carraro Powershuttle

Bucket capacity

Bucket capacity -

Bucket capacity 1.07 cu m

Service refill capacities

Cooling fluid cap

Cooling fluid cap 9.08 liter

Cooling fluid cap 15.9 liter

Cooling fluid cap 23.09 liter

Front axle fluid capacity

Front axle fluid capacity 4.92 liter

Front axle fluid capacity -

Front axle fluid capacity 9.46 liter

Fuel cap

Fuel cap 58.29 liter

Fuel cap 81 liter

Fuel cap 120.36 liter

Hydraulic fluid cap

Hydraulic fluid cap 57.15 liter

Hydraulic fluid cap 71.92 liter

Hydraulic fluid cap 125.28 liter

Transmission fluid cap

Transmission fluid cap 57.15 liter

Transmission fluid cap -

Rear axle fluid capacity

Rear axle fluid capacity -

Rear axle fluid capacity 17.03 liter

Refill capacities

Engine oil cap

Engine oil cap 4.92 liter

Engine oil cap 9.46 liter

Engine oil cap 8.71 liter

Tires

Front tires size (2WD)

Front tires size (2WD) 10 x 16.5, 8 PR

Front tires size (2WD) 11L-16

Front tires size (2WD) 9.16

Rear tires size

Rear tires size -

Rear tires size 16.9-28

Hydraulic system

Pump flow cap

Pump flow cap 89.33 lpm

Pump flow cap 124.91 lpm

Pump flow cap 105.22 lpm

Pump type

Pump type Open center

Pump type Gear pump

Relief valve pressure

Relief valve pressure 206.84 bar

Relief valve pressure 189.6 bar

Relief valve pressure 225 bar

Dimensions

Wheelbase

Wheelbase 1.83 m

Wheelbase 2.19 m

Wheelbase 2.1 m

Front tread range

Front tread range -

Front tread range 167.13 cm

Front tread range -

Ground clearance

Ground clearance -

Ground clearance 0.37 m

Ground clearance 0.4 m

Height - top of cab

Height - top of cab -

Height - top of cab 2.77 m

Height - top of cab 2.83 m

Rear tread range

Rear tread range -

Rear tread range 173.23 cm

Rear tread range -

Overall Length

Overall Length -

Overall Length 7.8 m

Overall Length 5.73 m

Overall Width

Overall Width -

Overall Width 2.26 m

Turning radius

Turning radius -

Turning radius 5.52 m

Loader

Breakout force

Breakout force -

Breakout force 4,008.85 kg

Breakout force 5,231.15 kg

Loader dump height

Loader dump height -

Loader dump height 2.77 m

Loader dump height 2.74 m

Loader dump reach

Loader dump reach -

Loader dump reach 0.73 m

Loader dump reach 0.79 m

Loader digging depth

Loader digging depth -

Loader digging depth 10.16 cm

Attachments

Bucket digging force

Bucket digging force -

Bucket digging force 4,878.03 kg

Bucket digging force -

Operating specifications

Extended backhoe dump height

Extended backhoe dump height -

Extended backhoe dump height 5.15 m

Extended backhoe dump height -

Extended backhoe reach from swivel

Extended backhoe reach from swivel -

Extended backhoe reach from swivel 7.28 m

Extended backhoe reach from swivel -

Transmission

Max speed reverse

Max speed reverse -

Max speed reverse 28.32 kph

Max speed reverse 21.4 kph

Number of forward gears

Number of forward gears -

Number of forward gears 4

Number of reverse gears

Number of reverse gears -

Number of reverse gears 4

Number of reverse gears 3

John deere 110 gallery

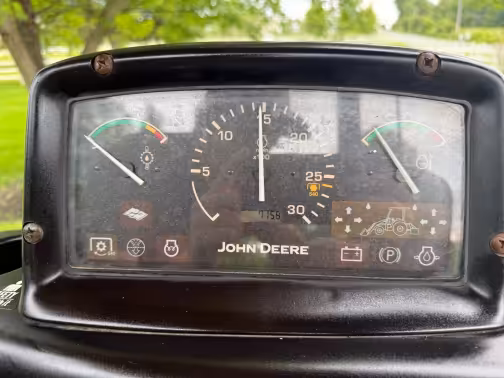

Generation-John deere 110 Backhoe loaders-interior

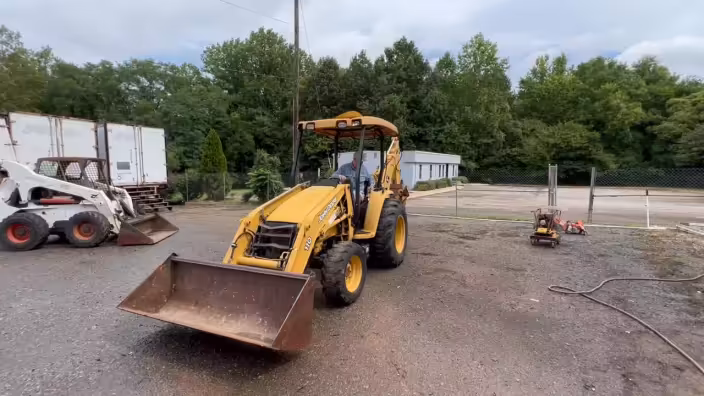

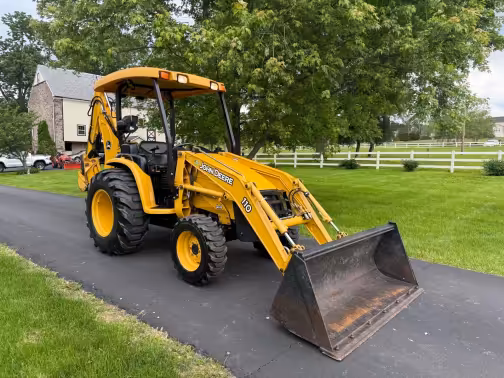

Generation-John deere 110 Backhoe loaders-exterior

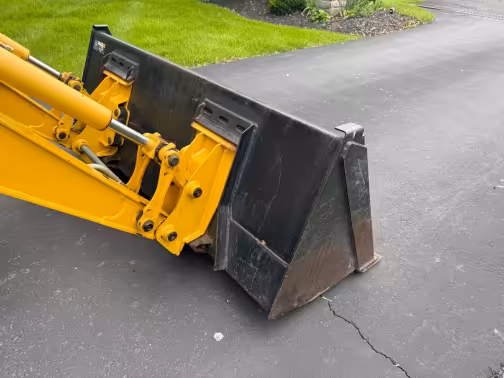

Generation-John deere 110 Backhoe loaders-attachments
