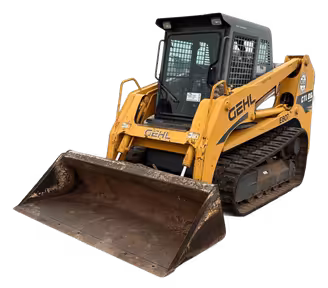

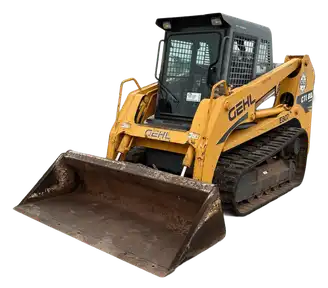

Gehl CTL80 Compact track loaders tech specs

Video[1]

Interior [2]

Exterior [4]

Attachments [2]

2002-2011

4,408.13 cu cm Displacement

2.38 m Loader dump height

1.07 m Loader dump reach

1,600.28 kg Lifting capacity

72.33 kw Net power

4,849 kg Operating weight

A heavy compact track loader designed for demanding material handling and grading work, the Gehl CTL80 combines 72.33 kilowatt engine power with a rated lifting capacity of around 1,600 kg. Powered by a turbocharged Yanmar diesel engine and supported by a wide rubber-track undercarriage, the machine delivers strong traction and dependable performance for construction, landscaping, and site preparation tasks.

Net power 72.33 kilowatt

Maximum torque 258.96 Nm

Rated lifting capacity 1,600.28 kg

Breakout force 3,942.63 kg

Operating weight 4,849 kg

Ground pressure 0.30 bar

Hydraulic pump flow 88.57 lpm

Fuel tank capacity 108.25 liters

Makana rating

Owner rating

| 3

Market average

AED 115,000

Starting from

AED 35,000

Gehl CTL80 Technical specifications

Engine

Alternator supplied amperage

50 Amh

Aspiration

Turbocharged

Displacement

4408.13 cu cm

Max torque

258.96 Nm

Net power

72.33 kw

Number of cylinders

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Loader

Breakout force

3942.63 kg

Loader dump height

2.38 m

Loader dump reach

1.07 m

Service refill capacities

Cooling fluid cap

15.14 liter

Fuel cap

108.25 liter

Hydraulic fluid cap

64.35 liter

General

Engine model

4TNV106T

Lifting capacity

1600.28 kg

Max speed forward

11.1 kph

Operating voltage

12 V

Operating weight

4,849 kg

Refill capacities

Engine oil cap

14 liter

Dimensions

Ground clearance

0.36 m

Height - top of cab

2.23 m

Length with bucket

4.05 m

Length without Bucket

3.11 m

Turning radius

1.82 m

Width over tracks

1.89 m

Undercarriage

Ground pressure

0.3 bar

Number of track rollers per side

Track length

1.62 m

Track width

45.72 cm

Hydraulic system

Pump flow cap

88.57 lpm

Relief valve pressure

206.01 bar

Operating specifications

Rack back angle

70 º

Download datasheets

OEM product brochure

Gehl CTL80 expert review

Reviewed by Jed H. on March 11, 2026

Overview

The Gehl CTL80 (2002–2011) is a heavy compact track loader designed for demanding material handling and construction work. It delivers 72.33 kilowatt engine power and about 1.6 ton lifting capacity.

Expert rating: 3 stars

Pros Powerful engine with strong lifting capability.

Cons Older cab design and hydraulic performance compared with modern machines.

Performance & Efficiency

The turbocharged Yanmar 4TNV106T engine produces 72.33 kilowatt, delivering strong loader performance for construction and site preparation work.

In Comparison

JCB 250: Strong lifting capability and versatile attachment support.
Cat 299: Larger machine with higher productivity.
Gehl CTL80: Durable loader with good lifting capacity.

Final Verdict

Rated 3 stars, the Gehl CTL80 offers capable compact track loader performance within the AED 35,000–115,000 range.

Show less

Gehl CTL80 owner rating

Gehl CTL80 Compact track loaders [2002-2011]

2002-2011

Overall rating

Based on 3 ratings

3.3

performance

4.3

comfort

4.3

fuel efficiency

4.3

safety

4.3

features

4.3

5 stars

34 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

33 %

Pros

High lifting capacity for heavy loading jobs.

Cons

Older controls and cab layout compared with modern machines.

Submitted by on Mar 11, 2026 / Gehl CTL80 Compact track loaders / Purchased on Apr, 2016

performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month

2002

Gehl CTL80 similar models

Highlight differences

Gehl CTL80

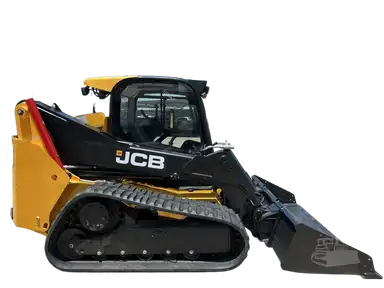

JCB 250T

Cat 299C

Engine

Alternator supplied amperage

Alternator supplied amperage 50 Amh

Alternator supplied amperage 95 Amh

Alternator supplied amperage 90 Amh

Aspiration

Aspiration Turbocharged

Aspiration Liquid

Aspiration Turbocharged

Displacement

Displacement 4,408.13 cu cm

Displacement 4,399.94 cu cm

Displacement 3,293.81 cu cm

Max torque

Max torque 258.96 Nm

Max torque 400.1 Nm

Max torque -

Net power

Net power 72.33 kw

Net power -

Net power 67.11 kw

Number of cylinders

Number of cylinders 4

Number of cylinders -

Number of cylinders 4

Power measured @

Power measured @ 2,200 rpm

Power measured @ 2,400 rpm

Power measured @ 2,500 rpm

Torque measured @

Torque measured @ 1,400 rpm

Torque measured @ 1,200 rpm

Torque measured @ -

Emissions

Emissions -

Emissions EPA-T4F (EU St3B)

Emissions -

Engine cooling system

Engine cooling system -

Engine cooling system Liquid

Engine cooling system -

Gross power

Gross power -

Gross power 55.03 kw

Gross power 70.1 kw

Bore

Bore -

Bore 9.4 cm

Stroke

Stroke -

Stroke 11.94 cm

Years

Years 2002-2011

Years 2017-2020

Years 2009-2015

Market Average

Market Average AED 115,000

Market Average AED 253,000

Market Average AED 140,000

Price

Price AED 35,000

Price AED 210,000

Price AED 110,000

Loader

Breakout force

Breakout force 3,942.63 kg

Breakout force 2,968.04 kg

Breakout force -

Loader dump height

Loader dump height 2.38 m

Loader dump height 2.9 m

Loader dump height 2.5 m

Loader dump reach

Loader dump reach 1.07 m

Loader dump reach 1.01 m

Loader dump reach 0.79 m

Loader digging depth

Loader digging depth -

Loader digging depth 1,000 cm

Loader digging depth -

Breakout force - lift cylinder

Breakout force - lift cylinder -

Breakout force - lift cylinder 3,314.86 kg

Breakout force - tilt cylinder

Breakout force - tilt cylinder -

Breakout force - tilt cylinder 3,314.86 kg

Service refill capacities

Cooling fluid cap

Cooling fluid cap 15.14 liter

Cooling fluid cap 22.33 liter

Cooling fluid cap 14 liter

Fuel cap

Fuel cap 108.25 liter

Fuel cap 103.33 liter

Fuel cap 98.03 liter

Hydraulic fluid cap

Hydraulic fluid cap 64.35 liter

Hydraulic fluid cap 55.26 liter

Hydraulic fluid cap 57.15 liter

Engine crankcase

Engine crankcase -

Engine crankcase 9.84 liter

General

Engine model

Engine model 4TNV106T

Engine model EcoMAX TCAE-55

Engine model Cat C3.4T

Lifting capacity

Lifting capacity 1,600.28 kg

Lifting capacity 4,818.02 kg

Lifting capacity 1,882.41 kg

Max speed forward

Max speed forward 11.1 kph

Max speed forward -

Max speed forward 13.68 kph

Operating voltage

Operating voltage 12 V

Operating weight

Operating weight 4,849 kg

Operating weight 4,818 kg

Operating weight 4,867 kg

Bucket capacity

Bucket capacity -

Bucket capacity 0.46 cu m

Bucket width

Bucket width -

Bucket width 190 cm

Bucket width -

Max horizontal reach

Max horizontal reach -

Max horizontal reach 1.27 m

Tipping load

Tipping load -

Tipping load 3,782 kg

Refill capacities

Engine oil cap

Engine oil cap 14 liter

Engine oil cap 15.14 liter

Engine oil cap 10.22 liter

Dimensions

Ground clearance

Ground clearance 0.36 m

Ground clearance 0.23 m

Height - top of cab

Height - top of cab 2.23 m

Height - top of cab 2.1 m

Height - top of cab 2.13 m

Length with bucket

Length with bucket 4.05 m

Length with bucket 3.81 m

Length with bucket 3.84 m

Length without Bucket

Length without Bucket 3.11 m

Length without Bucket -

Turning radius

Turning radius 1.82 m

Turning radius -

Turning radius 1.78 m

Width over tracks

Width over tracks 1.89 m

Width over tracks 1.92 m

Width over tracks 1.98 m

Max height to hinge pin

Max height to hinge pin -

Max height to hinge pin 19.56 cm

Overall Width

Overall Width -

Overall Width 1.98 m

Undercarriage

Ground pressure

Ground pressure 0.3 bar

Ground pressure -

Ground pressure 0.3 bar

Number of track rollers per side

Number of track rollers per side 5

Number of track rollers per side -

Track length

Track length 1.62 m

Track length -

Track length 1.77 m

Track width

Track width 45.72 cm

Track width -

Ground contact area

Ground contact area -

Ground contact area 41,033.3 cu cm

Hydraulic system

Pump flow cap

Pump flow cap 88.57 lpm

Pump flow cap -

Pump flow cap 124.91 lpm

Relief valve pressure

Relief valve pressure 206.01 bar

Relief valve pressure -

Relief valve pressure 279.99 bar

Pump type

Pump type -

Pump type High Flow XPS

Operating specifications

Rack back angle

Rack back angle 70 º

Rack back angle 77 º

Rack back angle 83 º

Angle of departure

Angle of departure -

Angle of departure 29 º

Angle of departure 38 º

Dump angle

Dump angle -

Dump angle 42 º

Dump angle 51 º

Cab FOPS

Cab FOPS -

Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I

Cab FOPS level II

Cab FOPS level II -

Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II

Cab ROPS

Cab ROPS -

Cab ROPS SAE J1040 MAY94, ISO 3471:1994

Gehl CTL80 gallery

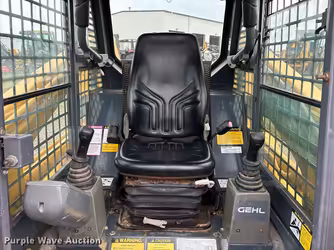

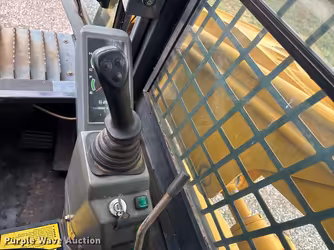

Generation-Gehl CTL80 Compact track loaders-interior

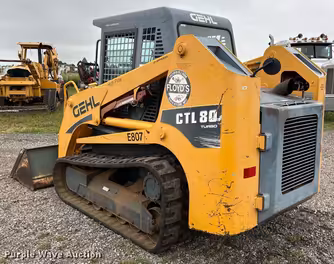

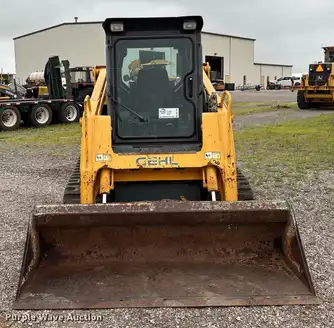

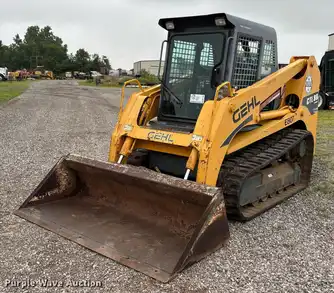

Generation-Gehl CTL80 Compact track loaders-exterior

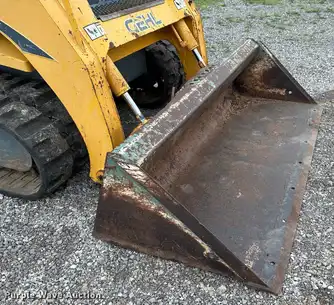

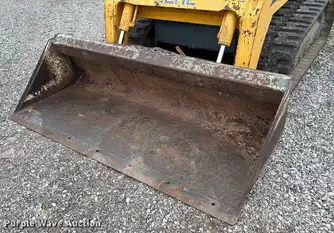

Generation-Gehl CTL80 Compact track loaders-attachments
