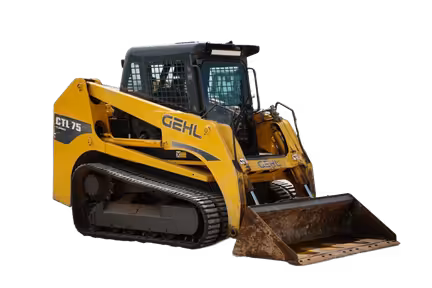

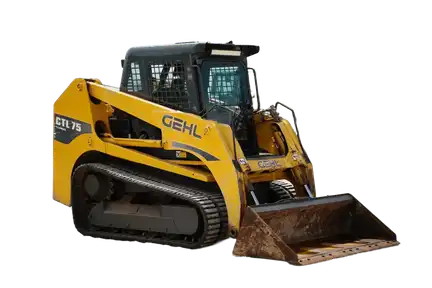

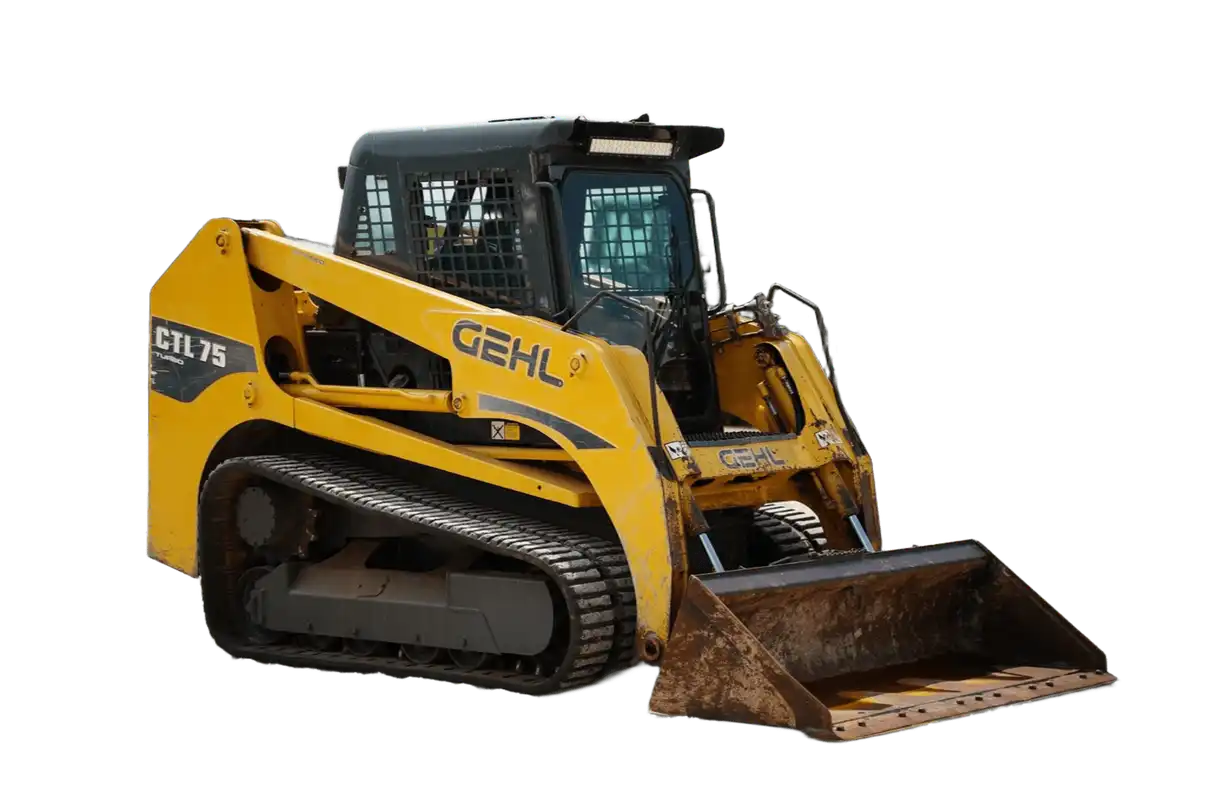

Gehl CTL75 Compact track loaders tech specs
:quality(50)/73475/b7aaed2c-5860-4e2c-ba38-a6023cfcc069.png)
:quality(50)/73485/conversions/dde66342-2d3f-42ac-a892-34eb11c7714b-thumb.webp)
Video[1]
:quality(50)/73477/conversions/4d644c26-3f3f-47c1-8297-64b554150c54-thumb.webp)
Interior [2]
:quality(50)/73479/conversions/236e55d1-de25-415f-85d9-2b8a9f8e4047-thumb.webp)
Exterior [4]
:quality(50)/73483/conversions/05fb77be-a6bd-4997-afd3-c8db7c5e0c98-thumb.webp)
Attachments [2]
2006-2012
3,318.39 cu cm Displacement
61.89 kw Gross power
2.41 m Loader dump height
0.88 m Loader dump reach
1,350.03 kg Lifting capacity
4,400 kg Operating weight
Makana rating
Owner rating
Market average
AED 135,500Starting from
AED 46,000Gehl CTL75 Technical specifications
Engine
Alternator supplied amperage
40 Amh
Aspiration
Turbocharged
Gross power
61.89 kw
Number of cylinders
4
Power measured @
2,500 rpm
Torque measured @
1,800 rpm
General
Bucket capacity
0.54 cu m
Displacement
3318.39 cu cm
Engine model
4TNV98T
Loader dump height
2.41 m
Loader dump reach
0.88 m
Lifting capacity
1350.03 kg
Max speed forward
11.59 kph
Max torque
296.92 Nm
Operating voltage
12 V
Operating weight
4,400 kg
Turning radius
1.67 m
Service refill capacities
Cooling fluid cap
16.65 liter
Fuel cap
90.46 liter
Hydraulic fluid cap
48.83 liter
Refill capacities
Engine oil cap
10.22 liter
Dimensions
Ground clearance
0.33 m
Height - top of cab
2.19 m
Length with bucket
3.75 m
Length without Bucket
2.99 m
Width over tracks
1.8 m
Undercarriage
Ground pressure
0.3 bar
Number of track rollers per side
4
Track length
1.52 m
Track width
45.72 cm
Hydraulic system
Pump flow cap
74.94 lpm
Relief valve pressure
206.01 bar
Operating specifications
Rack back angle
59 º
Download datasheets
Gehl CTL75 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Gehl CTL75 (2006–2012) is a heavy compact track loader designed for demanding construction and material handling work. It delivers 61.89 kilowatt engine power and offers roughly 1.35 ton lifting capacity.
Expert rating: 3 stars
Pros
Powerful turbocharged engine and good lifting capability.
Cons
Older hydraulic performance compared with newer compact loaders.
Performance & Efficiency
The Yanmar 4TNV98T turbocharged engine produces 61.89 kilowatt, delivering strong loader performance for grading and construction work.
In Comparison
Cat 277: Durable compact track loader with strong support network.
Cat 279: Larger machine with higher productivity.
Gehl CTL75: Balanced option with strong engine performance.
Final Verdict
Rated 3 stars, the Gehl CTL75 offers capable compact track loader performance within the AED 46,000–135,500 range.
Gehl CTL75 owner rating
Gehl CTL75 Compact track loaders [2006-2012]
2006-2012
Overall rating
Based on 3 ratings
3.0
performance
3.7
comfort
4.3
fuel efficiency
4.3
safety
4.7
features
4.0
5 stars
0 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
33 %
Gehl CTL75 similar models
Highlight differences
:quality(50)/73476/fd85bdf3-b26b-4799-a993-1fafb195a381.png)
Gehl CTL75
:quality(50)/65684/5bd0f310-c65b-4a3d-a01e-217152671797.png)
Cat 277B
:quality(50)/65701/cc5dd393-f00b-4d70-94f3-c54632f59361.png)
Cat 279C
Alternator supplied amperage
Alternator supplied amperage 40 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Gross power
Gross power 61.89 kw
Gross power 61.15 kw
Gross power 62.64 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,800 rpm
Torque measured @ -
Torque measured @ -
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Net power
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years
Years 2006-2012
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 135,500
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 46,000
Price AED 62,500
Price AED 114,000
Bucket capacity
Bucket capacity 0.54 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Displacement
Displacement 3,318.39 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine model
Engine model 4TNV98T
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Loader dump height
Loader dump height 2.41 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.88 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Lifting capacity
Lifting capacity 1,350.03 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward
Max speed forward 11.59 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Max torque
Max torque 296.92 Nm
Max torque -
Max torque -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,400 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Turning radius
Turning radius 1.67 m
Turning radius 1.55 m
Turning radius 1.64 m
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Cooling fluid cap
Cooling fluid cap 16.65 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap
Fuel cap 90.46 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap
Hydraulic fluid cap 48.83 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine oil cap
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Ground clearance
Ground clearance 0.33 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2.19 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.75 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 2.99 m
Length without Bucket -
Length without Bucket -
Width over tracks
Width over tracks 1.8 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Ground pressure
Ground pressure 0.3 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length
Track length 1.52 m
Track length 2.07 m
Track length 1.77 m
Track width
Track width 45.72 cm
Track width -
Track width -
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Pump flow cap
Pump flow cap 74.94 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure
Relief valve pressure 206.01 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type
Pump type -
Pump type Standard
Pump type High Flow XPS
Rack back angle
Rack back angle 59 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle -
Dump angle -
Dump angle 40 º
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg

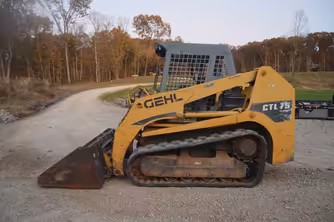

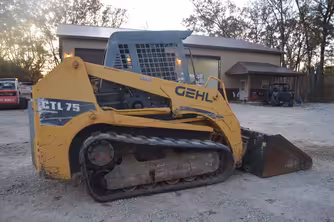

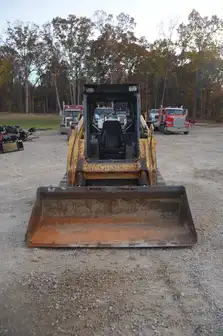

Gehl CTL75 gallery
