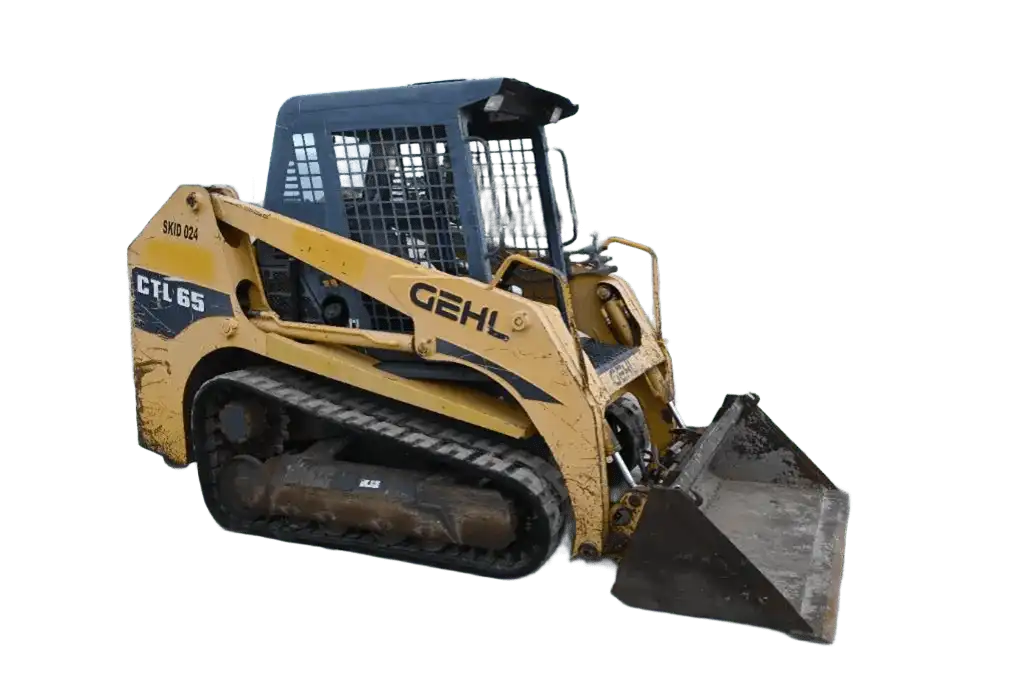

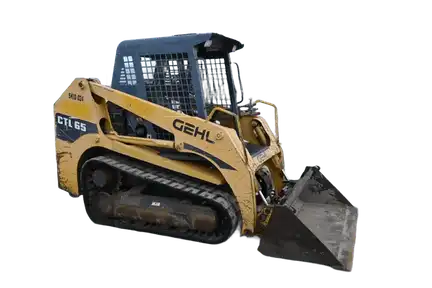

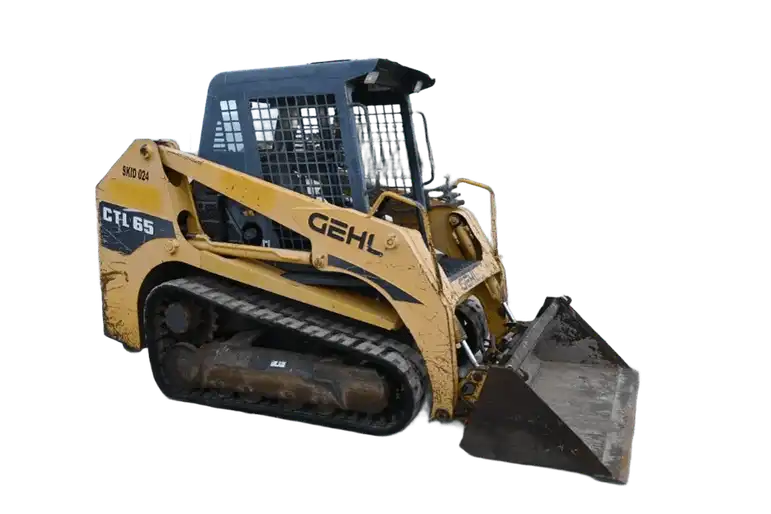

Gehl CTL65 Compact track loaders tech specs

makana img
video play button
Video[1]

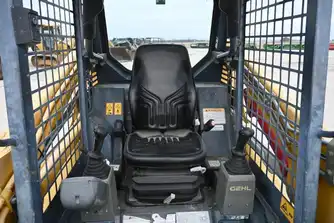

Interior [2]
Exterior [4]
Attachments [2]
2006-2012
3,318.39 cu cm Displacement
49.96 kw Gross power
2.38 m Loader dump height
0.73 m Loader dump reach
1,050.02 kg Lifting capacity
3,635 kg Operating weight

A compact track loader built for landscaping, grading, and construction site support, the Gehl CTL65 combines 49.96 kilowatt engine power with a rated lifting capacity of around 1,050 kg. Powered by a reliable Yanmar diesel engine and supported by a rubber-track undercarriage, the machine delivers stable traction and dependable loader performance on soft terrain.

Gross power 49.96 kilowatt

Maximum torque 242.69 Nm

Maximum torque 242.69 Nm

Rated lifting capacity 1,050.02 kg

Bucket capacity 0.46 cu m

Ground pressure 0.34 bar

Ground pressure 0.34 bar

Maximum travel speed 10.94 kph

Makana rating

Owner rating

 | 3

Market average

AED 121,000

Starting from

AED 77,000

Gehl CTL65 Technical specifications

Engine

Alternator supplied amperage

40 Amh

Aspiration

Naturally aspirated

Gross power

49.96 kw

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,600 rpm

General

Bucket capacity

0.46 cu m

Displacement

3318.39 cu cm

Engine model

4TNV98

Loader dump height

2.38 m

Loader dump reach

0.73 m

Lifting capacity

1050.02 kg

Max speed forward

10.94 kph

Max torque

242.69 Nm

Operating voltage

12 V

Operating weight

3,635 kg

Turning radius

1.55 m

Service refill capacities

Cooling fluid cap

16.65 liter

Fuel cap

75.32 liter

Hydraulic fluid cap

38.61 liter

Refill capacities

Engine oil cap

10.22 liter

Dimensions

Ground clearance

0.31 m

Height - top of cab

2.13 m

Length with bucket

3.57 m

Length without Bucket

2.77 m

Width over tracks

1.58 m

Undercarriage

Ground pressure

0.34 bar

Number of track rollers per side

4

Track length

423.37 m

Track width

812.8 cm

Hydraulic system

Pump flow cap

69.64 lpm

Relief valve pressure

206.01 bar

Operating specifications

Rack back angle

46 º

Download datasheets
OEM product brochure

Gehl CTL65 expert review

Reviewed by Marcis V. on March 11, 2026

Overview

The Gehl CTL65 (2006–2012) is a compact track loader designed for landscaping, grading, and construction site support. It delivers 49.96 kilowatt engine power and offers around 1,050 kg lifting capacity.

Expert rating: 3 stars

Pros Reliable Yanmar engine with stable traction on soft terrain.
Cons Moderate hydraulic power compared with newer track loaders.

Performance & Efficiency

The Yanmar 4TNV98 diesel engine produces about 49.96 kilowatt, providing reliable performance for landscaping and construction support tasks.

In Comparison

Cat 257: Durable loader with higher hydraulic capability.
Cat 247: Similar compact track loader used widely in landscaping.
Gehl CTL65: Balanced and reliable option with efficient engine performance.

Final Verdict

Rated 3 stars, the Gehl CTL65 offers dependable compact track loader capability within the AED 77,000–121,000 range.

Show less

Gehl CTL65 owner rating

Gehl CTL65 Compact track loaders [2006-2012]

2006-2012

Overall rating

Based on 3 ratings

4.0
performance

3.7

comfort

4.7

fuel efficiency

4.0

safety

4.7

features

4.0

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Reliable Yanmar engine and good traction on loose soil.
Cons
Hydraulic performance is moderate for heavy attachment work.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2006

Gehl CTL65 similar models

Highlight differences
Gehl CTL65
Cat 257
Cat 247
Engine
Alternator supplied amperage 40 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration Naturally aspirated
Aspiration Turbocharged
Aspiration -
Gross power 49.96 kw
Gross power 46.98 kw
Gross power 43.25 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Torque measured @ 1,600 rpm
Torque measured @ -
Torque measured @ -
Bore -
Bore 9.91 cm
Bore 9.91 cm
Net power -
Net power 44 kw
Net power 40.27 kw
Stroke -
Stroke 10.16 cm
Stroke 10.16 cm
Years 2006-2012
Years 2014-2019
Years 2004-2008
Market Average AED 121,000
Market Average AED 186,000
Market Average AED 145,000
Price AED 77,000
Price AED 147,000
Price AED 130,000
General
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.38 cu m
Displacement 3,318.39 cu cm
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Engine model 4TNV98
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Loader dump height 2.38 m
Loader dump height 2.29 m
Loader dump height 2.1 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Lifting capacity 1,050.02 kg
Lifting capacity 1,065.94 kg
Lifting capacity 952.55 kg
Max speed forward 10.94 kph
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Max torque 242.69 Nm
Max torque -
Max torque -
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight 3,635 kg
Operating weight 3,460 kg
Operating weight 3,023 kg
Turning radius 1.55 m
Turning radius 2.29 m
Turning radius 2.16 m
Tipping load -
Tipping load 2,091 kg
Tipping load 1,753 kg
Service refill capacities
Cooling fluid cap 16.65 liter
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Fuel cap 75.32 liter
Fuel cap 90.08 liter
Fuel cap 64.35 liter
Hydraulic fluid cap 38.61 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
Refill capacities
Engine oil cap 10.22 liter
Engine oil cap -
Engine oil cap -
Dimensions
Ground clearance 0.31 m
Ground clearance 0.26 m
Ground clearance 0.27 m
Height - top of cab 2.13 m
Height - top of cab 2.04 m
Height - top of cab 2.01 m
Length with bucket 3.57 m
Length with bucket 3.54 m
Length with bucket 3.32 m
Length without Bucket 2.77 m
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Width over tracks 1.58 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Undercarriage
Ground pressure 0.34 bar
Ground pressure 0.3 bar
Ground pressure 0.26 bar
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length 423.37 m
Track length 1.52 m
Track length 1.52 m
Track width 812.8 cm
Track width 38.1 cm
Track width 38.1 cm
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Hydraulic system
Pump flow cap 69.64 lpm
Pump flow cap 57.53 lpm
Pump flow cap 54.5 lpm
Relief valve pressure 206.01 bar
Relief valve pressure -
Relief valve pressure -
Operating specifications
Rack back angle 46 º
Rack back angle 44 º
Rack back angle 37 º
Loader
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,365.77 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 1,603.9 kg
