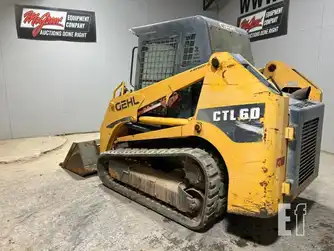

Gehl CTL60 Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [3]
Exterior [4]
Attachments [2]
2003-2011
3,318.39 cu cm Displacement
2.38 m Loader dump height
0.85 m Loader dump reach
1,050.07 kg Lifting capacity
49.22 kw Net power
3,400 kg Operating weight

A compact track loader designed for landscaping, grading, and construction support tasks, the Gehl CTL60 combines 49.22 kilowatt engine power with a rated lifting capacity of about 1,050 kg. With a lightweight 3,400 kg operating weight, stable rubber tracks, and a reliable Yanmar diesel engine, the machine is suited for contractors working on soft terrain and confined job sites.

Net power 49.22 kilowatt

Net power 49.22 kilowatt

Rated lifting capacity 1,050.07 kg

Rated lifting capacity 1,050.07 kg

Breakout force 3,051.77 kg

Operating weight 3,400 kg

Maximum travel speed 10.14 kph

Maximum travel speed 10.14 kph

Makana rating

Owner rating

 | 3

Market average

AED 128,000

Starting from

AED 91,000

Gehl CTL60 Technical specifications

Engine

Alternator supplied amperage

40 Amh

Aspiration

Naturally aspirated

Displacement

3318.39 cu cm

Max torque

245.4 Nm

Net power

49.22 kw

Number of cylinders

4

Power measured @

2,450 rpm

Torque measured @

1,600 rpm

Loader

Breakout force

3051.77 kg

Loader dump height

2.38 m

Loader dump reach

0.85 m

Service refill capacities

Cooling fluid cap

11.36 liter

Fuel cap

75.32 liter

Hydraulic fluid cap

38.61 liter

General

Engine model

4TNV98

Lifting capacity

1050.07 kg

Max speed forward

10.14 kph

Operating voltage

12 V

Operating weight

3,400 kg

Refill capacities

Engine oil cap

10.22 liter

Dimensions

Ground clearance

0.31 m

Height - top of cab

2.13 m

Length with bucket

3.57 m

Length without Bucket

2.77 m

Turning radius

1.55 m

Undercarriage

Ground pressure

0.34 bar

Number of track rollers per side

4

Track length

1.4 m

Track width

32 cm

Hydraulic system

Pump flow cap

68.13 lpm

Relief valve pressure

206.01 bar

Operating specifications

Rack back angle

46 º

View more
Download datasheets
OEM product brochure

Gehl CTL60 expert review

Reviewed by Mohammed E. on March 11, 2026

Overview

The Gehl CTL60 (2003–2011) is a compact track loader designed for landscaping, grading, and construction support tasks. It delivers 49.22 kilowatt engine power and offers around 1,050 kg lifting capacity.

Expert rating: 3 stars

Pros Lightweight machine with reliable Yanmar engine.
Cons Hydraulic output lower than newer compact loaders.

Performance & Efficiency

The Yanmar 4TNV98 diesel engine produces 49.22 kilowatt, providing dependable performance for grading, landscaping, and material handling tasks.

In Comparison

Cat 257: Durable compact track loader with stronger hydraulic output.
Cat 247: Similar machine widely used in landscaping work.
Gehl CTL60: Lightweight and efficient loader with good traction.

Final Verdict

Rated 3 stars, the Gehl CTL60 provides practical compact track loader capability within the AED 91,000–128,000 range.

Show less

Gehl CTL60 owner rating

Gehl CTL60 Compact track loaders [2003-2011]

2003-2011

Overall rating

Based on 3 ratings

4.0
performance

3.7

comfort

4.3

fuel efficiency

4.0

safety

4.7

features

4.0

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Lightweight machine with good traction on soft ground.
Cons
Hydraulic performance not as strong as newer models.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2003

Gehl CTL60 similar models

Highlight differences
Gehl CTL60
Cat 257
Cat 247
Engine
Alternator supplied amperage 40 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration Naturally aspirated
Aspiration Turbocharged
Aspiration -
Displacement 3,318.39 cu cm
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Max torque 245.4 Nm
Max torque -
Max torque -
Net power 49.22 kw
Net power 44 kw
Net power 40.27 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,450 rpm
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Torque measured @ 1,600 rpm
Torque measured @ -
Torque measured @ -
Bore -
Bore 9.91 cm
Bore 9.91 cm
Gross power -
Gross power 46.98 kw
Gross power 43.25 kw
Stroke -
Stroke 10.16 cm
Stroke 10.16 cm
Years 2003-2011
Years 2014-2019
Years 2004-2008
Market Average AED 128,000
Market Average AED 186,000
Market Average AED 145,000
Price AED 91,000
Price AED 147,000
Price AED 130,000
Loader
Breakout force 3,051.77 kg
Breakout force -
Breakout force -
Loader dump height 2.38 m
Loader dump height 2.29 m
Loader dump height 2.1 m
Loader dump reach 0.85 m
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,365.77 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 1,603.9 kg
Service refill capacities
Cooling fluid cap 11.36 liter
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Fuel cap 75.32 liter
Fuel cap 90.08 liter
Fuel cap 64.35 liter
Hydraulic fluid cap 38.61 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
General
Engine model 4TNV98
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Lifting capacity 1,050.07 kg
Lifting capacity 1,065.94 kg
Lifting capacity 952.55 kg
Max speed forward 10.14 kph
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight 3,400 kg
Operating weight 3,460 kg
Operating weight 3,023 kg
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity 0.38 cu m
Tipping load -
Tipping load 2,091 kg
Tipping load 1,753 kg
Refill capacities
Engine oil cap 10.22 liter
Engine oil cap -
Engine oil cap -
Dimensions
Ground clearance 0.31 m
Ground clearance 0.26 m
Ground clearance 0.27 m
Height - top of cab 2.13 m
Height - top of cab 2.04 m
Height - top of cab 2.01 m
Length with bucket 3.57 m
Length with bucket 3.54 m
Length with bucket 3.32 m
Length without Bucket 2.77 m
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Turning radius 1.55 m
Turning radius 2.29 m
Turning radius 2.16 m
Width over tracks -
Width over tracks 1.68 m
Width over tracks 1.68 m
Undercarriage
Ground pressure 0.34 bar
Ground pressure 0.3 bar
Ground pressure 0.26 bar
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length 1.4 m
Track length 1.52 m
Track length 1.52 m
Track width 32 cm
Track width 38.1 cm
Track width 38.1 cm
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Hydraulic system
Pump flow cap 68.13 lpm
Pump flow cap 57.53 lpm
Pump flow cap 54.5 lpm
Relief valve pressure 206.01 bar
Relief valve pressure -
Relief valve pressure -
Operating specifications
Rack back angle 46 º
Rack back angle 44 º
Rack back angle 37 º
