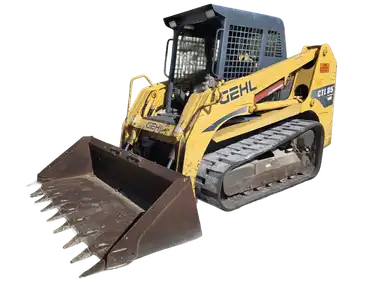

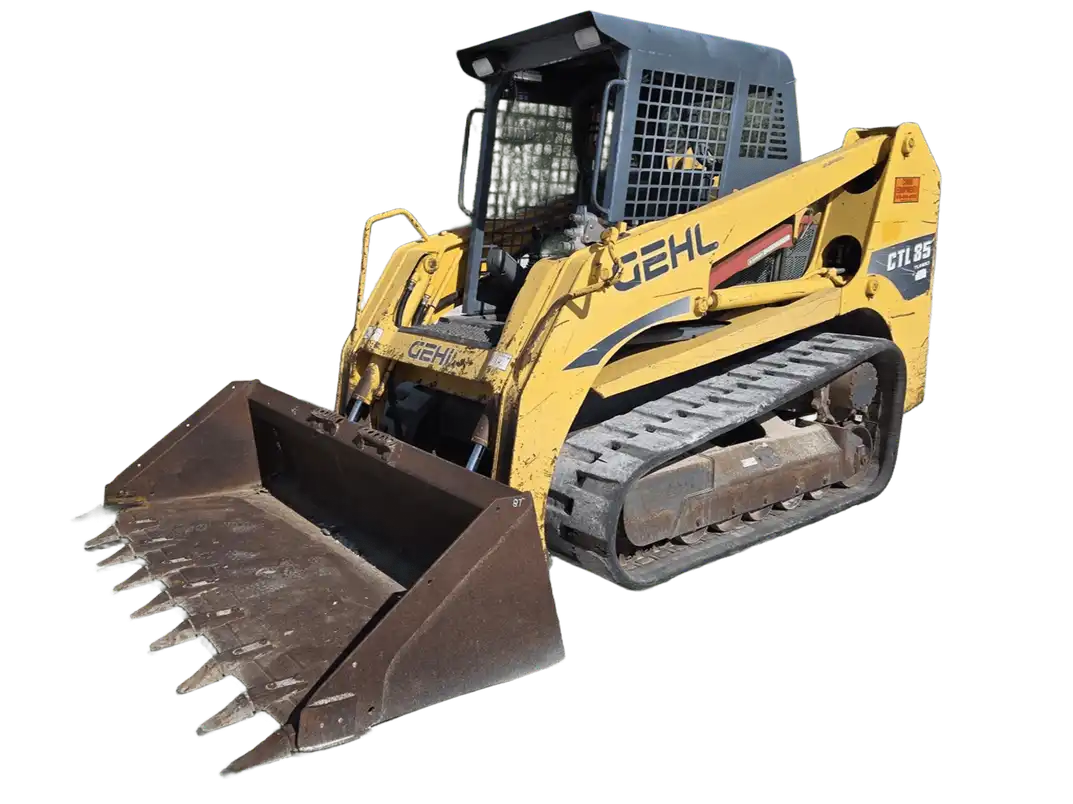

Gehl CTL85 Compact track loaders tech specs

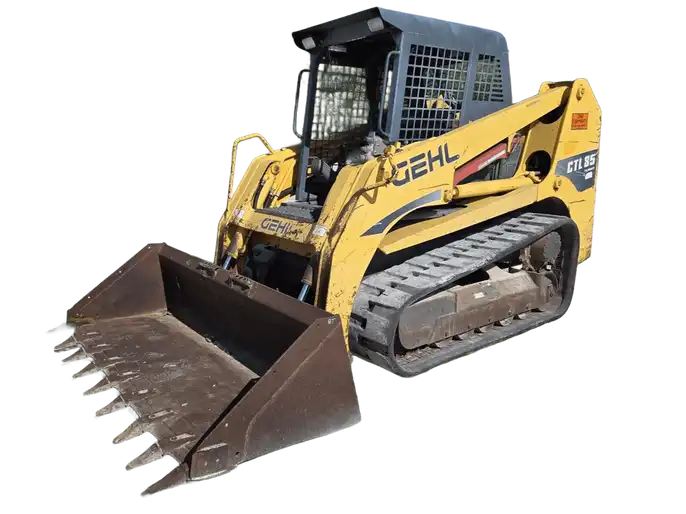

makana img
video play button
Video[1]

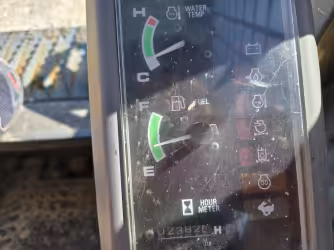

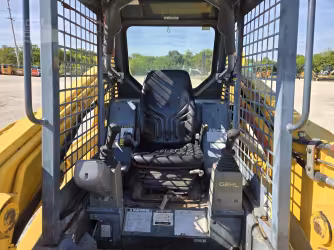

Interior [2]

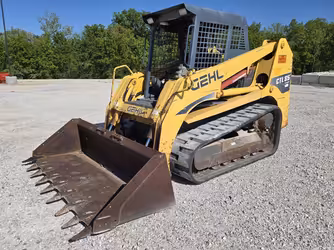

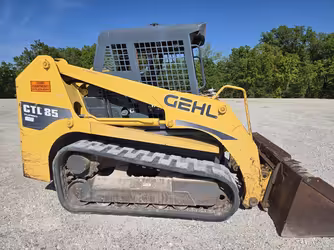

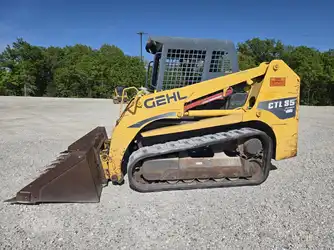

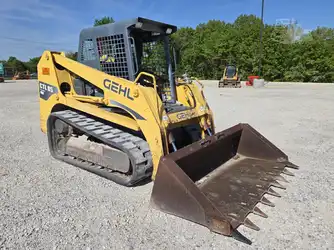

Exterior [4]

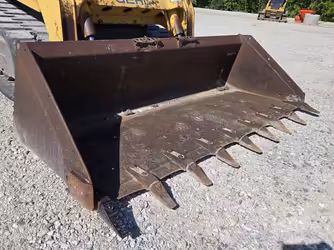

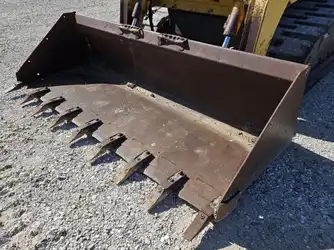

Attachments [2]
2006-2011
3,769.03 cu cm Displacement
68.61 kw Gross power
2.44 m Loader dump height
1.07 m Loader dump reach
1,600 kg Lifting capacity
5,090 kg Operating weight

A heavy compact track loader designed for demanding construction and material handling tasks, the Gehl CTL85 combines 68.61 kilowatt engine power with a rated lifting capacity of about 1,600 kg. Powered by a turbocharged Kubota diesel engine and supported by a wide rubber-track undercarriage, the machine provides strong traction, solid breakout performance, and dependable operation on soft or uneven terrain.

Gross power 68.61 kilowatt

Maximum torque 325.39 Nm

Rated lifting capacity 1,600 kg

Bucket capacity 0.61 cu m

Operating weight 5,090 kg

Hydraulic pump flow 88.95 lpm

Ground pressure 0.31 bar

Fuel tank capacity 108.25 liters

Makana rating

Owner rating

 | 3

Market average

AED 110,200

Starting from

AED 68,000

Gehl CTL85 Technical specifications

Engine

Alternator supplied amperage

80 Amh

Aspiration

Turbocharged

Gross power

68.61 kw

Number of cylinders

4

Power measured @

2,200 rpm

Torque measured @

1,600 rpm

General

Bucket capacity

0.61 cu m

Displacement

3769.03 cu cm

Engine model

V3800DI-T

Loader dump height

2.44 m

Loader dump reach

1.07 m

Lifting capacity

1600 kg

Max speed forward

12.07 kph

Max torque

325.39 Nm

Operating voltage

12 V

Operating weight

5,090 kg

Turning radius

1.82 m

Service refill capacities

Cooling fluid cap

16.65 liter

Fuel cap

108.25 liter

Hydraulic fluid cap

60.18 liter

Refill capacities

Engine oil cap

13.25 liter

Dimensions

Ground clearance

0.35 m

Height - top of cab

2.23 m

Length with bucket

3.99 m

Length without Bucket

3.14 m

Width over tracks

1.89 m

Undercarriage

Ground pressure

0.31 bar

Number of track rollers per side

5

Track length

1.62 m

Track width

45.72 cm

Hydraulic system

Pump flow cap

88.95 lpm

Relief valve pressure

206.01 bar

Operating specifications

Rack back angle

70 º

Download datasheets
OEM product brochure

Gehl CTL85 expert review

Reviewed by Rizwan R. on March 11, 2026

Overview

The Gehl CTL85 (2006–2011) is a heavy compact track loader designed for demanding material handling and construction work. It delivers 68.61 kilowatt engine power and around 1.6 ton lifting capacity.

Expert rating: 3 stars

Pros High lifting capacity with strong turbocharged engine.
Cons Older hydraulics and heavier machine size compared with modern loaders.

Performance & Efficiency

The Kubota V3800DI-T turbocharged diesel engine produces 68.61 kilowatt, delivering strong performance for grading and heavy material handling.

In Comparison

JCB 300: Durable machine with strong lifting capability.
JCB 320: Larger loader with higher productivity.
Gehl CTL85: Balanced heavy compact track loader with solid traction.

Final Verdict

Rated 3 stars, the Gehl CTL85 provides capable compact track loader performance within the AED 68,000–110,200 range.

Show less

Gehl CTL85 owner rating

Gehl CTL85 Compact track loaders [2006-2011]

2006-2011

Overall rating

Based on 3 ratings

4.0
performance

3.7

comfort

4.3

fuel efficiency

4.0

safety

4.7

features

4.3

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Strong engine torque and good lifting capacity for heavy work.
Cons
Older controls and hydraulics compared with newer machines.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2006

Gehl CTL85 similar models

Highlight differences
Gehl CTL85
JCB 300T
JCB 320T
Engine
Alternator supplied amperage 80 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Gross power 68.61 kw
Gross power 55.03 kw
Gross power 55.18 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,200 rpm
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Torque measured @ 1,600 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Emissions -
Emissions EPA-T4F (EU St3B)
Emissions EPA-T4F (EU St3B)
Engine cooling system -
Engine cooling system Liquid
Engine cooling system Liquid
Years 2006-2011
Years 2012-2025
Years 2011-2017
Market Average AED 110,200
Market Average AED 298,000
Market Average AED 232,000
Price AED 68,000
Price AED 245,000
Price AED 197,000
General
Bucket capacity 0.61 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Displacement 3,769.03 cu cm
Displacement 4,399.94 cu cm
Displacement 4,399.94 cu cm
Engine model V3800DI-T
Engine model EcoMAX TCAE-55
Engine model EcoMAX TCAE-55
Loader dump height 2.44 m
Loader dump height 2.41 m
Loader dump height 2.41 m
Loader dump reach 1.07 m
Loader dump reach 1.31 m
Loader dump reach 1.31 m
Lifting capacity 1,600 kg
Lifting capacity 5,089.04 kg
Lifting capacity 5,248.02 kg
Max speed forward 12.07 kph
Max speed forward 9.17 kph
Max speed forward 9.17 kph
Max torque 325.39 Nm
Max torque 400.1 Nm
Max torque 400.1 Nm
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 5,090 kg
Operating weight 5,089 kg
Operating weight 5,248 kg
Turning radius 1.82 m
Turning radius -
Turning radius -
Bucket width -
Bucket width 190 cm
Bucket width 190 cm
Service refill capacities
Cooling fluid cap 16.65 liter
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Fuel cap 108.25 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Refill capacities
Engine oil cap 13.25 liter
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Dimensions
Ground clearance 0.35 m
Ground clearance 0.23 m
Ground clearance 0.23 m
Height - top of cab 2.23 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 3.99 m
Length with bucket 3.81 m
Length with bucket 3.81 m
Length without Bucket 3.14 m
Length without Bucket -
Length without Bucket -
Width over tracks 1.89 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Undercarriage
Ground pressure 0.31 bar
Ground pressure 0.33 bar
Ground pressure 0.34 bar
Number of track rollers per side 5
Number of track rollers per side -
Number of track rollers per side -
Track length 1.62 m
Track length -
Track length -
Track width 45.72 cm
Track width 44.96 cm
Track width 44.96 cm
Hydraulic system
Pump flow cap 88.95 lpm
Pump flow cap 87.06 lpm
Pump flow cap 87.06 lpm
Relief valve pressure 206.01 bar
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Operating specifications
Rack back angle 70 º
Rack back angle 86 º
Rack back angle 91 º
Angle of departure -
Angle of departure 29 º
Angle of departure 29 º
Dump angle -
Dump angle 42 º
Dump angle 42 º
Loader
Loader digging depth -
Loader digging depth 1,000 cm
Loader digging depth 1,000 cm
Breakout force -
Breakout force -
Breakout force 2,968.04 kg
