Cat 428 Backhoe loaders

100K+ machines in details.

Cat 428 Backhoe loaders tech specs

Video[1]

Interior [3]

Exterior [4]

Attachments [2]

1987-2025

11,000 kg Operating weight

1 m3 Bucket capacity

74 kw Gross power

2,755 mm Loader dump height

805 mm Loader dump reach

4,400 mm Backhoe digging depth

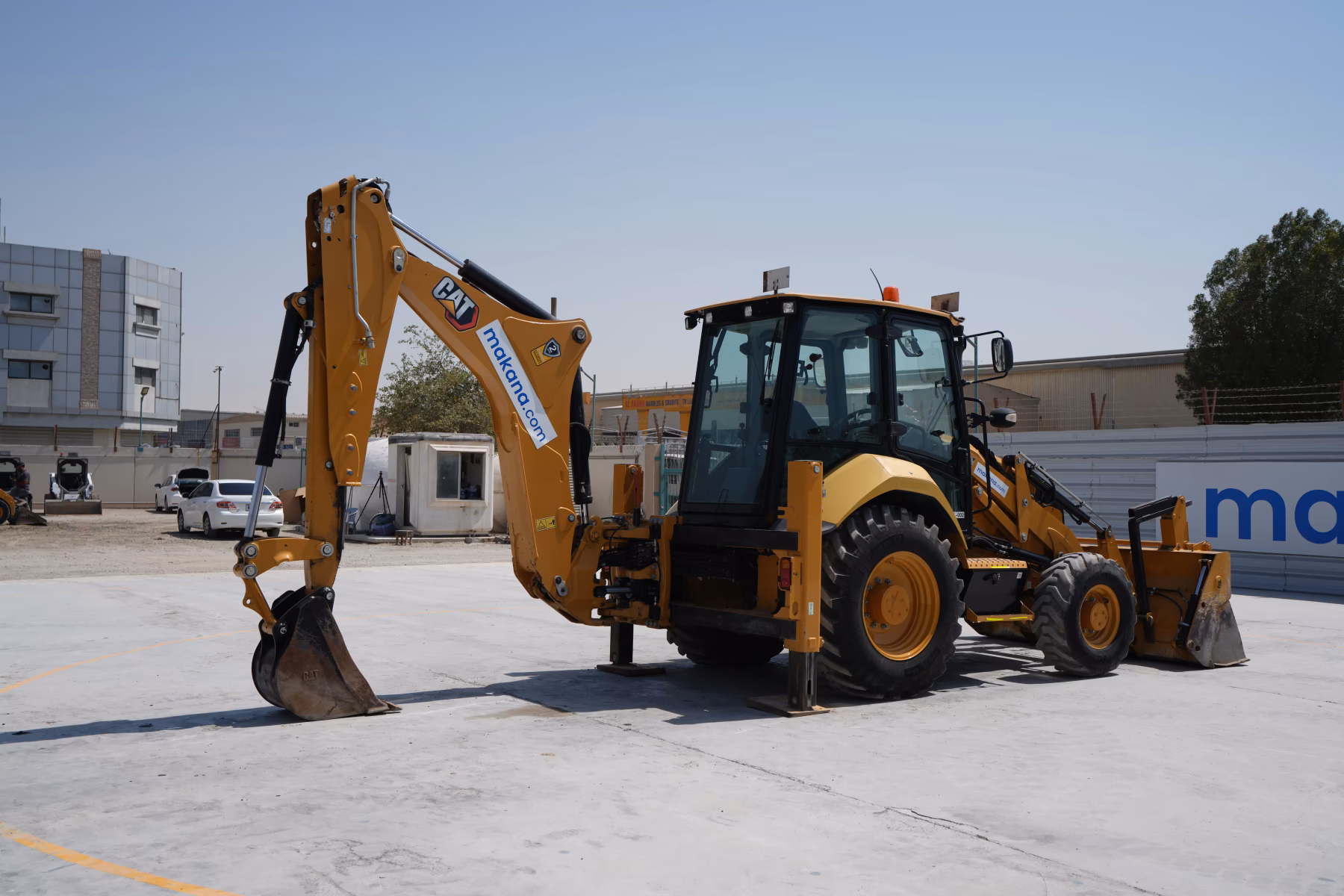

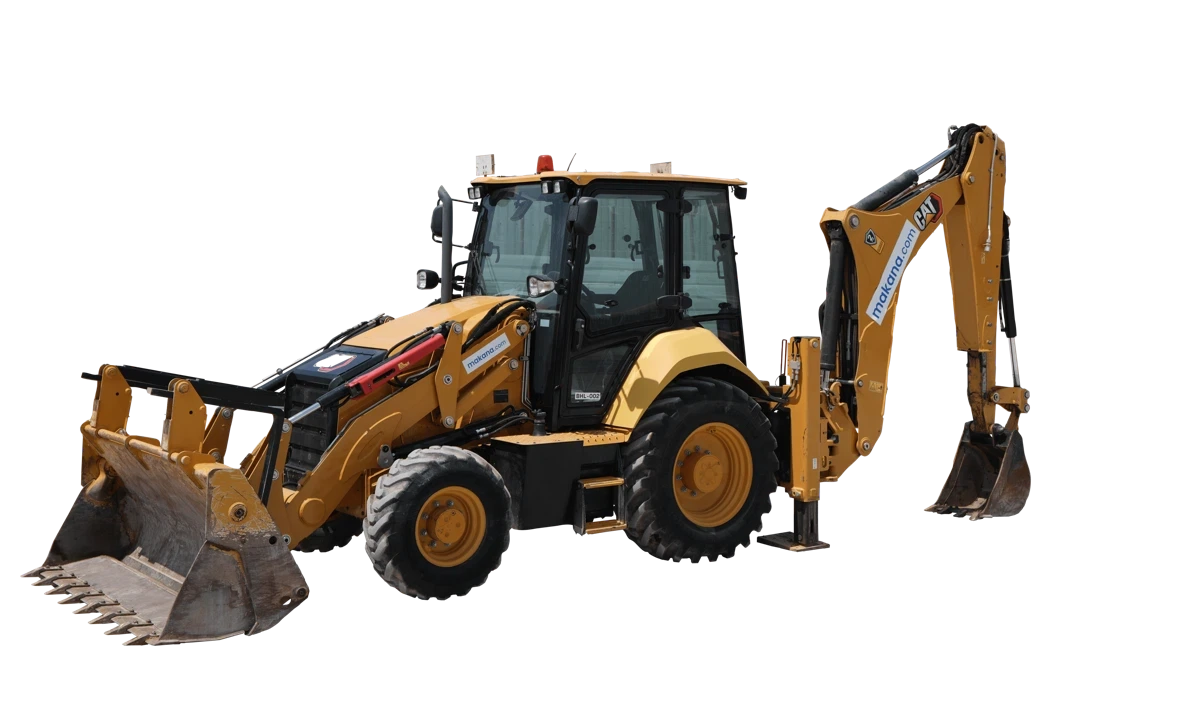

The Cat 428 is a backhoe loader built to balance dig power and loader capability.

~64 kW / 86 hp (net) from its Cat C3.6 engine

operating weight is approximately 9,453 kg (20,840 lb) in a typical configuration

loader bucket up to 1.03 m³ (MP bucket) size

backhoe digging reach ~4.3 m (standard stick)

Show features

Makana rating

Owner rating

| 1

Market average

AED 275,000

Starting from

AED 186,000

Cat 428 Technical specifications

General

Engine model

CAT 3054C

Operating weight

11,000 kg

Lifting capacity

3728 kg

Bucket width

2,409 mm

Tire size

(F) 340/80-18 , (R) 440/80-28

Bucket capacity

1 m3

Max speed forward

37 kph

Transmission type

Powershuttle 4x4

Engine

Displacement

4400 cm3

Aspiration

Mechanical turbo

Gross power

74 kw

Max torque

383 Nm

Net power

65.6 kw

Bore

10.5 cm

Stroke

12.7 cm

Emissions

Tier 3

Torque rise

31 %

Operational specifications

Arm crowding force

36.8 kN

Refill capacities

Engine oil cap

9 liter

Attachments

Bucket digging force

63.4 kN

Dimensions

Wheelbase

2.2 m

Overall Length

5 m

Overall Width

2 m

Hydraulic system

Pump flow cap

160 lpm

Relief valve pressure

250 bar

Pump type

Variable flow, axial piston

Loader

Breakout force

54.79 kN

Loader dump height

2755 mm

Loader dump reach

805 mm

Loader digging depth

99 mm

Service refill capacities

Cooling fluid cap

18 liters

Fuel cap

160 liter

Hydraulic fluid cap

95 liter

Front axle fluid cap

11 liters

Transmission fluid cap

19 liter

Rear axle fluid capacity

16 liter

Transmission

Max speed reverse

37 kph

Number of reverse gears

Number of forward gears

Operating specifications

Dump angle

45 degrees

Extended backhoe digging depth

5.7 m

Extended backhoe dump height

4.5 m

Extended backhoe dump reach

2.5 m

Extended backhoe reach from swivel

6.5 m

Backhoe

Backhoe dump height

3900 m

Backhoe reach from swivel

5600 m

Bucket rotation

205 degrees

Backhoe digging depth

4400 mm

Download datasheets

OEM product brochure

Cat 428 expert review

Reviewed by Wade A. on September 29, 2025

Overview

The 2019–2025 Cat 428 backhoe loader is a 4WD, 11-ton machine powered by a 4.4L Cat 3054C turbocharged engine delivering 74 kW (99 hp). With a 1 m³ front bucket and a backhoe dig depth of 4.4 m (extendable to 5.7 m), it offers versatility for various tasks. The machine features a powershuttle 4x4 transmission and a fuel capacity of 160 liters, making it suitable for extended operations.

Pros The Cat 3054C engine provides consistent power, and the machine's design ensures durability in demanding conditions. The cab is equipped with air conditioning and ergonomic controls, reducing operator fatigue during long shifts.

Cons Lacks some of the advanced telematics and automation features found in newer models. The upfront investment may be substantial for smaller operations.

What's new

The latest generation of the Cat 428 introduces several enhancements over its predecessors. The machine now features a redesigned cab with improved visibility and comfort. The hydraulic system has been upgraded to a closed-center design with a variable-flow axial piston pump delivering 160 L/min at 2,200 rpm, ensuring efficient operation of both the loader and backhoe functions. Additionally, heavy-duty axles and a 100% locking rear differential come as standard, providing high durability and excellent traction in various terrains.

Efficiency and performance

In daily operations, the Cat 428 demonstrates robust performance. Its loader breakout force of 54.79 kN and backhoe bucket digging force of 63.4 kN allow for efficient material handling. The machine's maximum forward and reverse speeds of 37 km/h facilitate quick movement between job sites. Operators have noted the machine's fuel efficiency and consistent power delivery, contributing to overall productivity.

In cabin and interior features

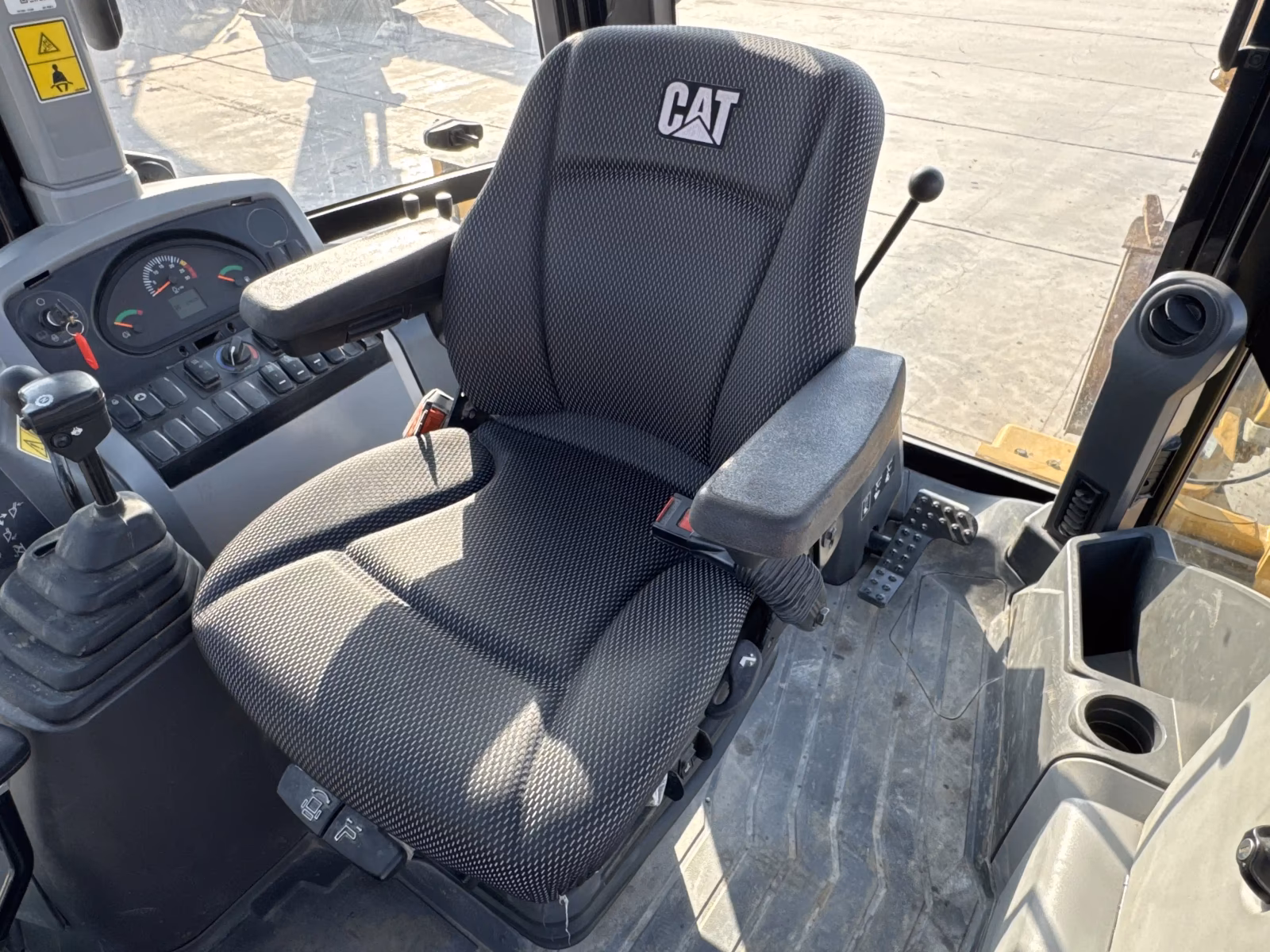

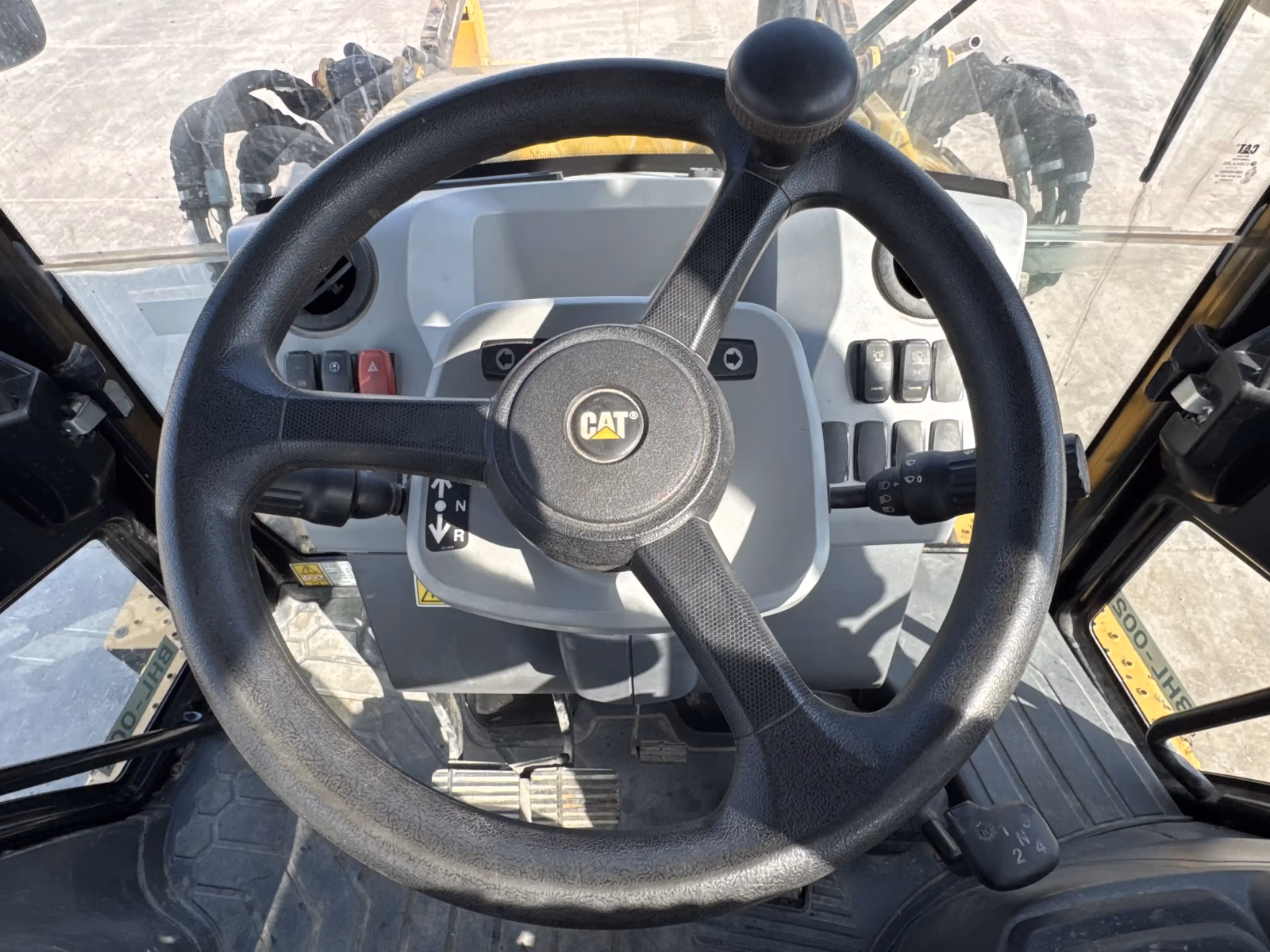

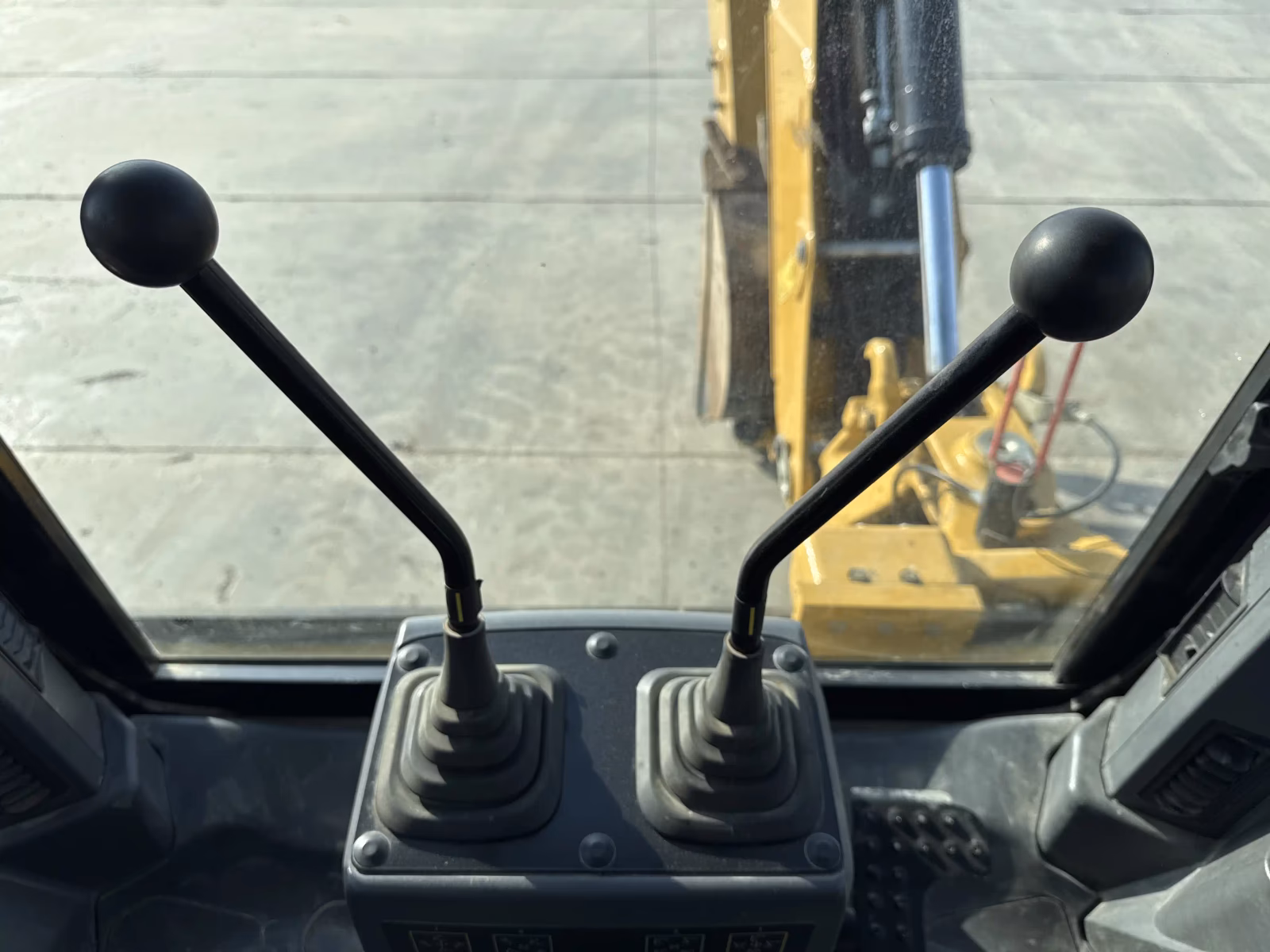

The operator station of the 428 is designed with functionality in mind. The cab includes a high-resolution touchscreen monitor, mechanically adjustable seat with headrest, and automatic bi-level air conditioner. The layout of controls is intuitive, allowing operators to quickly adapt and operate the machine efficiently.

Safety features

Safety is a key consideration in the design of the 428. The machine is equipped with a fully enclosed ROPS and FOPS cab, protecting operators from rollovers and falling objects. The cab's design enhances visibility, reducing blind spots and contributing to safer operation. The machine's maintenance-friendly design minimizes the risk of accidents during routine checks, and the inclusion of a backup alarm and interlock system further enhances operator safety.

In comparison

Compared to the Case 590 SM, the Cat 428 offers a more compact and maneuverable design, making it suitable for urban job sites. While the 590 SM boasts impressive craning capabilities, the 428 provides a balanced performance with its efficient hydraulic system and comfortable operator environment. The Cat 428's fuel efficiency and ease of maintenance are additional advantages over the heavier and more complex 590 SM.

Verdict

The 2019–2025 Cat 428 Backhoe Loader earns a solid 5-star rating for its reliability, fuel efficiency, and operator-focused design. While attention to advanced technology features is necessary, the machine's overall performance and cost-effectiveness make it a valuable asset for various applications.
