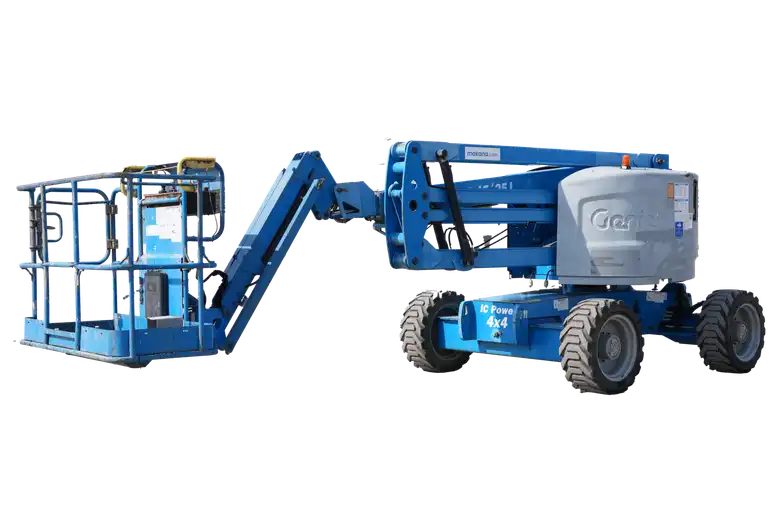

Genie Z-45 Boom lifts tech specs
:quality(50)/103835/8ceb54a4-6729-44bf-b074-340a7c256b54.png)
:quality(50)/103842/conversions/c1181d0b-44cf-41b5-8379-f2fee4e0132d-thumb.webp)

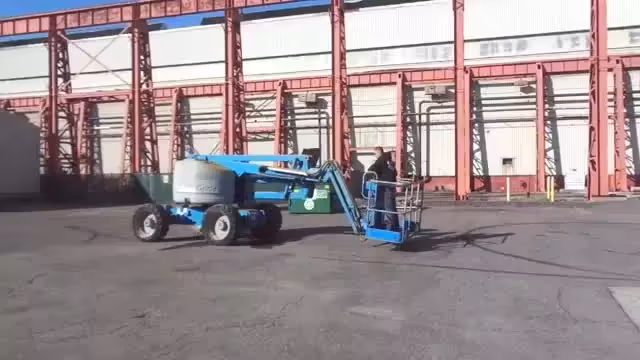

Video[1]
:quality(50)/103839/conversions/483f79b9-b270-4fd5-a88b-26febf8abff6-thumb.webp)

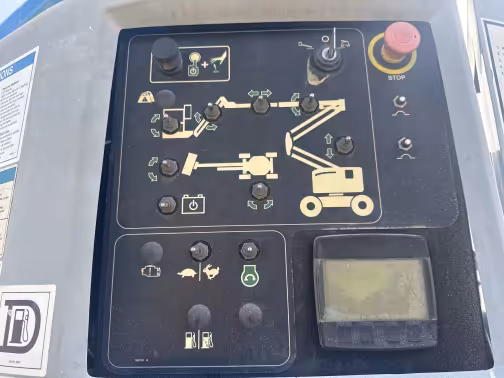

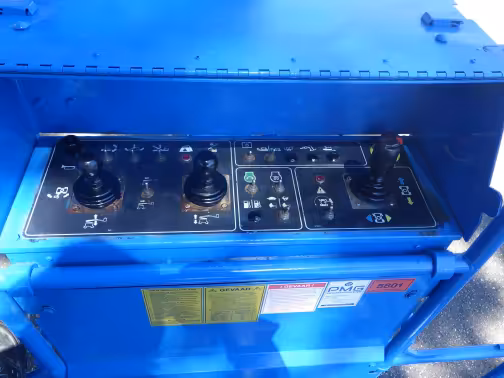

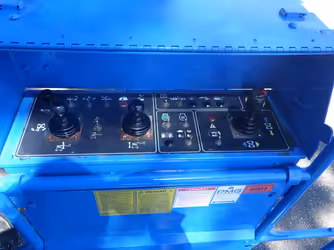

Interior [2]
:quality(50)/103841/conversions/71dc98a3-50fe-4b84-a068-cb03a77a8c98-thumb.webp)

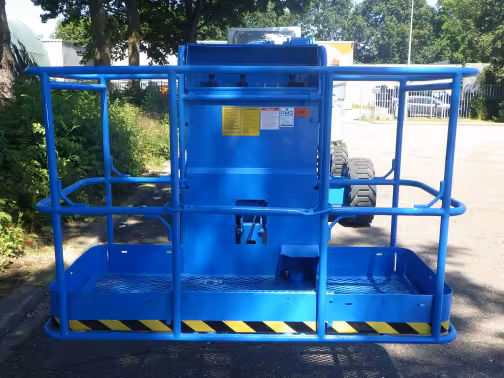

Attachments [1]
:quality(50)/103843/conversions/70e2a1b9-e531-41e0-9a60-759497ca74ad-thumb.webp)

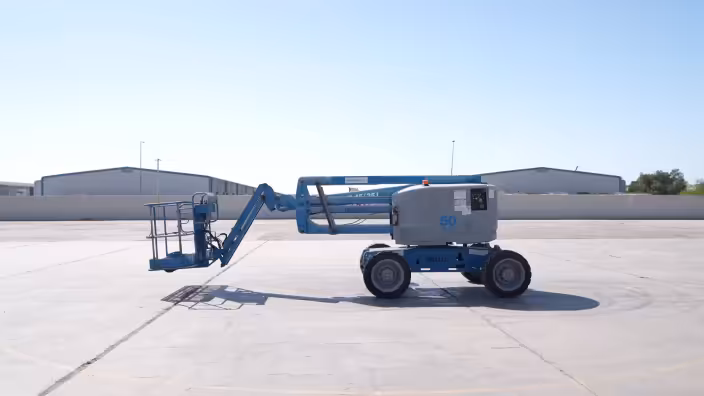

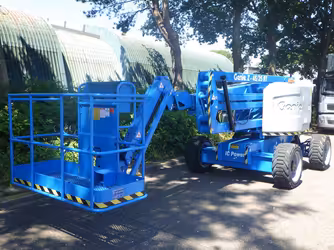

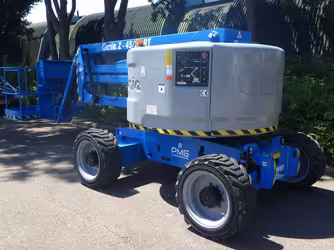

Exterior [4]
Genie Z-45 technical specifications
Highlight differences
:quality(50)/103836/07c22ff6-6e16-42c4-8785-64d70ec8deed.png)
:quality(50)/103837/667b2e47-561a-4889-b97f-f604e1fcbbb4.png)
:quality(50)/103838/327f2c51-0cb5-44da-8e45-de7e5e060442.png)
Engine model
Engine model Deutz D2011
Engine model DSG-423
Engine model DSG-423
Engine model -
Engine model -
Engine model DSG-423
Engine model DSG-423
Engine model -
Engine model -
Engine model DSG-423
Operating weight
Operating weight 6,515 kg
Operating weight 7,700 kg
Operating weight 7,598 kg
Operating weight 7,190 kg
Operating weight 6,963 kg
Operating weight 6,203 kg
Operating weight 6,294 kg
Operating weight 7,394 kg
Operating weight 7,394 kg
Operating weight 6,577 kg
Fuel type
Fuel type Diesel
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Fuel type -
Gradeability
Gradeability 24 º
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Gradeability -
Tire size
Tire size 315/55 D20
Tire size 9x14.5
Tire size 9x14.5
Tire size 9x14.5
Tire size 9x14.5
Tire size 355/55 D625
Tire size 355/55 D625
Tire size 9x14.5
Tire size 9x14.5
Tire size 355/55 D625
Operating voltage
Operating voltage 12
Operating voltage -
Operating voltage -
Operating voltage 48 V
Operating voltage 48 V
Operating voltage -
Operating voltage -
Operating voltage 48 V
Operating voltage 48 V
Operating voltage -
Turning radius
Turning radius 4.5 m
Turning radius 4.27 m
Turning radius 4.27 m
Turning radius 4.27 m
Turning radius 4.27 m
Turning radius 4.51 m
Turning radius 4.51 m
Turning radius 4.27 m
Turning radius 4.27 m
Turning radius 4.51 m
Max horizontal reach
Max horizontal reach 7,520 mm
Max horizontal reach 7.65 m
Max horizontal reach 7.62 m
Max horizontal reach 7.62 m
Max horizontal reach 7.62 m
Max horizontal reach 7.62 m
Max horizontal reach 7.62 m
Max horizontal reach 7.65 m
Max horizontal reach 7.65 m
Max horizontal reach 7.65 m
Wheelbase
Wheelbase 2.03 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase 2.04 m
Wheelbase -
Wheelbase 2.04 m
Max working height
Max working height 15.86 m
Max working height 15.94 m
Max working height 15.88 m
Max working height 15.88 m
Max working height 15.88 m
Max working height 16 m
Max working height 16 m
Max working height 15.94 m
Max working height 15.94 m
Max working height 16.09 m
Platform rotation
Platform rotation 160 degrees
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Platform rotation 180 º
Max speed forward
Max speed forward -
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max speed forward 8.05 kph
Max speed forward 8.05 kph
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max speed forward 8.05 kph
Years
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Years 2012-2021
Market Average
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Market Average AED 165,000
Price
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Price AED 105,900
Gross power
Gross power 35.8 kw
Gross power 55.93 kw
Gross power 55.93 kw
Gross power 8.95 kw
Gross power -
Gross power 55.93 kw
Gross power 55.93 kw
Gross power 8.95 kw
Gross power -
Gross power 55.93 kw
Battery amperage
Battery amperage -
Battery amperage -
Battery amperage -
Battery amperage 350 Amh
Battery amperage 350 Amh
Battery amperage -
Battery amperage -
Battery amperage 350 Amh
Battery amperage 350 Amh
Battery amperage -
Number of batteries
Number of batteries -
Number of batteries -
Number of batteries -
Number of batteries 8
Number of batteries 8
Number of batteries -
Number of batteries -
Number of batteries 8
Number of batteries 8
Number of batteries -
Ground clearance
Ground clearance 37 m
Ground clearance -
Ground clearance 0.24 m
Ground clearance 0.24 m
Ground clearance 0.24 m
Ground clearance 0.39 m
Ground clearance 0.39 m
Ground clearance 0.24 m
Ground clearance 0.24 m
Ground clearance 0.39 m
Stowed height
Stowed height 2.13 mm
Stowed height 2.01 m
Stowed height 2.01 m
Stowed height 2.01 m
Stowed height 2.01 m
Stowed height 2.13 m
Stowed height 2.13 m
Stowed height 2.01 m
Stowed height 2.01 m
Stowed height 2.13 m
Axle Oscillation
Axle Oscillation 0.15 m
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Axle Oscillation -
Overall Length
Overall Length 6.65 m
Overall Length 0.57 m
Overall Length 0.46 m
Overall Length 0.46 m
Overall Length 0.46 m
Overall Length 0.46 m
Overall Length 0.46 m
Overall Length 0.57 m
Overall Length 0.57 m
Overall Length 0.46 m
Overall Width
Overall Width 2.29 m
Overall Width 1.8 m
Overall Width 1.8 m
Overall Width 1.8 m
Overall Width 1.8 m
Overall Width 2.32 m
Overall Width 2.32 m
Overall Width 1.8 m
Overall Width 1.8 m
Overall Width 2.32 m
Fuel cap
Fuel cap 64 liter
Fuel cap 64.72 liter
Fuel cap 64.72 liter
Fuel cap 34.44 liter
Fuel cap 34.44 liter
Fuel cap 64.72 liter
Fuel cap 64.72 liter
Fuel cap 34.44 liter
Fuel cap 34.44 liter
Fuel cap 64.72 liter
Hydraulic fluid cap
Hydraulic fluid cap 83 liter
Hydraulic fluid cap 90.84 liter
Hydraulic fluid cap 90.84 liter
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 90.84 liter
Hydraulic fluid cap 90.84 liter
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 30.28 liter
Hydraulic fluid cap 90.84 liter
Swing
Swing 355 degrees
Swing -
Swing -
Swing -
Swing -
Swing -
Swing -
Swing -
Swing -
Swing -
Swing type
Swing type non-continuous
Swing type -
Swing type -
Swing type -
Swing type -
Swing type -
Swing type -
Swing type -
Swing type -
Swing type -
Tire Type
Tire Type Rough Terrain
Tire Type Foam filled
Tire Type Foam filled
Tire Type Foam filled
Tire Type Foam filled
Tire Type -
Tire Type -
Tire Type Foam filled
Tire Type -
Tire Type -
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered 5 kph
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered -
Platform Dimension A
Platform Dimension A 0.76 m
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension A 76.2 cm
Platform Dimension B
Platform Dimension B 1.83 m
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Platform Dimension B 183.13 cm
Download datasheets

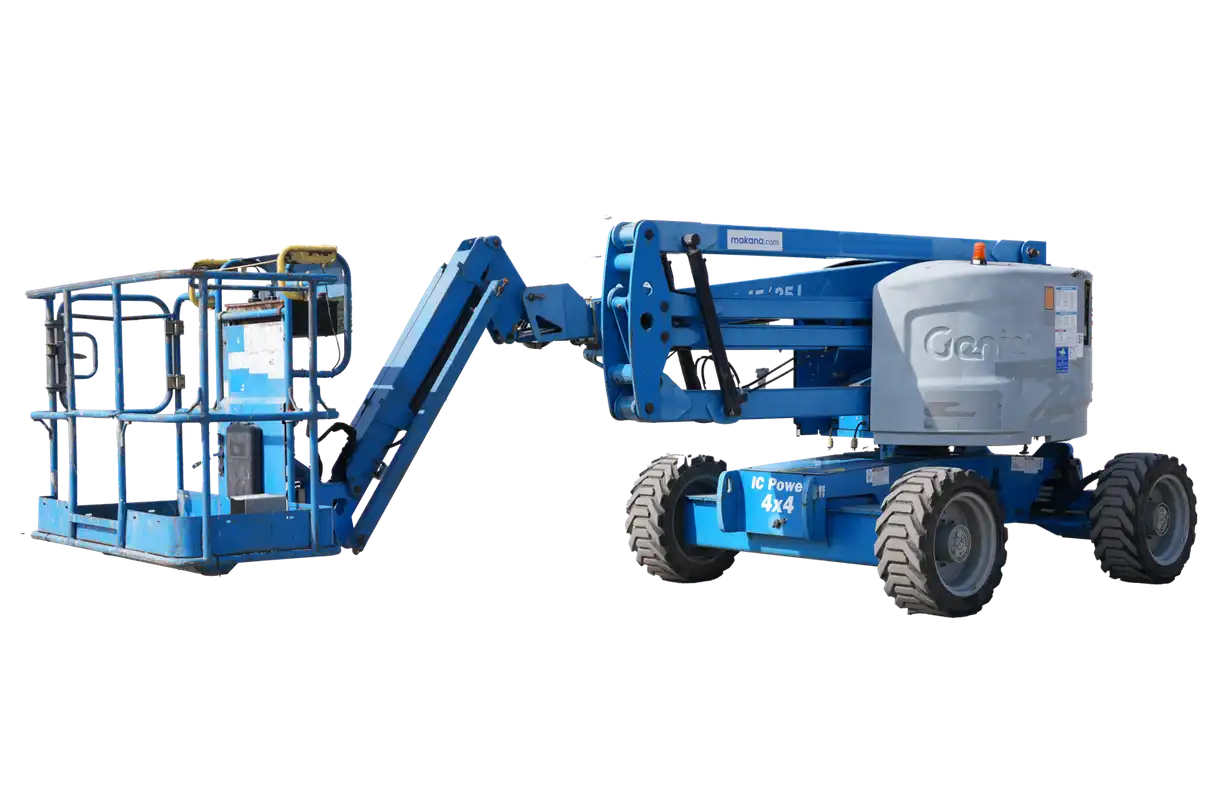

Genie Z-45 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Genie Z-45 (2012–2021) is a compact articulated boom lift designed for versatile access work. It delivers a 15.86 m maximum working height with good obstacle clearance and stable rough-terrain performance.
Expert rating: 5 stars
Pros
Articulated reach, compact footprint, dependable site performance.
Cons
Swing is not fully continuous.
Performance & Efficiency
The 35.8 kilowatt Deutz engine provides reliable power for lift and drive operations, while a 5 km/h stowed drive speed supports efficient repositioning.
In Comparison
Sinoboom AB15: Comparable reach with different chassis setup.
JLG E300: Electric and quieter for indoor use.
Genie Z-45: Balanced articulated solution for mixed environments.
Final Verdict
Rated 5 stars, the Genie Z-45 is a solid articulated boom lift in the AED 105,900–165,000 range.
Genie Z-45 owner rating
Genie Z-45 Boom lifts [2012-2021]
2012-2021
Overall rating
Based on 3 ratings
4.7
performance
4.7
comfort
4.3
fuel efficiency
5.0
safety
4.7
features
4.0
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Genie Z-45 similar models
Highlight differences
:quality(50)/72121/0472dbac-7107-45b6-aef3-aedb65ca27ac.webp)
:quality(50)/58964/d13013b3-973c-4f80-95b5-a9e699f0f918.png)
Engine model
Engine model Deutz D2011
Engine model Yanmar 4TNV88C-DFLT
Engine model -
Operating weight
Operating weight 6,515 kg
Operating weight 7,280 kg
Operating weight 7,098 kg
Fuel type
Fuel type Diesel
Fuel type Diesel
Fuel type -
Gradeability
Gradeability 24 º
Gradeability 21 %
Gradeability 25 º
Tire size
Tire size 315/55 D20
Tire size 315/55D20
Tire size 25 x 7 x 12
Operating voltage
Operating voltage 12
Operating voltage 12
Operating voltage 48 V
Turning radius
Turning radius 4.5 m
Turning radius 1.8 m
Turning radius 3.11 m
Max horizontal reach
Max horizontal reach 7,520 mm
Max horizontal reach 8.5 mm
Max horizontal reach 6,130 mm
Wheelbase
Wheelbase 2.03 m
Wheelbase 2,030 mm
Wheelbase 1.68 m
Max working height
Max working height 15.86 m
Max working height 21.8 m
Max working height 8.99 m
Platform rotation
Platform rotation 160 degrees
Platform rotation 160 degrees
Platform rotation 180 º
Years
Years 2012-2021
Years 2021-2024
Years 1999-2025
Market Average
Market Average AED 165,000
Market Average AED 363,000
Market Average AED 135,000
Price
Price AED 105,900
Price AED 210,000
Price AED 92,000
Gross power
Gross power 35.8 kw
Gross power 35.49 kw
Gross power -
Battery amps
Battery amps -
Battery amps -
Battery amps 370 Amh
Number of batteries
Number of batteries -
Number of batteries -
Number of batteries 8
Ground clearance
Ground clearance 37 m
Ground clearance 32 cm
Ground clearance 10.16 cm
Stowed height
Stowed height 2.13 mm
Stowed height 2,220 mm
Stowed height 2.04 m
Axle Oscillation
Axle Oscillation 0.15 m
Axle Oscillation 0.1 m
Axle Oscillation -
Overall Length
Overall Length 6.65 m
Overall Length 7.35 m
Overall Length 4.6 m
Overall Width
Overall Width 2.29 m
Overall Width 2.26 m
Overall Width 1.22 m
Fuel cap
Fuel cap 64 liter
Fuel cap 55 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 83 liter
Hydraulic fluid cap 90 liter
Hydraulic fluid cap 11.73 liter
Swing
Swing 355 degrees
Swing 355 degrees
Swing 350 º
Swing type
Swing type non-continuous
Swing type Non-continuous
Swing type -
Tire Type
Tire Type Rough Terrain
Tire Type Foam-filled
Tire Type Non-marking
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227 kg
Platform Capacity - Unrestricted 250 kg
Platform Capacity - Unrestricted 226.8 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered 5 kph
Drive Speed - Platform Lowered 5 kph
Drive Speed - Platform Lowered 4.83 kph
Jib Range of Motion - Horizontal
Jib Range of Motion - Horizontal -
Jib Range of Motion - Horizontal -
Jib Range of Motion - Horizontal 144 º
Platform Dimension A
Platform Dimension A 0.76 m
Platform Dimension A 1.83 m
Platform Dimension A 0.79 m
Platform Dimension B
Platform Dimension B 1.83 m
Platform Dimension B 0.85 m
Platform Dimension B 1.22 m
Genie Z-45 gallery
:quality(50)/103839/483f79b9-b270-4fd5-a88b-26febf8abff6.webp)
:quality(50)/103840/6da35994-1c31-41a1-a024-53dbf186e026.webp)
:quality(50)/103841/71dc98a3-50fe-4b84-a068-cb03a77a8c98.webp)
:quality(50)/103843/70e2a1b9-e531-41e0-9a60-759497ca74ad.webp)
:quality(50)/103844/a541a552-d5cd-4514-8b78-aedc0e111831.webp)
:quality(50)/103845/c2607fd6-7a0b-4068-81e4-f307575faad8.webp)
:quality(50)/103846/dca07313-82f5-4f73-a21d-092594954fd9.webp)
:quality(50)/103842/conversions/c1181d0b-44cf-41b5-8379-f2fee4e0132d-thumb.webp)
:quality(75)/products/10188/cover/f1a70908-928b-43c8-a87b-08618f12d5a2.png)
:quality(75)/products/10197/cover/07fc9838-5bd0-4342-b654-6e0278f81744.png)
:quality(75)/products/10211/cover/acd7bf61-b14f-4068-aab6-6b3e2bbe26a2.png)
:quality(75)/products/10217/cover/ec7f4e1e-15fb-49e3-9f3e-1b017bed6c57.png)
Similar machines. Other reviews.
:quality(50)/58928/8984e9d8-de1c-472e-b751-291e2d117ae7.png)
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
:quality(50)/58850/5372794e-b43a-406b-9294-1922aef387e4.png)
:quality(50)/103767/a9e7b77b-808d-48ae-afa0-4a3d0f8e6c7c.png)
JLG 450AJ VS Genie Z-45/25J RT JLG 450AJ II VS Genie Z-45/24 Haulotte HA12IP VS Genie Z-45/25 Genie S-60 HC VS Genie Z-45/25 RT 4wd JLG 340AJ VS Genie Z-45/24 Skyjack SJ46 AJ VS Genie Z-45/24 Genie S-60 VS Genie Z-45/25J RT JLG 340AJ VS Genie Z-45/25J Elec JLG 450AJ II VS Genie Z-45/25J RT JLG E400AJPN VS Genie Z-45/25 Bi JLG E400AJPN VS Genie Z-45/25J Elec JLG E400AJPN VS Genie Z-45/25J RT 4wd JLG 400S VS Genie Z-45/24 Genie Z-45/25 VS Genie Z-51/30J RT JLG 1250AJP VS Genie Z-45/24 JLG 1250AJP VS Genie Z-45/25 JLG 340AJ VS Genie Z-45/25 JLG 340AJ VS Genie Z-45/25 RT JLG 450AJ VS Genie Z-45/25 JLG 600AJ VS Genie Z-45/24 Skyjack SJ63 AJ VS Genie Z-45/25J RT 4wd Genie Z-34/22N VS Genie Z-45/25J RT JLG 400S VS Genie Z-45/25 Bi Genie Z-30/20N VS Genie Z-45/25 Elec JLG 450AJ VS Genie Z-45/25J RT 4wd Haulotte HA12IP VS Genie Z-45/24 Skyjack SJ46 AJ VS Genie Z-45/25 Elec Skyjack SJ63 AJ VS Genie Z-45/25J Elec Genie Z-45/25J RT VS Genie Z-51/30J RT Genie S-125 VS Genie Z-45/24 JLG 450AJ VS Genie Z-45/25J Elec JLG E400AJPN VS Genie Z-45/25 JLG E400AJPN VS Genie Z-45/25 Elec JLG E400AJPN VS Genie Z-45/25J Bi Sinoboom AB15J VS Genie Z-45/25J RT Genie Z-45/25J RT VS Genie Z-80/60 JLG 860SJ VS Genie Z-45/25 Genie Z-135/70 VS Genie Z-45/25J RT 4wd Genie Z-45/25J Bi VS Genie Z-60/34 JLG 1250AJP VS Genie Z-45/25 Bi JLG 450AJ VS Genie Z-45/25 RT 4wd JLG 800AJ VS Genie Z-45/24 JLG 800AJ VS Genie Z-45/25 JLG E400AJPN VS Genie Z-45/25J RT JLG E400AJPN VS Genie Z-45/25 RT 4wd Haulotte HA12IP VS Genie Z-45/25J RT Haulotte HA12IP VS Genie Z-45/25 Bi Haulotte HA15IP VS Genie Z-45/25J RT
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
:quality(50)/35112/27094105-1188-4d7f-b8cd-5ed4b9c99391.svg)
:quality(50)/35115/93df1526-7a54-4e3c-9c3b-06102e561c2b.svg)
