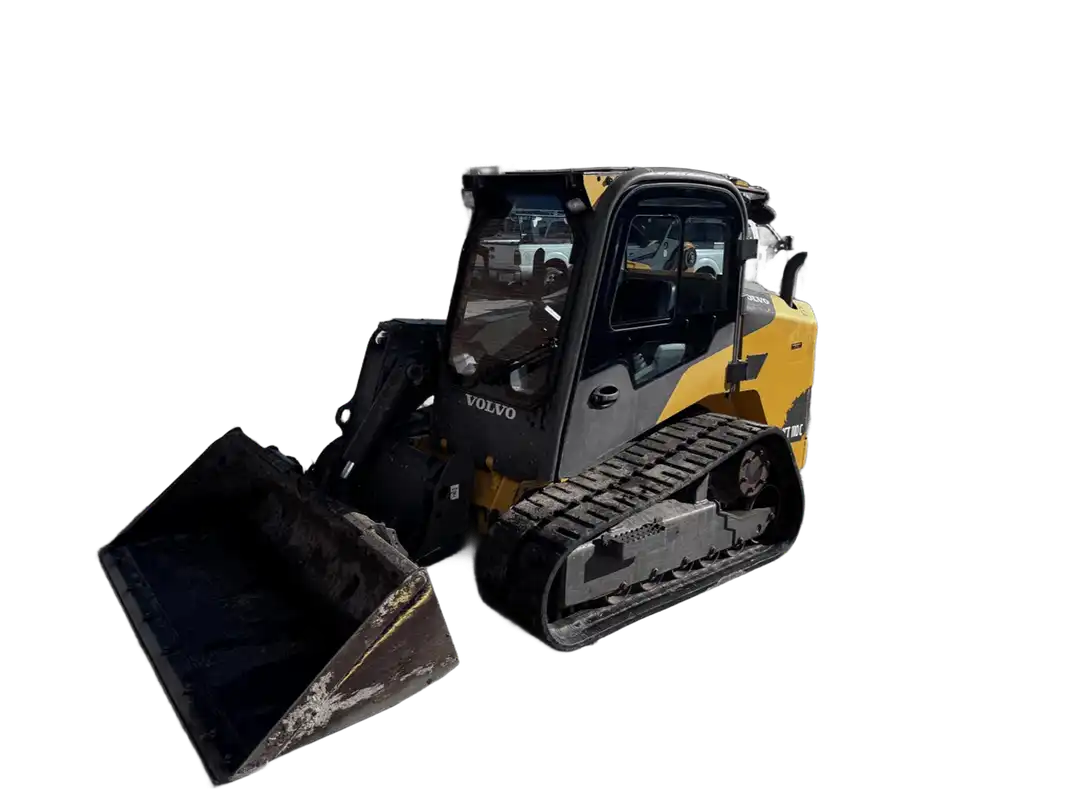

Volvo MCT110 Compact track loaders tech specs
:quality(50)/74717/conversions/0569f607-4a5a-49bd-bde7-8b8b976bb1c2-thumb.webp)
Video[1]
:quality(50)/74709/conversions/2154b113-be43-4dd4-81f9-4c09dfeab1f2-thumb.webp)

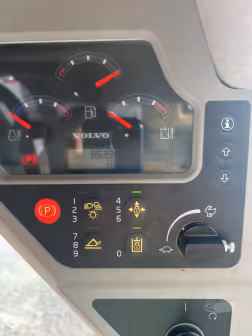

Interior [2]
:quality(50)/74711/conversions/d023a195-2011-4fb8-aa6a-022923884c7b-thumb.webp)

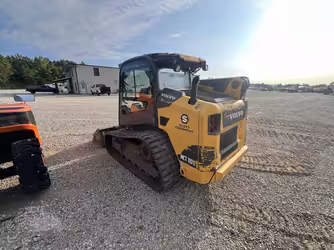

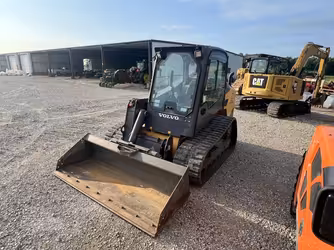

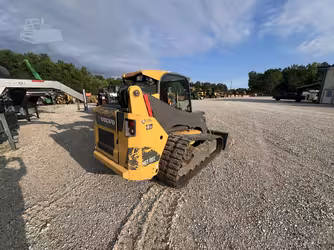

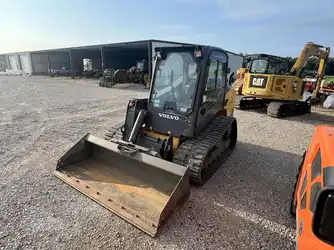

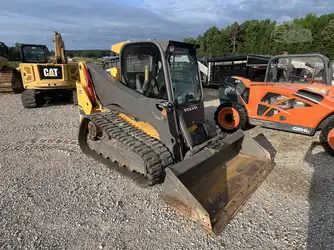

Exterior [4]
:quality(50)/74715/conversions/364be39a-104f-459a-9b97-67fccf1fe3f1-thumb.webp)

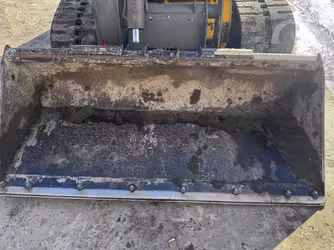

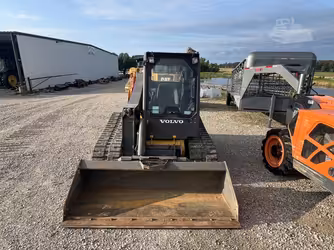

Attachments [2]
2011-2018
2,481.01 cu cm Displacement
55.03 kw Gross power
2.44 m Loader dump height
0.59 m Loader dump reach
1,025.12 kg Lifting capacity
4,640 kg Operating weight
Makana rating
Market average
AED 122,000Starting from
AED 68,000Volvo MCT110 technical specifications
Highlight differences
Volvo MCT110C
Volvo MCT110D
Alternator supplied amperage
Alternator supplied amperage 342 Amh
Alternator supplied amperage 342 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 2,481.01 cu cm
Displacement 4,399.94 cu cm
Gross power
Gross power 55.03 kw
Gross power 41.01 kw
Max torque
Max torque 400.1 Nm
Max torque 400.1 Nm
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Years
Years 2011-2018
Years 2011-2018
Market Average
Market Average AED 122,000
Market Average AED 122,000
Price
Price AED 68,000
Price AED 68,000
Angle of departure
Angle of departure 28 º
Angle of departure 29 º
Dump angle
Dump angle 42 º
Dump angle 42 º
Lift arm path
Lift arm path Radial
Lift arm path Radial
Rack back angle
Rack back angle 30 º
Rack back angle 30 º
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity 0.61 cu m
Bucket width
Bucket width 198 cm
Bucket width 190 cm
Engine model
Engine model TCAE-55
Engine model TCAE-55
Lifting capacity
Lifting capacity 1,025.12 kg
Lifting capacity 1,146 kg
Max speed forward
Max speed forward 9.98 kph
Max speed forward 9.17 kph
Operating weight
Operating weight 4,640 kg
Operating weight 4,818 kg
Tipping load
Tipping load 2,915 kg
Tipping load 3,502 kg
Breakout force - lift cylinder
Breakout force - lift cylinder 2,669.03 kg
Breakout force - lift cylinder 2,528.01 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder 2,585.03 kg
Breakout force - tilt cylinder 2,968.04 kg
Loader dump height
Loader dump height 2.44 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.59 m
Loader dump reach 0.6 m
Cooling fluid cap
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Fuel cap
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 208.18 liter
Engine oil cap
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Ground clearance
Ground clearance 0.25 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket
Length with bucket 2.96 m
Length with bucket 3.02 m
Length without Bucket
Length without Bucket 3.72 m
Length without Bucket 3.81 m
Max height to hinge pin
Max height to hinge pin 318.01 cm
Max height to hinge pin 318.01 cm
Overall Width
Overall Width 1.98 m
Overall Width 1.93 m
Turning radius
Turning radius 1.77 m
Turning radius 1.77 m
Width over tracks
Width over tracks 2.1 m
Width over tracks 1.1 m
Pump flow cap
Pump flow cap 125.28 lpm
Pump flow cap 125.28 lpm
Relief valve pressure
Relief valve pressure 229.94 bar
Relief valve pressure 230.01 bar
Download datasheets
Volvo MCT110 similar models
Highlight differences
Volvo MCT110C
Cat 277B
Cat 279C
Alternator supplied amperage
Alternator supplied amperage 342 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 2,481.01 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power
Gross power 55.03 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque
Max torque 400.1 Nm
Max torque -
Max torque -
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Net power
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years
Years 2011-2018
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 122,000
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 68,000
Price AED 62,500
Price AED 114,000
Angle of departure
Angle of departure 28 º
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle 42 º
Dump angle -
Dump angle 40 º
Lift arm path
Lift arm path Radial
Lift arm path -
Lift arm path -
Rack back angle
Rack back angle 30 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket width
Bucket width 198 cm
Bucket width -
Bucket width -
Engine model
Engine model TCAE-55
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity
Lifting capacity 1,025.12 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward
Max speed forward 9.98 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight
Operating weight 4,640 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Tipping load
Tipping load 2,915 kg
Tipping load 2,676 kg
Tipping load 2,940 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Breakout force - lift cylinder
Breakout force - lift cylinder 2,669.03 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder 2,585.03 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height
Loader dump height 2.44 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.59 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Cooling fluid cap
Cooling fluid cap 15.52 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap
Fuel cap 103.33 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine oil cap
Engine oil cap 15.14 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Ground clearance
Ground clearance 0.25 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 2.96 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 3.72 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin
Max height to hinge pin 318.01 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width 1.98 m
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius
Turning radius 1.77 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks
Width over tracks 2.1 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Pump flow cap
Pump flow cap 125.28 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type
Pump type -
Pump type Standard
Pump type High Flow XPS
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length
Track length -
Track length 2.07 m
Track length 1.77 m

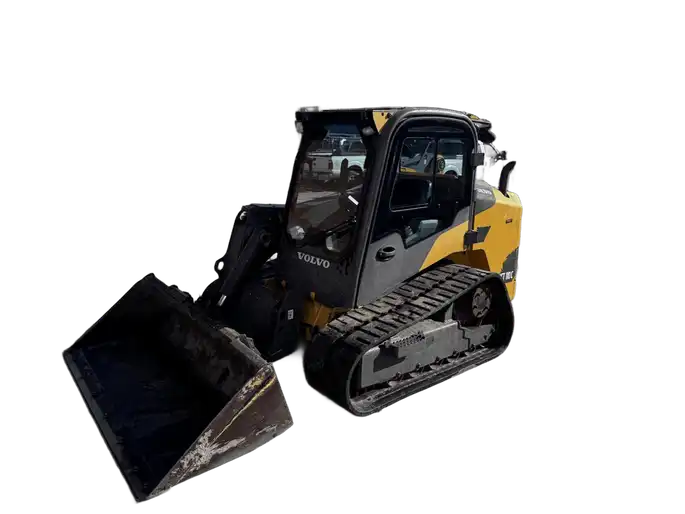

Volvo MCT110 gallery
