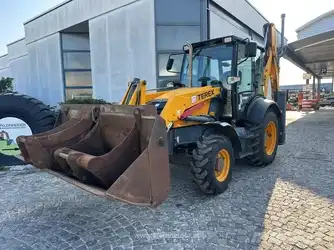

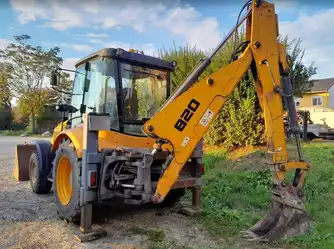

Terex 820 Backhoe loaders tech specs

Alternator supplied amperage

75 Amh

Displacement

4408.13 cu cm

Gross power

68.61 kw

Max torque

394.54 Nm

Net power

64.13 kw

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Backhoe digging depth

4.48 m

Backhoe reach from swivel

5.73 m

Breakout force

4849.78 kg

Loader digging depth

15.75 cm

Loader dump height

2.65 m

Loader dump reach

0.67 m

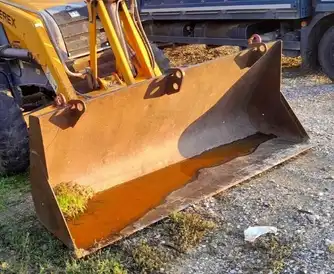

Bucket capacity

1.07 cu m

Bucket width

231 cm

Engine model

1104C-44T

Max speed forward

40.07 kph

Operating voltage

12 V

Operating weight

7,149 kg

Transmission type

4 speed synchro gearbox

Bucket digging force

5260.05 kg

Cooling fluid cap

16.28 liter

Front axle fluid capacity

12.87 liter

Fuel cap

130.2 liter

Hydraulic fluid cap

143.07 liter

Rear axle fluid capacity

17.79 liter

Transmission fluid cap

15.14 liter

Engine oil cap

8.71 liter

Extended backhoe digging depth

5.82 m

Extended backhoe dump height

4.54 m

Extended backhoe dump reach

2.93 m

Extended backhoe reach from swivel

7.04 m

Front tires size (2WD)

12.5x18

Rear tires size

16.9x28

Ground clearance

0.4 m

Height - top of cab

2.77 m

Overall Length

7.35 m

Overall Width

2.32 m

Turning radius

3.87 m

Wheelbase

2.13 m

Max speed reverse

41.04 kph

Number of forward gears

4

Number of reverse gears

4

Pump flow cap

142.32 lpm

Pump type

Tandem gear

Relief valve pressure

224.08 bar
